Power Brake Booster Outlet Hose Replacement (With LWN, Booster to Reservoir)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

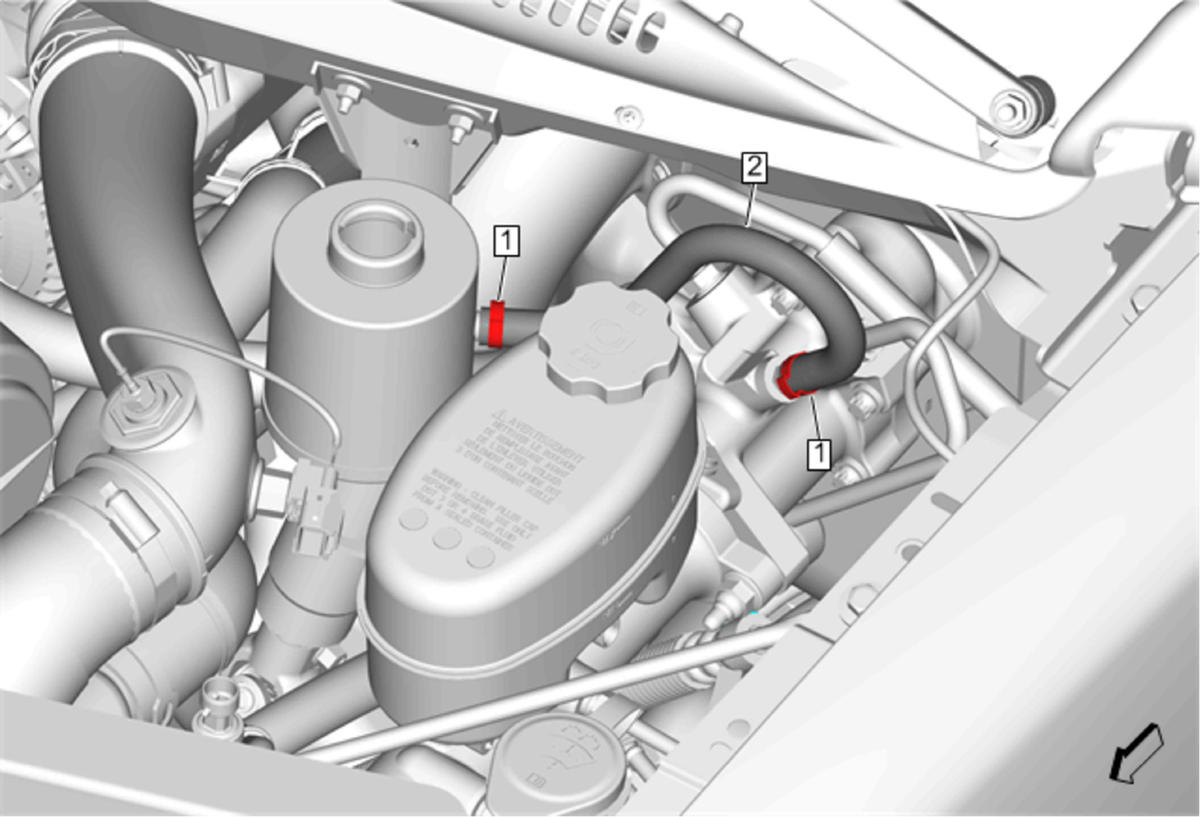

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove as much power steering fluid from the power steering fluid reservoir as possible. |
|
| 1 | Power Brake Booster Outlet Hose Clamp[2x] Procedure DISCARD the clamps. |
| 2 | Power Brake Booster Outlet Hose
CAUTION:
Refer to Power Steering Hose Disconnected Caution .
CAUTION:
Procedure Checking and Adding Power Steering Fluid |
