Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:

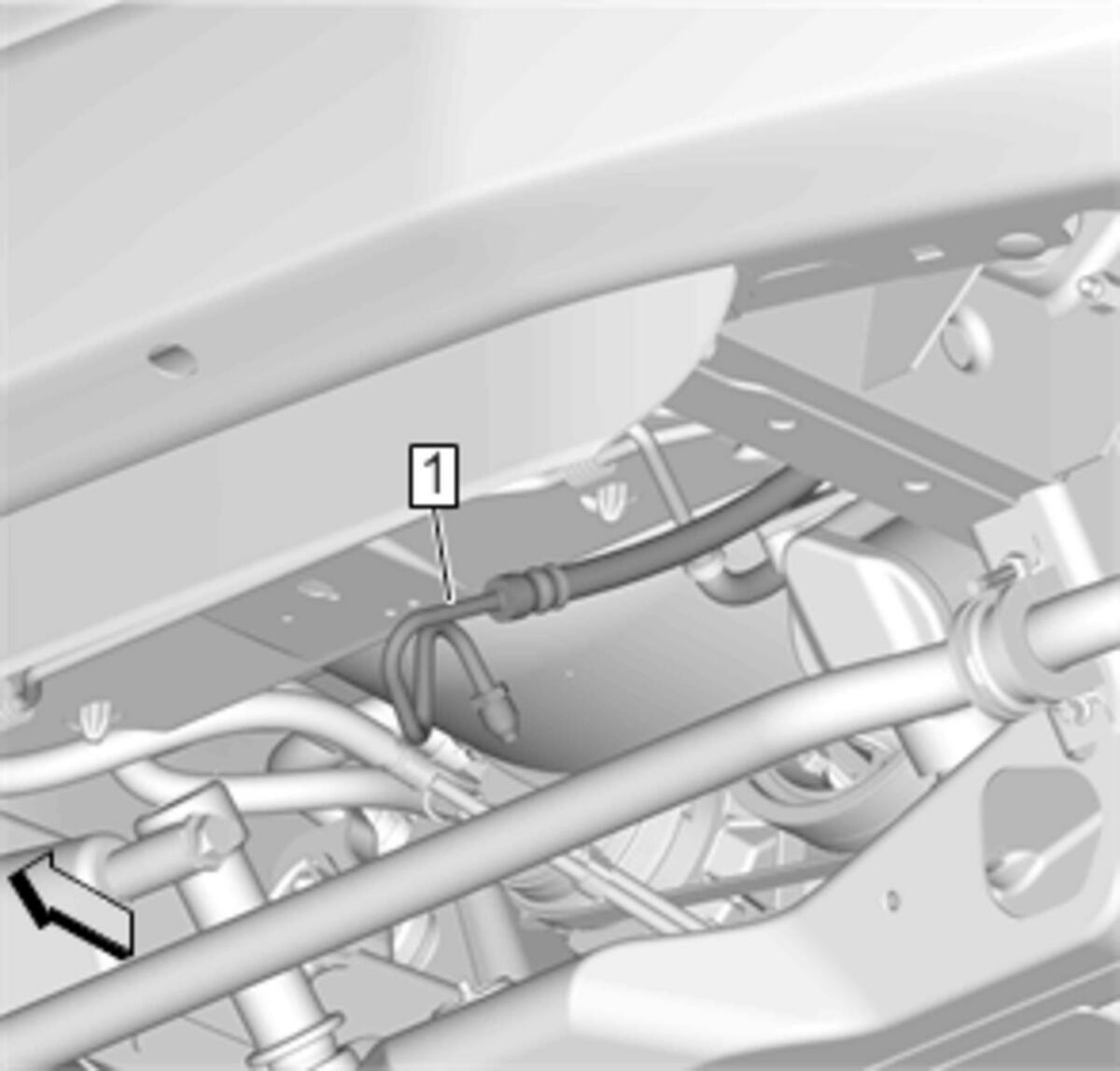

From underneath the vehicle, guide the power brake booster outlet hose (1) upwards into the engine compartment and into position on the vehicle frame.

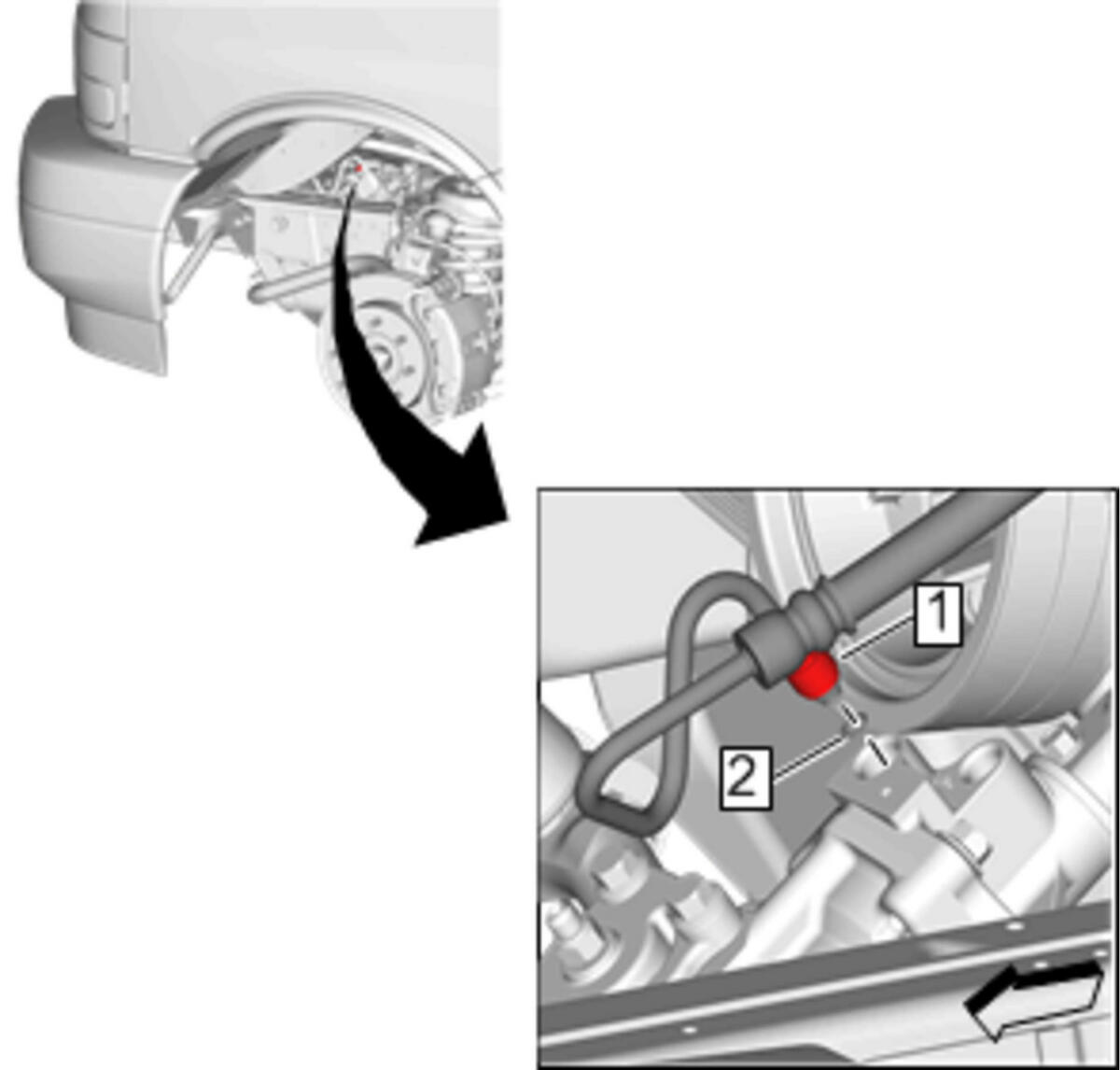

Install a NEW power brake booster outlet hose seal (2) on the power brake booster outlet hose.
Apply a small amount of power steering fluid on the seal to aid in installation.
- Power Brake Booster Outlet Hose(1) @ Steering Gear - Install and tighten34 N.m (25 lb ft)

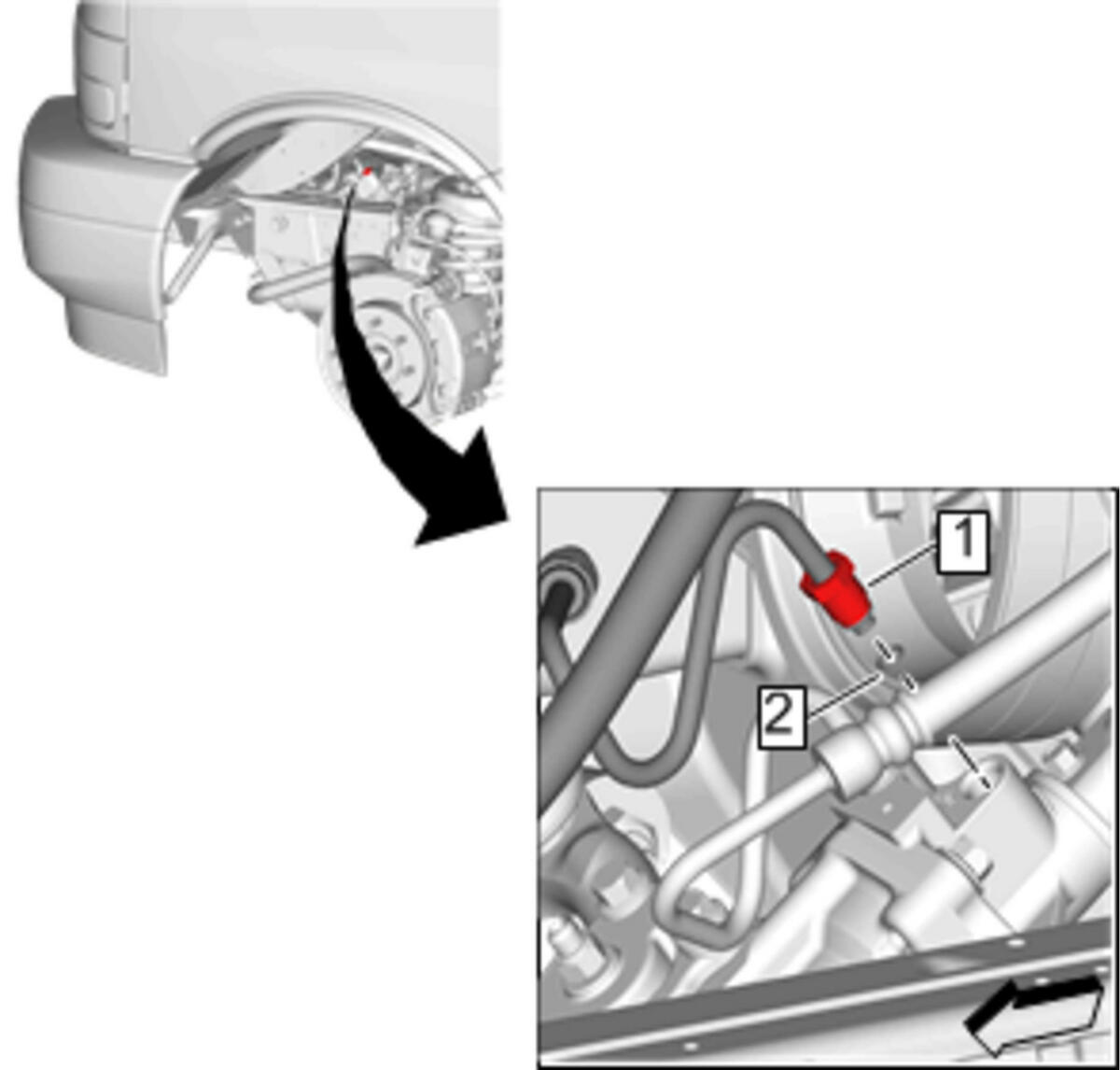

Install a NEW power steering fluid cooler hose seal (2) on the power steering fluid cooler hose.
Apply a small amount of power steering fluid on the seal to aid in installation.
- Power Steering Fluid Cooler Hose(1) @ Steering Gear - Install and tighten34 N.m (25 lb ft)
- Engine Protection Shield - Install - Engine Protection Shield Replacement
- Front Wheelhouse Splash Shield-Left Side - Install - Wheelhouse Splash Shield Replacement (Left Side) , or Wheelhouse Splash Shield Replacement (Right Side)
- Lower the vehicle.
Install a NEW power brake booster outlet hose seal (3) on the power brake booster outlet hose.
Apply a small amount of power steering fluid on the seal to aid in installation.
- Power Brake Booster Outlet Hose(2) @ Power Brake Booster - Install and tighten34 N.m (25 lb ft)
- Install a NEW power brake booster outlet hose strap (1).
- Fill and bleed the power steering system. Power Steering System Bleeding
CAUTION:
Refer to Component Fastener Tightening Caution .
