Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:

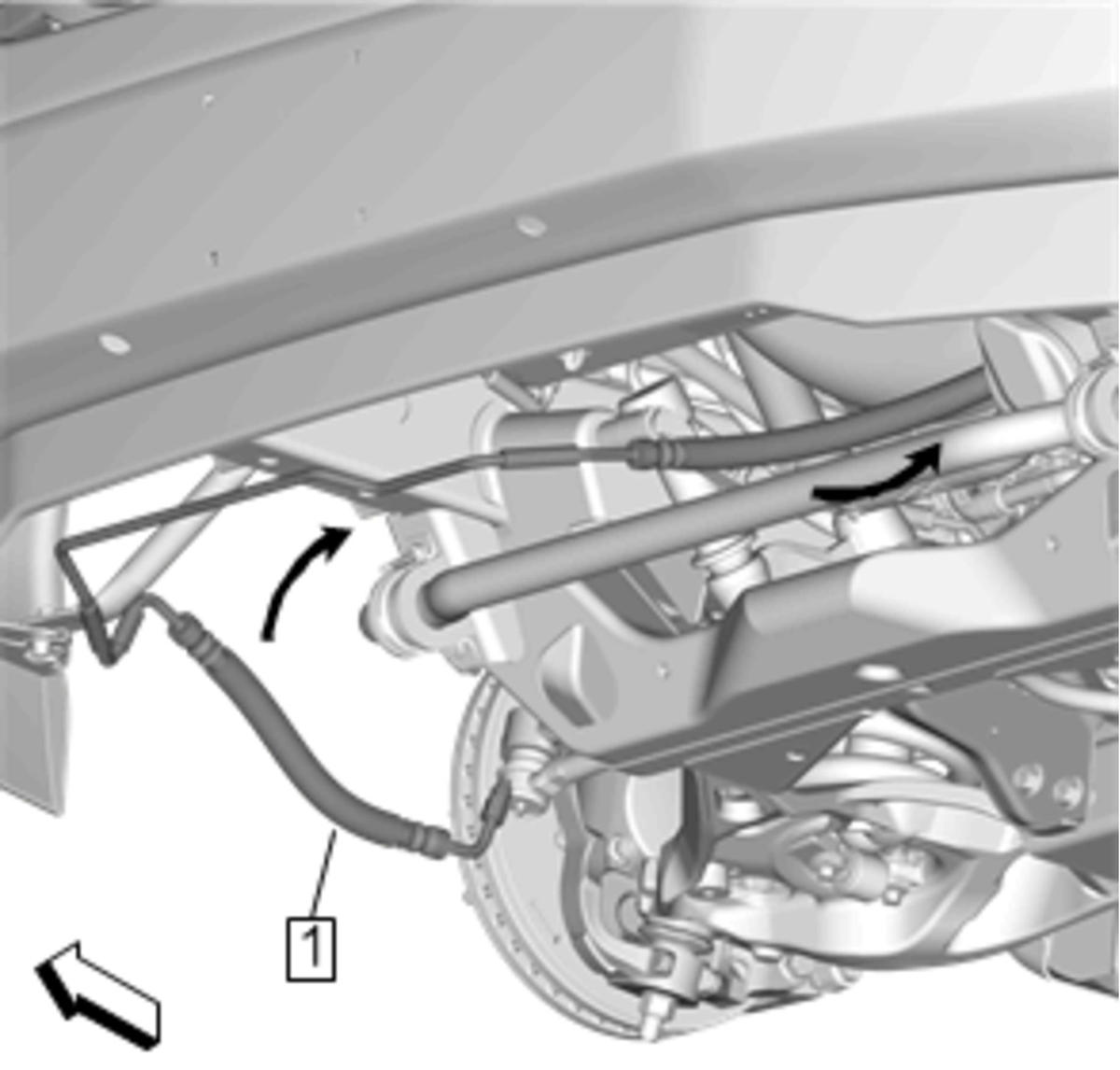

Reroute the power brake booster inlet hose within the engine compartment.
Install a NEW power brake booster inlet hose seal (2) on the power brake booster inlet hose.
Apply a small amount of power steering fluid on the seal to aid in installation.

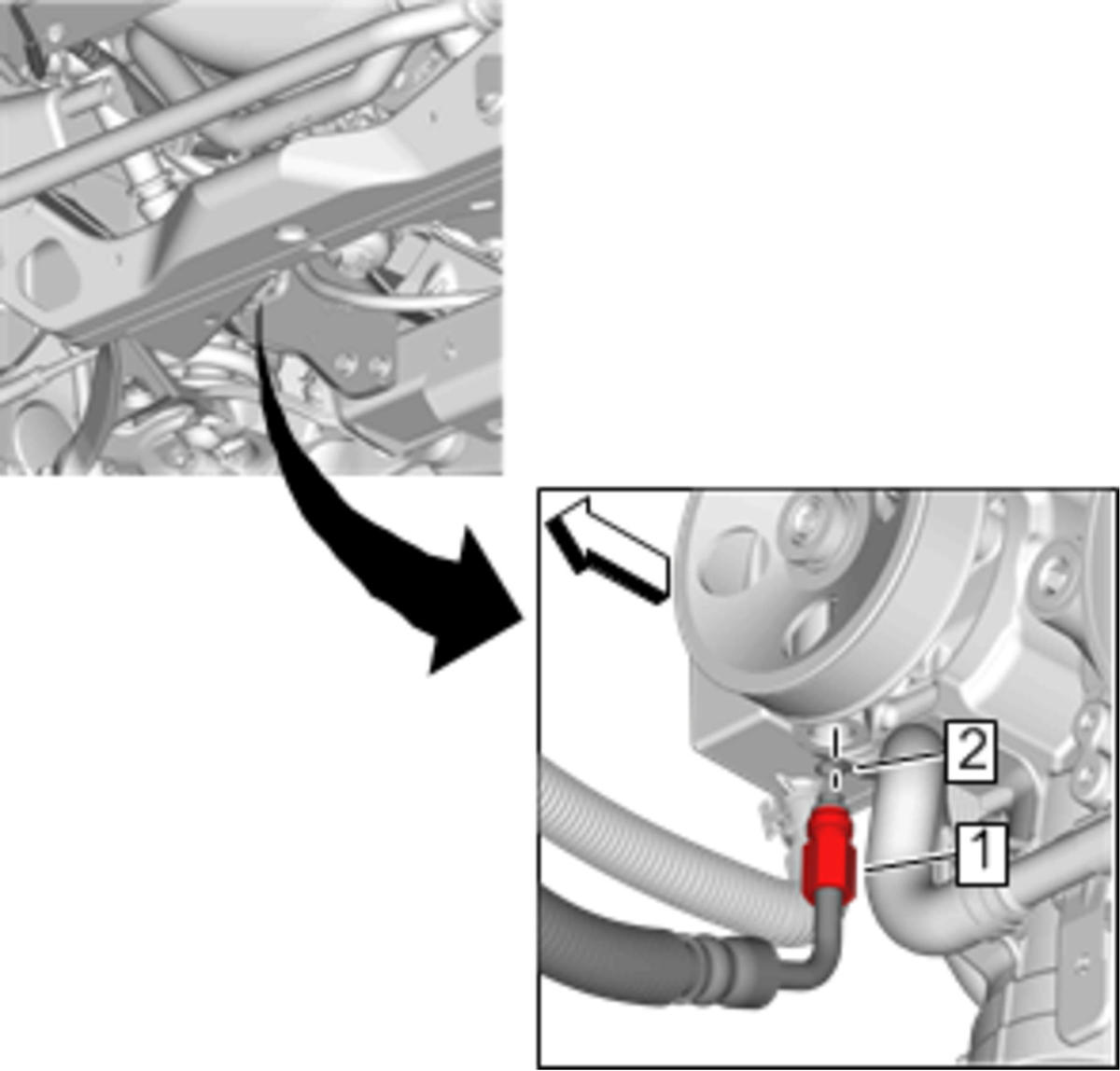

- Power Brake Booster Inlet Hose(1) @ Power Steering Pump - Install and tighten38 N.m (28 lb ft)

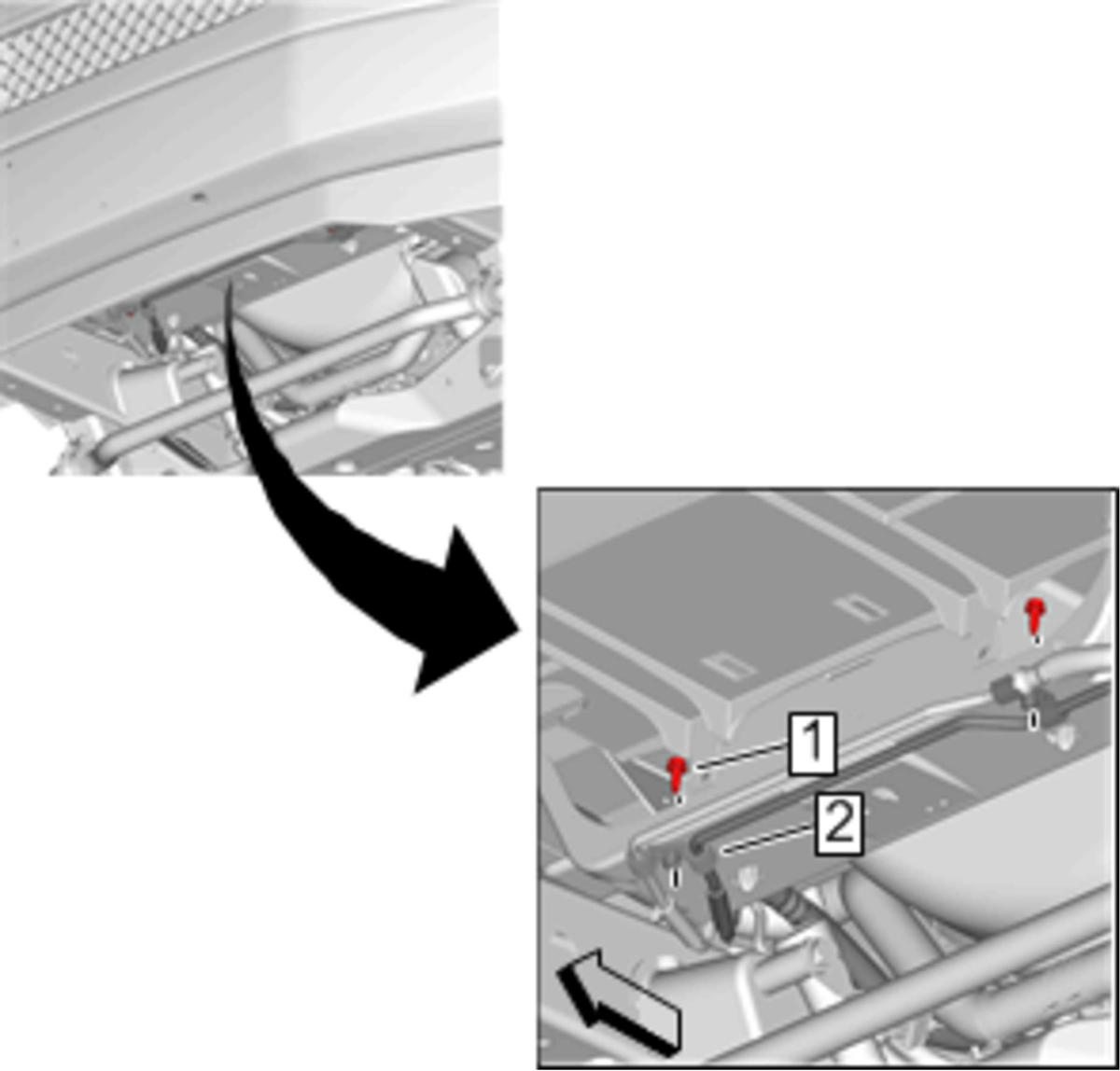

Power Brake Booster Inlet Hose Bracket (2) - Install[2x]
- Power Brake Booster Inlet Hose Bracket Bolt (1) - Install and tighten[2x]5 N.m (44 lb in)
- Engine Protection Shield - Install - Engine Protection Shield Replacement
- Lower the vehicle.

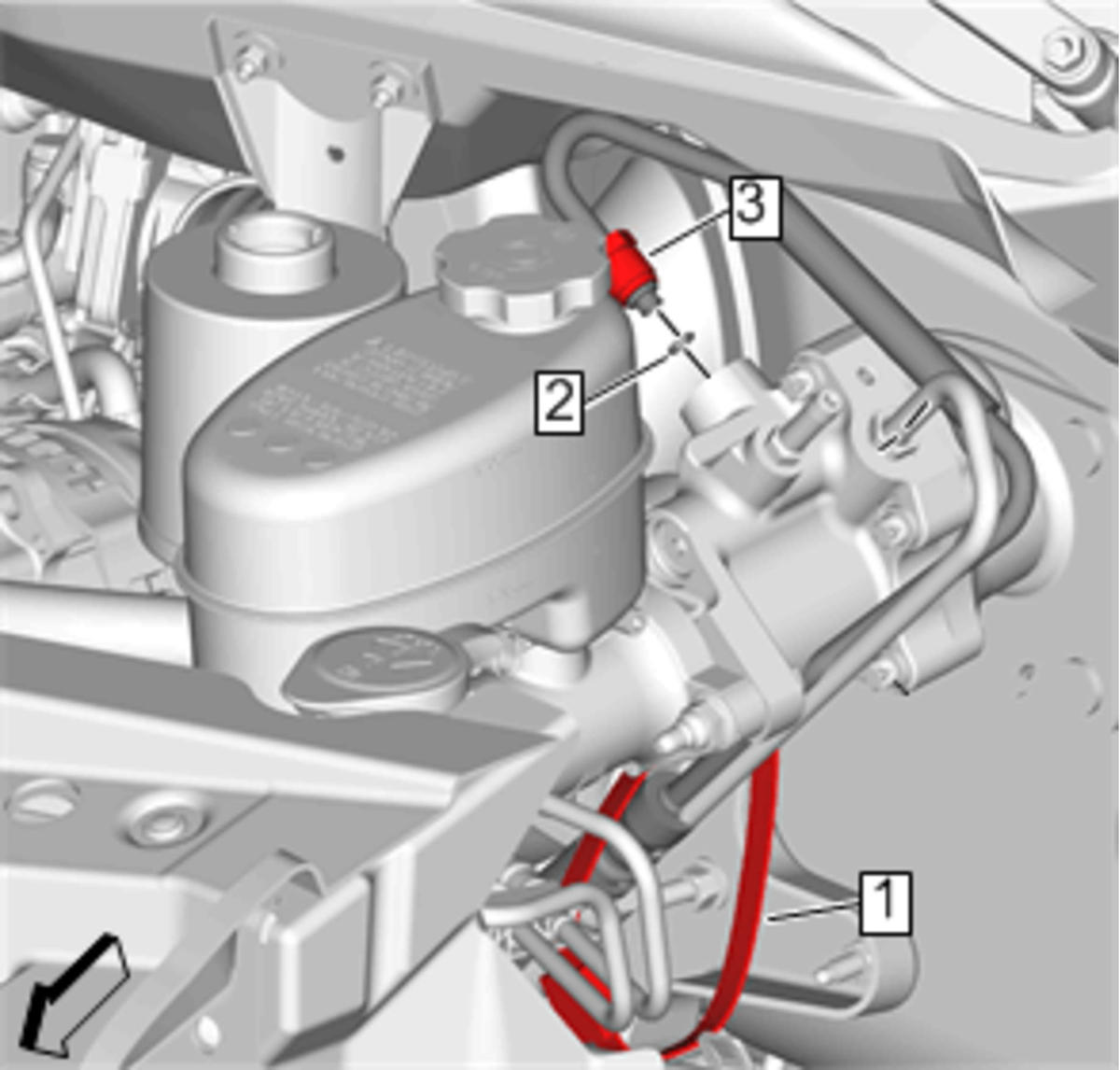

Install a NEW power brake booster inlet hose seal (3) on the power brake booster inlet hose.
Apply a small amount of power steering fluid on the seal to aid in installation.
- Power Brake Booster Inlet Hose(2) @ Power Brake Booster - Install and tighten34 N.m (25 lb ft)
- Install a NEW power brake booster outlet hose strap (1).
- Front Wheelhouse Splash ShieldLeft Side - Install - Wheelhouse Splash Shield Replacement (Left Side) , or Wheelhouse Splash Shield Replacement (Right Side)
- Charge Air Cooler Outlet Air Hose - Install - Charge Air Cooler Outlet Air Hose Replacement
- Fill and bleed the power steering system. Power Steering System Bleeding
CAUTION:
Refer to Component Fastener Tightening Caution .
CAUTION:
Refer to Fastener Caution .
