Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

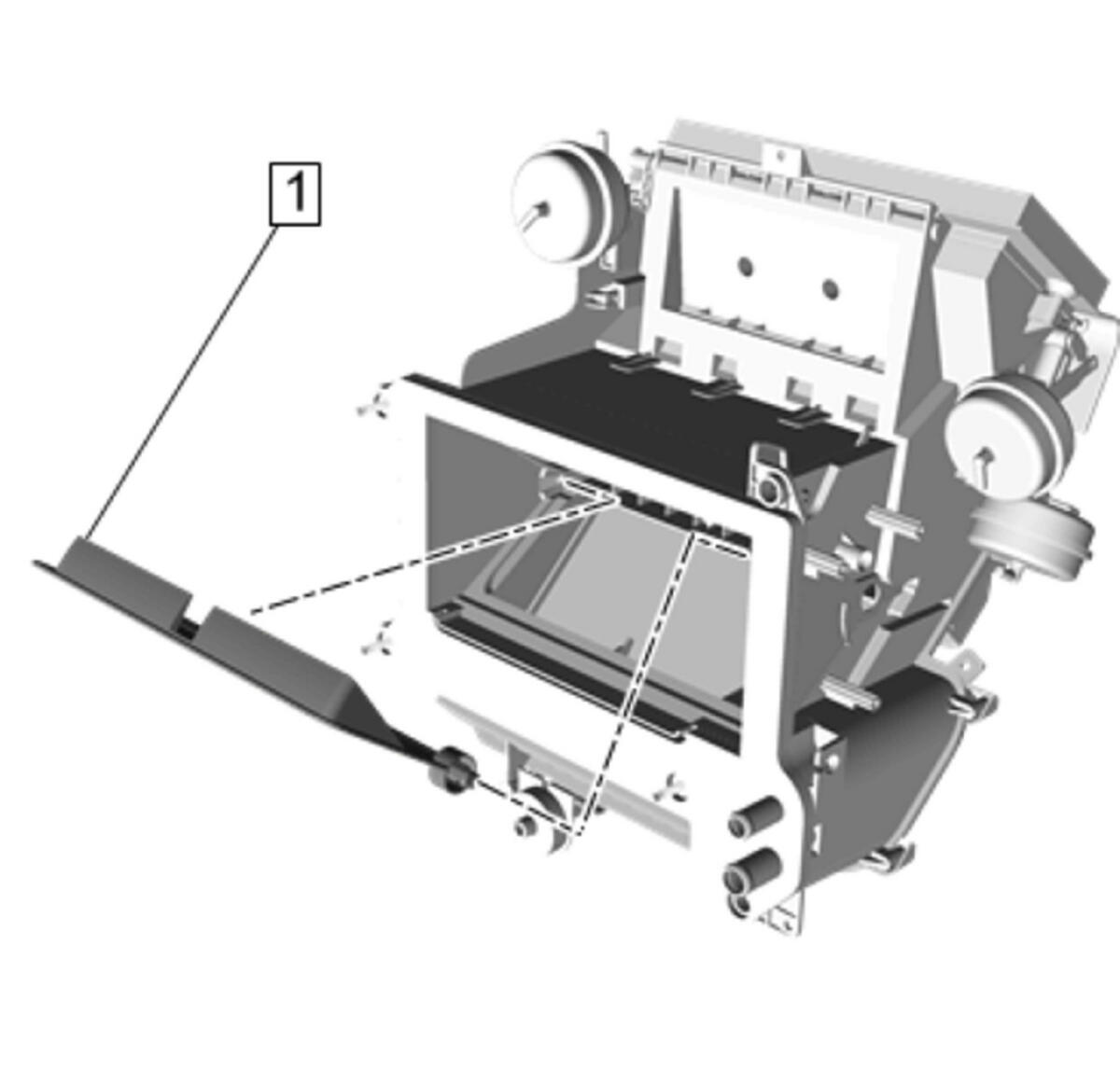

Temperature Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

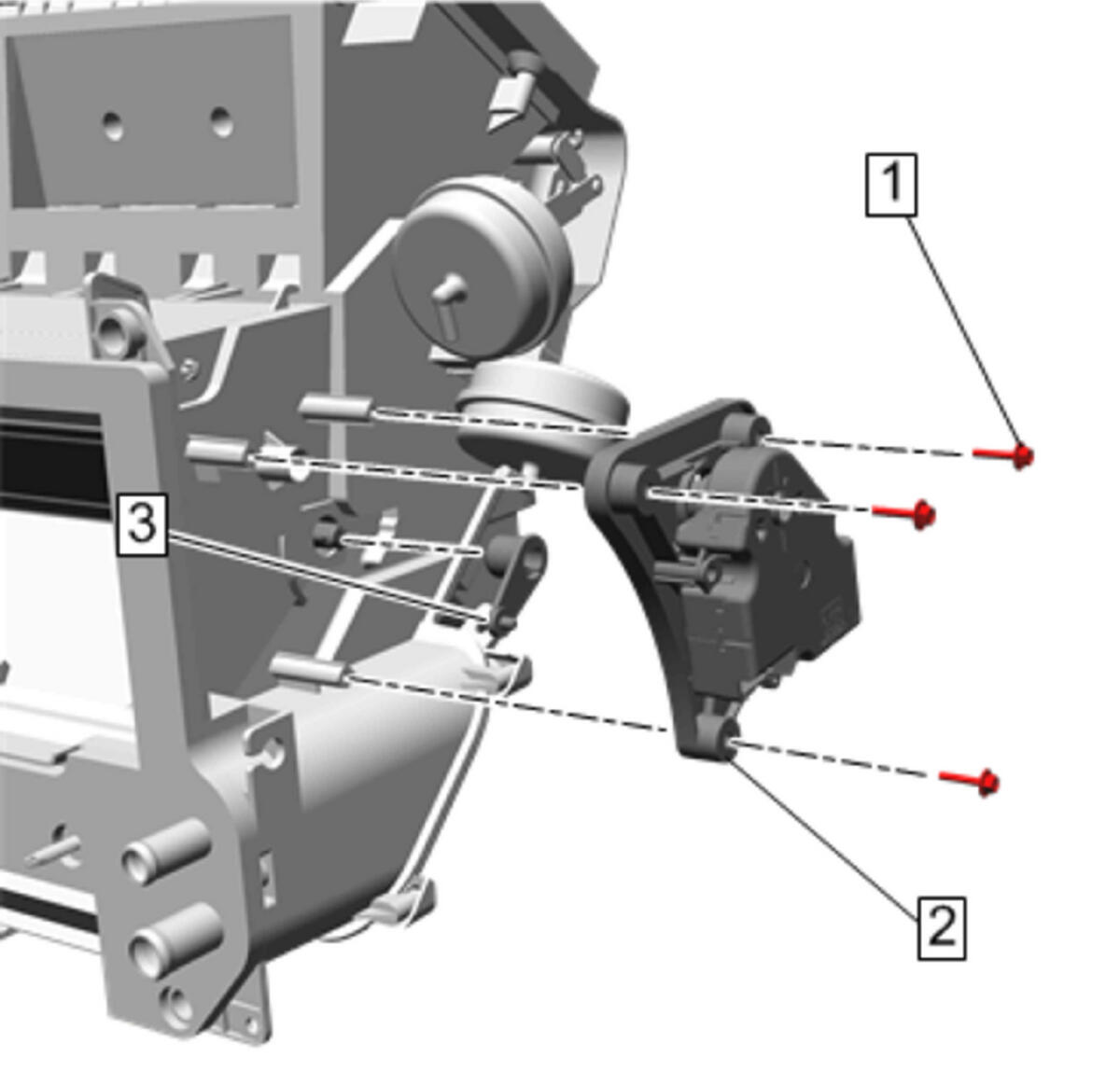

Temperature Valve Link (3) - Install
Temperature Valve Actuator Cam Plate (2) - Install
Temperature Valve Actuator Cam Plate Bolt (1) - Install and tighten [3x] - Temperature Valve Link Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater Assembly (1) - Install - Heater Replacement (C60) , or Heater Replacement (C42)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Carrier (1) - Install - Instrument Panel Carrier Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Airbag Panel Module (2) - Install - Instrument Panel Airbag Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad (2) - Install - Instrument Panel Trim Pad Replacement
Courtesy of GENERAL MOTORS COMPANY

Windshield Defroster Outlet Duct (1) - Install - Windshield Defroster Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY

Radio (2) - Install - Radio Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Control (2) - Install - Heater and Air Conditioning Control Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Cluster (2) - Install - Instrument Cluster Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Steering Column (1) - Install - Steering Column Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster- Left Side (1) - Install - Instrument Panel Knee Bolster Replacement (Left Side)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster-Right Side (1) - Install - Instrument Panel Knee Bolster Replacement (Right Side)
Install the left side body hinge pillar trim panel and right side body hinge pillar trim panel. Body Hinge Pillar Trim Panel Replacement
Install the left side windshield garnish molding and right side windshield garnish molding. Windshield Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater Outlet Hose (2) @ Heater Core Outlet Tube - Install - Heater Outlet Hose Replacement (LWN with C69) , or Heater Outlet Hose Replacement (LWN Auxiliary Heater Outlet Hose) , or Heater Outlet Hose Replacement (LWN Water Pump Inlet Pipe to Heater Inlet and Outlet Pipe) , or Heater Outlet Hose Replacement (LWN without C69) , or Heater Outlet Hose Replacement (LV1 Water Pump to Heater Core Outlet Tube without C69) , or Heater Outlet Hose Replacement (LV1 Auxiliary Air Conditioning Evaporator Front Tube to Heater Core Outlet Tube with C69) , or Heater Outlet Hose Replacement (L96, LC8 Heater Water Flow Control Valve to Heater Core Outlet Tube) , or Heater Outlet Hose Replacement (L96, LC8 Water Pump Housing to Heater Water Flow Control Valve) , or Heater Outlet Hose Replacement (L96 Auxiliary Heater Inlet and Outlet Pipe to Heater Core Outlet Tube)
Courtesy of GENERAL MOTORS COMPANY

Heater Inlet Hose (3) @ Heater Core Inlet Tube - Install - Heater Inlet Hose Replacement (LWN with C69) , or Heater Inlet Hose Replacement (LWN Auxiliary Heater Inlet Hose) , or Heater Inlet Hose Replacement (LWN Water Pump Inlet Pipe to Heater Inlet and Outlet Pipe) , or Heater Inlet Hose Replacement (LWN without K08 Engine Coolant Thermostat to Heater Inlet and Outlet Pipe) , or Heater Inlet Hose Replacement (LWN without C69) , or Heater Inlet Hose Replacement (LV1 without C69) , or Heater Inlet Hose Replacement (LV1 Auxiliary Air Conditioning Evaporator Front Tube to Heater Core Inlet Tube with C69) , or Heater Inlet Hose Replacement (L96, LC8 Heater Water Flow Control Valve to Heater Core Inlet Tube) , or Heater Inlet Hose Replacement (L96, LC8 Water Pump Housing to Heater Water Flow Control Valve) , or Heater Inlet Hose Replacement (L96 Heater Core Inlet Tube to Auxiliary Heater Inlet and Outlet Pipe)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator and Blower Module (1) - Install - Air Conditioning (A/C) Evaporator and Blower Module Assembly Replacement (C60) , or Air Conditioning (A/C) Evaporator and Blower Module Assembly Replacement (C42)
Courtesy of GENERAL MOTORS COMPANY

Install the right side floor front air outlet center duct (2). Floor Front Air Outlet Center Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Engine Cover (1) - Install - Engine Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (2) - Install - Front Floor Console Extension Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Blower Case Assembly (1) - Install - Blower Case Replacement
Courtesy of GENERAL MOTORS COMPANY

Coolant Recovery Reservoir (1) - Install - Coolant Recovery Reservoir Replacement (LV1) , or Coolant Recovery Reservoir Replacement (L96, LC8)
Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Check the cooling system for leaks.
