Instrument Panel Airbag Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

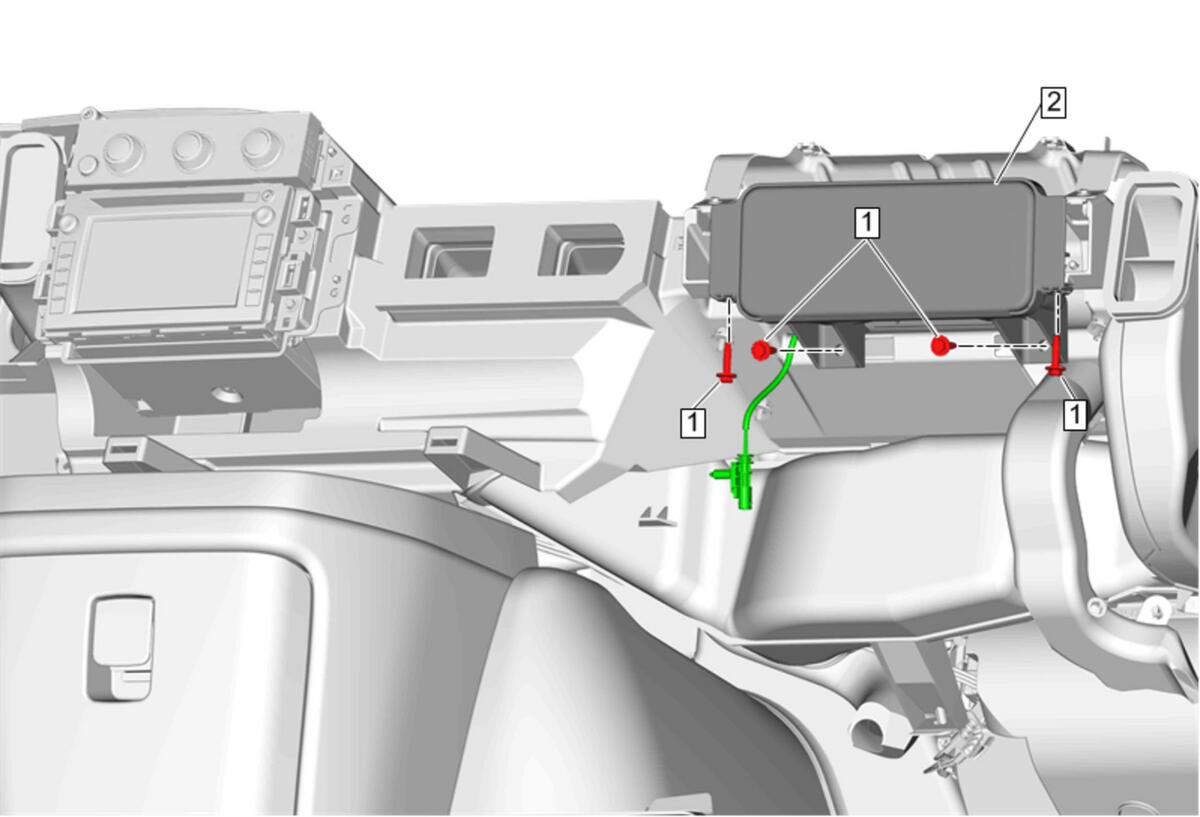

GM4870786Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedures

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Instrument Panel Knee Bolster Bracket Replacement (Left Side)Instrument Panel Knee Bolster Bracket Replacement (Right Side)
  3. Instrument Panel Trim Pad Replacement
1 Instrument Panel Airbag Bolt[4x]
CAUTION:

Refer to Fastener Caution .


Tighten
10.9 N.m (96 lb in)
2 Instrument Panel Airbag

Procedure

  1. Inflatable Restraint Module Handling and Scrapping
  2. Disconnect the electrical connector.
  3. Enable the SIR System. SIR Disabling and Enabling
