Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left windshield garnish molding and right side windshield garnish molding. Windshield Garnish Molding Replacement
  2. Remove the left side body hinge pillar trim panel and right side body hinge pillar trim panel. Body Hinge Pillar Trim Panel Replacement
  3. GM4824438Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster-Right Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Right Side)

  4. GM4824075Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster- Left Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Left Side)

  5. GM4826301Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Remove - Steering Column Replacement

  6. GM4826303Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement

  7. GM4834016Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Remove - Instrument Cluster Replacement

  8. GM4840731Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Control (2) - Remove - Heater and Air Conditioning Control Replacement

  9. GM4831195Courtesy of GENERAL MOTORS COMPANY

    Radio (2) - Remove - Radio Replacement

  10. GM4829960Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Remove - Instrument Panel Extension Replacement

  11. GM4831159Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Remove - Instrument Panel Upper Trim Panel Replacement

  12. GM3819898Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (2) - Remove - Instrument Panel Trim Pad Replacement

  13. GM4870786Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Module (2) - Remove - Instrument Panel Airbag Replacement

  14. GM4854159Courtesy of GENERAL MOTORS COMPANY

    Engine Cover (1) - Remove - Engine Cover Replacement

  15. GM4842920Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier (1) - Remove - Instrument Panel Carrier Replacement

  16. GM4901491Courtesy of GENERAL MOTORS COMPANY

    Heater Core Cover Screw (1) - Remove [3x]

  17. GM4901493Courtesy of GENERAL MOTORS COMPANY

    Heater Core Cover Screw (1) - Remove

  18. GM4870570Courtesy of GENERAL MOTORS COMPANY

    Cut the heater core cover (1) at the cut line indicated by the arrows using the appropriate tool.

  19. GM4901500Courtesy of GENERAL MOTORS COMPANY

    Heater Core Upper Cover (1) - Remove

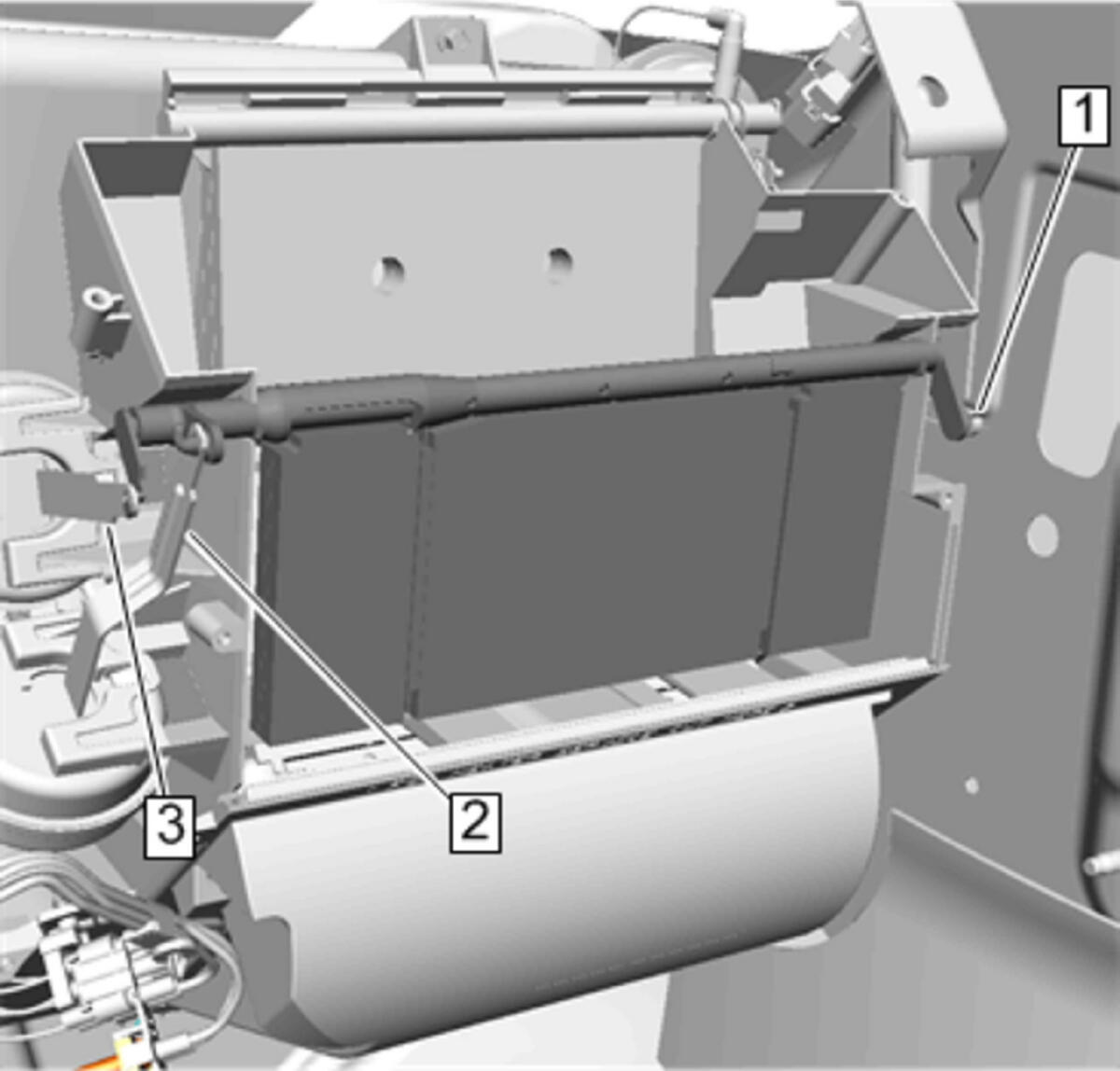

  20. GM4901513Courtesy of GENERAL MOTORS COMPANY

    Mixer Valve Link (1) @ Mode Valve - Remove

  21. Air Inlet Valve Actuator (2) @ Mode Valve - Remove
  22. Mode Valve Actuator (3) @ Mode Valve - Remove

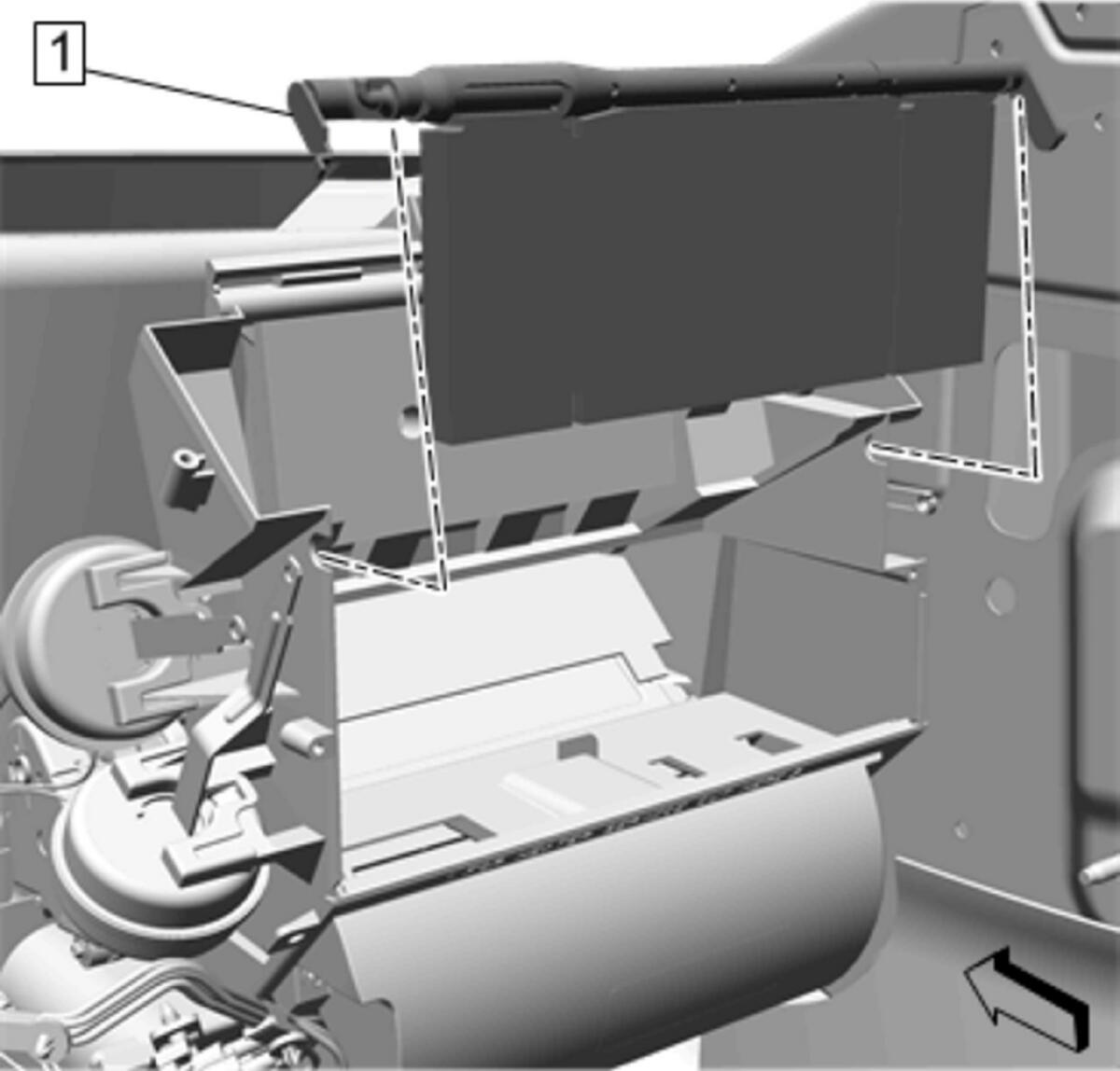

  23. GM4901524Courtesy of GENERAL MOTORS COMPANY

    Mode Valve (1) - Remove
