Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

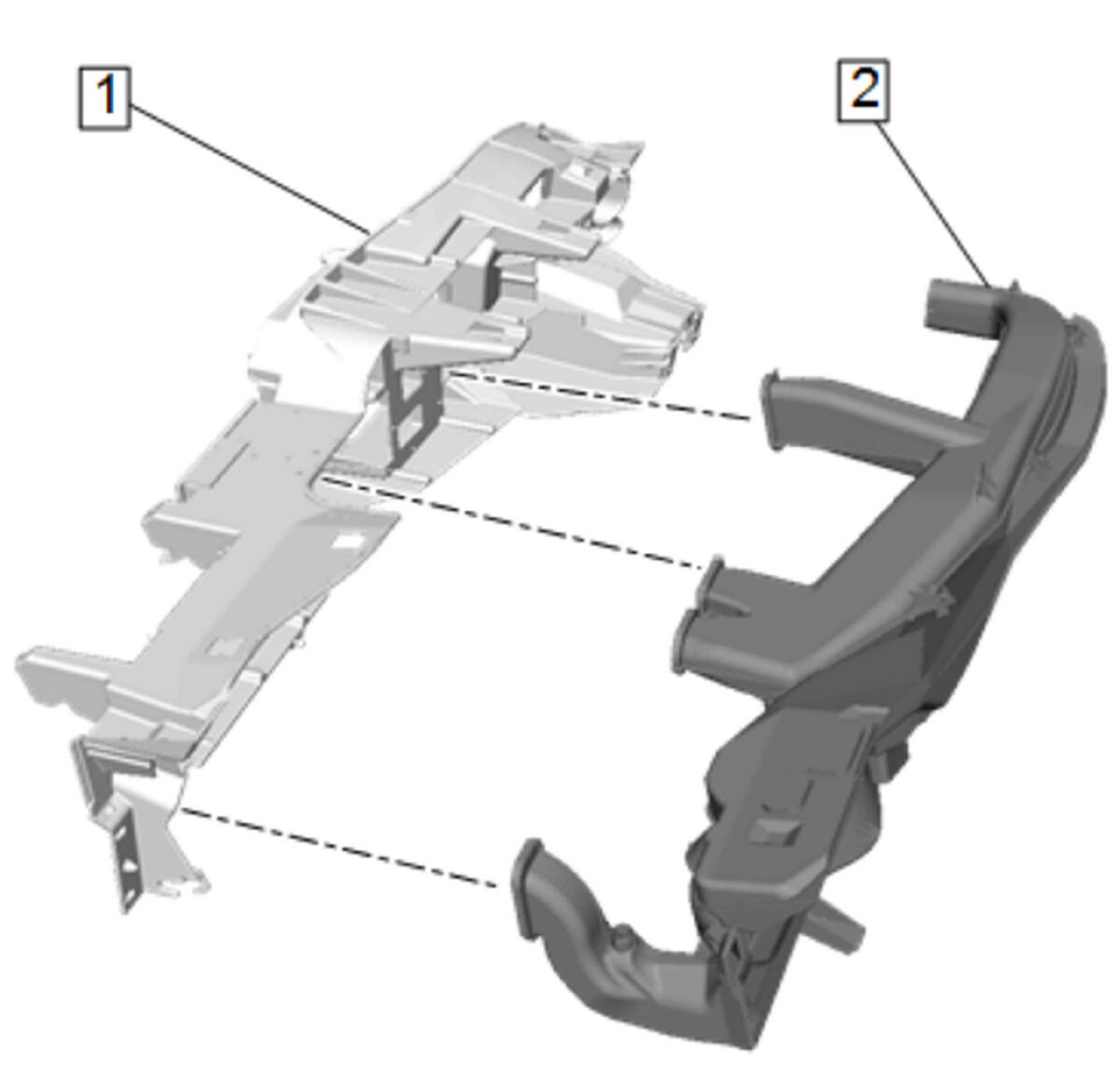

  1. GM4871594Courtesy of GENERAL MOTORS COMPANY

    Air Distributor Duct (2) @ Instrument Panel Carrier (1) - Install

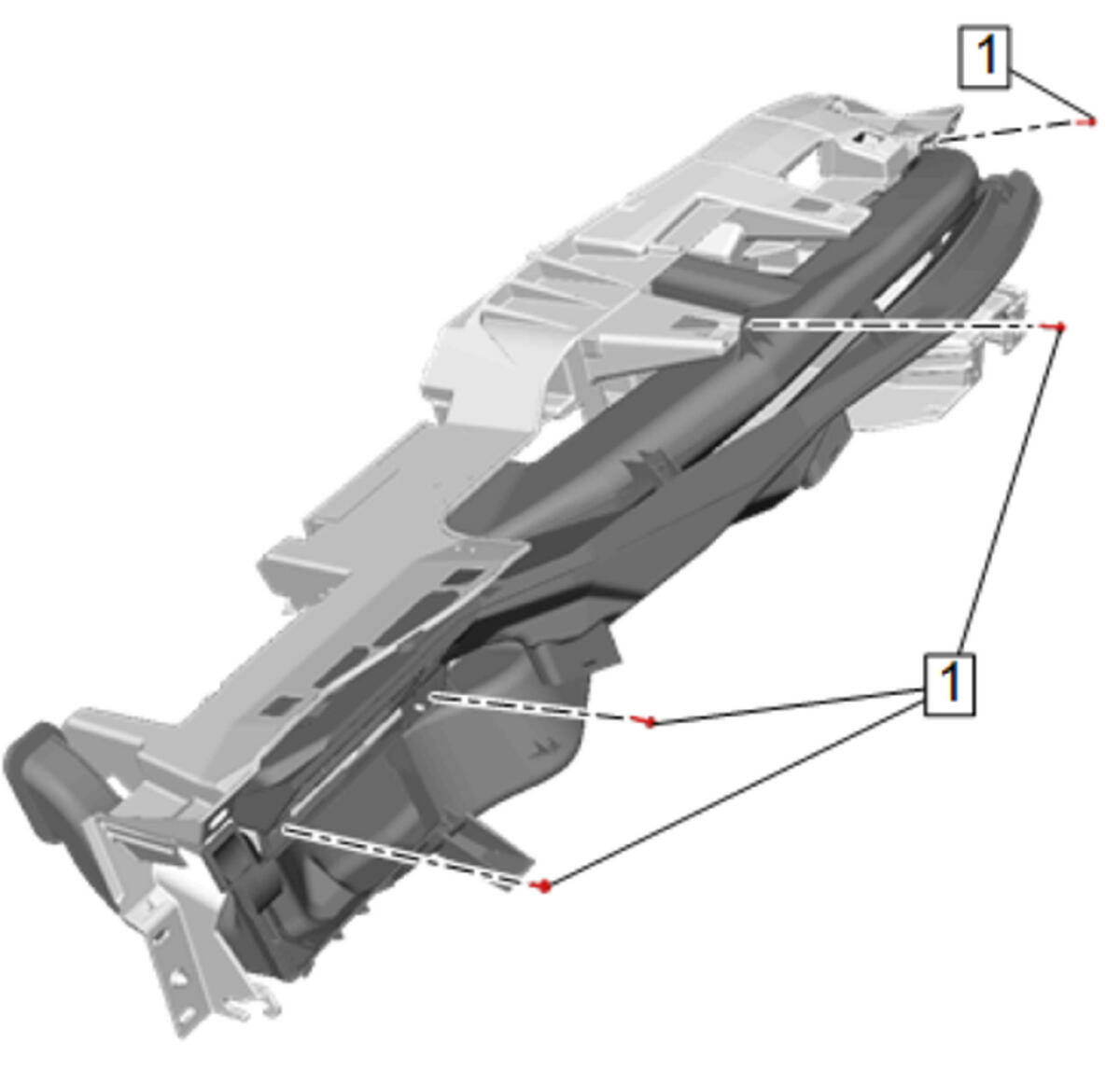

  2. GM4871592Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Air Distributor Duct Bolt (1) - Install and tighten [4x] 3.3 N.m (29 lb in)

  3. GM4842920Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier (1) - Install - Instrument Panel Carrier Replacement

  4. GM4870786Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Module (2) - Install - Instrument Panel Airbag Replacement

  5. GM3819898Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (2) - Install - Instrument Panel Trim Pad Replacement

  6. GM4831159Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement

  7. GM4829960Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

  8. GM4831195Courtesy of GENERAL MOTORS COMPANY

    Radio (2) - Install - Radio Replacement

  9. GM4840731Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Control (2) - Install - Heater and Air Conditioning Control Replacement

  10. GM4834016Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

  11. GM4826303Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement

  12. GM4826301Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement

  13. GM4854159Courtesy of GENERAL MOTORS COMPANY

    Engine Cover (1) - Install - Engine Cover Replacement

  14. GM4824075Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster- Left Side (1) - Install - Instrument Panel Knee Bolster Replacement (Left Side)

  15. GM4824438Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster-Right Side (1) - Install - Instrument Panel Knee Bolster Replacement (Right Side)

  16. GM4854633Courtesy of GENERAL MOTORS COMPANY

    Instal the left and right side body hinge pillar trim panel. Body Hinge Pillar Trim Panel Replacement

  17. GM4850465Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding- Left Side & Right Side (3) - Install - Windshield Garnish Molding Replacement
