Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

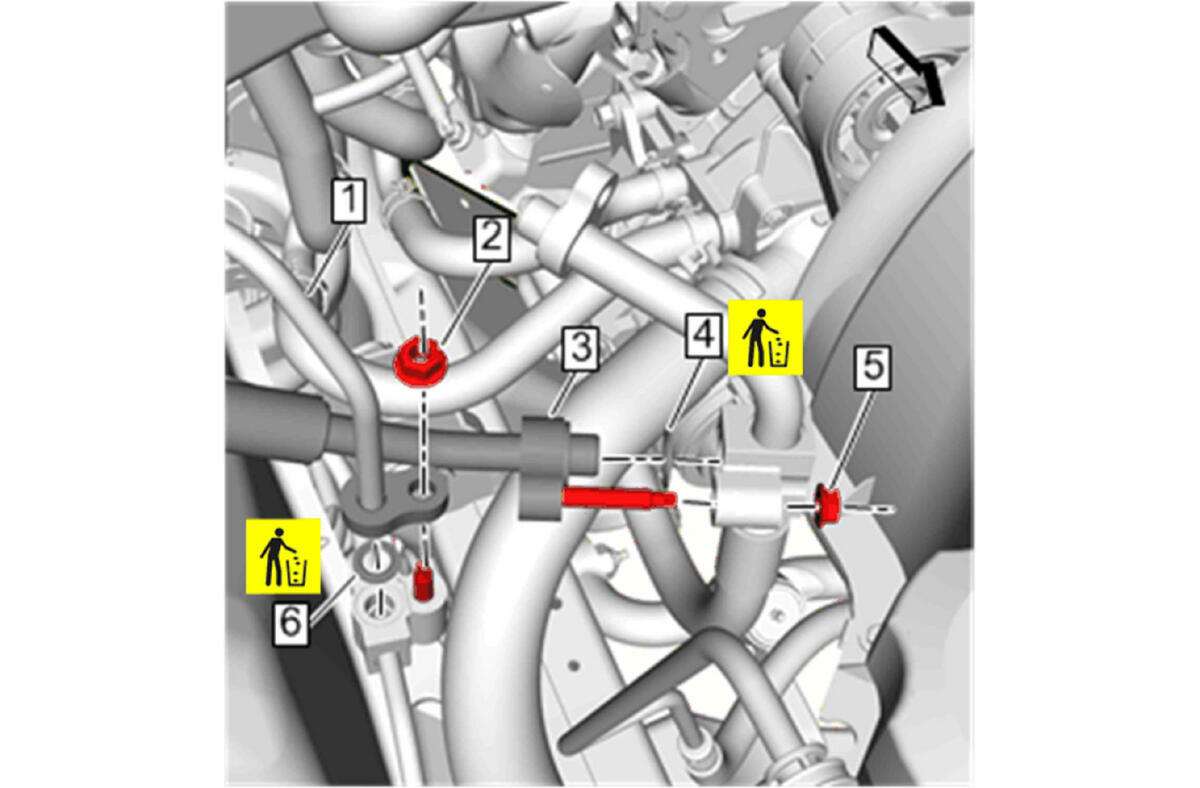

Install the air conditioning evaporator tube (2) to the vehicle.
- Install a NEW sealing washer. (1) Air Conditioning System Seal Replacement
- Air Conditioning Evaporator Tube (2) @ Air Conditioning Condenser - Install
- Air Conditioning Evaporator Tube Nut (3) @ Air Conditioning Condenser - Install and tighten 22 N.m (16 lb ft)
Auxiliary Air Conditioning Evaporator Front Tube (1) @ Air Conditioning Evaporator Tube - Install - Auxiliary Air Conditioning Evaporator Front Tube Replacement (Front)
Install a NEW sealing washer. (2) Air Conditioning System Seal Replacement

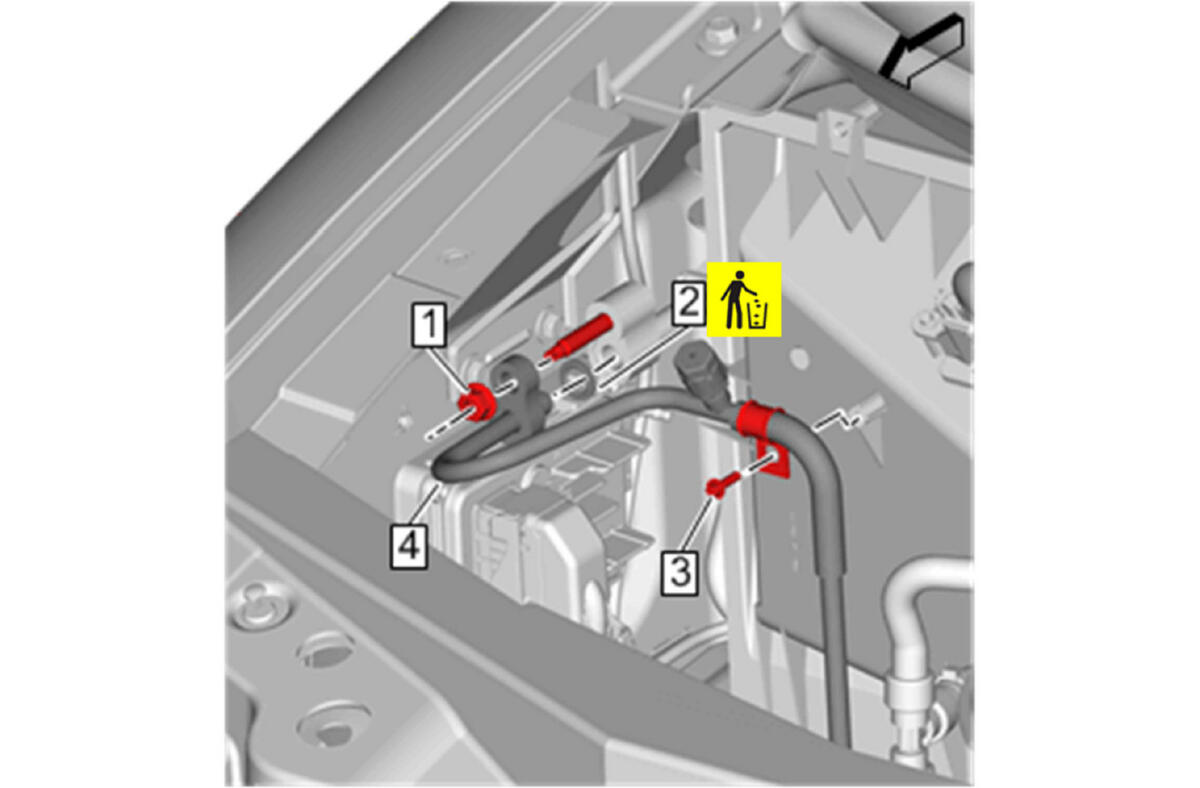

- Air Conditioning Evaporator Tube (4) @ Air Conditioning Evaporator - Install
- Air Conditioning Evaporator Tube Nut (1) @ Air Conditioning Evaporator - Install and tighten 22 N.m (16 lb ft)
- Air Conditioning Evaporator Tube Clip Bolt (3) @ Blower Case Assembly - Install and tighten 1.9 N.m (17 lb in)
Install the battery tray. (3) Battery Tray Replacement
- Front Grille - Install - Front Grille Replacement (Chevrolet) , or Front Grille Replacement (GMC)
- Recharge the refrigerant. Refrigerant Recovery and Recharging
- Inspect for refrigerant leaks.
CAUTION:
Refer to Fastener Caution .
CAUTION:
Refer to Fastener Caution .
