Battery Tray Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

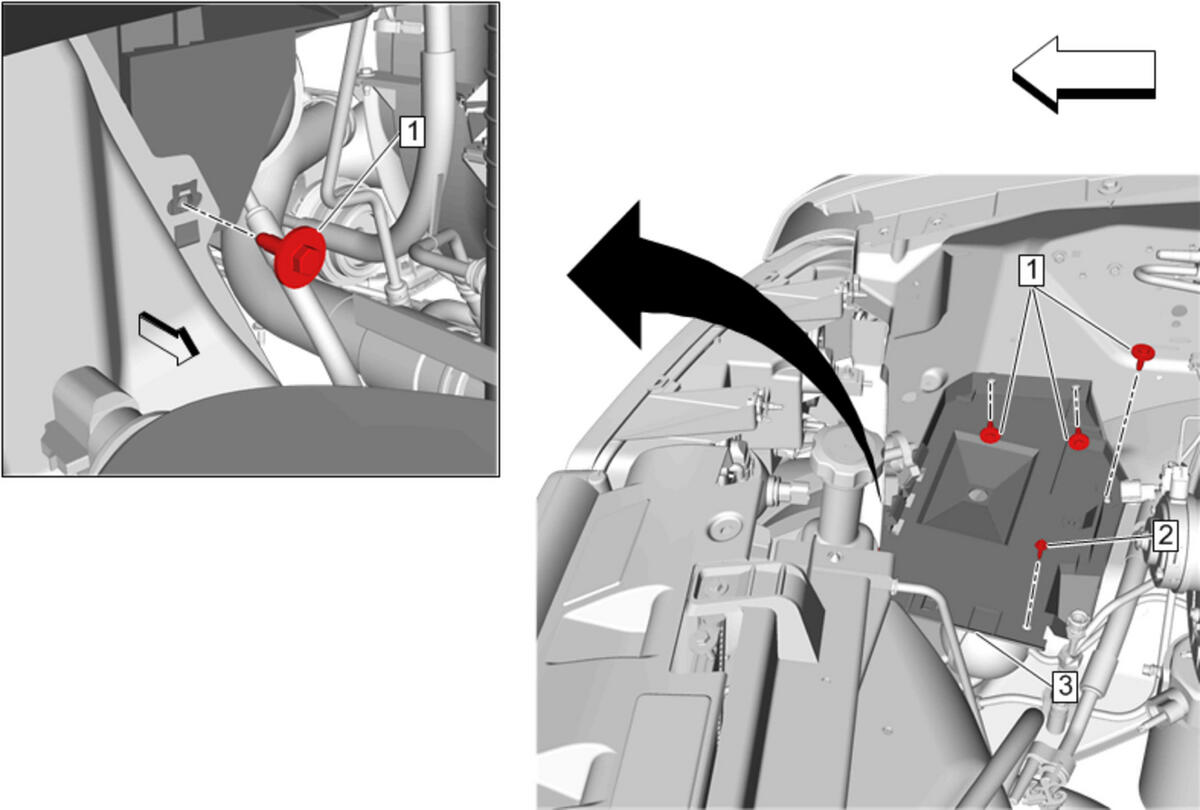

GM4597862Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Battery Replacement (L96, LC8, LV1) Battery Replacement (LWN)
  2. Disconnect any harness retainers attached to the battery tray.
1 Battery Tray Mounting Bolt[4x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Heater and Air Conditioning Control Vacuum Tank Bolt
Tighten
3.3 N.m (29 lb in)
3 Battery Tray
