Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

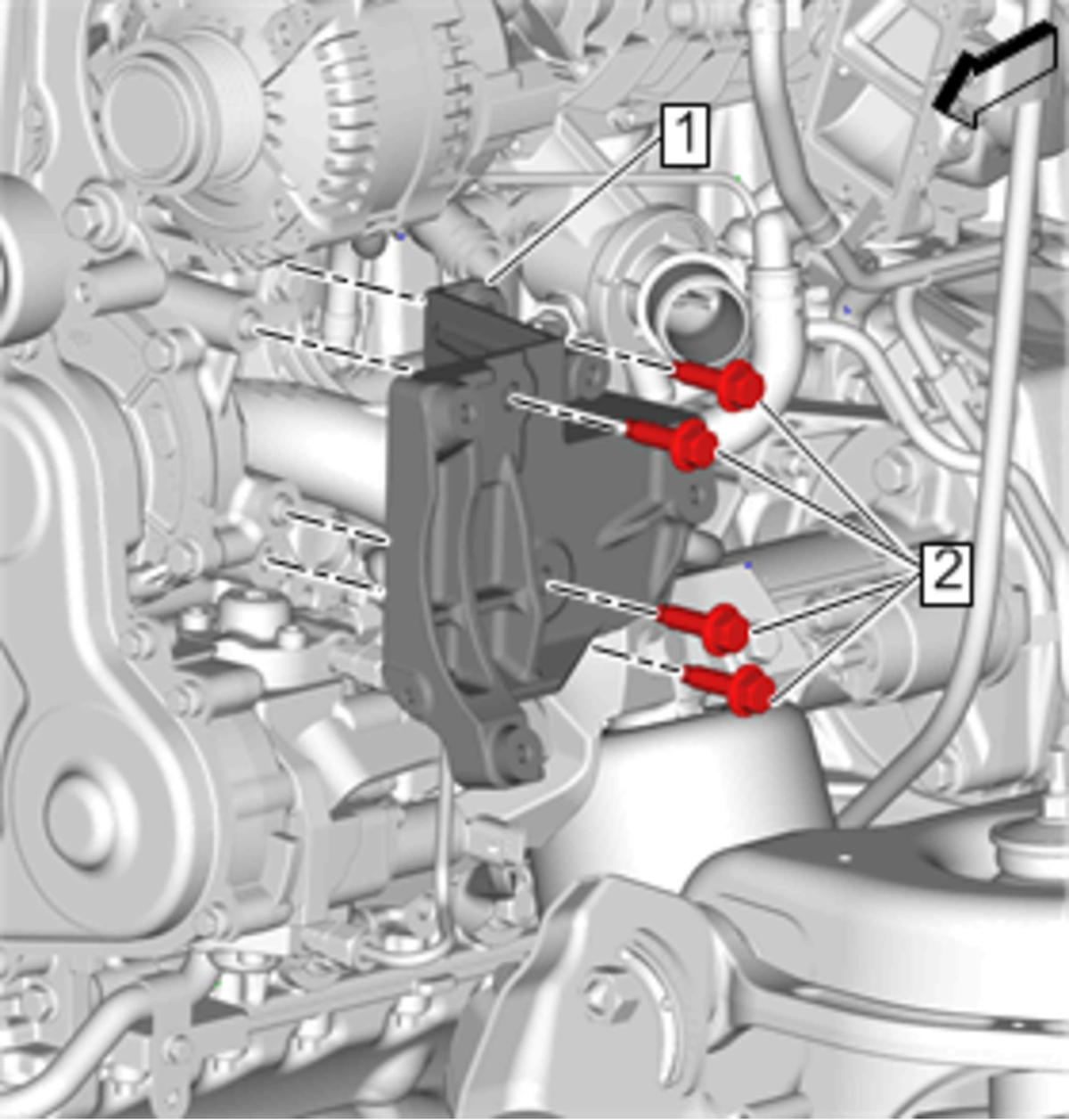

Air Conditioning Compressor Bracket (1) - Install

CAUTION:

Refer to Fastener Caution .

Air Conditioning Compressor Bracket Bolt (2) - Install and tighten [4x] 45 N.m (33 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor (1) - Install - Air Conditioning Compressor Replacement (LWN) , or Air Conditioning Compressor Replacement (LV1) , or Air Conditioning Compressor Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose (1) @ Air Conditioning Compressor - Install - Air Conditioning Compressor Hose Replacement (LWN) , or Air Conditioning Compressor Hose Replacement (L96, LC8, LV1)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor and Condenser Hose (1) @ Air Conditioning Compressor - Install - Air Conditioning Compressor and Condenser Hose Replacement (LWN) , or Air Conditioning Compressor and Condenser Hose Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Drive Belt (2) @ Air Conditioning Compressor - Install - Drive Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Splash Shield- Left Side (3) - Install - Wheelhouse Splash Shield Replacement (Left Side)
Courtesy of GENERAL MOTORS COMPANY

Exhaust Gas Recirculation Valve (1) - Install - Exhaust Gas Recirculation Valve Replacement
Recharge the refrigerant. Refrigerant Recovery and Recharging
Inspect for refrigerant leaks.
