Air Conditioning Clutch Assembly Replacement (LV1)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

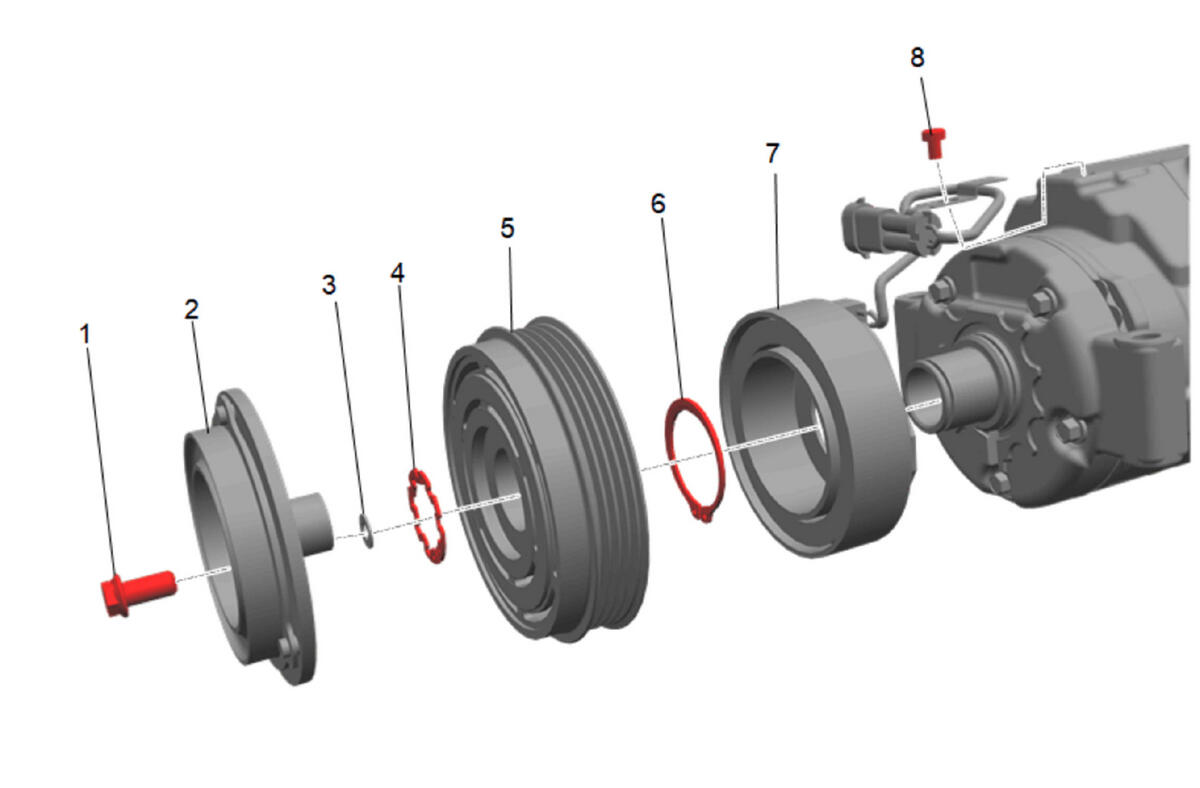

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Air Conditioning Compressor Clutch Pulley Bolt
CAUTION:
Refer to Fastener Caution . Procedure Use J-33027 - A to hold the compressor clutch drive plate. Tighten 20.5 N.m (15 lb ft) Special Tools J-33027 - A Holding Wrench Equivalent regional tools: Special Tools |
| 2 | Air Conditioning Compressor Clutch Drive Plate Procedure Measure and adjust the air conditioning compressor clutch drive plate gap specification. Air Conditioning Clutch Drive Plate Adjustment . |
| 3 | Air Conditioning Compressor Clutch Drive Plate Adjustment Shim [3x] |
| 4 | Air Conditioning Compressor Clutch Pulley Snap Ring Procedure Ensure the clutch pulley snap ring is installed with the flat side toward the air compressor. |
| 5 | Air Conditioning Compressor Clutch Pulley |
| 6 | Air Conditioning Compressor Clutch Coil Snap Ring Procedure Ensure the clutch coil snap ring is installed with the flat side toward the air compressor. |
| 7 | Air Conditioning Compressor Clutch Coil |
| 8 | Air Conditioning Compressor Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
