Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

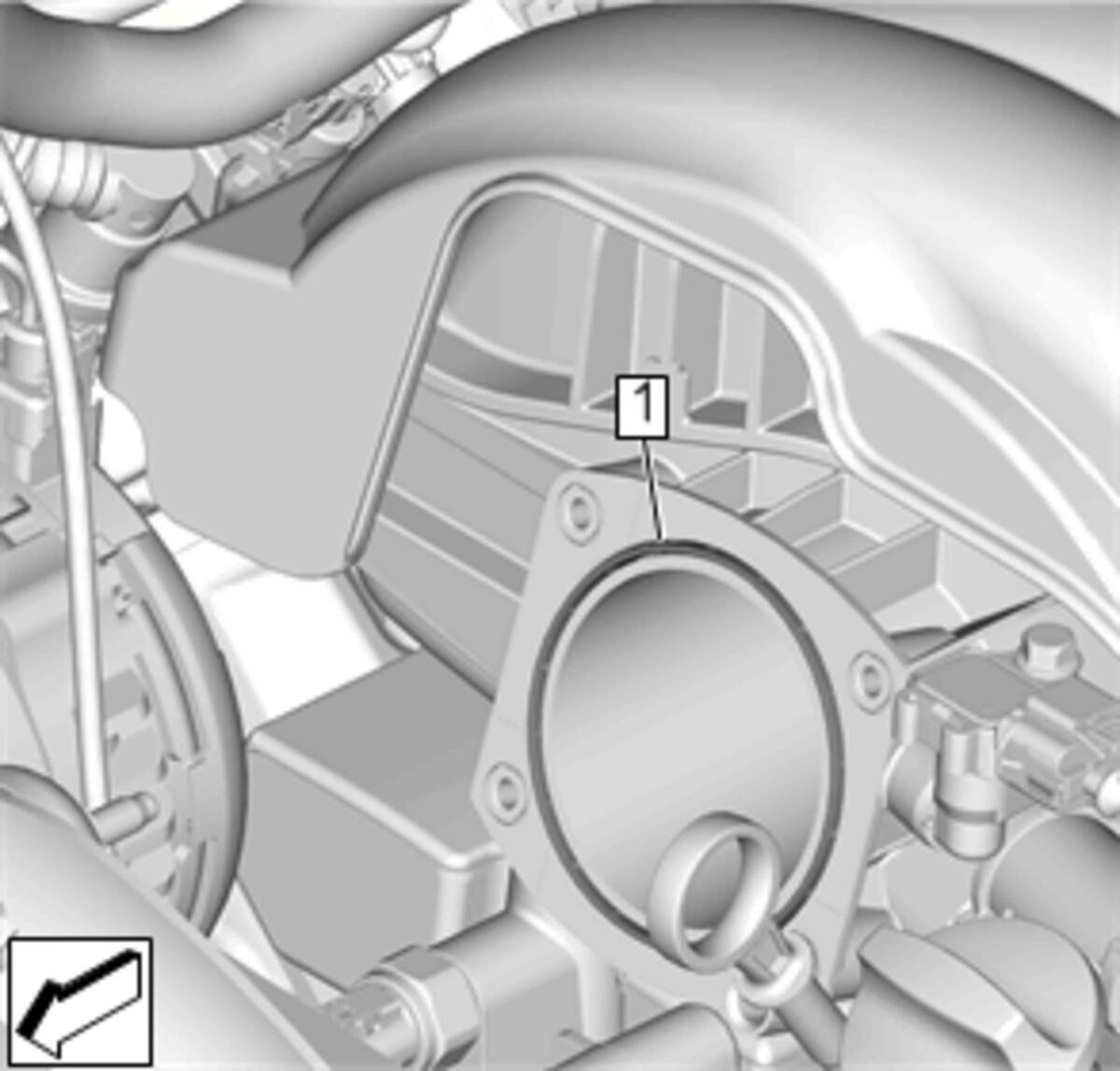

Install a NEW throttle body gasket (1).

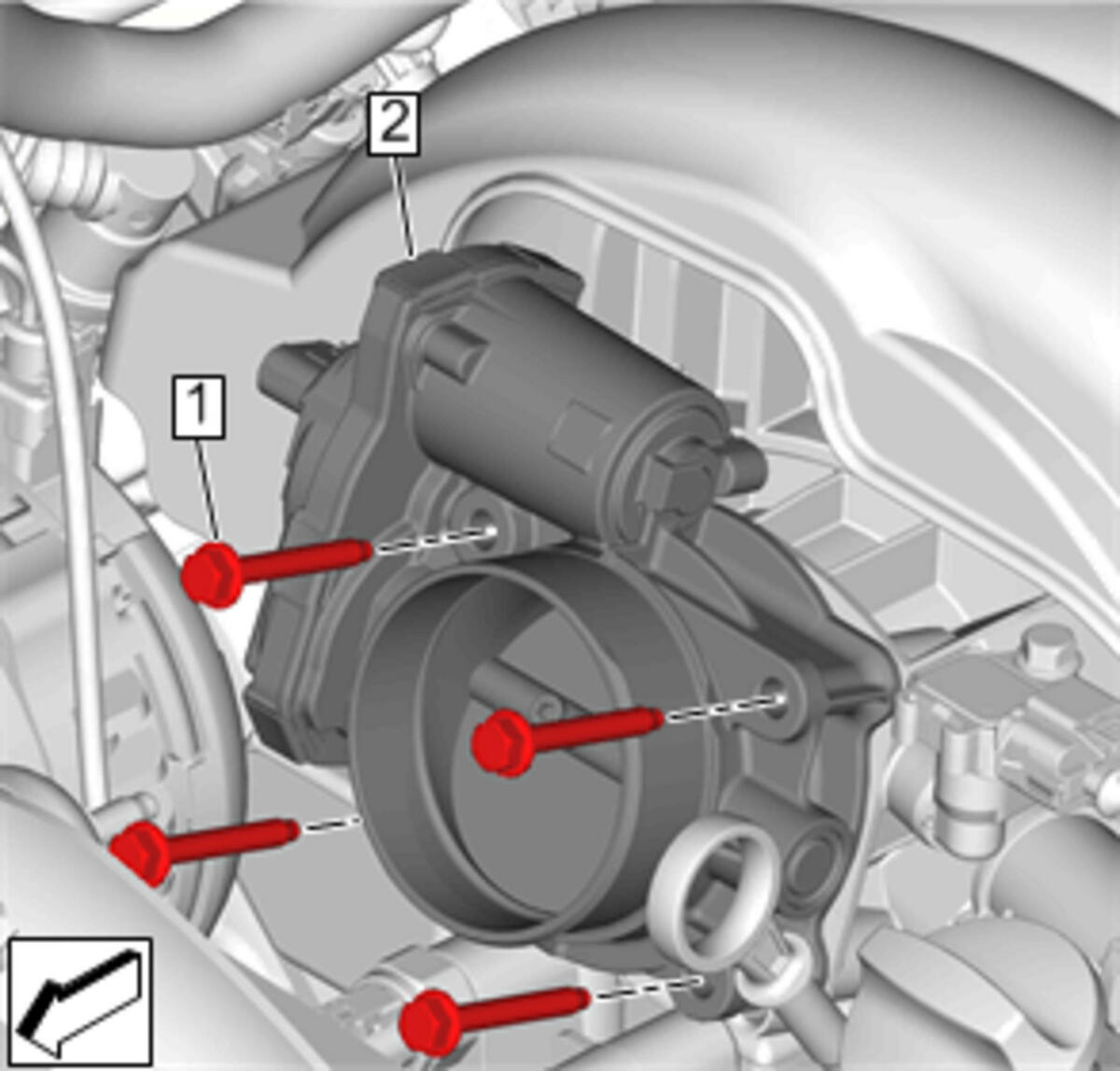

Position the throttle body (2).
- Install the throttle body bolts (1) and tighten to 10 N.m (89 lb in).

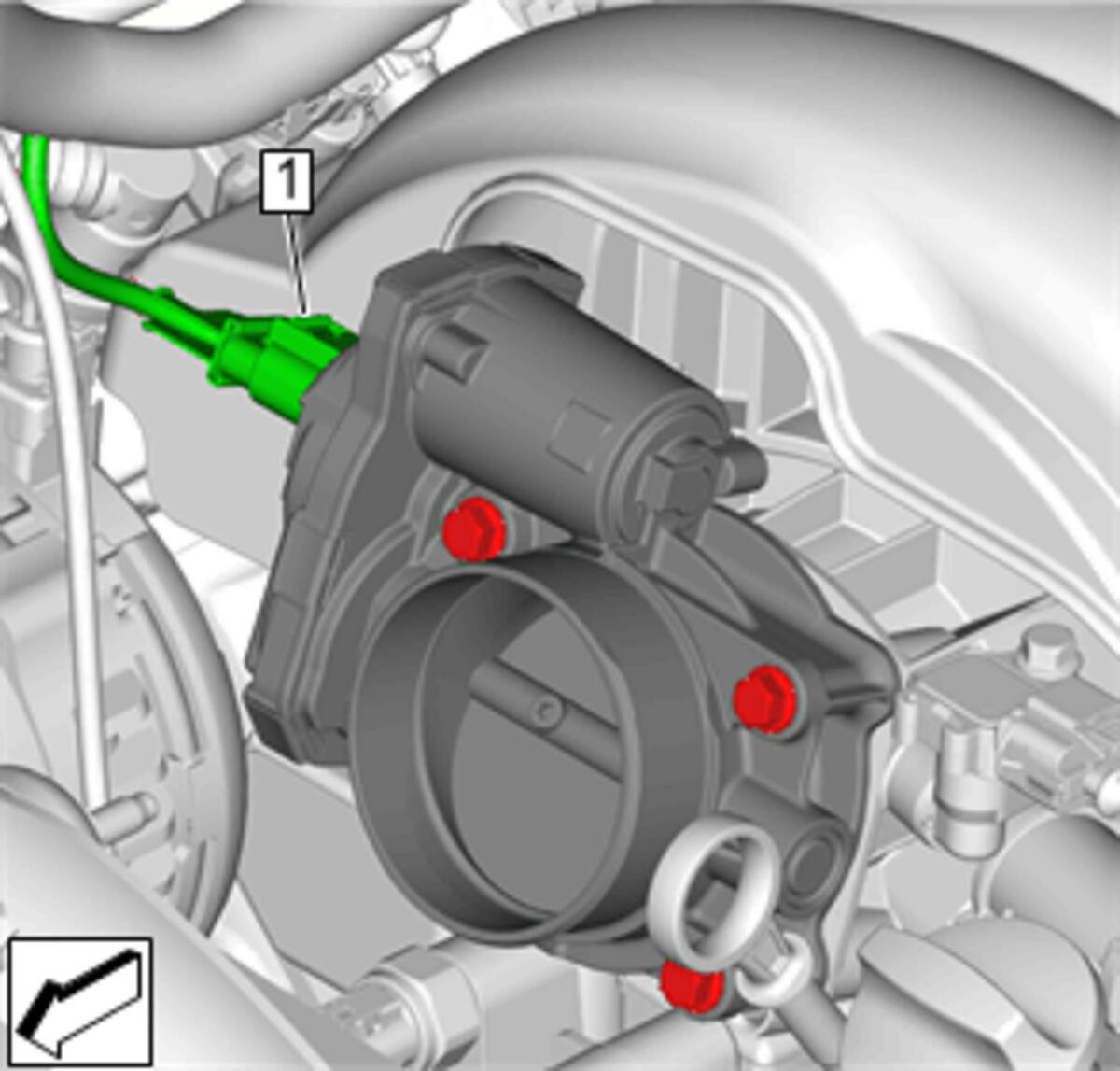

Connect the electrical connector (1).
- Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
- Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
CAUTION:
Refer to Fastener Caution .
