Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install a NEW gasket.

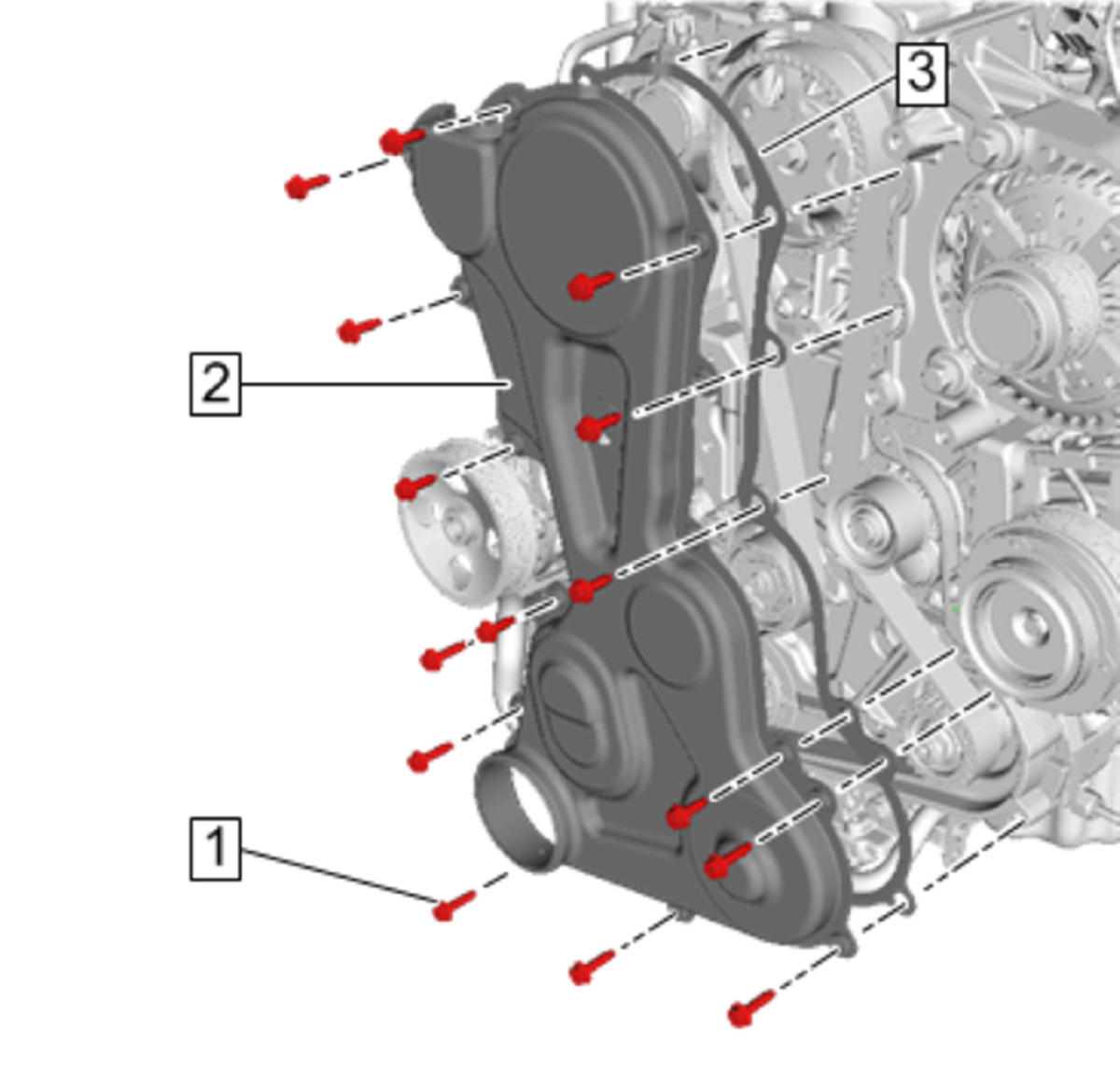

Timing Belt Front Cover Gasket(3) - Install
Timing Belt Front Cover(2) - Install

NOTE:

Hand tighten only, final tightening will be performed after properly aligning the timing belt front cover to the crankshaft sprocket.

Timing Belt Front Cover Bolt(1) - Loosely install[15x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Start by ensuring there is proper clearance in the area of the arrows then confirm proper clearance throughout the crankshaft sprocket circumference.

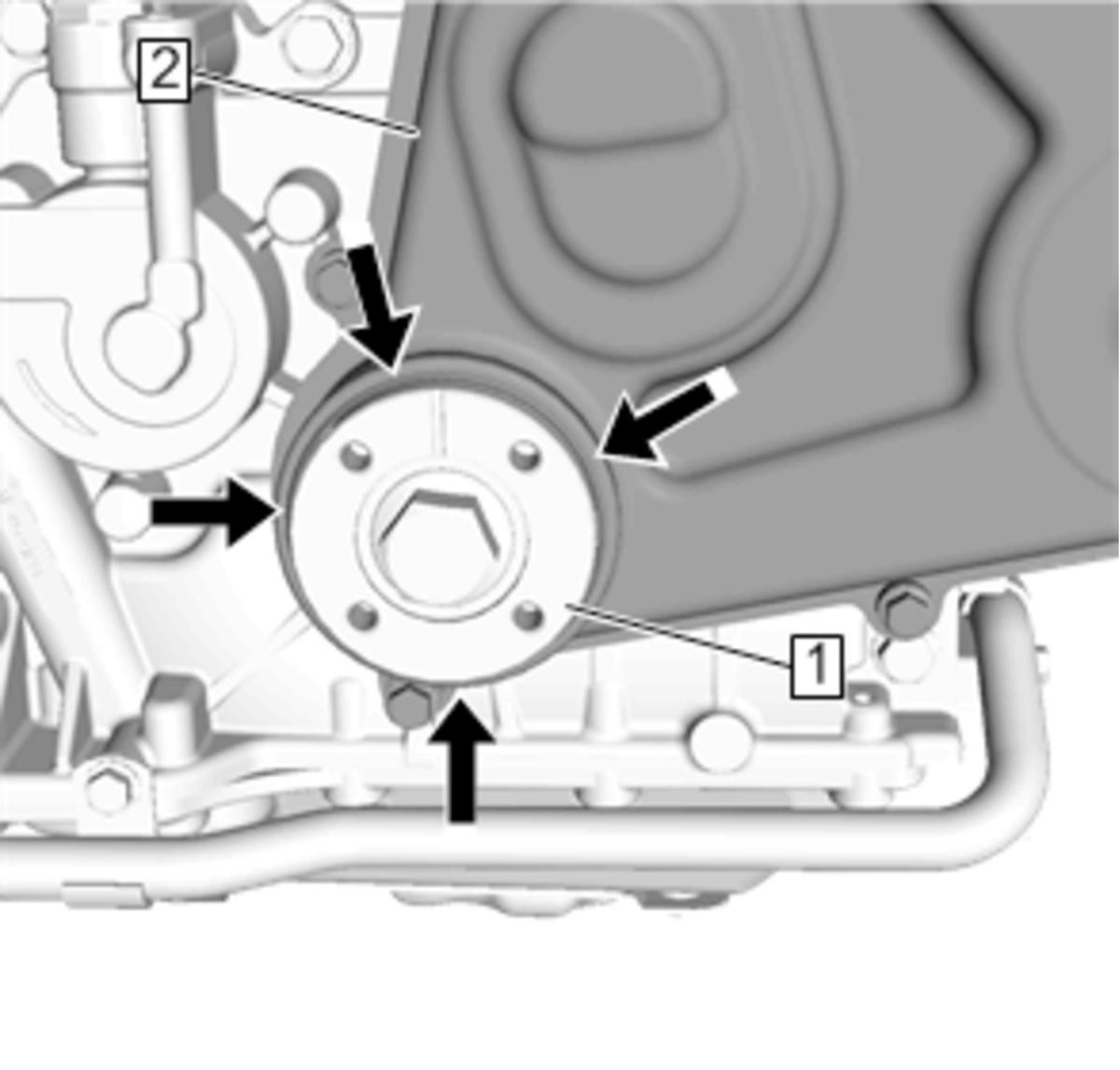

Use a 0. 01 mm feeler gauge around crankshaft sprocket (1) to ensure timing belt front cover (2) is not contacting crank sprocket.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:

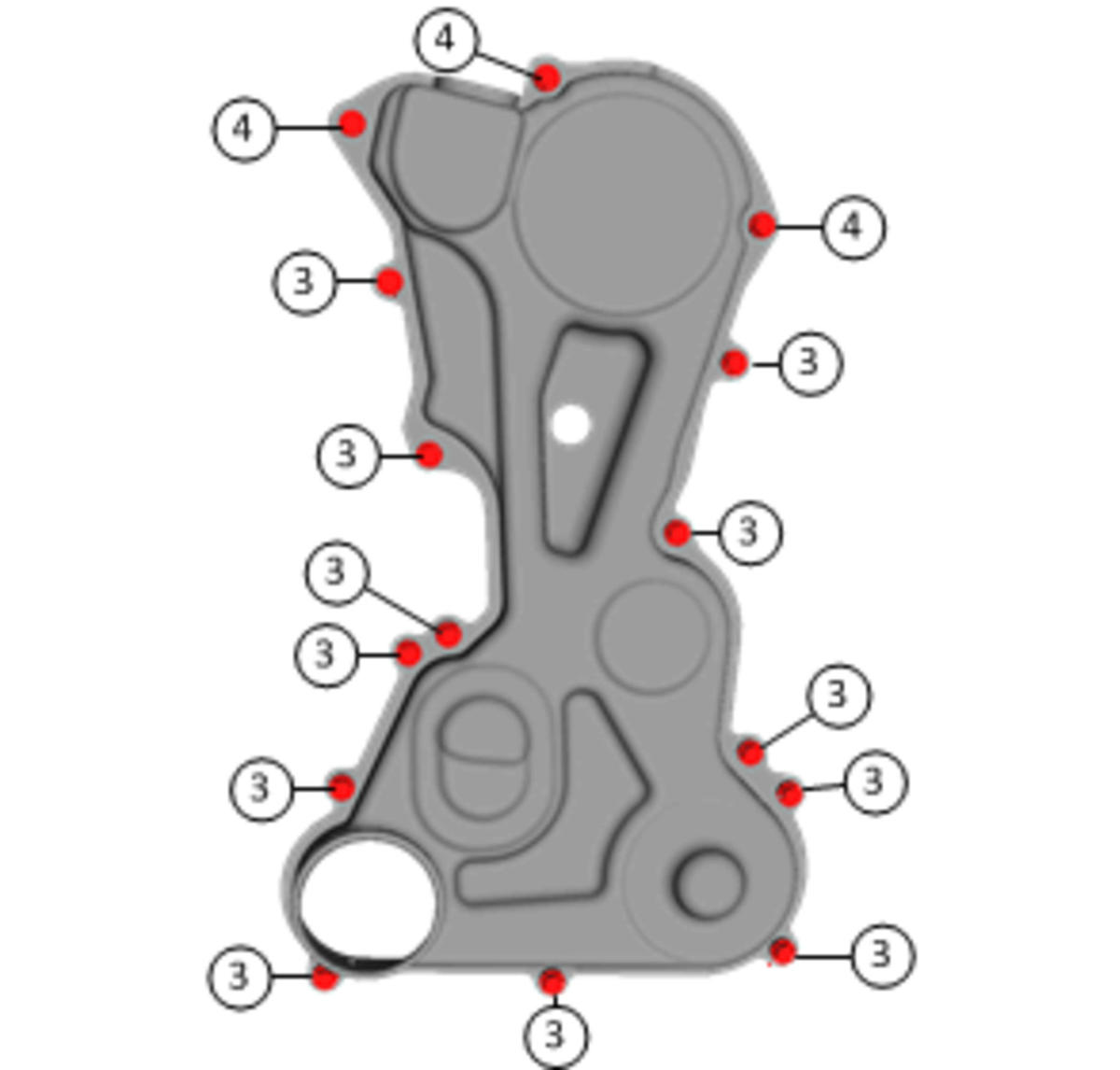

Once proper clearance is achieved between the timing belt front cover and the crankshaft sprocket, perform final tightening of the timing belt front cover bolts in sequence bolts 3 then bolts 4.

Timing Belt Front Cover Bolt(3) - Tighten[12x]10 N. m (89 lb in)
Timing Belt Front Cover Bolt(4) - Tighten[3x]8 N. m (71 lb in)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Bracket(2) - Install - Engine Cooling Fan Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

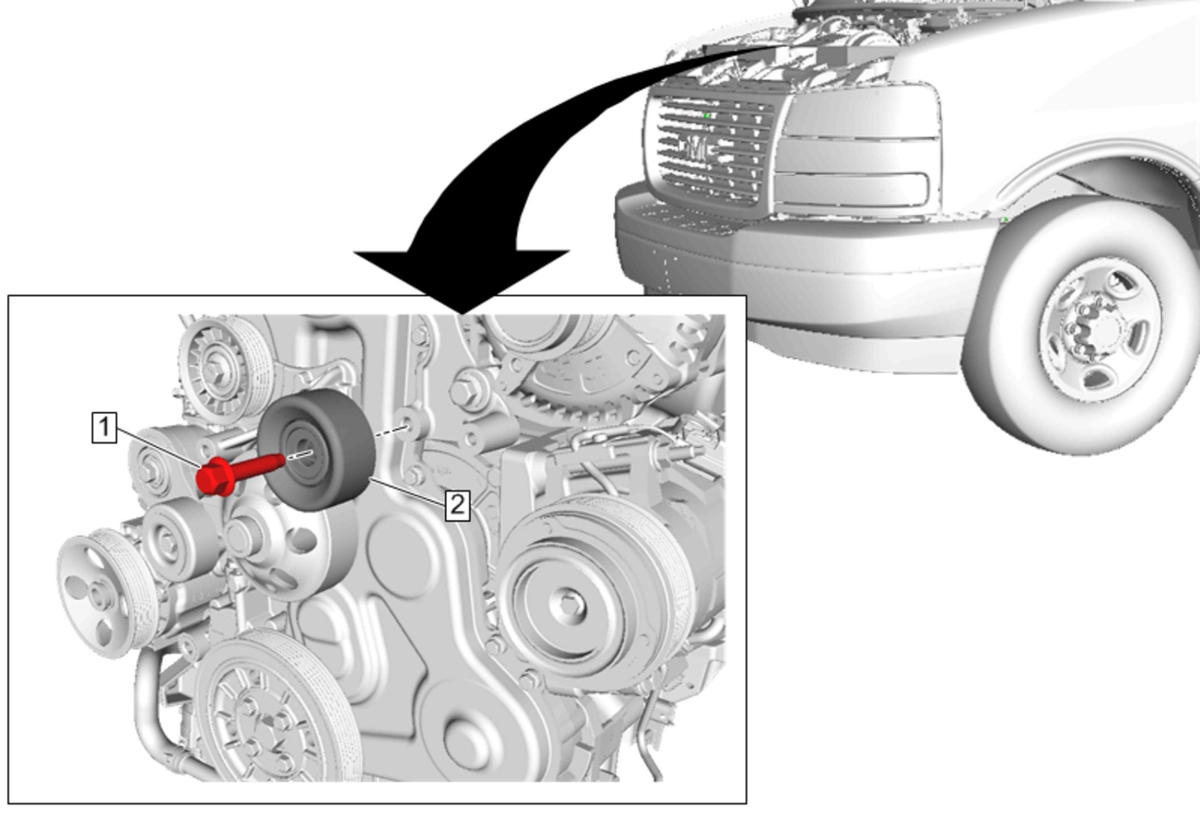

Drive Belt Idler Pulley-Left Side(2) - Install - Drive Belt Idler Pulley Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

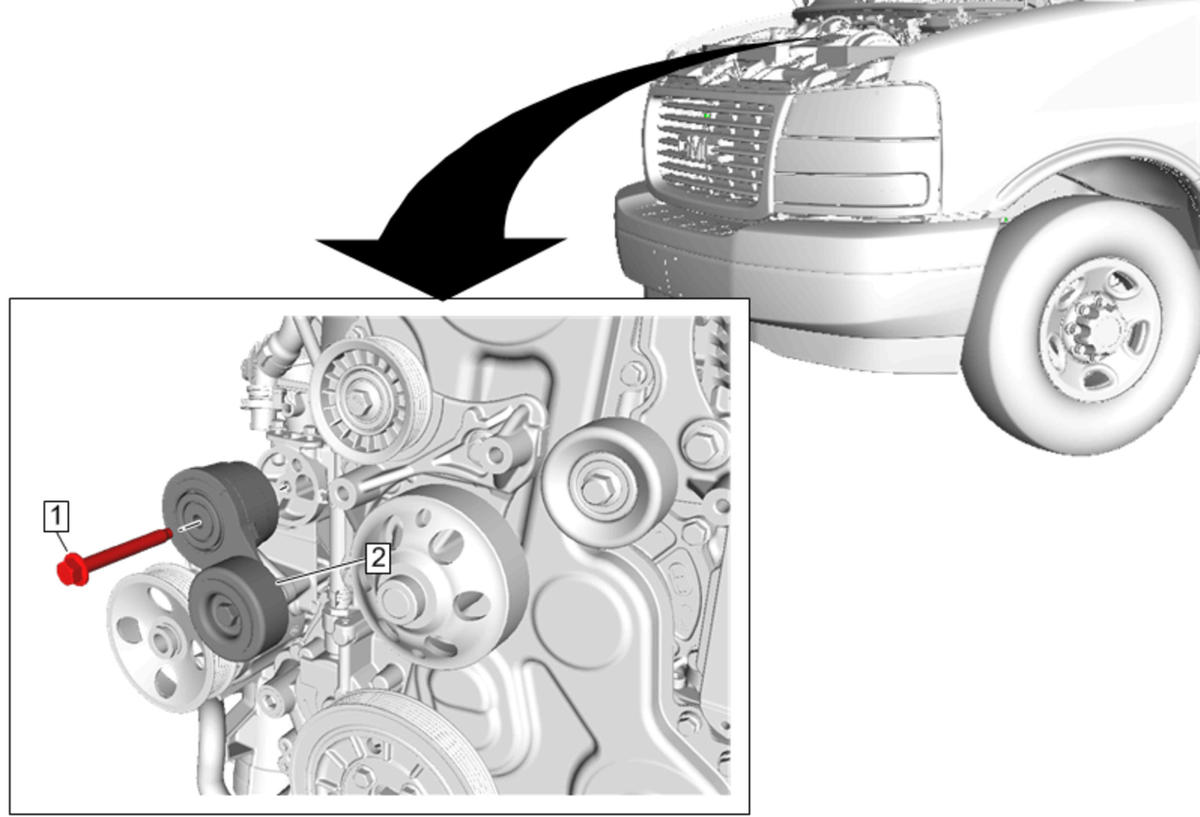

Drive Belt Tensioner(2) - Install - Drive Belt Tensioner Replacement
Crankshaft Balancer - Install - Crankshaft Balancer Replacement
