Crankshaft Balancer Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

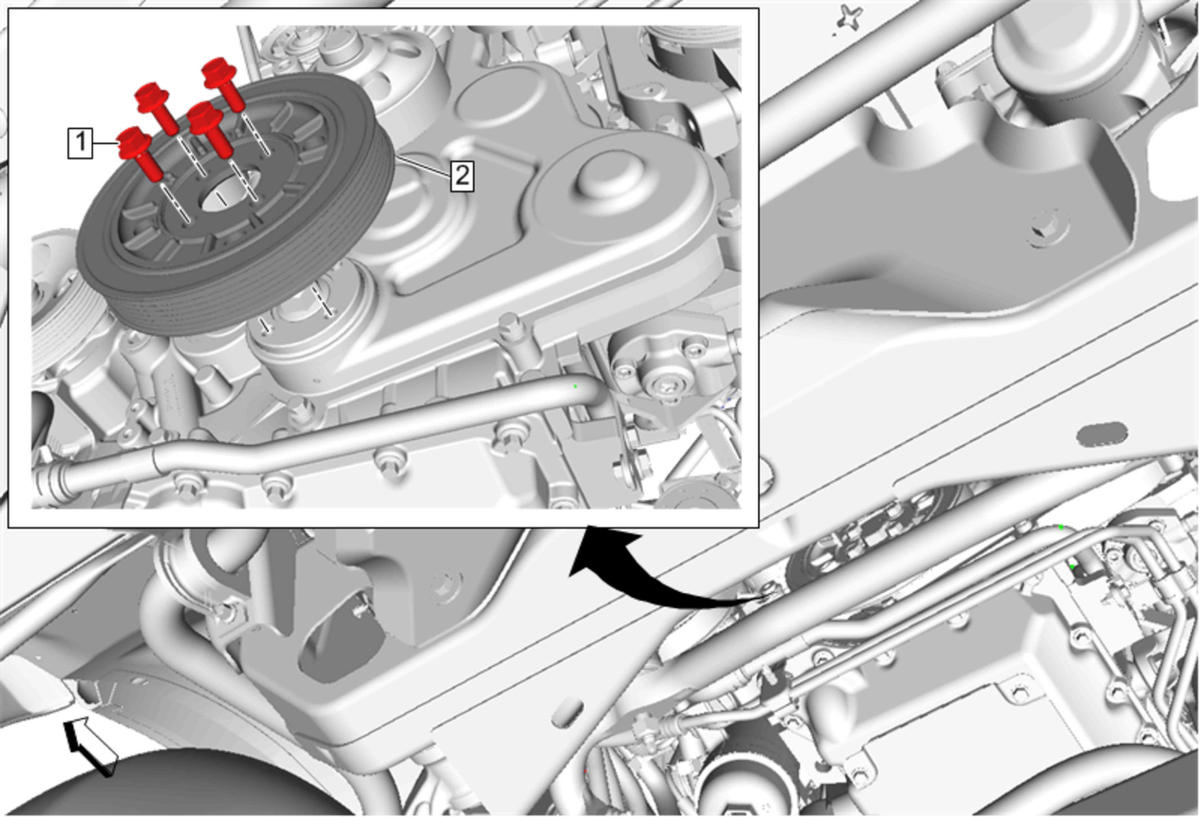

Callout	Component Name
Preliminary Procedures Engine Coolant Fan Rear Shroud Replacement (LWN) , or Engine Coolant Fan Rear Shroud Replacement (LV1) Drive Belt Replacement
1	Crankshaft Pulley Hub Bolt[4x] CAUTION: Refer to Fastener Caution . Tighten 32N. m(24 lb ft)
2	Crankshaft Balancer

Callout

Component Name

Preliminary Procedures

Engine Coolant Fan Rear Shroud Replacement (LWN) , or Engine Coolant Fan Rear Shroud Replacement (LV1)
Drive Belt Replacement

Crankshaft Pulley Hub Bolt[4x]

CAUTION:

Refer to Fastener Caution .

Tighten
32N. m(24 lb ft)

Crankshaft Balancer
