Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Oil Level Indicator Tube Seal(3) - Install NEW
- Oil Level Indicator Tube(2) - Install
- Oil Level Indicator Tube Bolt(1) - Install and tighten11 N. m (97 lb in)

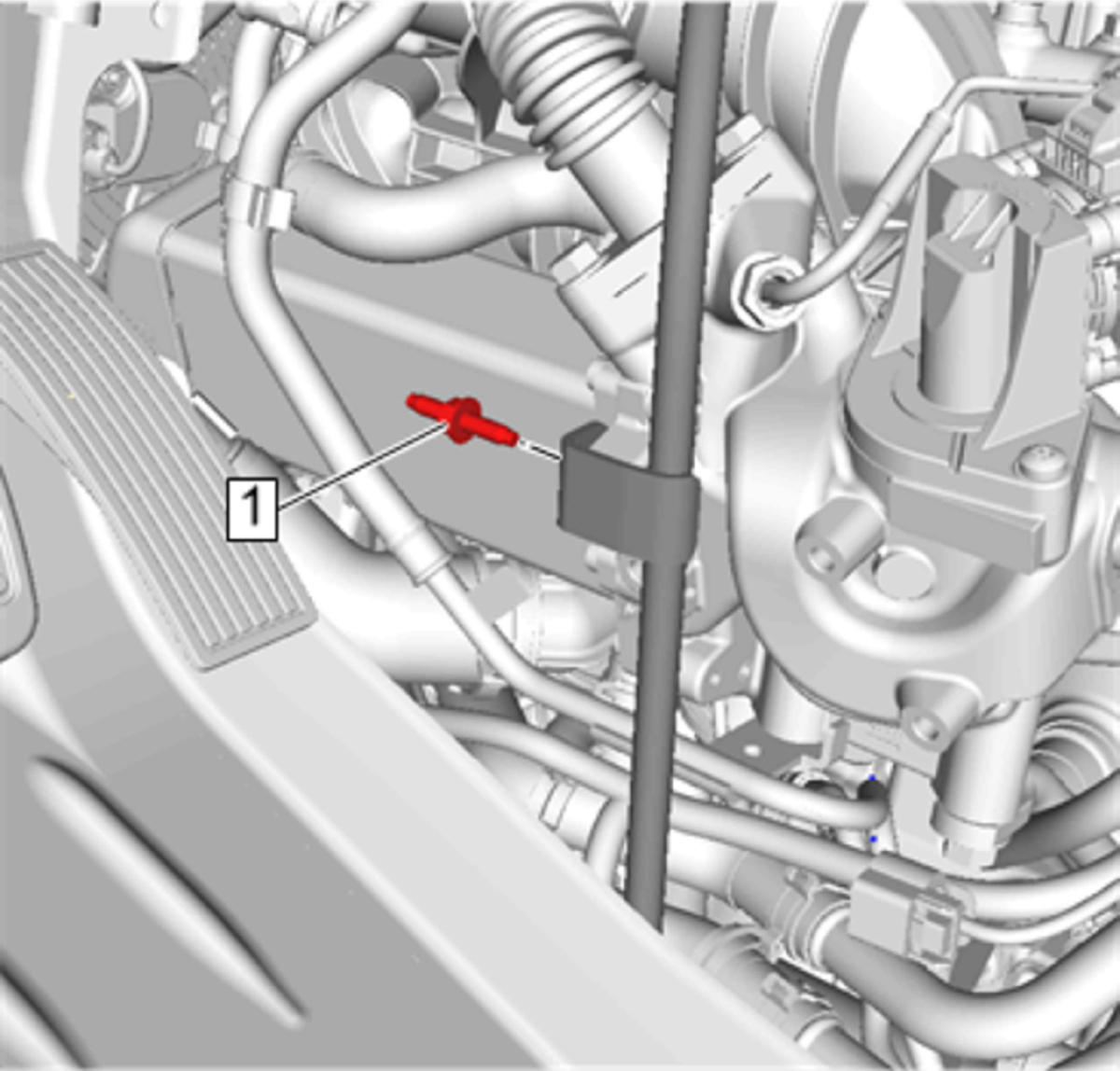

Oil Level Indicator Tube Bolt(1) - Install and tighten11 N. m (97 lb in)

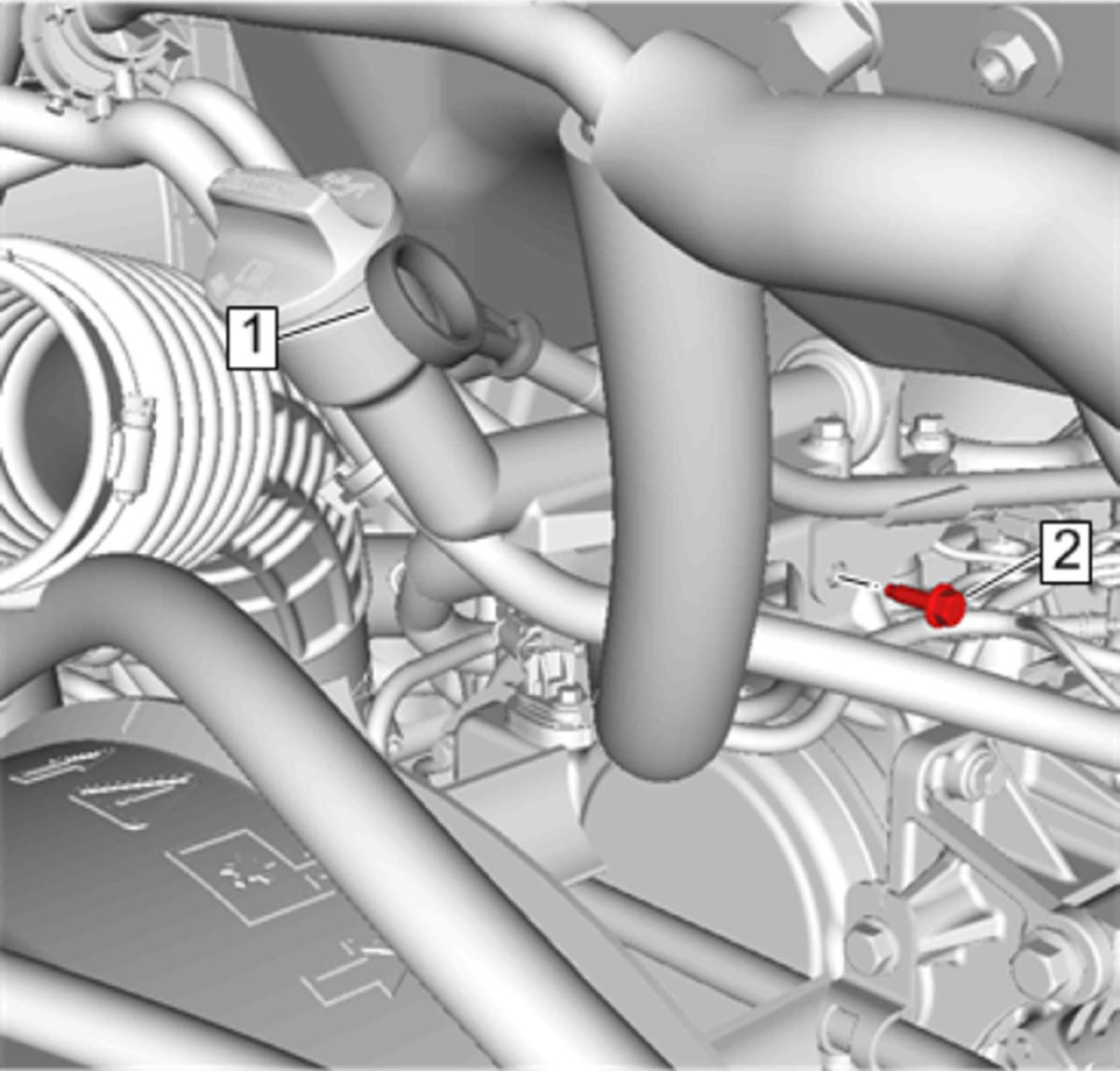

Oil Level Indicator Tube Bolt(2) - Install and tighten11 N. m (97 lb in)
- Engine Oil Level Indicator(1) - Install
- Engine Cover - Install - Engine Cover Replacement
- Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
CAUTION:
Refer to Fastener Caution .
