Engine Support Fixture

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

EN-51582 Engine Support Fixture

Equivalent regional tools: Special Tools

Installation Procedure

Engine Coolant Fan Upper Shroud - Remove - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Front Suspension Crossmember - Remove - Front Suspension Crossmember Replacement
Securely mount the EN-51582 Engine Support Fixture to the lifting device.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that the engine support fixture alignment hole and bolt holes are clear of debris prior to installing the engine support fixture. Ensure the alignment notch on the EN-51582 Engine Support Fixture(1) inserts into the alignment hole on the engine block as shown.

EN-51582 Engine Support Fixture(1) - Move into position
Courtesy of GENERAL MOTORS COMPANY

Install the long engine support fixture bolt (1).
Courtesy of GENERAL MOTORS COMPANY

Install the short engine support fixture bolt (1).

Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

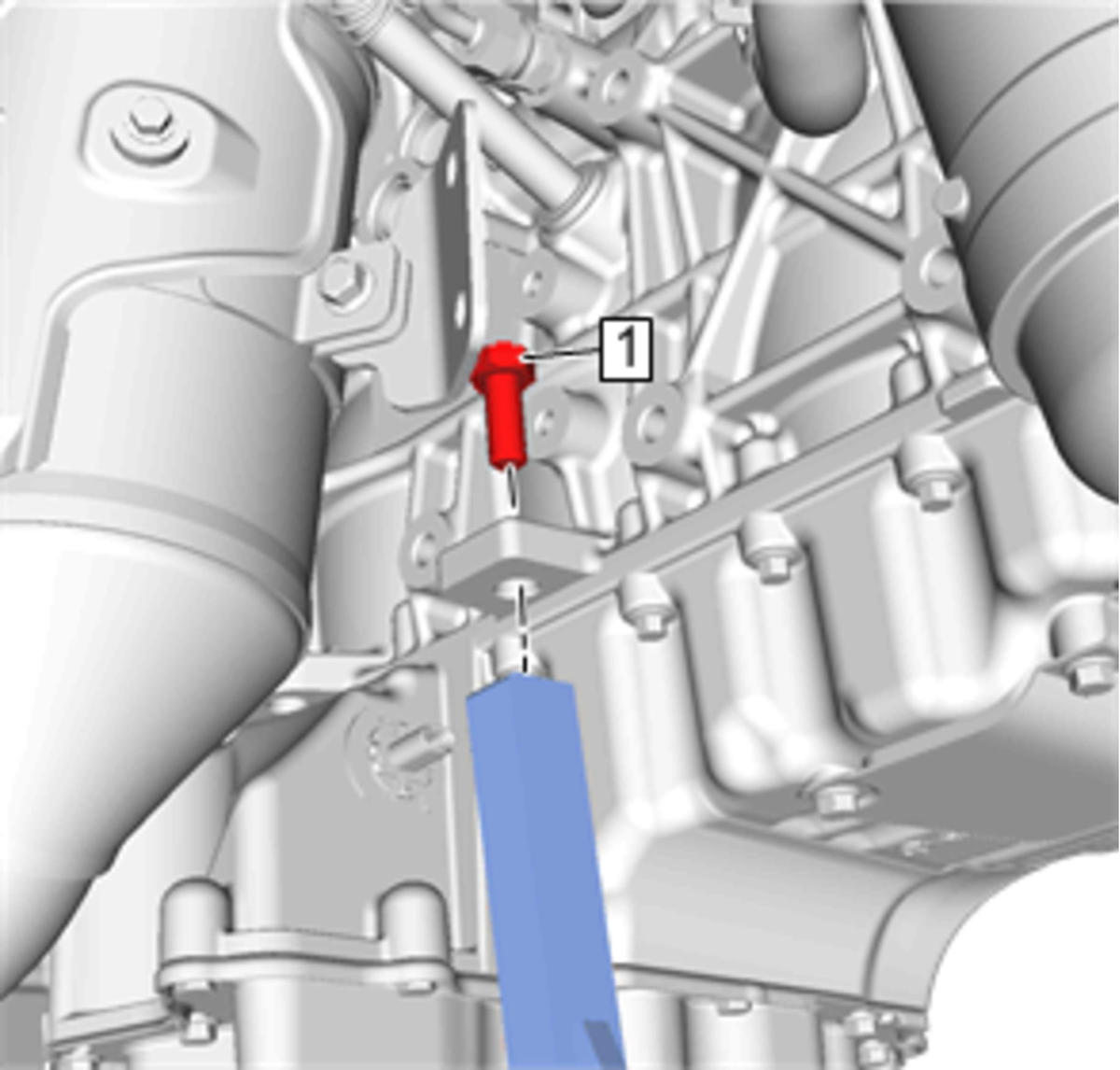

Remove the short engine support fixture bolt (1).
Courtesy of GENERAL MOTORS COMPANY

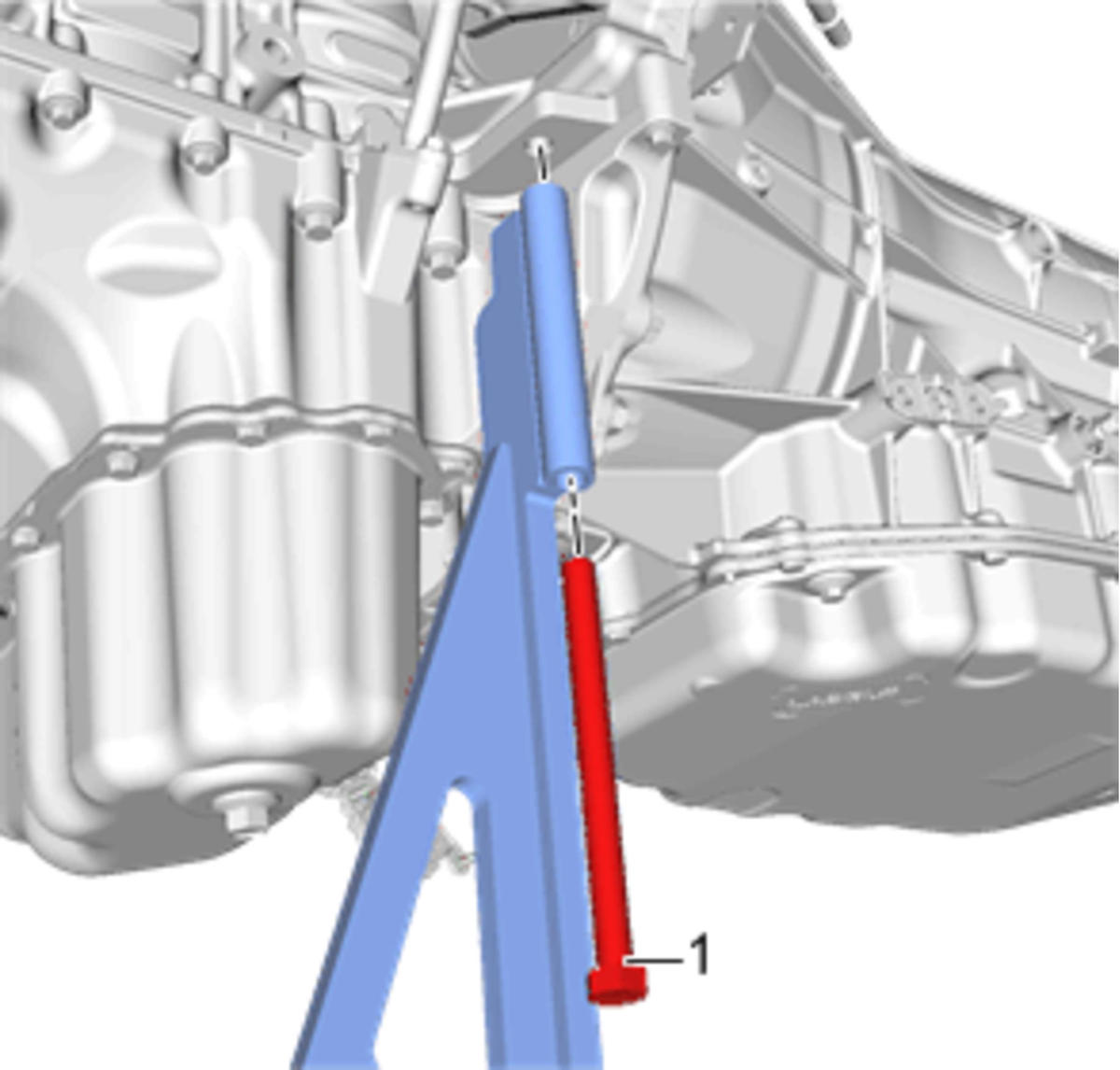

Remove the long engine support fixture bolt (1).
Courtesy of GENERAL MOTORS COMPANY

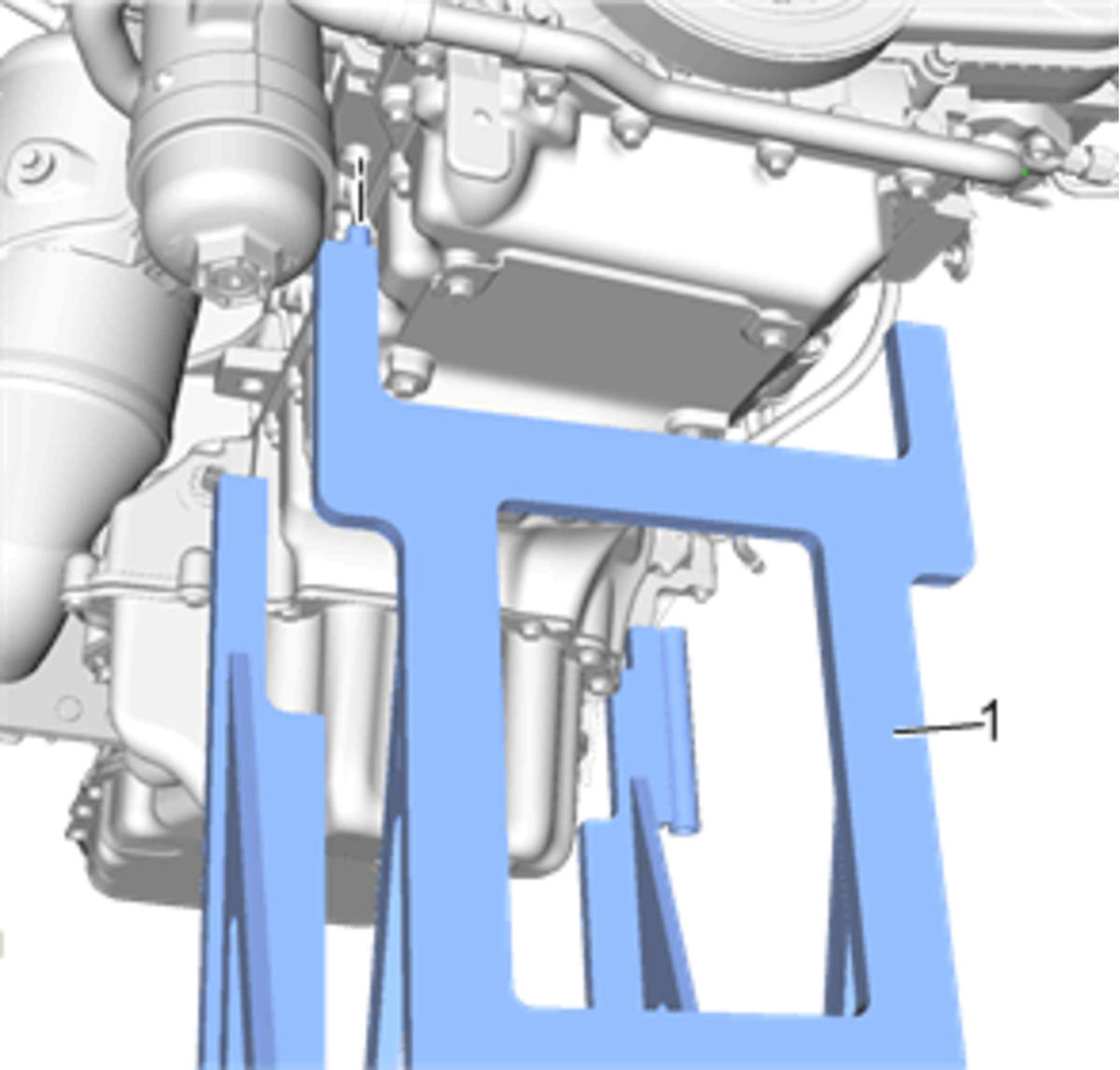

EN-51582 Engine Support Fixture(1) - Remove
Remove the EN-51582 Engine Support Fixture from the lifting device.
Engine Coolant Fan Upper Shroud - Install - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Front Suspension Crossmember - Install - Front Suspension Crossmember Replacement
