Special Tools

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Illustration	Tool Number/ Description
Courtesy of GENERAL MOTORS COMPANY	DT-22888 - 20A J-22888 - 20A K-161 A V-9304220 Universal Two Jaw Puller
Courtesy of GENERAL MOTORS COMPANY	EN-8037 J-8037 Ring Compressor
Courtesy of GENERAL MOTORS COMPANY	EN-8062 J-8062 KM-348 09916-14510 Valve Spring Compressor - Head Off
Courtesy of GENERAL MOTORS COMPANY	EN-8087 J-8087 Cylinder Bore Gauge
Courtesy of GENERAL MOTORS COMPANY	EN-26999 J - 26999 Compression Gauge Adapter
Courtesy of GENERAL MOTORS COMPANY	EN-28467-700 EN-47649 X-0206951 Engine Bridge Tool
Courtesy of GENERAL MOTORS COMPANY	EN-35667-A J - 35667-A Cylinder Head Leakdown Tester
Courtesy of GENERAL MOTORS COMPANY	EN-36857 J-36857 Engine Lift Bracket
Courtesy of GENERAL MOTORS COMPANY	EN-42183 J-42183 Driver Handle
Courtesy of GENERAL MOTORS COMPANY	EN-45059 J - 45059 KM-470-B Angle Meter South America and Thailand - Use Local Equivalent
Courtesy of GENERAL MOTORS COMPANY	EN-45299 J - 45299 Engine Pre-Luber

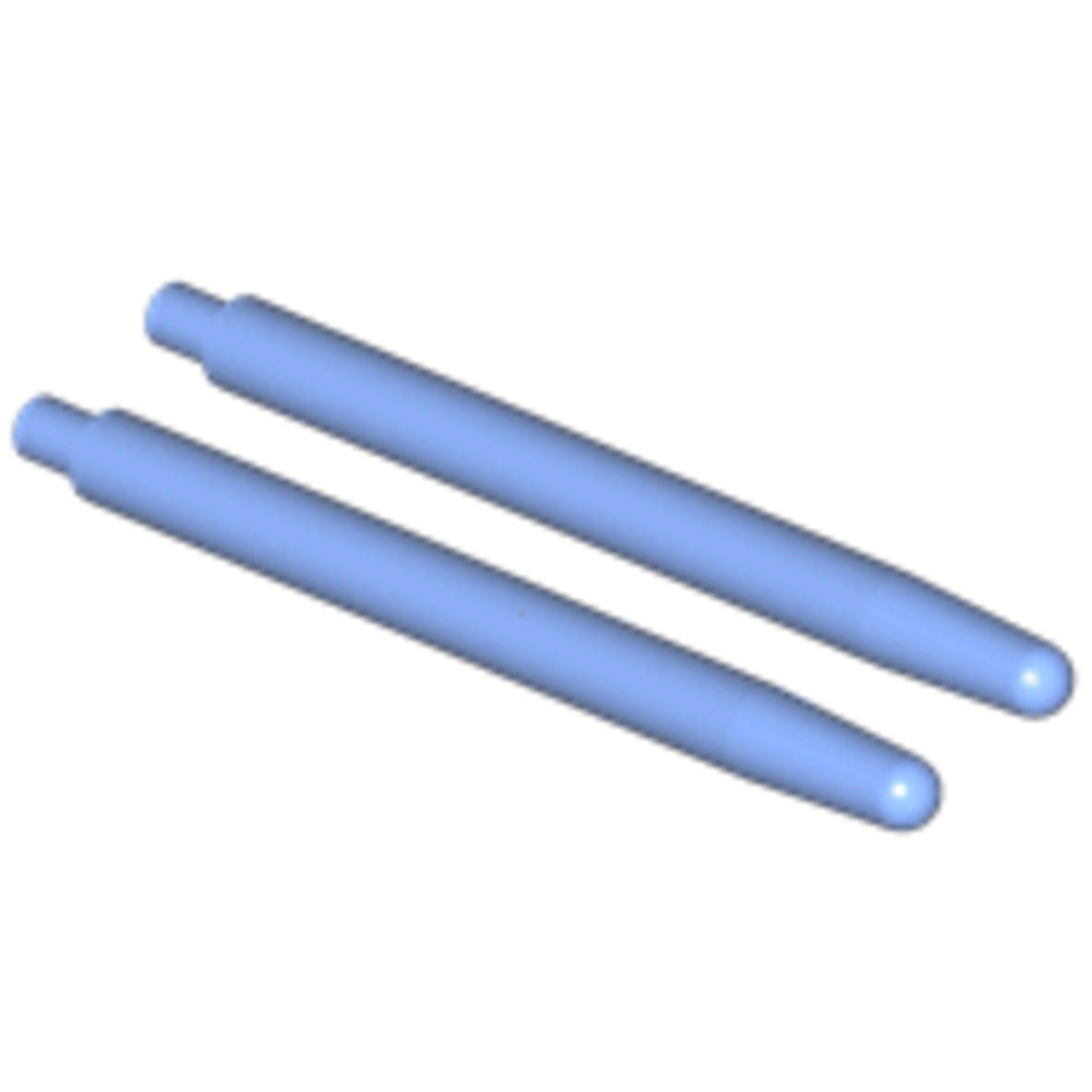

Courtesy of GENERAL MOTORS COMPANY	EN-46109 Engine Front Cover Installation Guide Pins
Courtesy of GENERAL MOTORS COMPANY	EN-46116 Valve Stem Seal Remover/Installer
Courtesy of GENERAL MOTORS COMPANY	EN-46745 Piston Pin Clip Remover/Installer
Courtesy of GENERAL MOTORS COMPANY	EN-47909 Injector Bore and Sleeve Cleaning Kit
Courtesy of GENERAL MOTORS COMPANY	EN-48974 EGR Cooler Pressure Tester Adapter Set

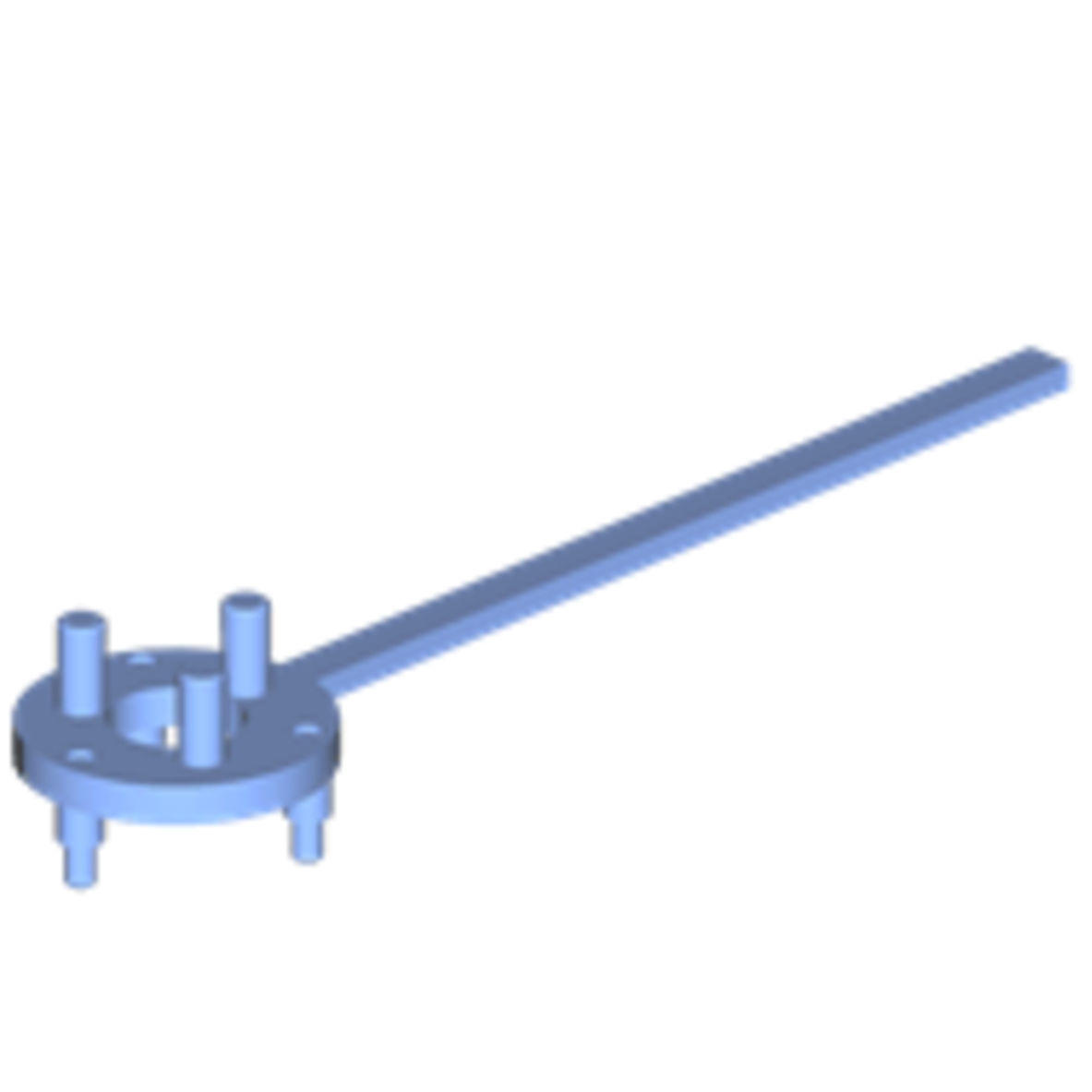

Courtesy of GENERAL MOTORS COMPANY	EN-50025 Pulley Holding Wrench
Courtesy of GENERAL MOTORS COMPANY	EN-50026 Rear Main Seal Installer
Courtesy of GENERAL MOTORS COMPANY	DT-51265 Crankshaft Locking Tool
Courtesy of GENERAL MOTORS COMPANY	EN-50031 Valve Spring Compressor (off-vehicle)
Courtesy of GENERAL MOTORS COMPANY	EN-50034 Connecting Rod Guides
Courtesy of GENERAL MOTORS COMPANY	EN-50718 Crankshaft Front Seal Installer
Courtesy of GENERAL MOTORS COMPANY	EN-50719 Crankshaft Front Oil Seal Remover
Courtesy of GENERAL MOTORS COMPANY	EN-50723 Valve Seal Installer
Courtesy of GENERAL MOTORS COMPANY	EN-51025 Camshaft Timing Tool
Courtesy of GENERAL MOTORS COMPANY	EN-51104 Injection Pump Sprocket Holder
Courtesy of GENERAL MOTORS COMPANY	EN-51110 Compression Tester Adapter
Courtesy of GENERAL MOTORS COMPANY	EN-51162 Balance Shaft Backlash Adapter
Courtesy of GENERAL MOTORS COMPANY	EN-51768 Engine Support Fixture Adapter Bolts M8
Courtesy of GENERAL MOTORS COMPANY	EN-52059 Engine Support Fixture Adapter Bolts M10
Courtesy of GENERAL MOTORS COMPANY	EN-52287 Balancer Holding Tool
Courtesy of GENERAL MOTORS COMPANY	GE-7872 J-7872 Magnetic Base Dial Indicator
Courtesy of GENERAL MOTORS COMPANY	J-8001 Dial Indicator Set
Courtesy of GENERAL MOTORS COMPANY	J-26900-13 Magnetic Indicator Base
Courtesy of GENERAL MOTORS COMPANY	J-28428-E High-Intensity Black Light Kit
Courtesy of GENERAL MOTORS COMPANY	J-46091 Charge Air Cooler Tester
Courtesy of GENERAL MOTORS COMPANY	J-46901-1 Charge Air Cooler Tester
