Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Turn OFF the engine, for 30 seconds before proceeding. This will purge the fuel pressure from the complete fuel system.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Cover the oil filler tube opening to prevent dirt and debris from entering.

Oil Filler Tube(4) - Remove - Oil Filler Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

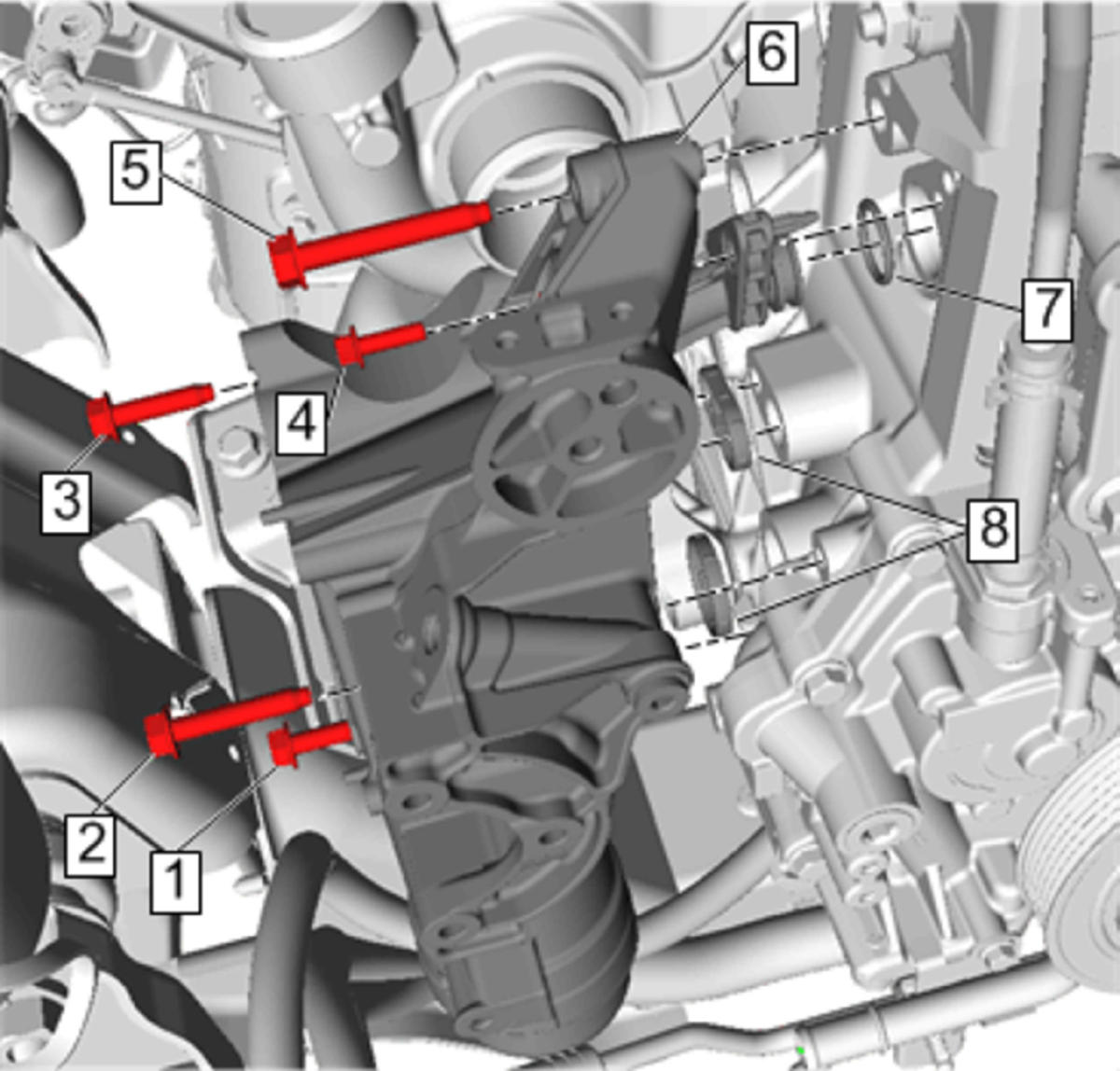

Oil Filter Assembly(6) - Remove - Oil Filter Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

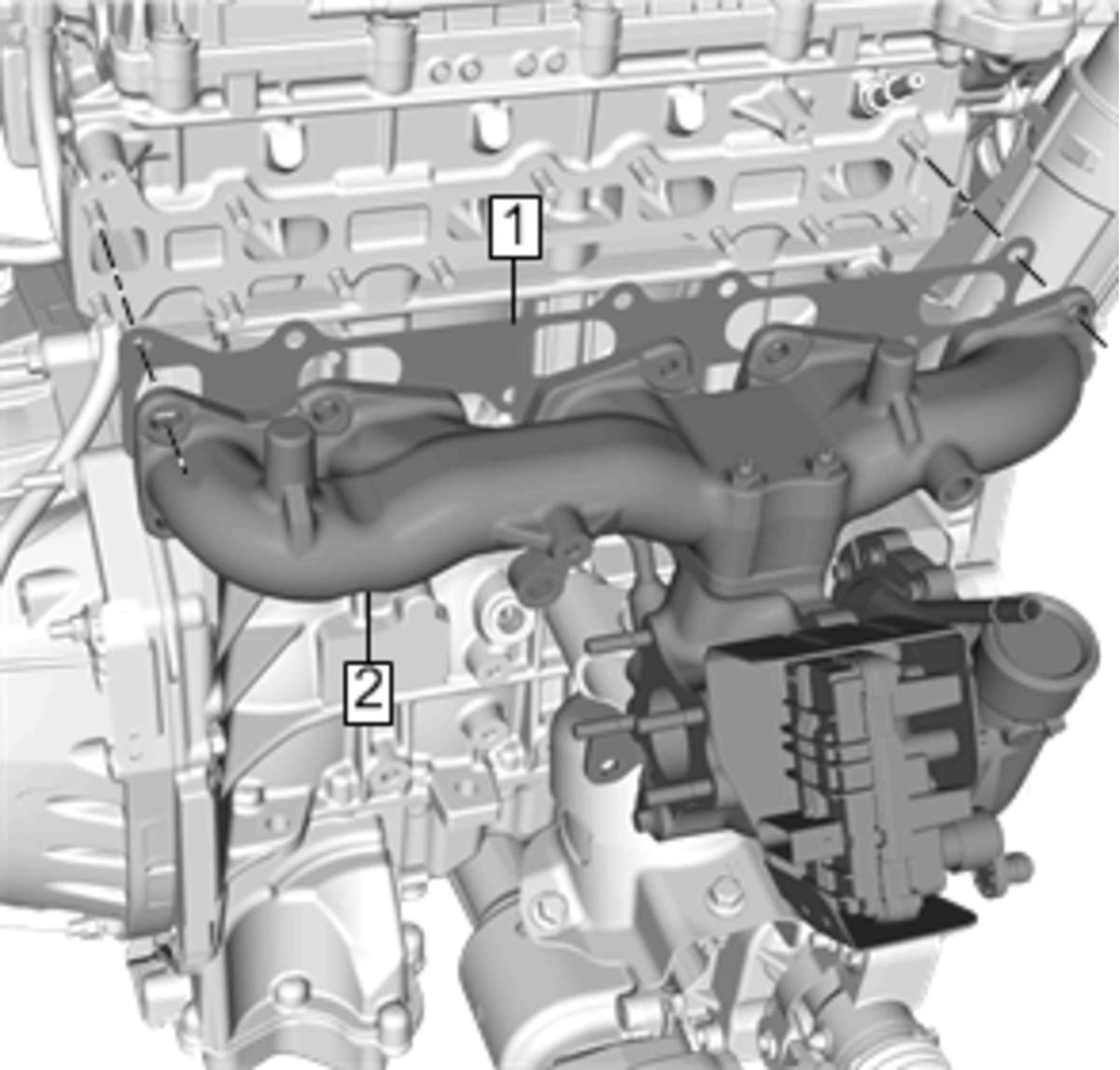

Exhaust Manifold and Turbocharger Assembly(2) - Remove - Exhaust Manifold Replacement (LWN)
Heater Inlet and Outlet Pipe - Remove - Heater Inlet And Outlet Pipe Replacement (LWN with K08) , or Heater Inlet And Outlet Pipe Replacement (LWN without K08)
Courtesy of GENERAL MOTORS COMPANY

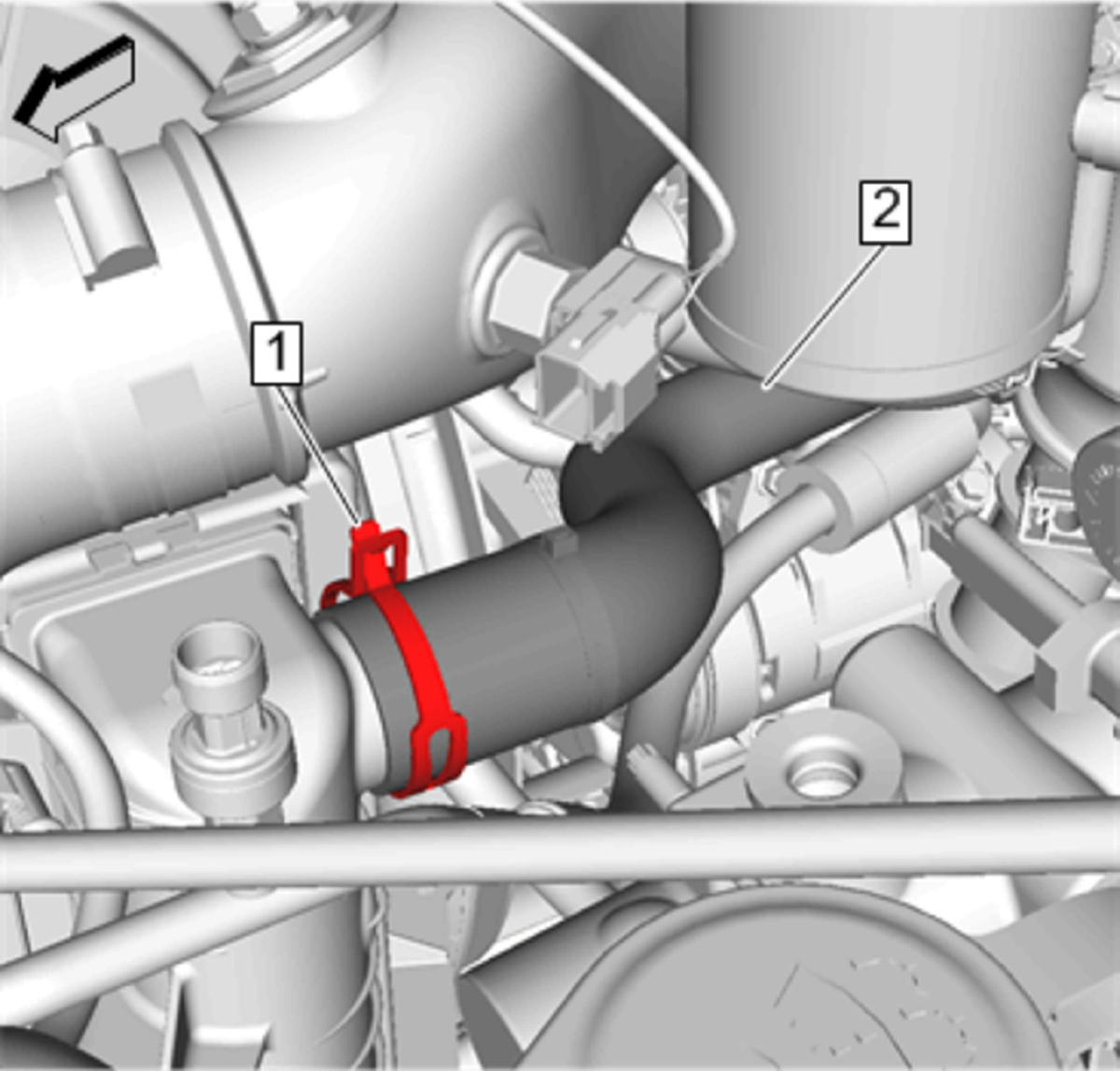

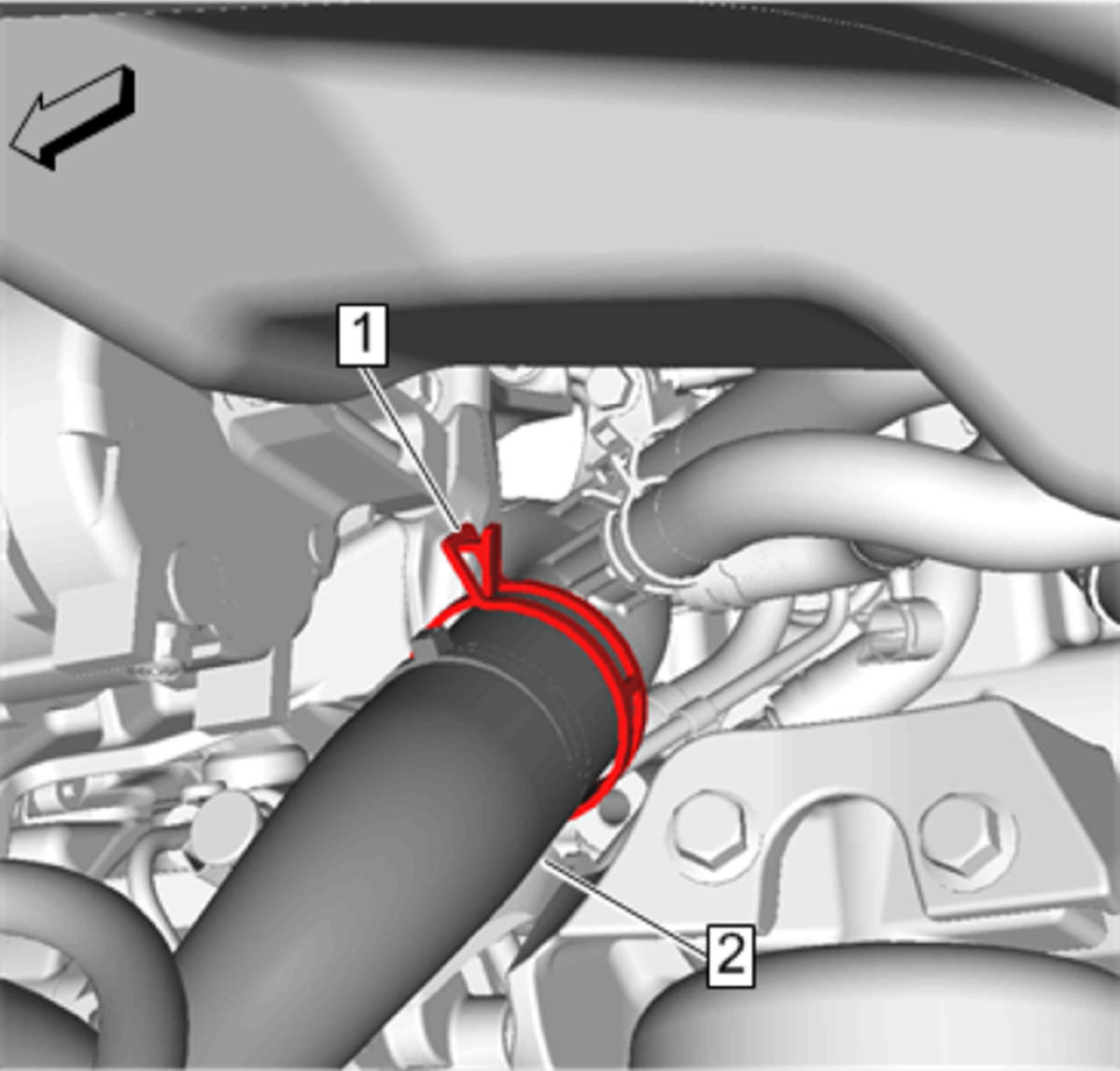

Radiator Inlet Hose (2) - Remove - Radiator Inlet Hose Replacement (LWN) , or Radiator Inlet Hose Replacement (LV1) , or Radiator Inlet Hose Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose(2) - Remove - Radiator Outlet Hose Replacement (LWN) , or Radiator Outlet Hose Replacement (LV1) , or Radiator Outlet Hose Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

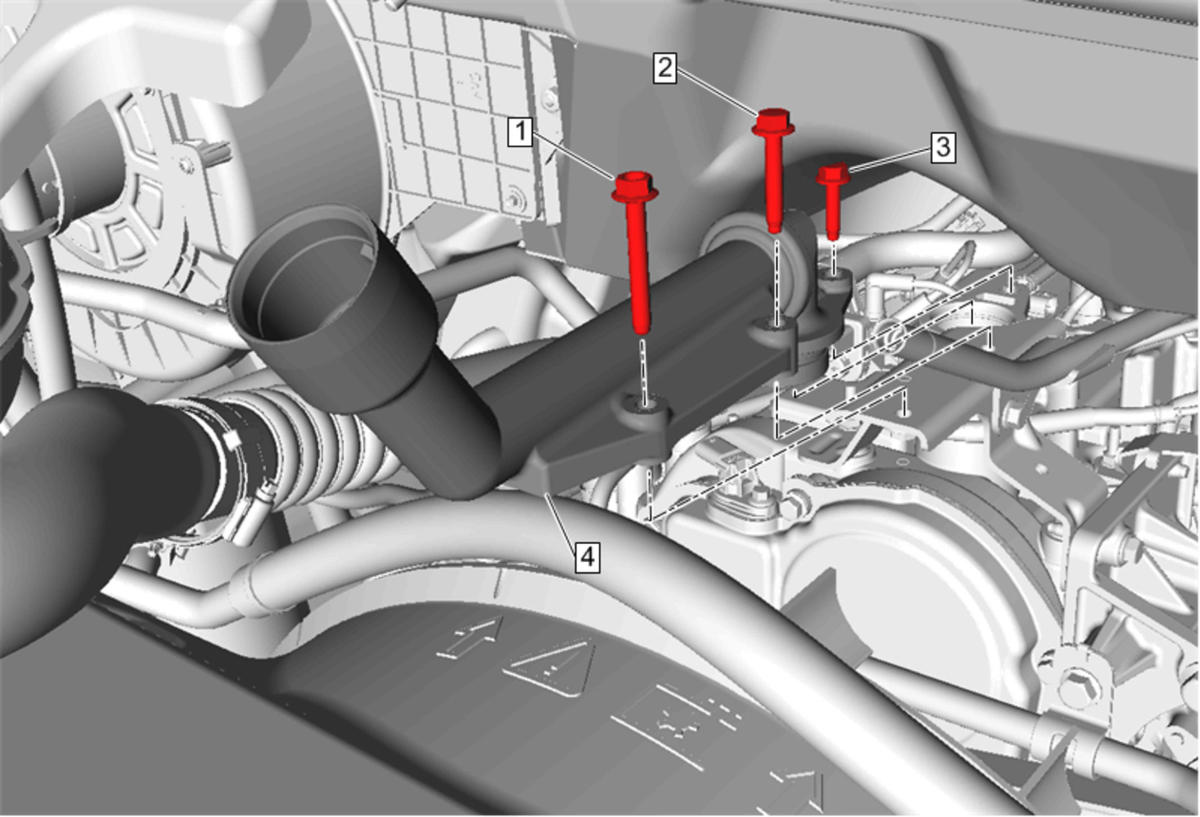

Generator Bracket(3) - Remove - Generator Bracket Replacement (Diesel)
Air Conditioning Compressor Bracket - Remove - Air Conditioning Compressor Bracket Replacement (LWN) , or Air Conditioning Compressor Bracket Replacement (L96, LC8) , or Air Conditioning Compressor Bracket Replacement (LV1)
Intake Manifold - Remove - Intake Manifold Replacement
Disconnect the electrical connectors and detach the wiring harness as necessary.
Courtesy of GENERAL MOTORS COMPANY

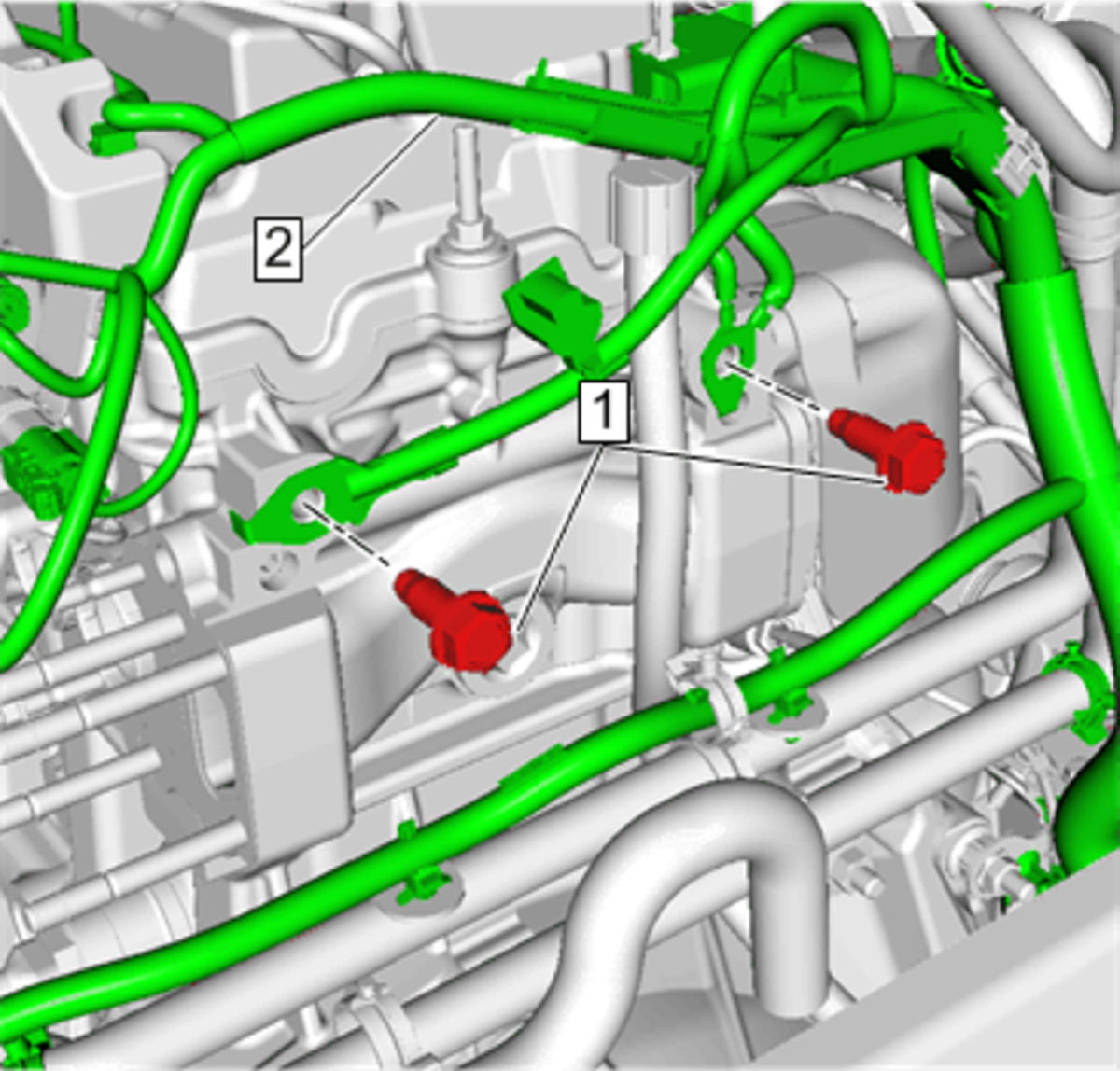

Remove the ground cable bolts (1) and reposition the wiring harness (2) as needed.
Courtesy of GENERAL MOTORS COMPANY

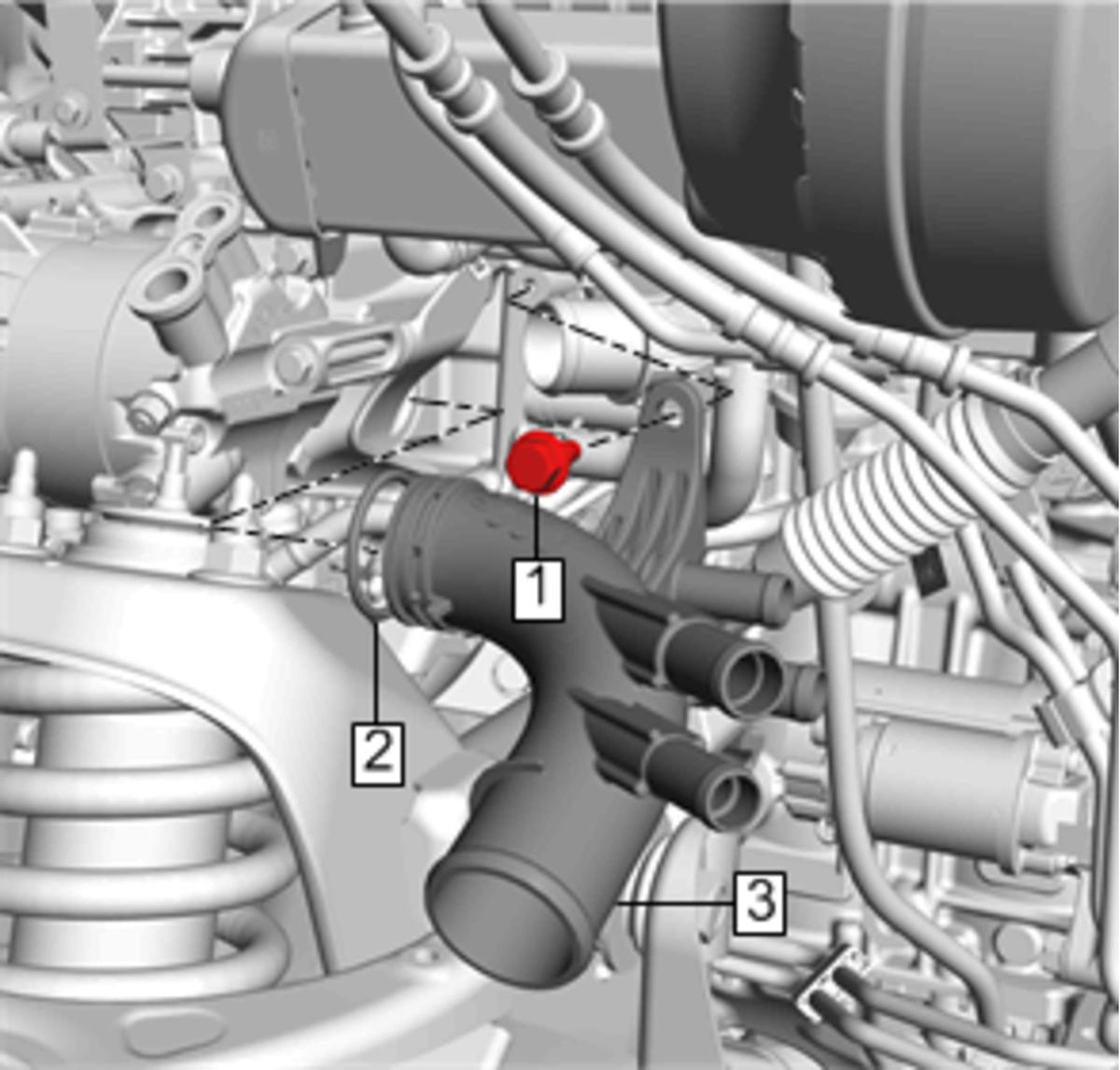

Water Pump Inlet Pipe(3) - Remove - Water Pump Inlet Pipe Replacement (LWN)
Transmission Fluid Cooler Pipe - Remove - Transmission Fluid Cooler Hose/Pipe Replacement (M5U) , or Transmission Fluid Cooler Hose/Pipe Replacement (MYD)
Courtesy of GENERAL MOTORS COMPANY

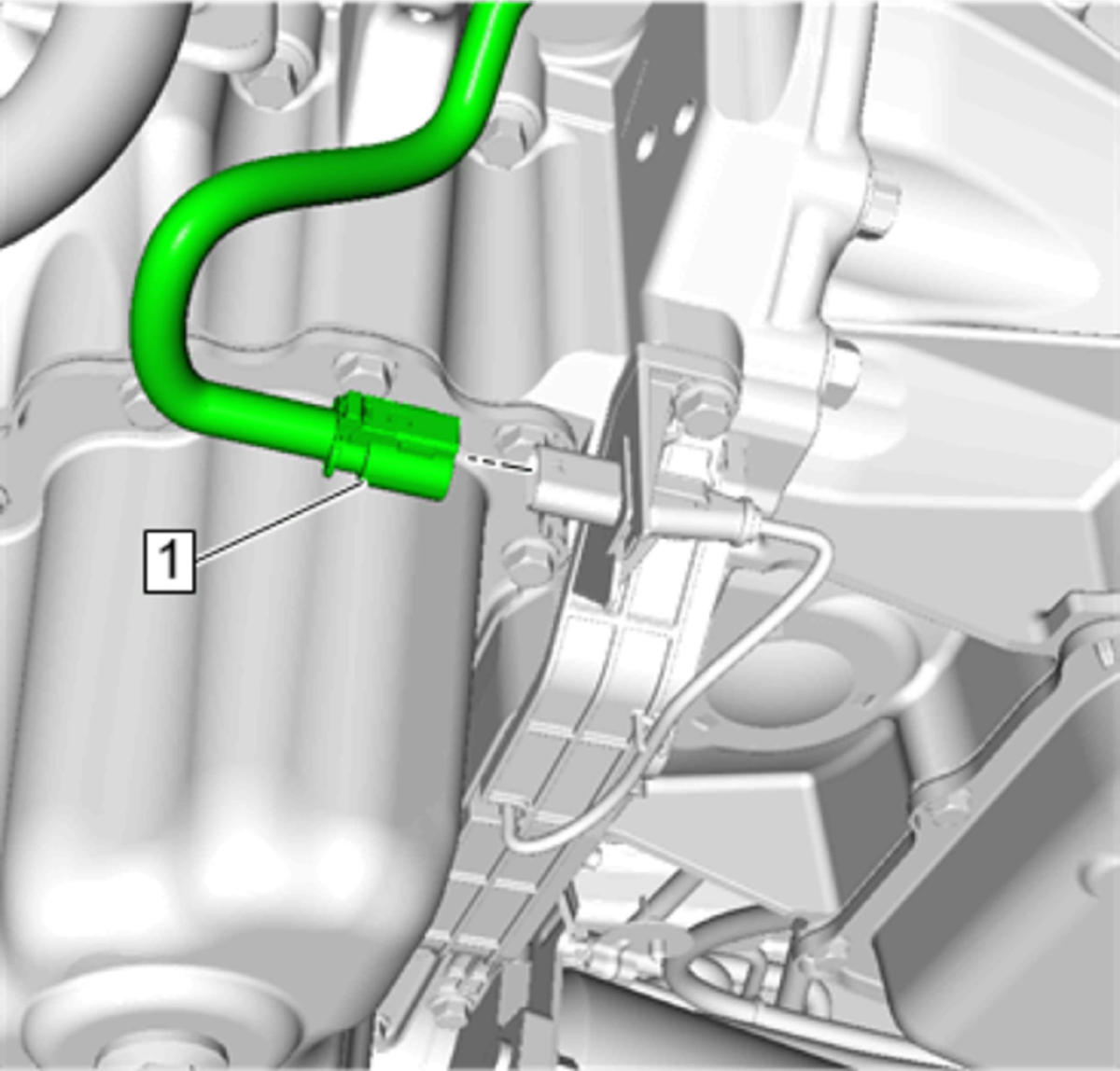

Electrical Connector(1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

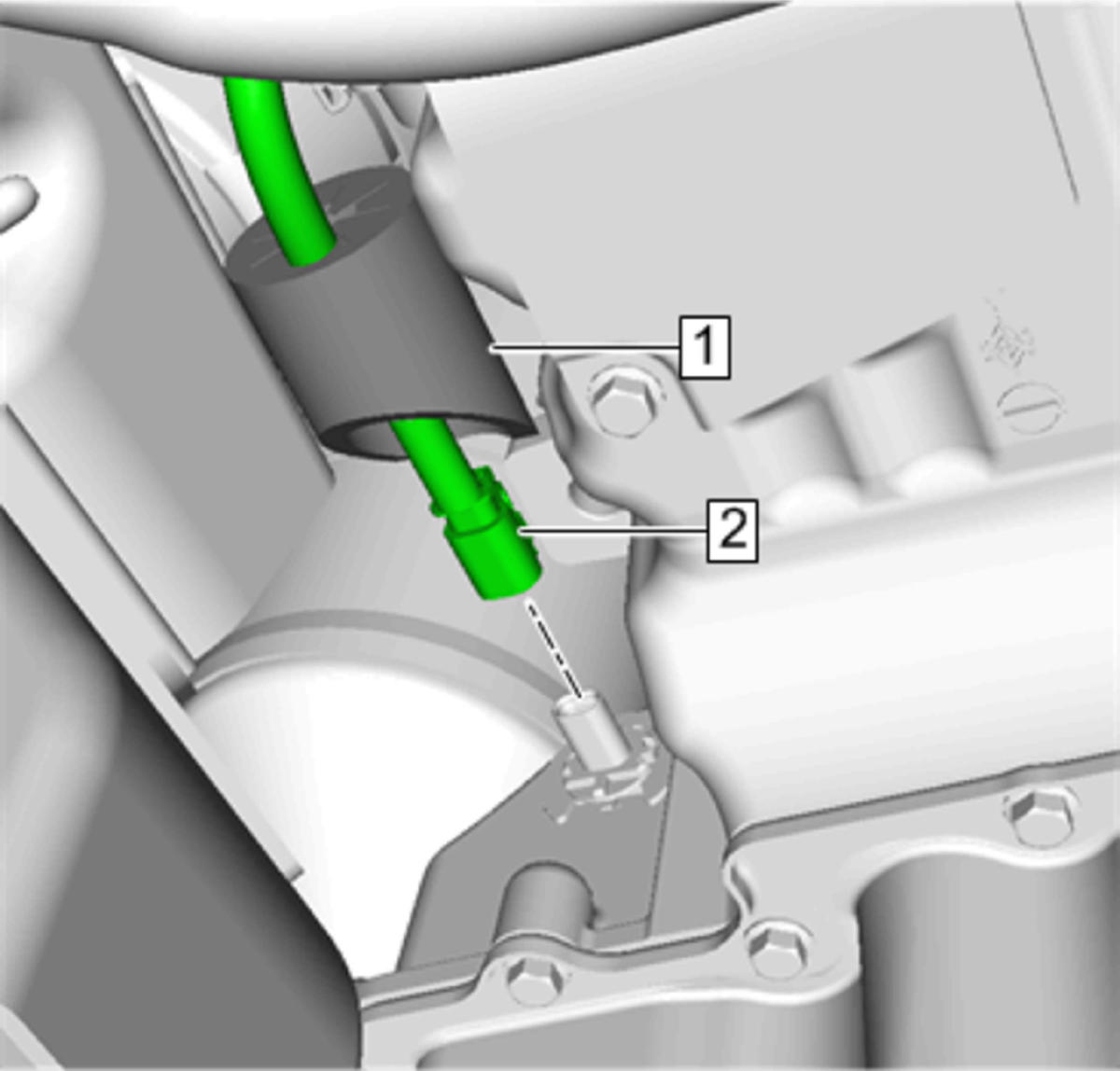

Reposition the electrical connector sleeve (1).
Electrical Connector(2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Battery Negative Cable(1) @ Engine Block - Remove - Battery Negative Cable Replacement (L96, LC8) , or Battery Negative Cable Replacement (LWN) , or Battery Negative Cable Replacement (LV1)
Fuel Pump Fuel Feed Hose - Remove - Fuel Pump Fuel Feed Hose Replacement
Fuel Pump Fuel Return Hose - Remove - Fuel Pump Fuel Return Hose Replacement
Power Steering Fluid Reservoir Outlet Hose - Remove - Power Steering Fluid Reservoir Outlet Hose Replacement (With LWN) , or Power Steering Fluid Reservoir Outlet Hose Replacement (Without LWN)
Transmission - Remove - Transmission Replacement (With LV1 Engine) , or Transmission Replacement (With LWN Engine)
Engine Coolant Fan Bracket - Remove - Engine Cooling Fan Bracket Replacement
Disconnect remaining electrical connectors, hoses and vacuum lines as necessary.
Engine Support Fixture - Install - Engine Support Fixture
Courtesy of GENERAL MOTORS COMPANY

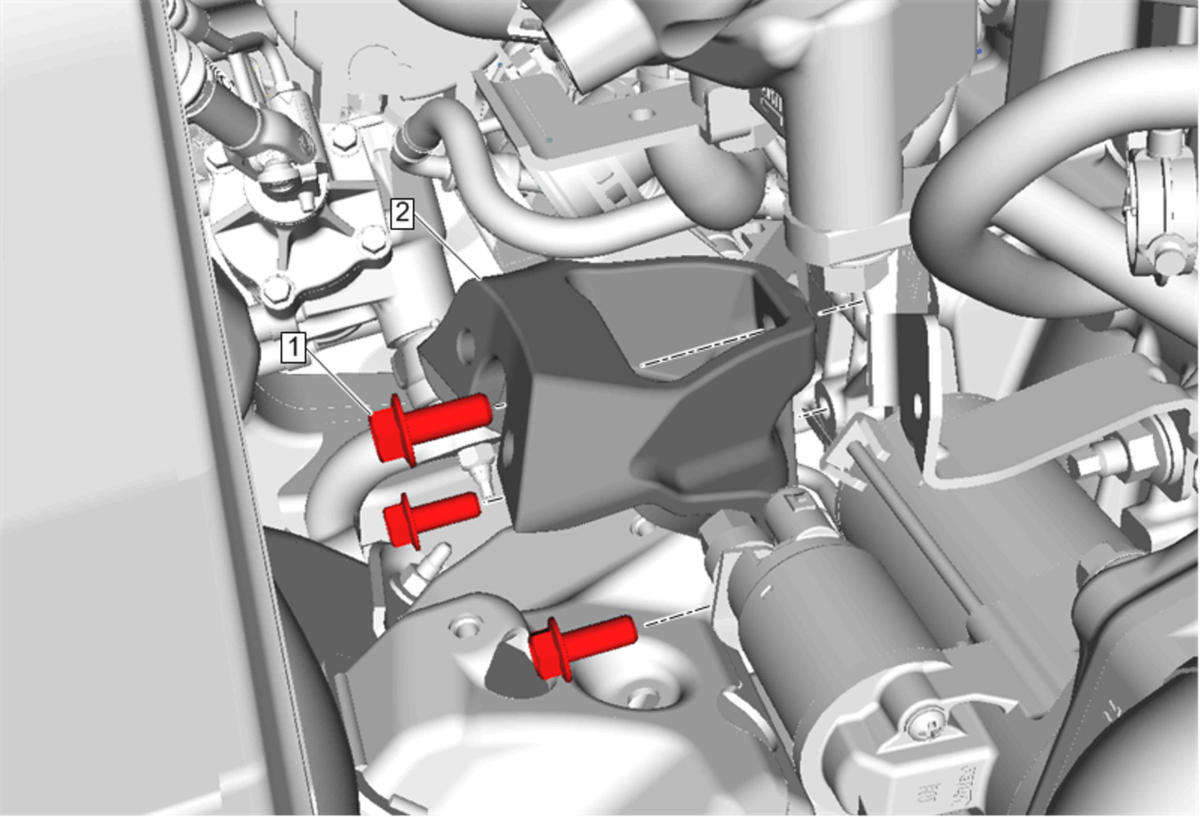

Engine Mount Bracket-Left Side(2) - Remove - Engine Mount Bracket Replacement - Left Side
Engine Mount-Right Side(2) - Remove - Engine Mount Replacement - Right Side
With the aid of an assistant, rotate and lower the engine out of the vehicle while maintaining proper clearance of the following.
- Frame
- Vacuum lines
- Oil cooler lines
- Wiring harness
- Coolant pipes and hoses
Transfer components as necessary.
