Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Intake Manifold - Remove - Intake Manifold Replacement
Engine Wiring Harness Ground Bolt(1) - Remove[2x]
- Engine Wiring Harness(2) - Reposition away
Exhaust Manifold and Turbocharger Assembly(2) - Remove - Exhaust Manifold Replacement (LWN)
- Camshaft - Remove - Camshaft Replacement
- Glow Plug - Remove - Glow Plug Replacement

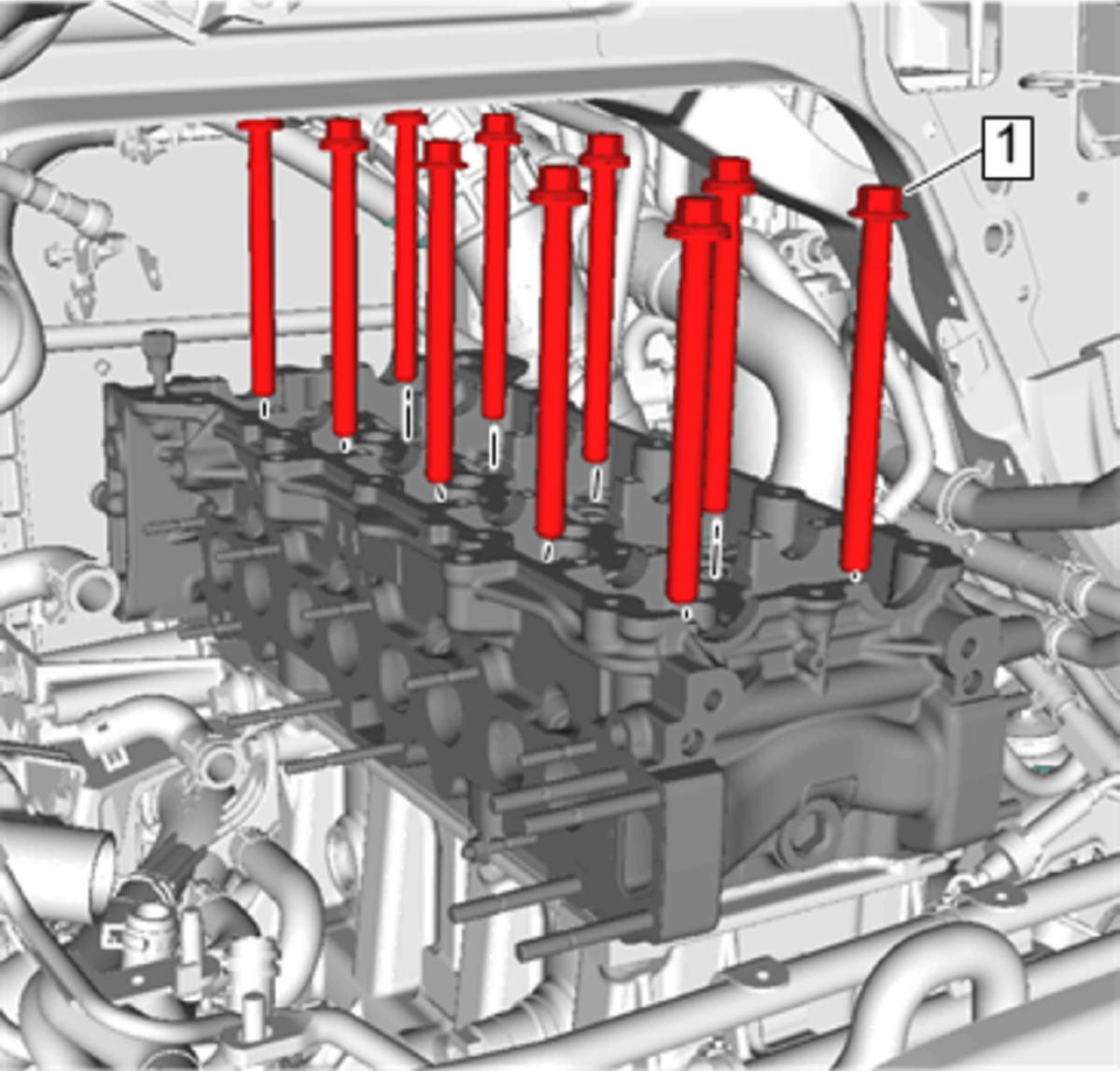

Cylinder Head Bolt(1) - Remove and DISCARD[10x]

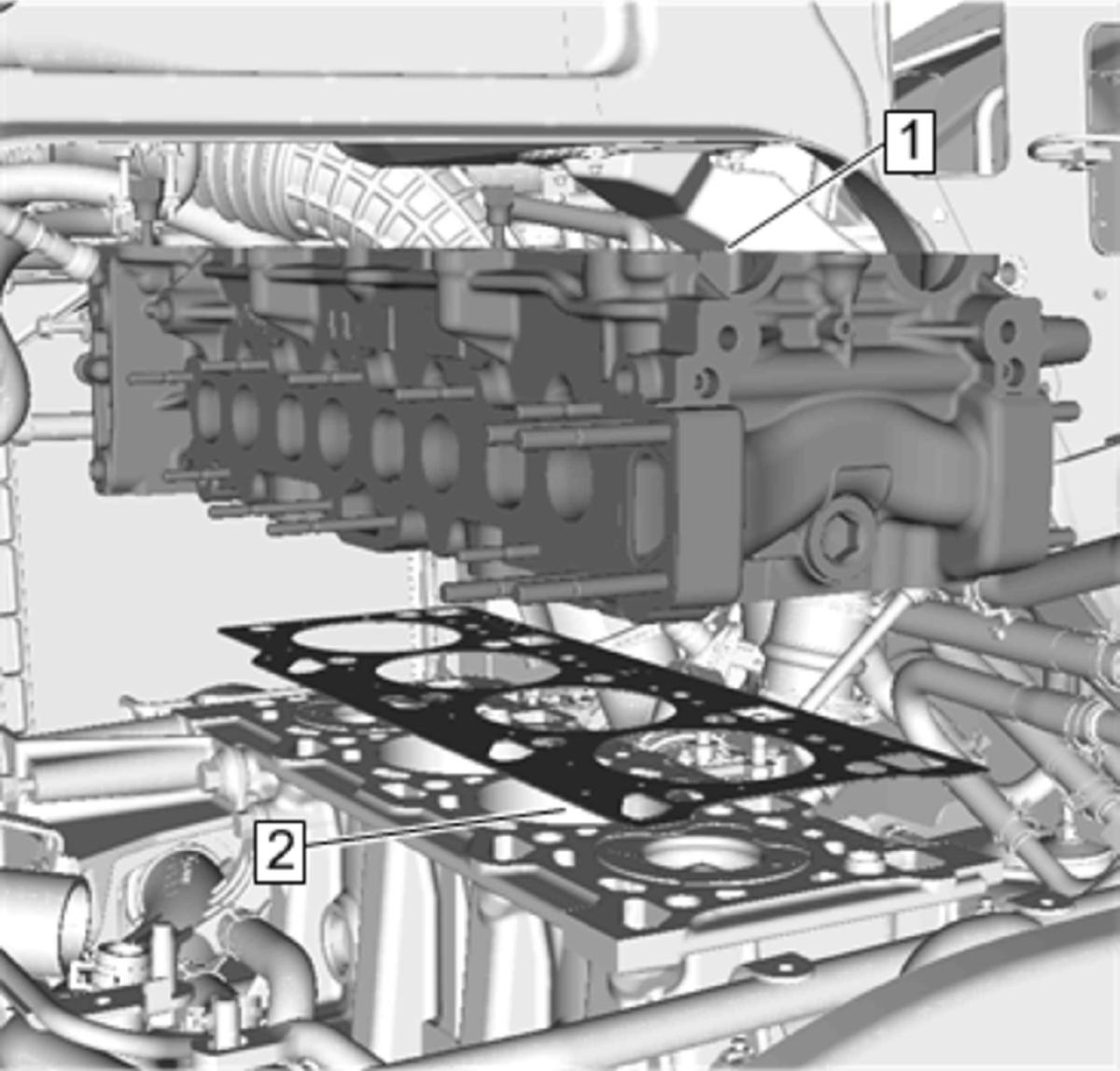

Cylinder Head(1) - Remove
- Cylinder Head Gasket(2) - Remove and DISCARD
- Cylinder Head(1) - Clean and inspect - Cylinder Head Cleaning and Inspection

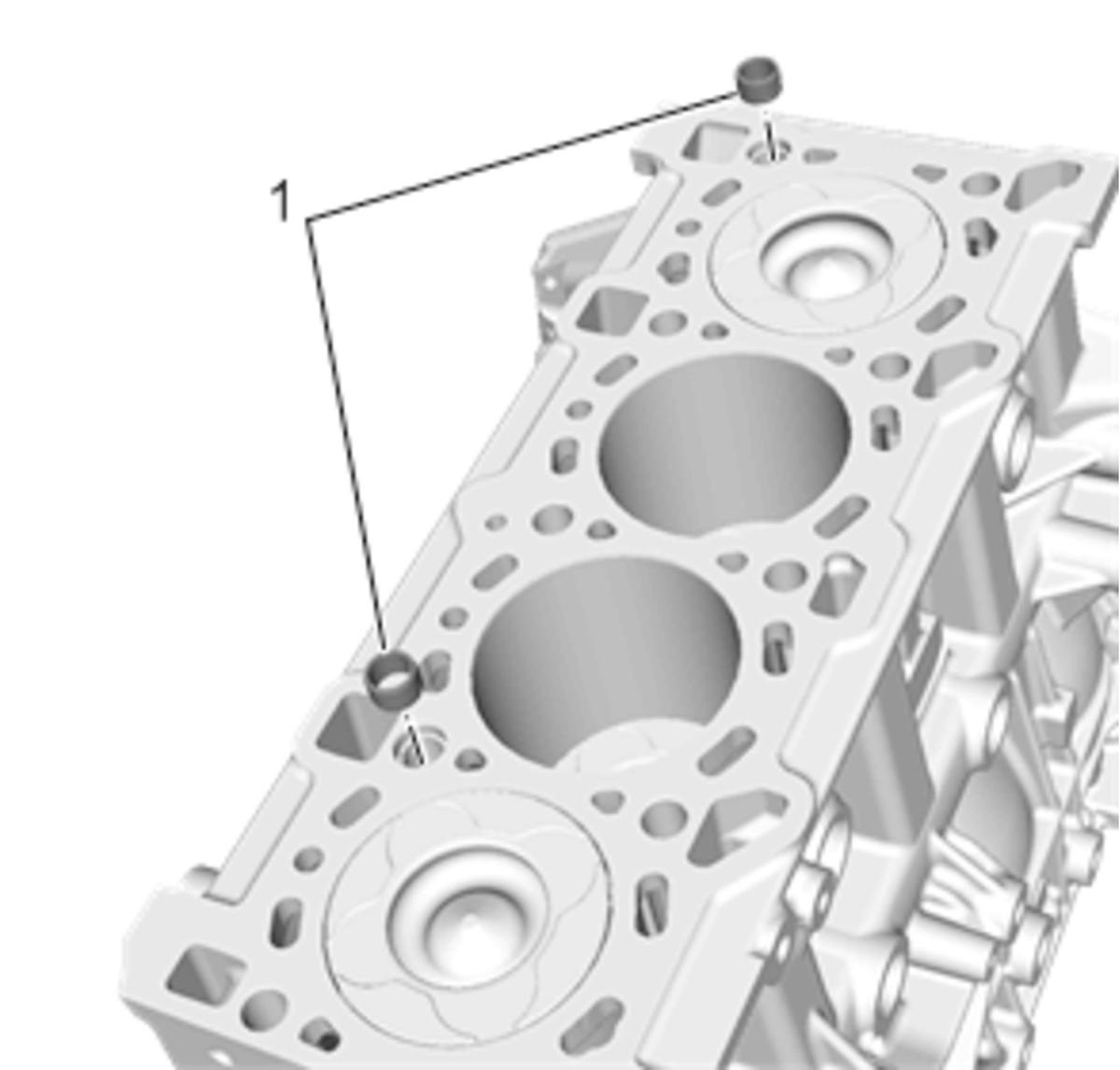

Ensure the cylinder head alignment pins (1) remain in the engine block.
- If replacing the cylinder head, transfer all parts as necessary. Cylinder Head Disassemble
