Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

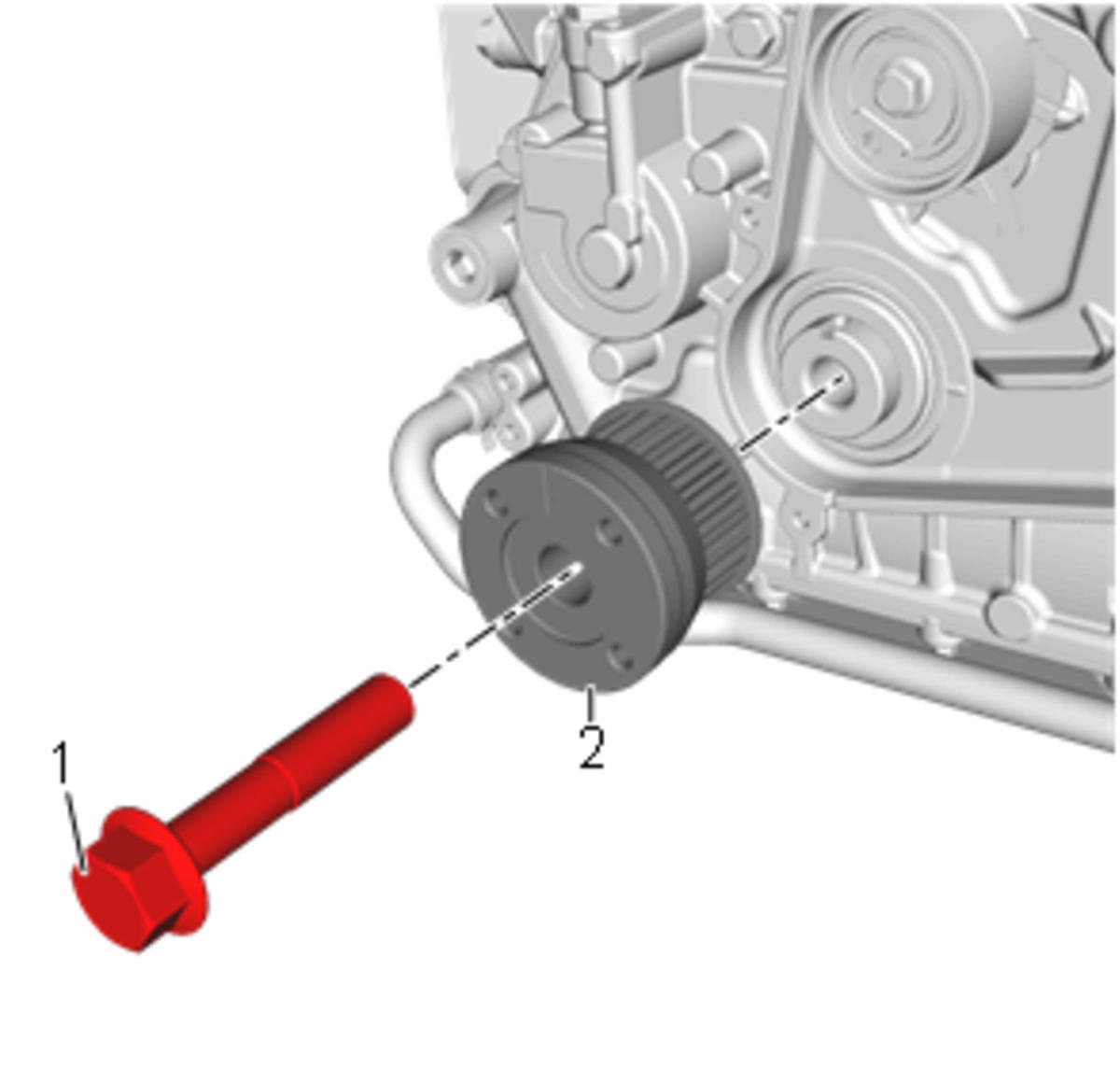

  1. GM4962130Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Sprocket(2) - Install

  2. Temporarily install the crankshaft balancer. Crankshaft Balancer Replacement
  3. While holding the crankshaft balancer with the EN-52287  Balancer Holding Tool, install the NEW crankshaft pulley bolt (1). Engine Front Cover Installation
  4. Timing Belt - Install - Timing Belt Replacement
