Timing Belt Installation

Special Tools

• EN-50025  Pulley Holding Wrench
• EN-51265  Crankshaft Locking Tool
• EN-51025  Camshaft Timing Tool

For equivalent regional tools, refer to Special Tools .

1. Courtesy of GENERAL MOTORS COMPANY

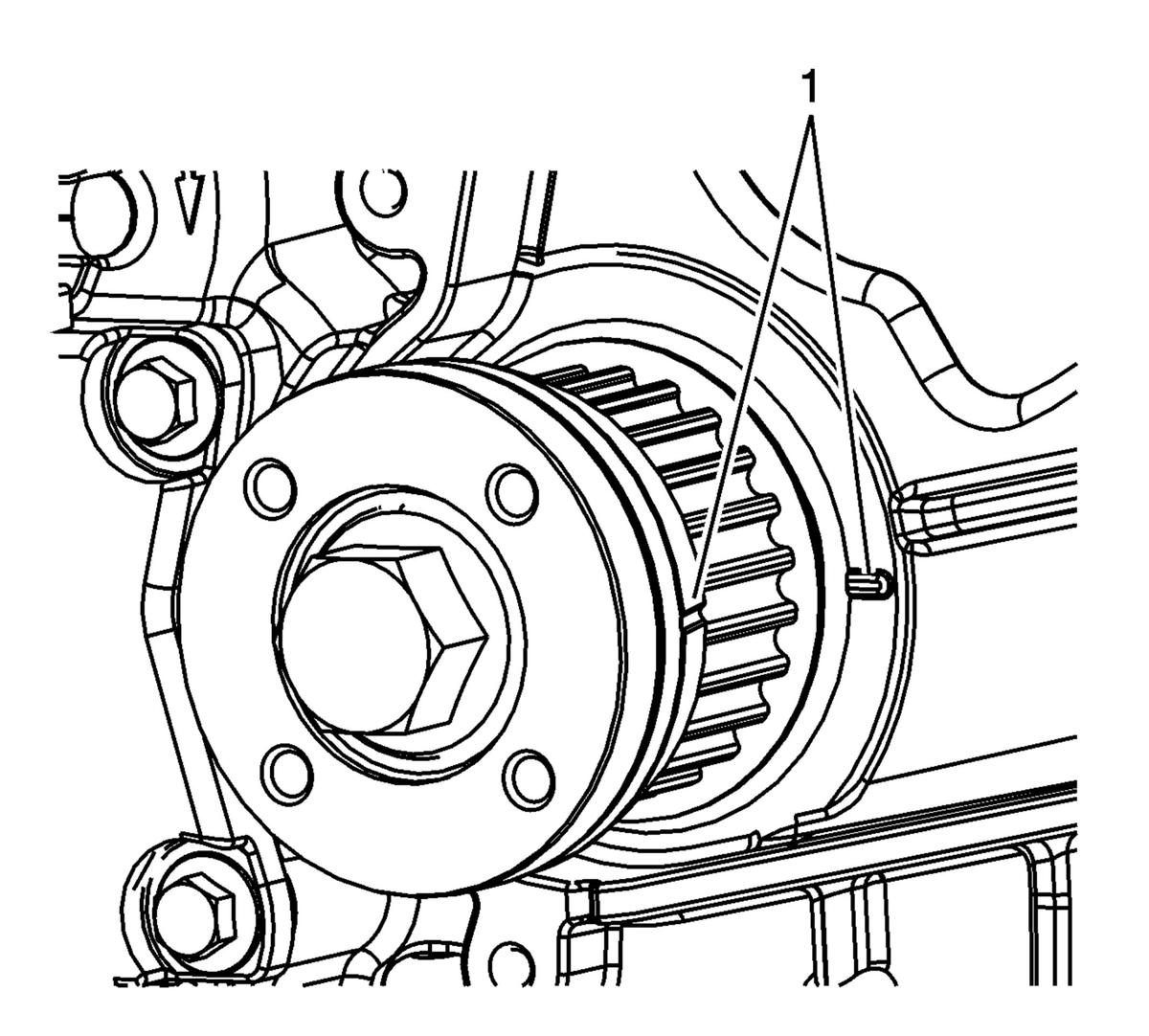

   Ensure that the timing mark on the crankshaft timing pulley (1) is aligned at 90 degrees ATDC with the mark on the front cover (1).

2. Courtesy of GENERAL MOTORS COMPANY

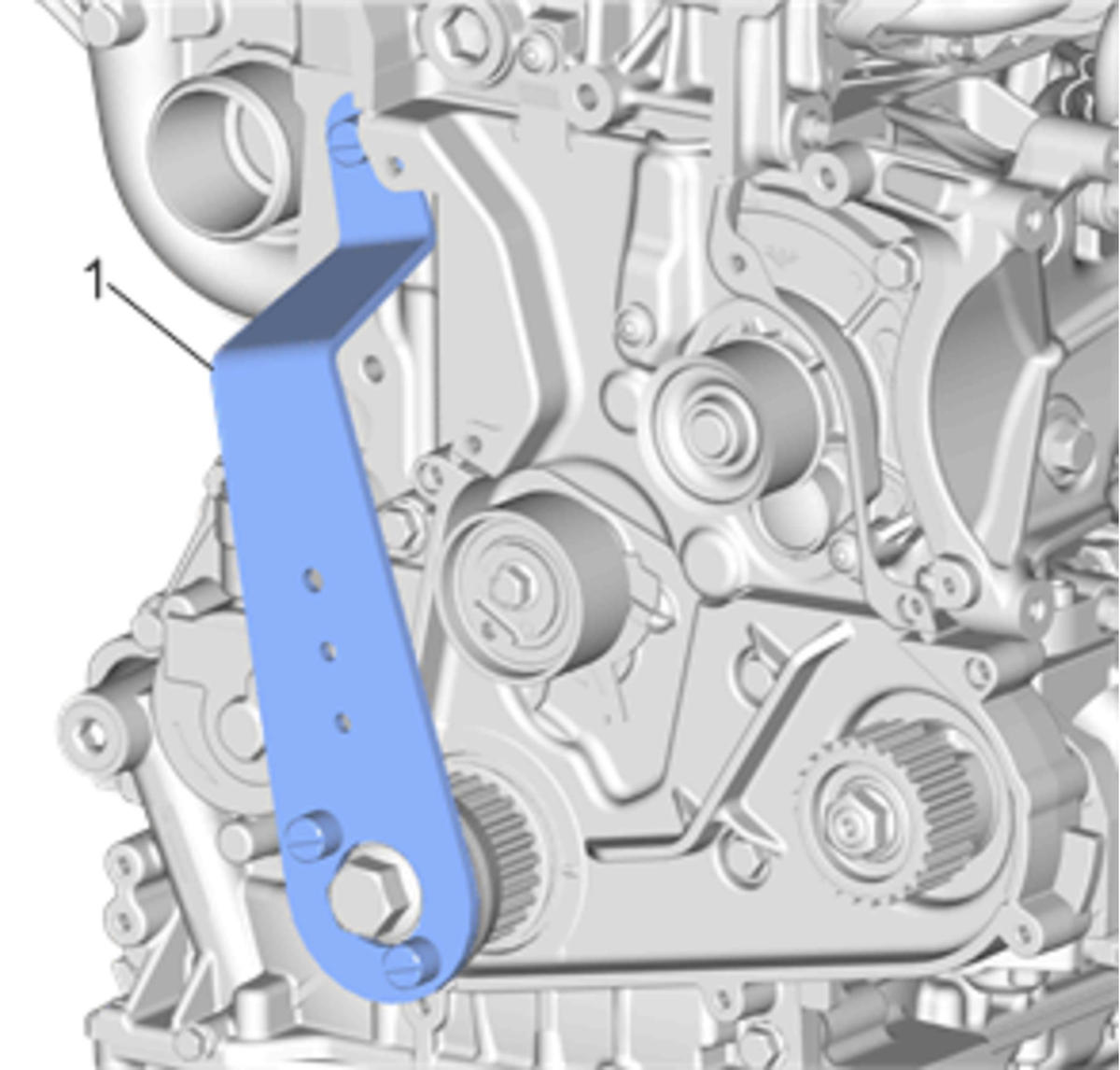

   Install EN-51265  locking tool (1).

3. Courtesy of GENERAL MOTORS COMPANY

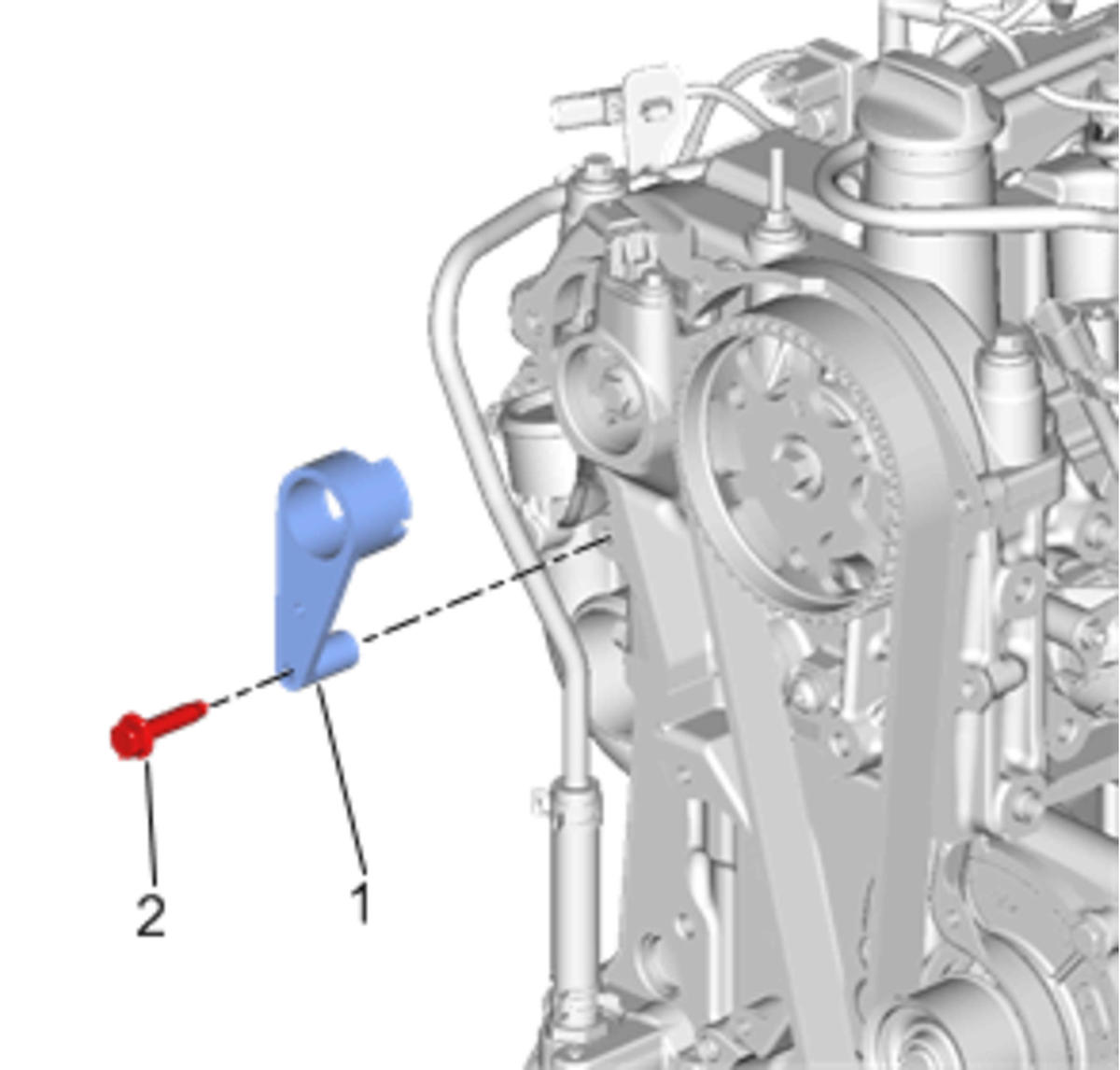

   Install EN-51025  timing tool (1) on the exhaust camshaft.

4. Courtesy of GENERAL MOTORS COMPANY

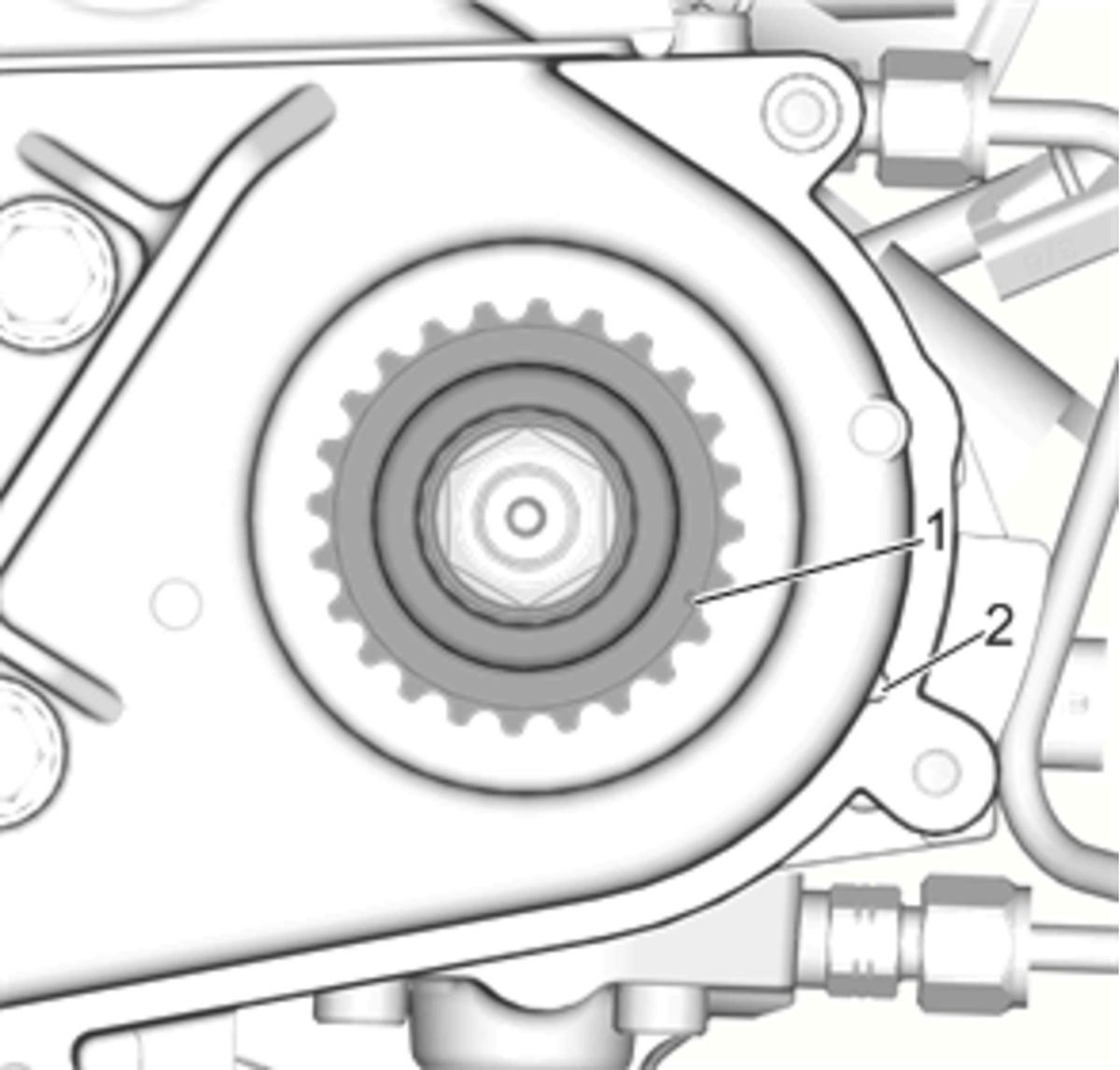

   Align the fuel injection pump pulley timing notch (1) with the notch on the front cover (2).

5. Courtesy of GENERAL MOTORS COMPANY

   Remove EN-51265  locking tool (1).

6. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   • Relieve the tensioner in order to fit the belt over the pulleys.
   • The Intake Camshaft Pulley must be loose in order to install the timing belt, otherwise it will not fit over the tensioner pulley.

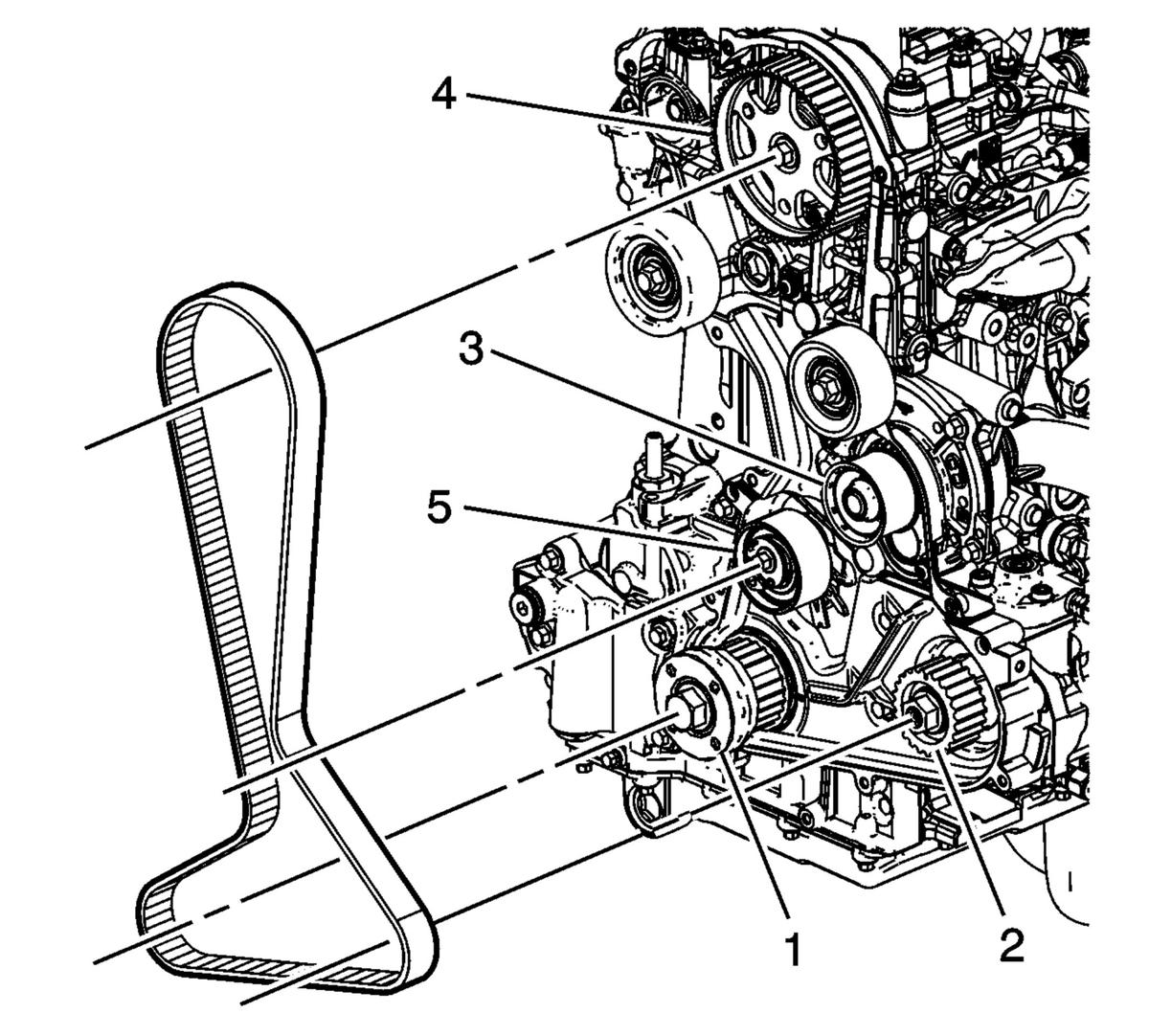

   Install the timing belt over the pulleys in the following order:

   1. Crankshaft
   2. Injector pump
   3. Water pump
   4. Camshaft
   5. Tensioner

7. Courtesy of GENERAL MOTORS COMPANY

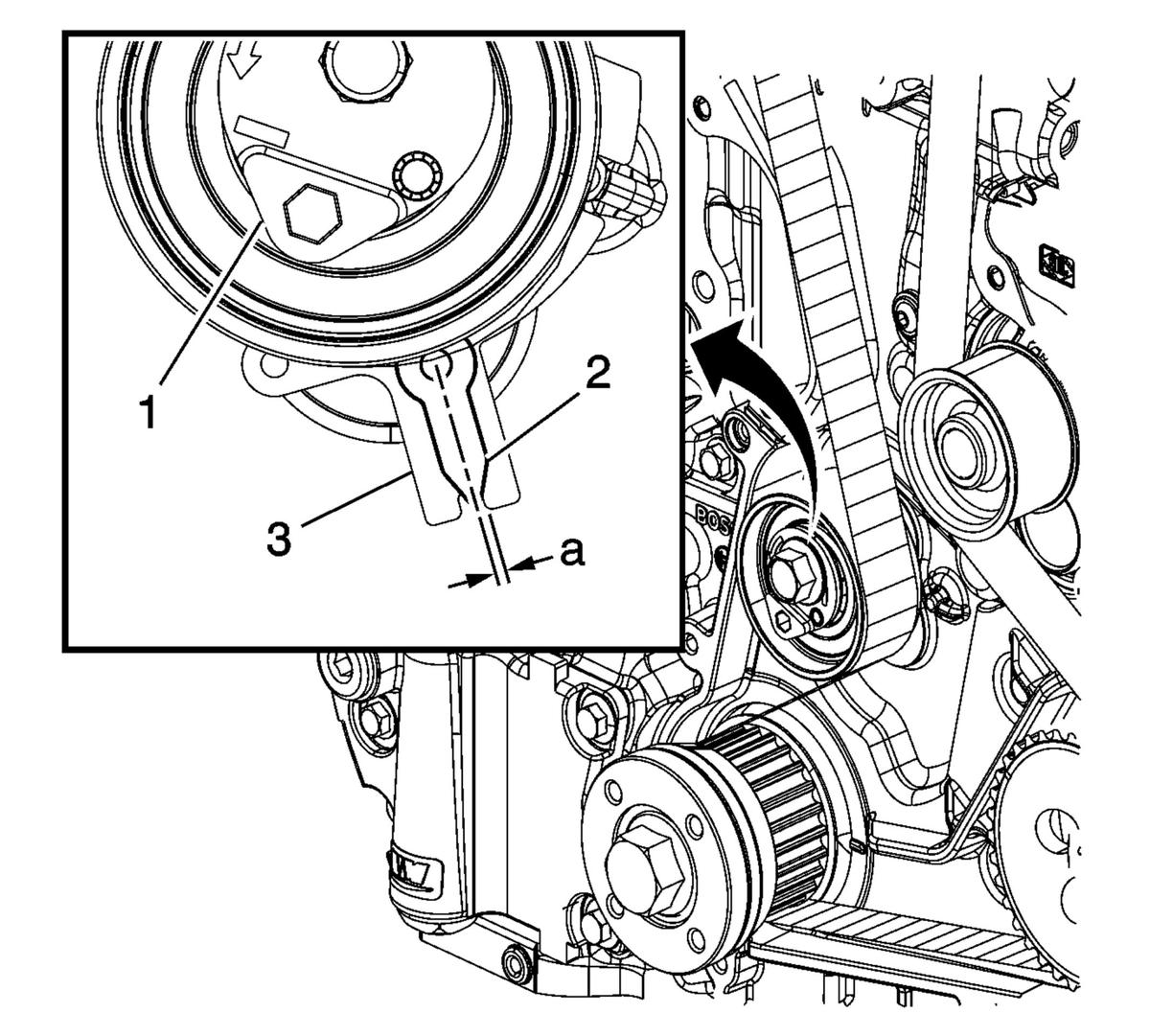

   Move the tensioner pulley by rotating the plate (1) counterclockwise until the pointer (2) is positioned in the groove at the edge of the index (3), within 1 mm, dimension (a).

CAUTION:

Refer to Fastener Caution .

8. Tighten the timing belt tensioner to 28 N. m (21 lb ft).

9. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   EN-51025  holding tool is not designed for tightening applications. Always use EN-50025  wrench when tightening the pulley bolt.

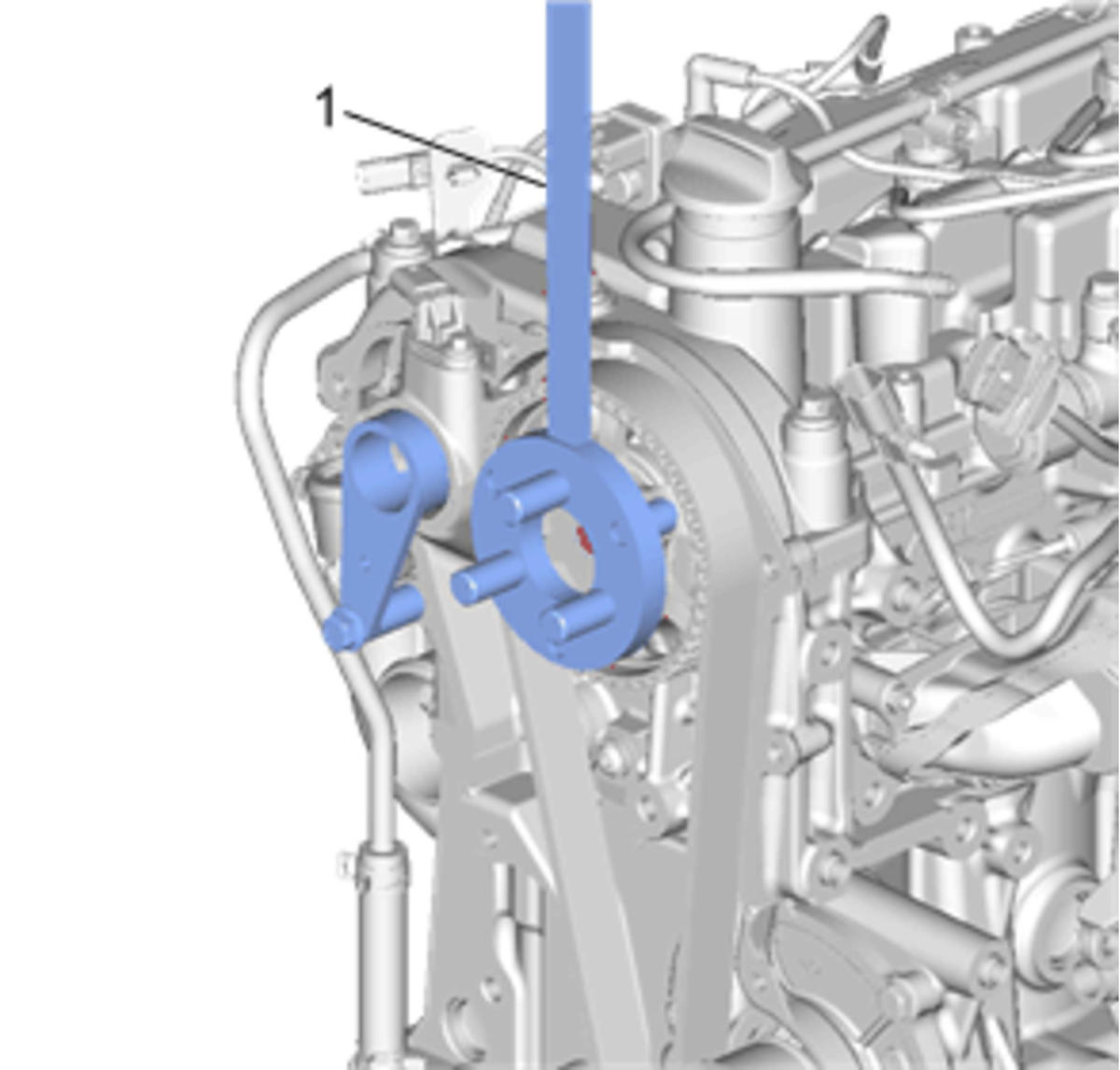

   Hold the camshaft timing pulley with the EN-50025  wrench (1) and tighten the retaining bolt.

   1. Tighten the bolt a first pass to 20 N. m (15 lb ft).
   2. Tighten the bolt a final pass an additional 60 degrees.

10. Courtesy of GENERAL MOTORS COMPANY

    Remove the EN-51025  timing tool.

11. Rotate the engine two full revolutions to ensure proper alignment of timing marks.
NOTE:

Ensure the plug is fully seated in the bore.

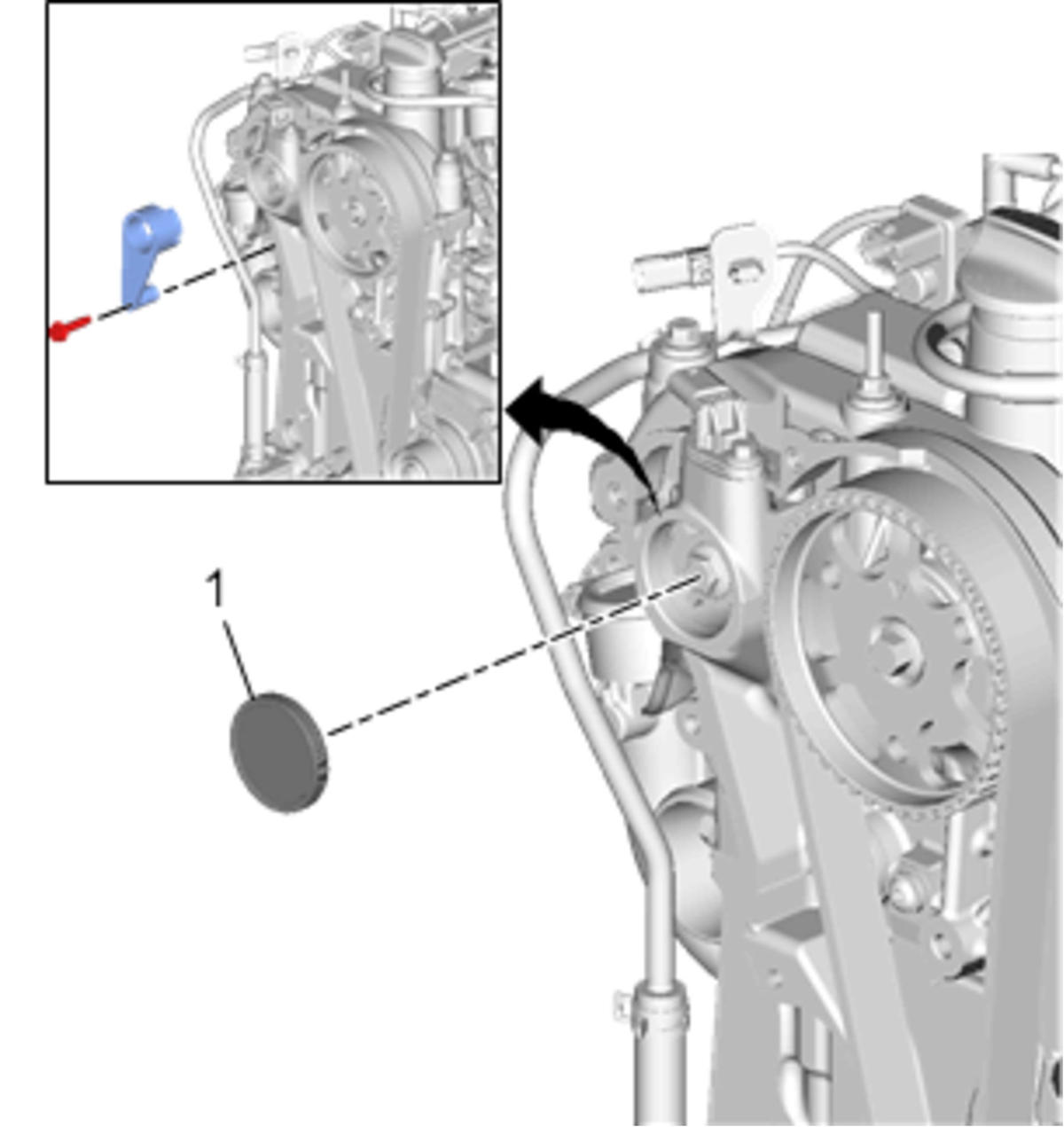

12. Install the NEW camshaft plug (1).
