Engine Front Cover Installation: Notes

Special Tools

EN-46109-2  Guide Pins

Equivalent regional tools: Special Tools

1. Courtesy of GENERAL MOTORS COMPANY

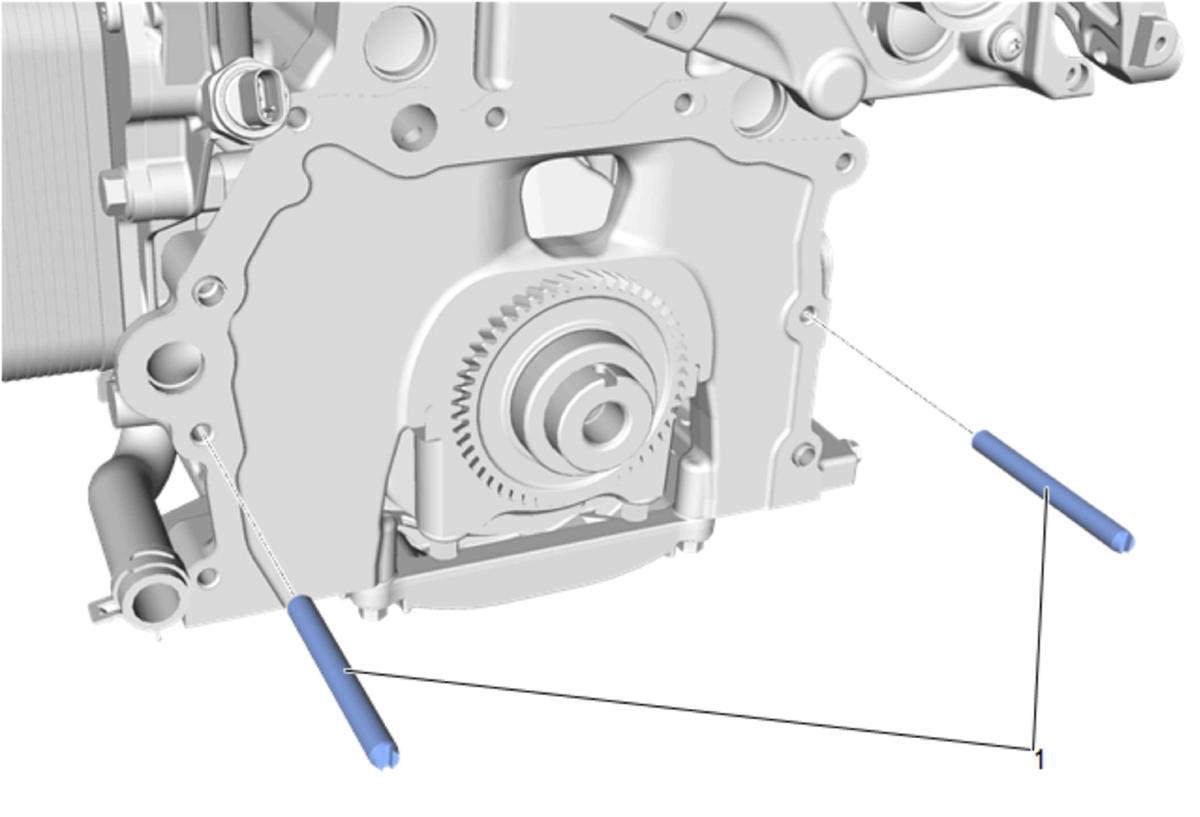

   EN-46109-2  Guide Pins (1) - Install[2x]

2. Courtesy of GENERAL MOTORS COMPANY

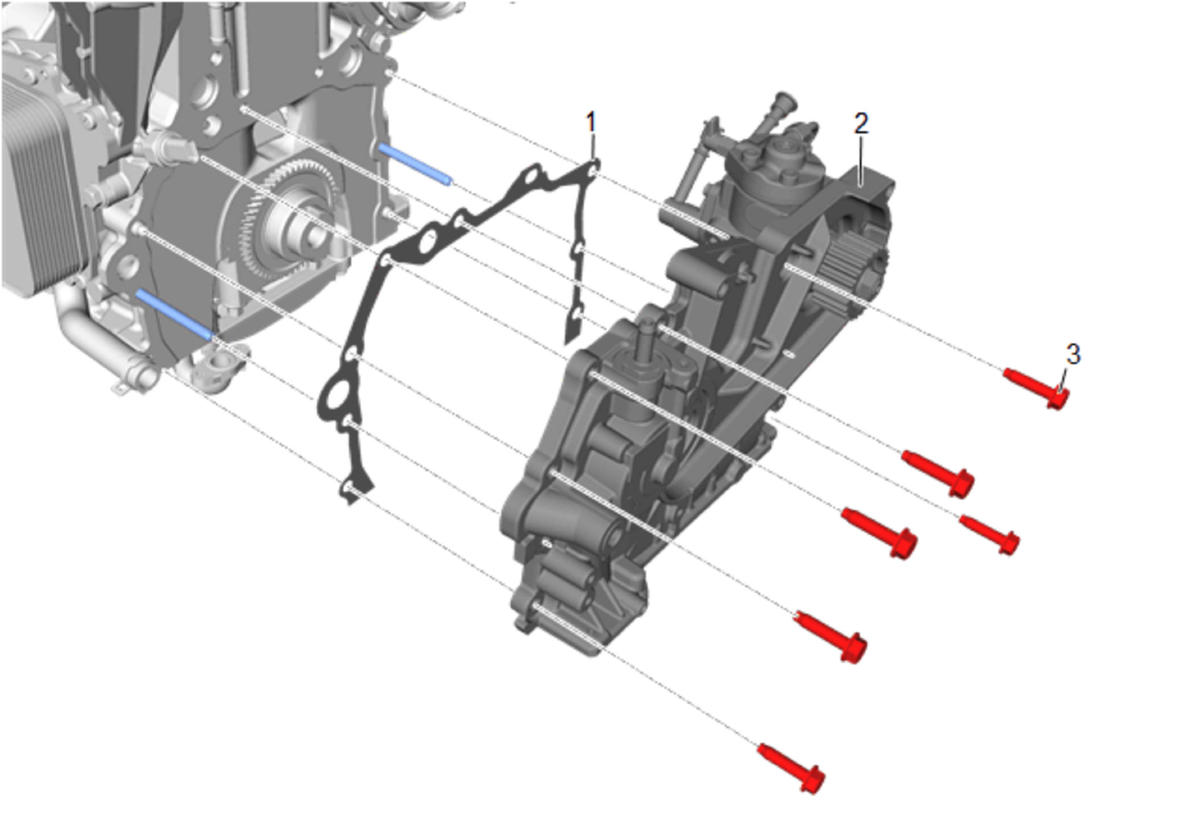

3. Engine Front Cover Gasket(1) - Install
4. Engine Front Cover(2) - Install
5. Engine Front Cover Bolt(3) - Install, but do NOT tighten[6x]

6. Courtesy of GENERAL MOTORS COMPANY

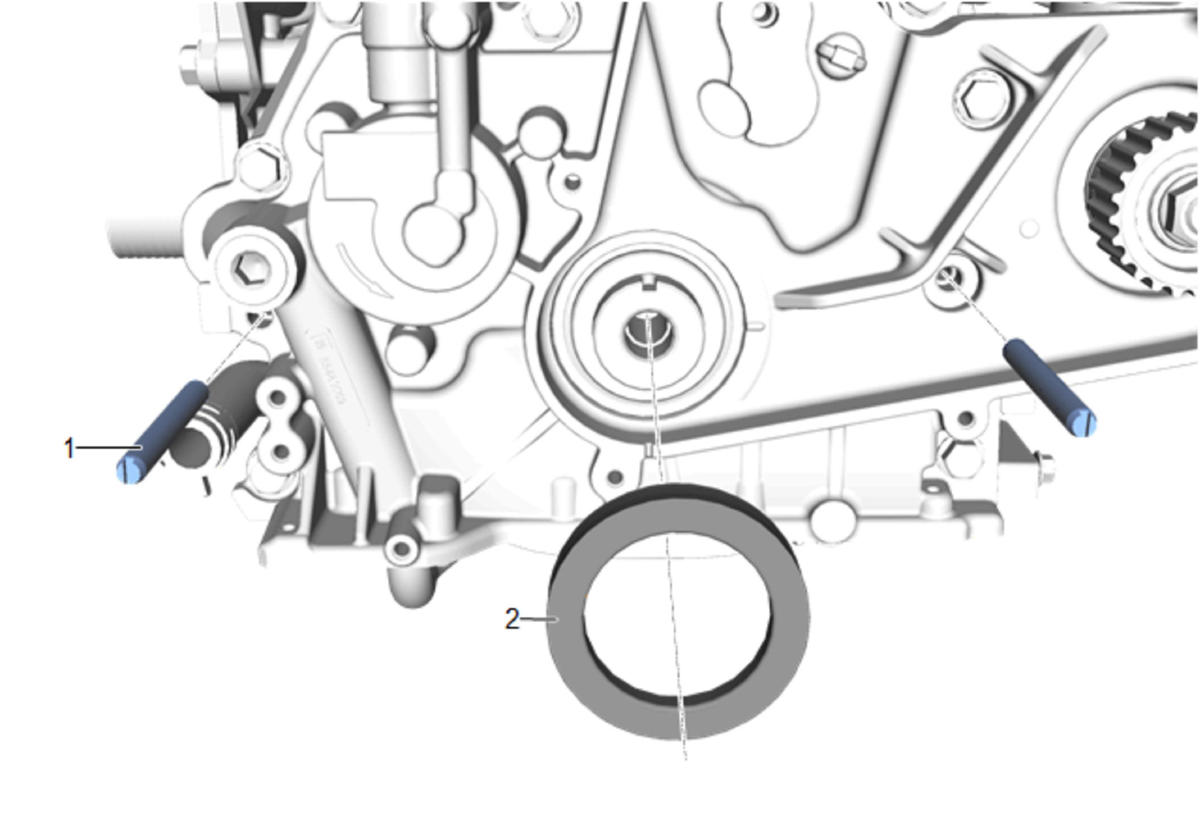

   EN-46109-2  Guide Pins (1) - Remove[2x]

7. Crankshaft front oil seal installation sleeve (2) - Remove and DISCARD

8. Courtesy of GENERAL MOTORS COMPANY

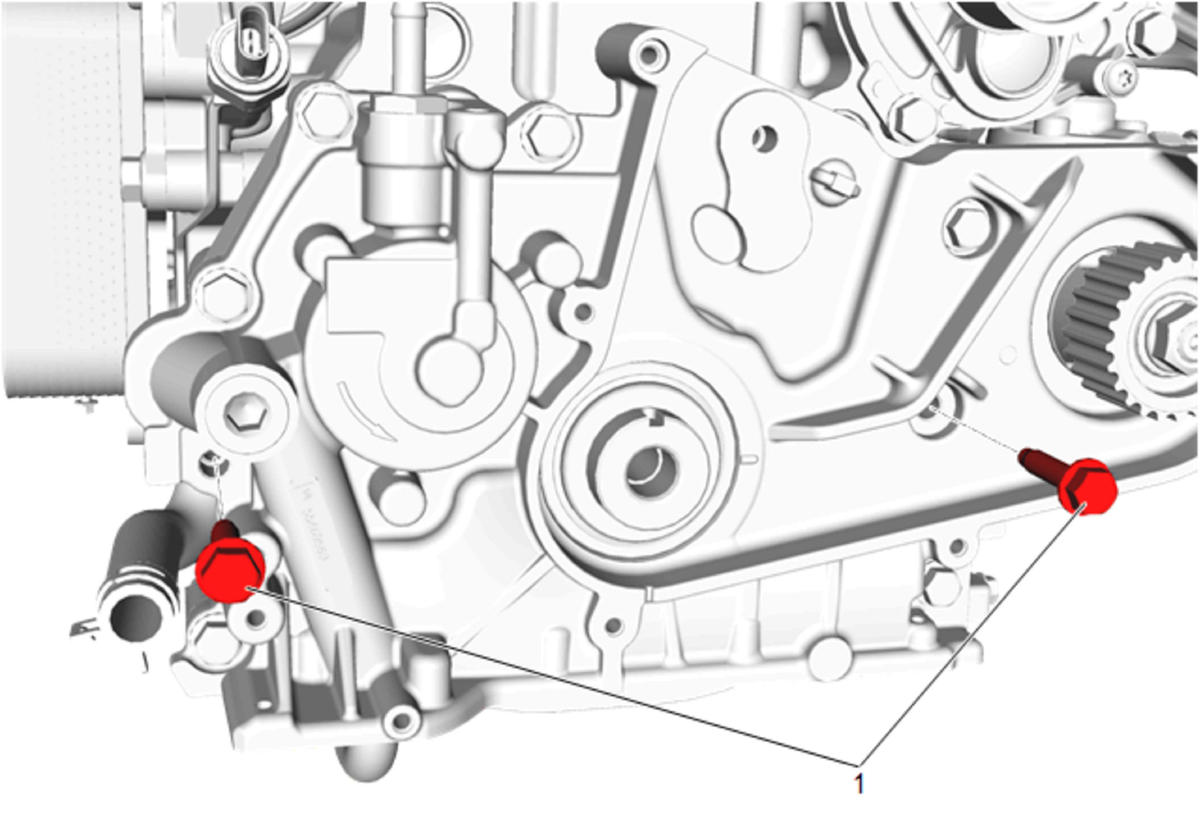

   Engine Front Cover Bolt(1) - Install, but do NOT tighten[2x]

9. Courtesy of GENERAL MOTORS COMPANY

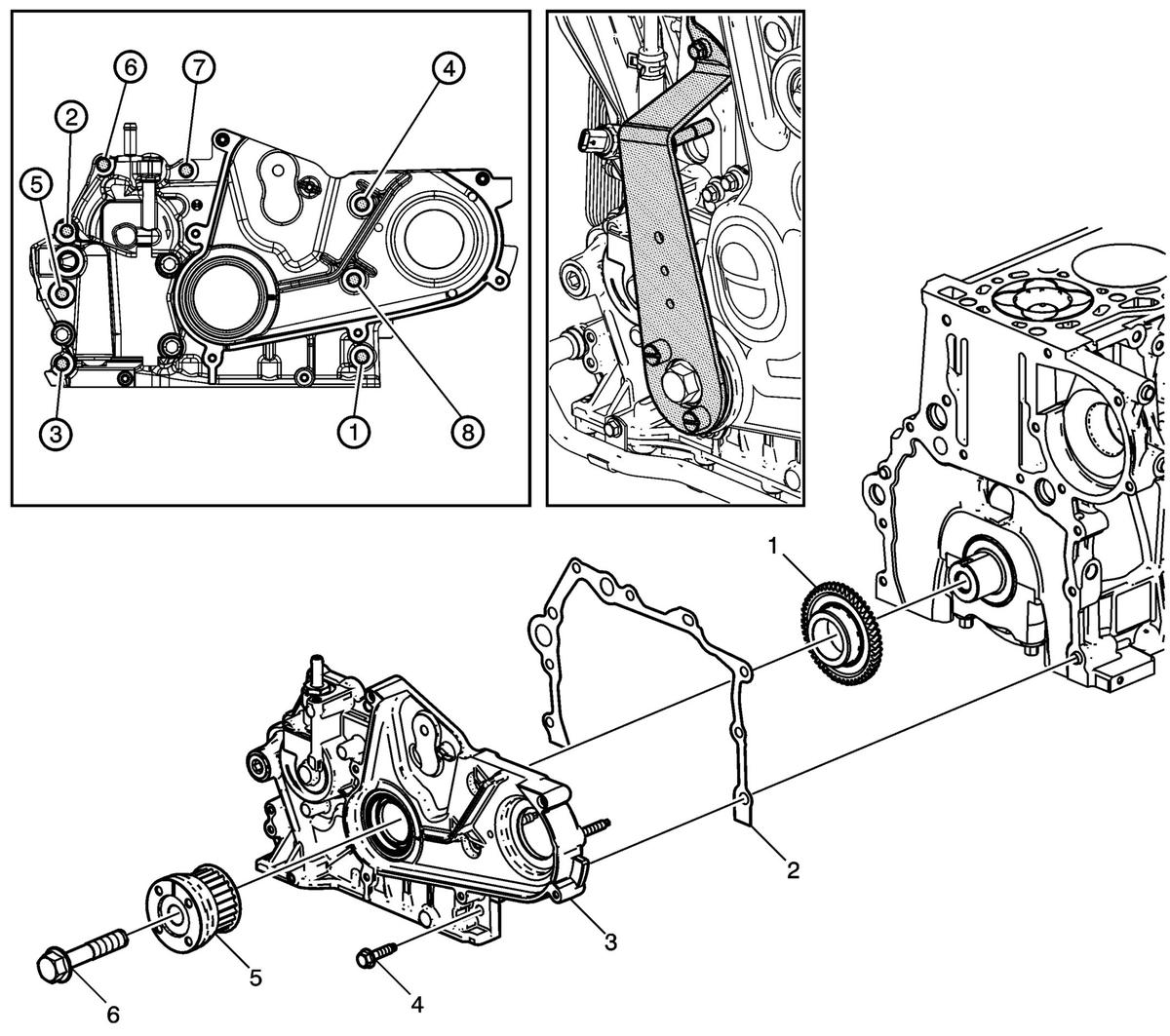

   Engine Front Cover Bolt - Tighten in sequence[8x]32 N. m (24 lb ft)

10. Courtesy of GENERAL MOTORS COMPANY

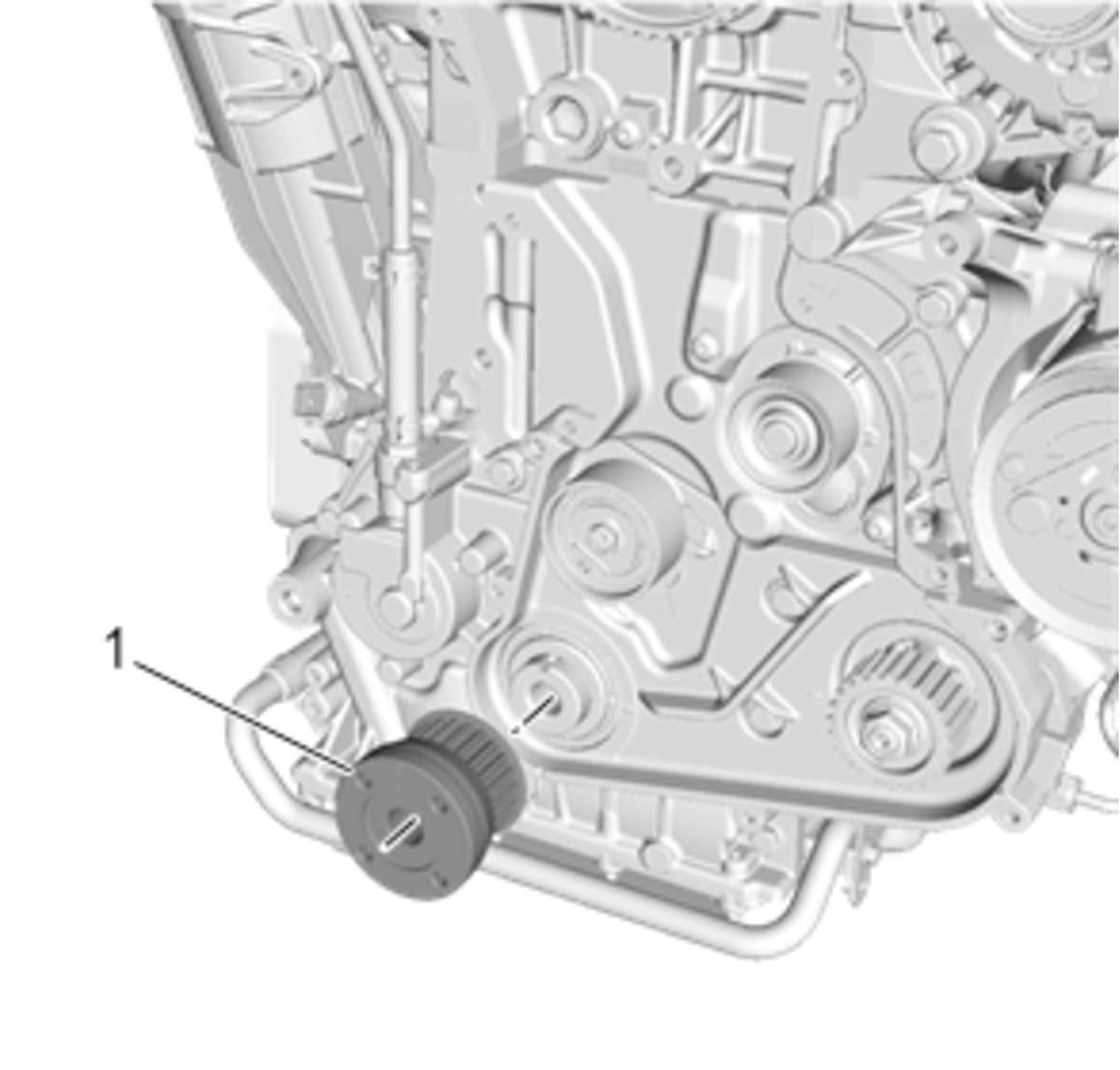

    Crankshaft Sprocket(1) - Install

11. Courtesy of GENERAL MOTORS COMPANY

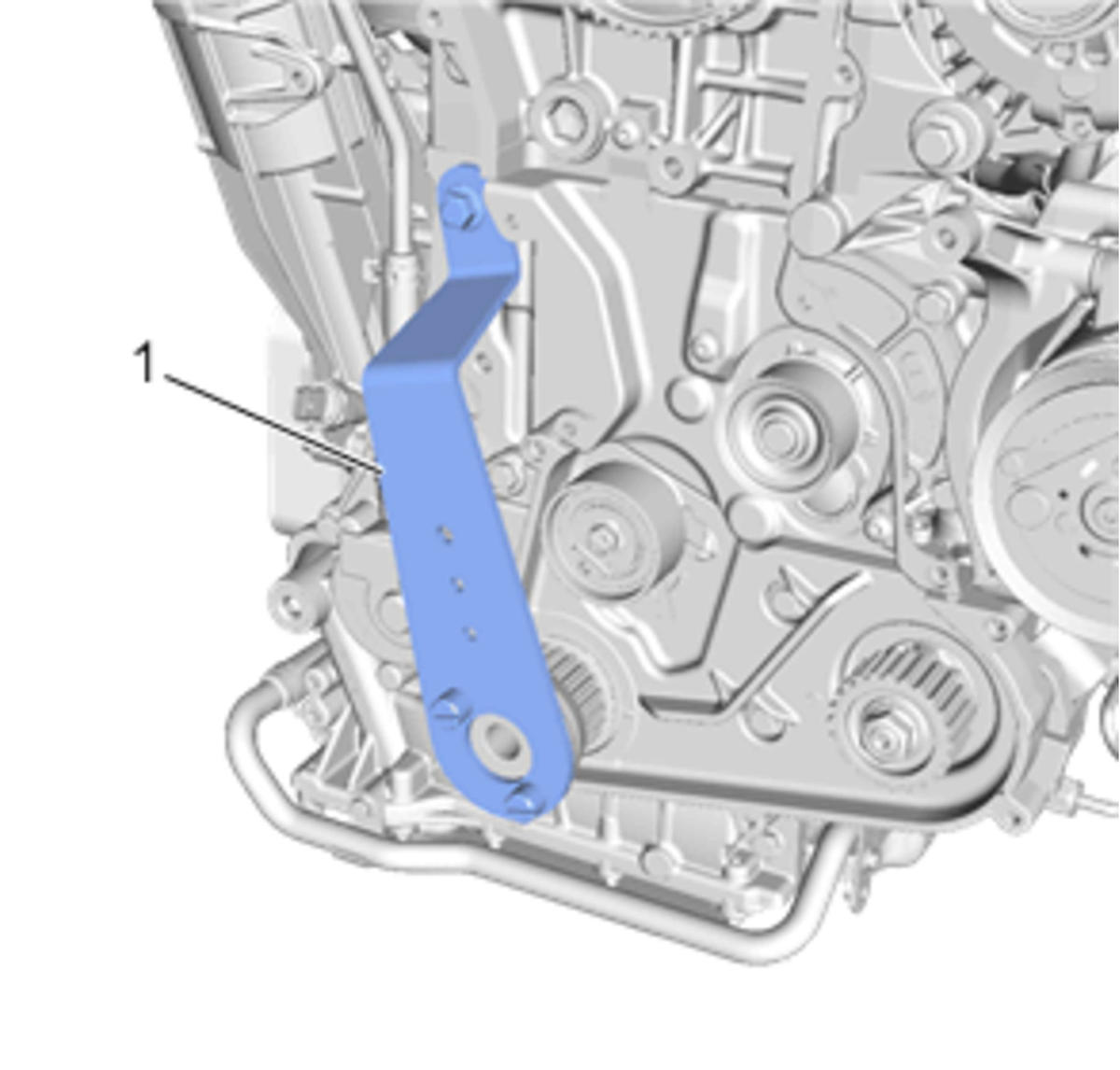

    Install the EN-51265  locking tool (1).

12. Courtesy of GENERAL MOTORS COMPANY

    CAUTION:

    Refer to Fastener Caution .

    CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

    NOTE:

    The crankshaft timing pulley bolt is left hand thread. The keyway in the crankshaft should match up with the timing pulley and result in 90° ATDC.

    NOTE:

    Install a NEW bolt.

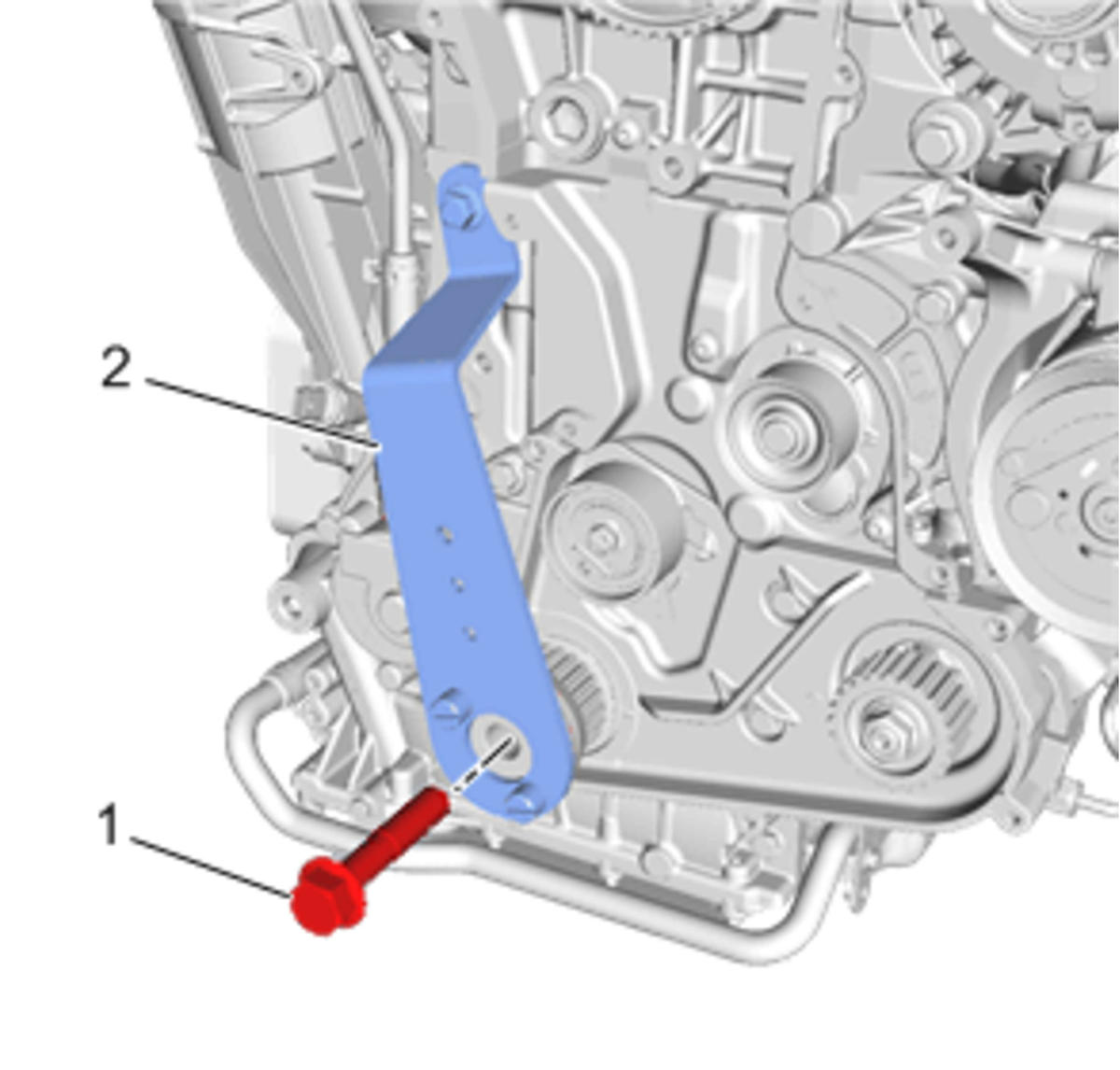

    Crankshaft Sprocket Bolt(1) - Install

    Tighten

    1. First Pass 100 N. m (74 lb ft)
    2. Final Pass an additional 120 degrees

13. Courtesy of GENERAL MOTORS COMPANY

    Remove the EN-51265  locking tool (1).

14. Timing Belt Replacement  - Install
