Cylinder Head Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
J-45059 Angle Meter
Equivalent regional tools: Special Tools
- NOTE:
Do not use any sealing material.

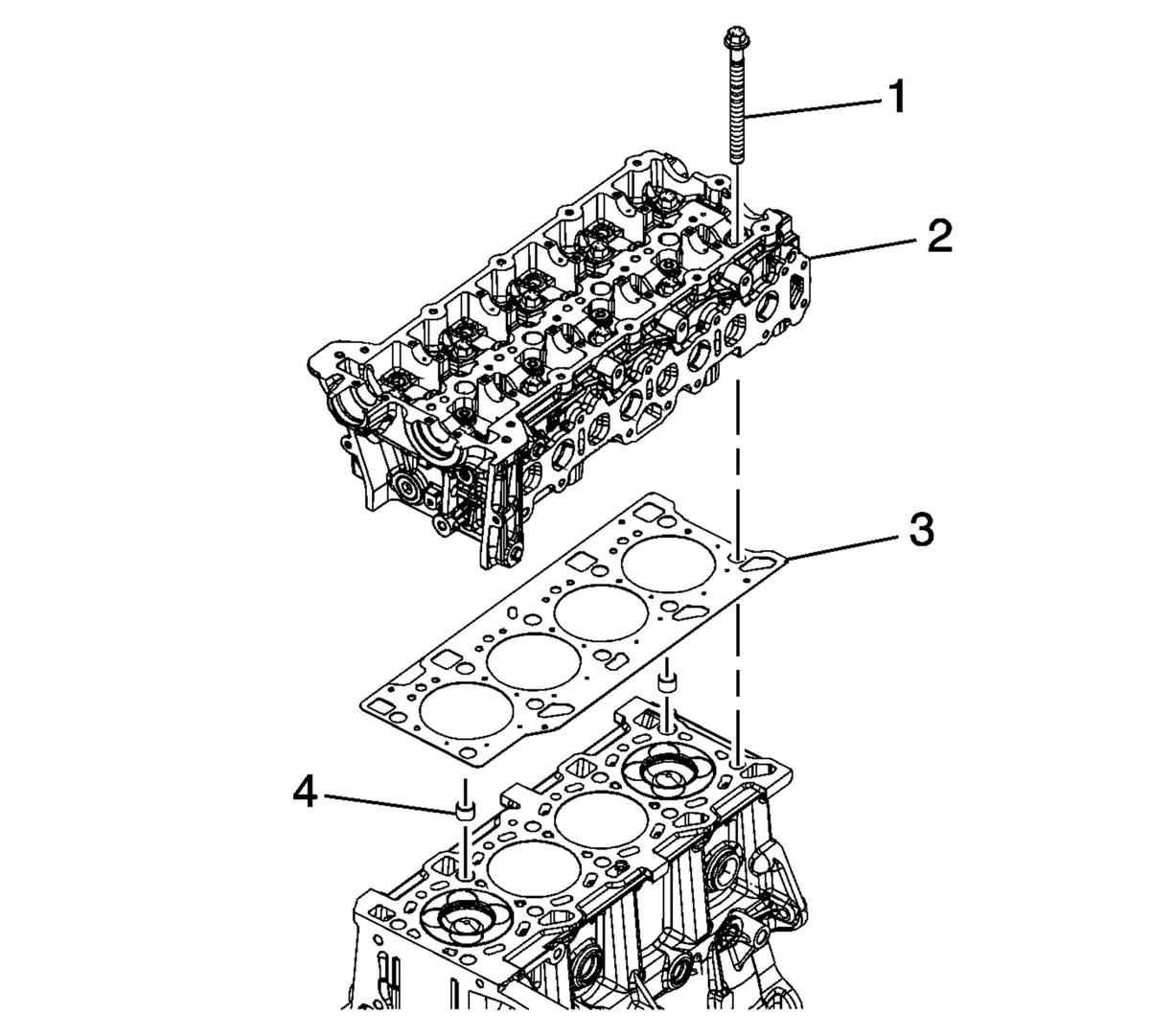

Install the cylinder head alignment pins (4) and gasket (3) to the block.
- Install the cylinder head (2).
- Install the NEW cylinder head bolts (1) finger tight.
- CAUTION:
Refer to Fastener Caution .
NOTE:Always use new cylinder head bolts.
Tighten the NEW cylinder head bolts:

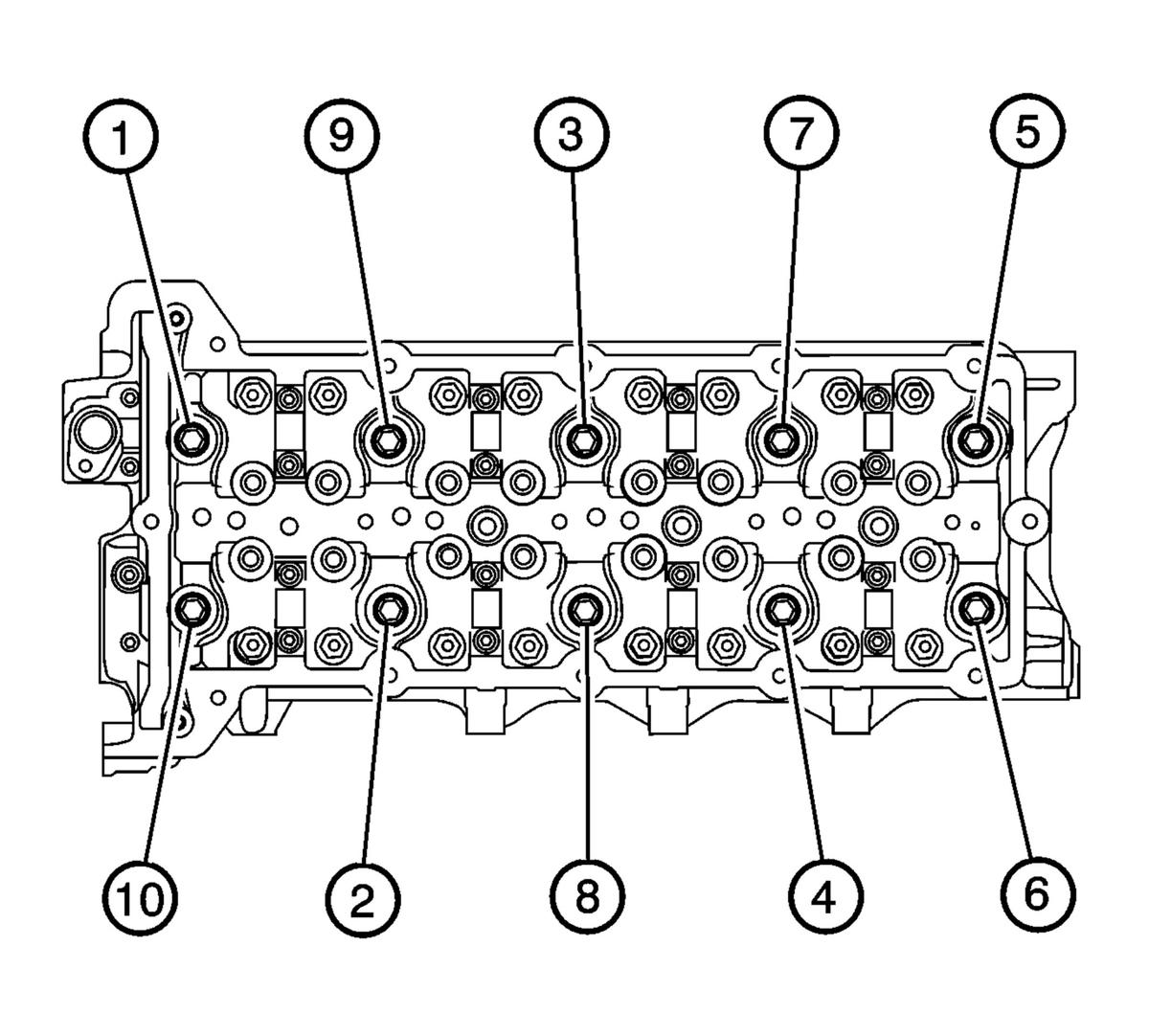

- Tighten the NEW bolts in sequence to 30 N. m (22 lb ft)
- Using J-45059 meter, tighten the bolts in sequence an additional 110 degrees for the second, third, and final passes, for a total of 330 degrees.
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
