Camshaft Timing Pulley Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

EN-50025  Pulley Holding Wrench

For equivalent regional tools, refer to Special Tools .

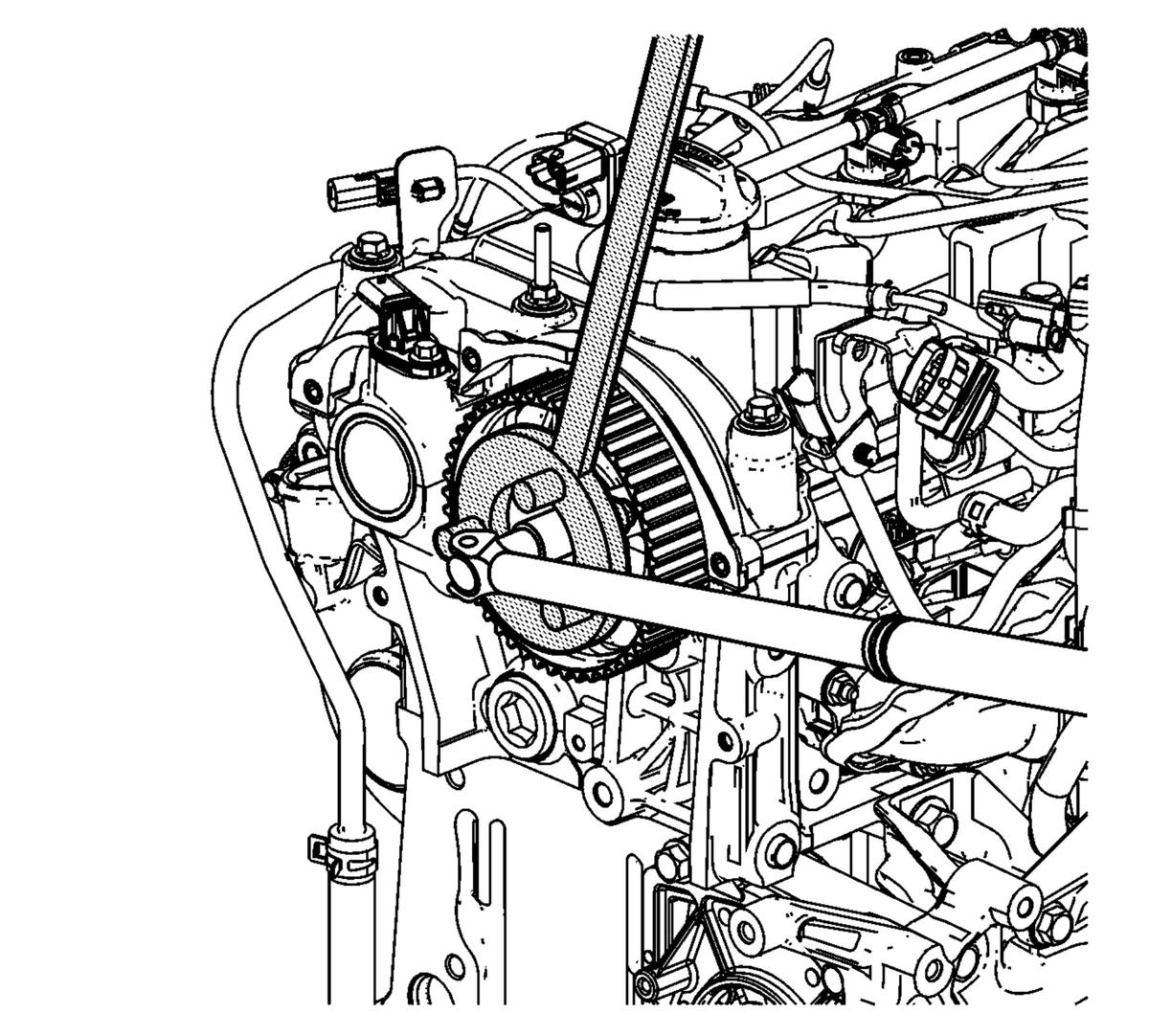

  1. GM4070451Courtesy of GENERAL MOTORS COMPANY

    Hold the camshaft drive pulley with the EN-50025  wrench and loosen the retaining bolt.

  2. GM4070452Courtesy of GENERAL MOTORS COMPANY

    Remove the camshaft drive pulley bolt (1) and pulley (2).
