Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

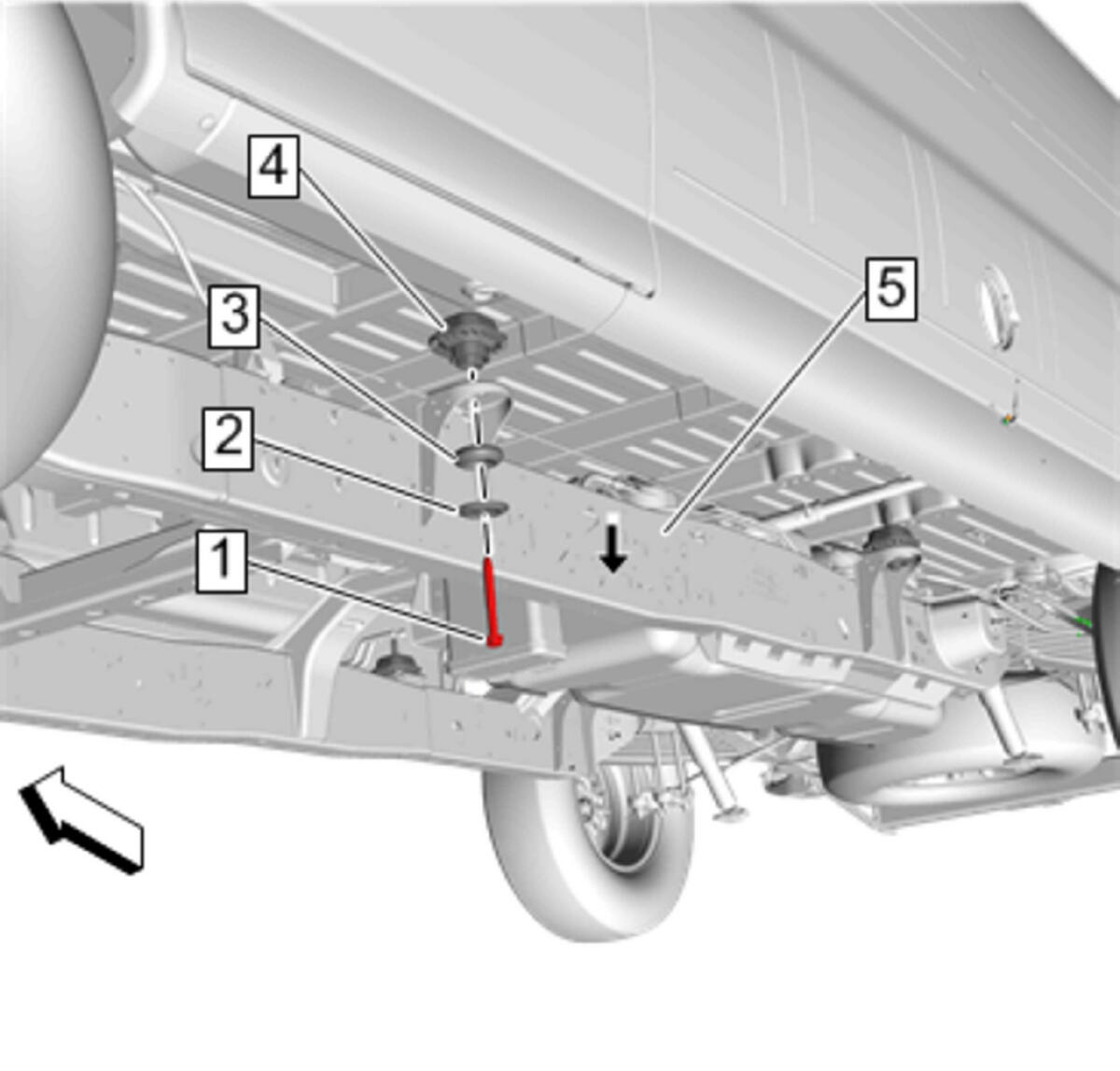

Body Mount Upper Cushion (4) - Install
Raise the frame (5).
Body Mount Lower Cushion (3) - Install
Body Mount Retainer (2) - Install

CAUTION:

Refer to Fastener Caution .

Body Mount Bolt (1) - Install and tighten140 N.m (103 lb ft)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not remove the bolts.

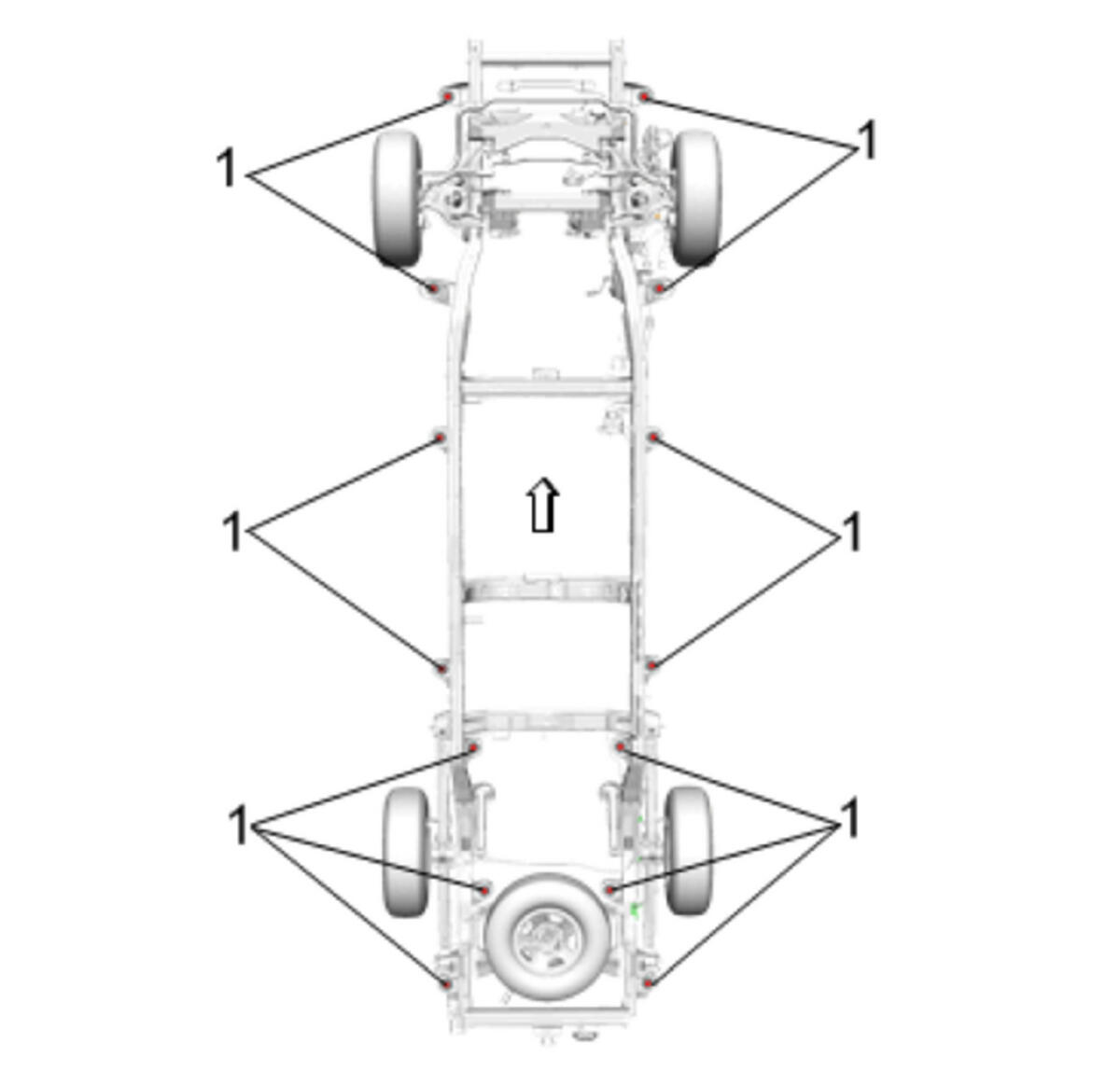

Body Mount Bolt (1) - Tighten140 N.m (103 lb ft)[14x]
Courtesy of GENERAL MOTORS COMPANY

Lower Intermediate Steering Shaft (1)@Steering Gear - Install - Lower Intermediate Steering Shaft Replacement
Remove the safety stands.
Lower the vehicle.
Install the screws retaining the fuel tank filler pipe to the body.
- For the LV1 engine - Fuel Tank Filler Pipe Replacement (Chassis Cab Front Tank) , or Fuel Tank Filler Pipe Replacement (Chassis Cab Rear Tank) , or Fuel Tank Filler Pipe Replacement (Short/Long Wheel Base)
- For the L96, LC8 engine - Fuel Tank Filler Pipe Replacement (Passenger/Cargo) , or Fuel Tank Filler Pipe Replacement (Chassis Cab Front Tank) , or Fuel Tank Filler Pipe Replacement (Chassis Cab Rear Tank)
- For the LWN engine - Fuel Tank Filler Pipe Replacement
