Fuel Tank Filler Pipe Replacement (Chassis Cab Front Tank)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

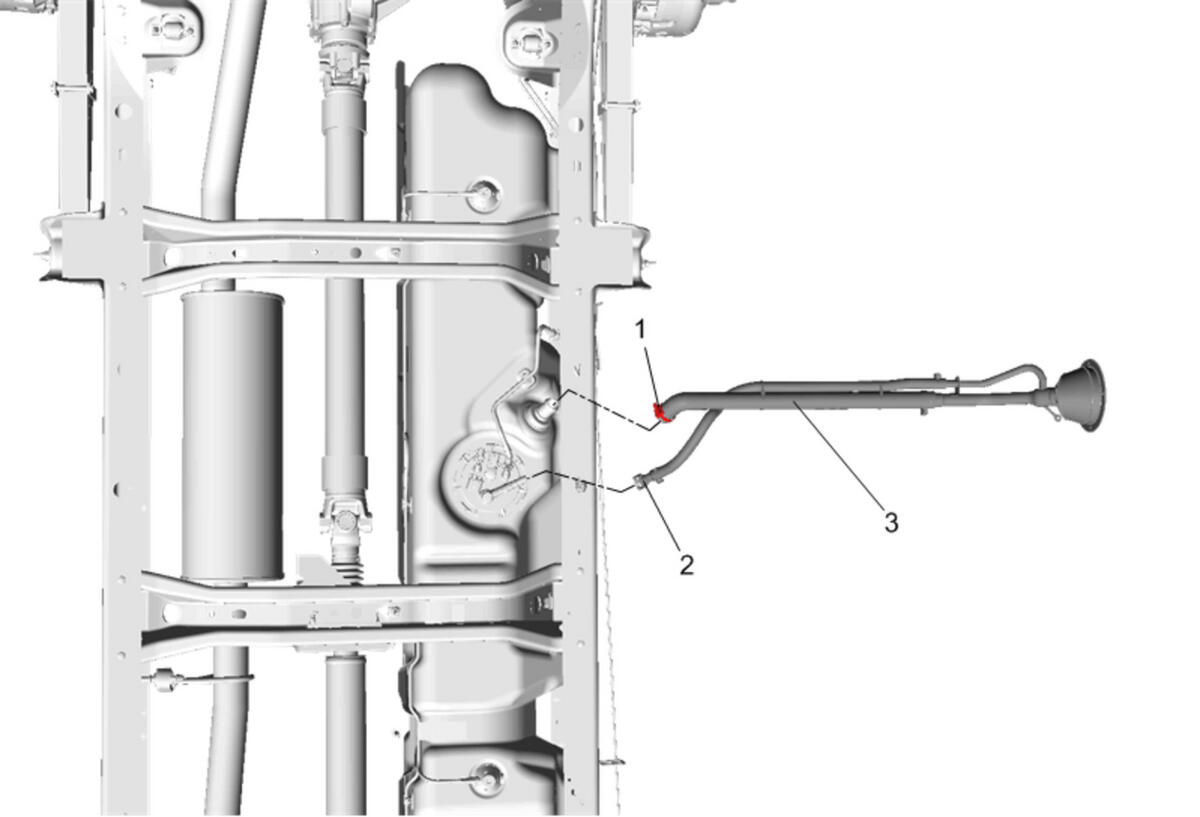

GM4848889Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the fuel below the fuel filler neck. Fuel Tank Draining
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Fuel Tank Filler Hose Clamp
CAUTION:

Refer to Fastener Caution .


Tighten
4N.m (35 lb in)
2 Evaporative Emission Hose
Procedure
Disconnect the quick disconnect. Plastic Collar Quick Connect Fitting Service
3 Fuel Tank Filler Pipe
