Body Pressure Relief Valve Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Back Body Opening Side Applique - Right Side Upper - Remove - Back Body Opening Side Applique and Tail Lamp Replacement Tail Lamp- Right Side - Remove - Tail Lamp Replacement

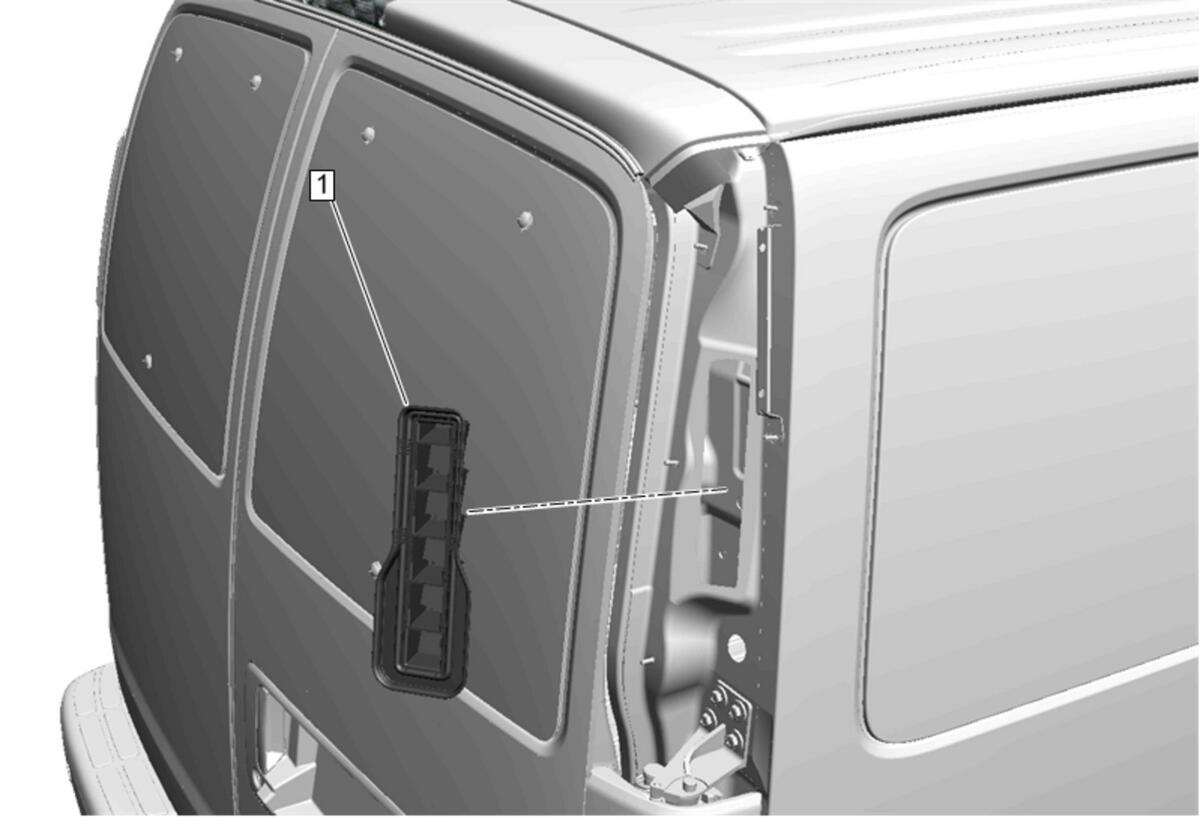

1	Body Pressure Relief Valve Procedure Using the appropriate flat blade tool, release the tabs attaching the valve to the back body pillar outer panel to remove the body pressure relief valve

Callout

Component Name

Preliminary Procedures

Back Body Opening Side Applique - Right Side Upper - Remove - Back Body Opening Side Applique and Tail Lamp Replacement
Tail Lamp- Right Side - Remove - Tail Lamp Replacement

Body Pressure Relief Valve
Procedure
Using the appropriate flat blade tool, release the tabs attaching the valve to the back body pillar outer panel to remove the body pressure relief valve
