Back Body Opening Side Applique and Tail Lamp Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

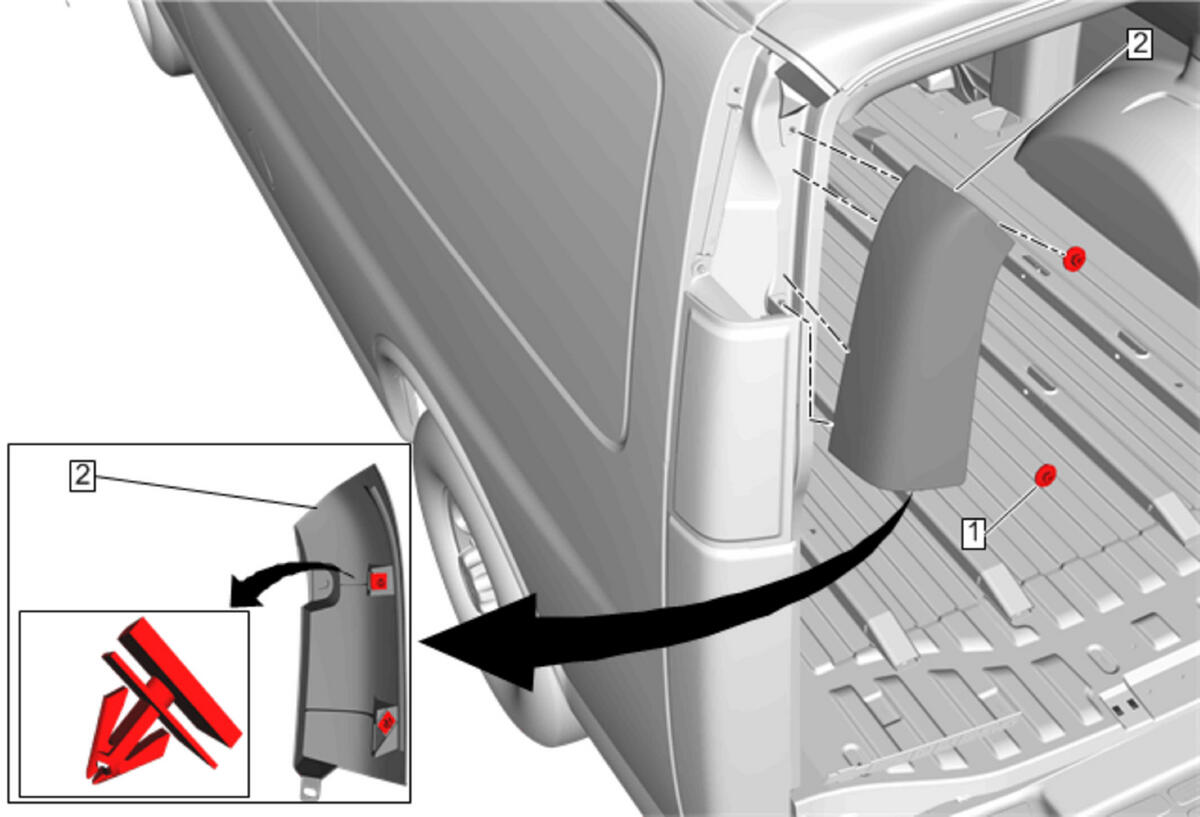

Callout	Component Name
Preliminary Procedure Open the rear door.
1	Back Body Opening Side Applique and Tail Lamp Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 5.5N.m (49 lb in)
2	Procedure Using a trim type tool, release the retainers. Close the rear door.

Callout

Component Name

Preliminary Procedure
Open the rear door.

Back Body Opening Side Applique and Tail Lamp Nut [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
5.5N.m (49 lb in)

Procedure

Using a trim type tool, release the retainers.
Close the rear door.
