Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement

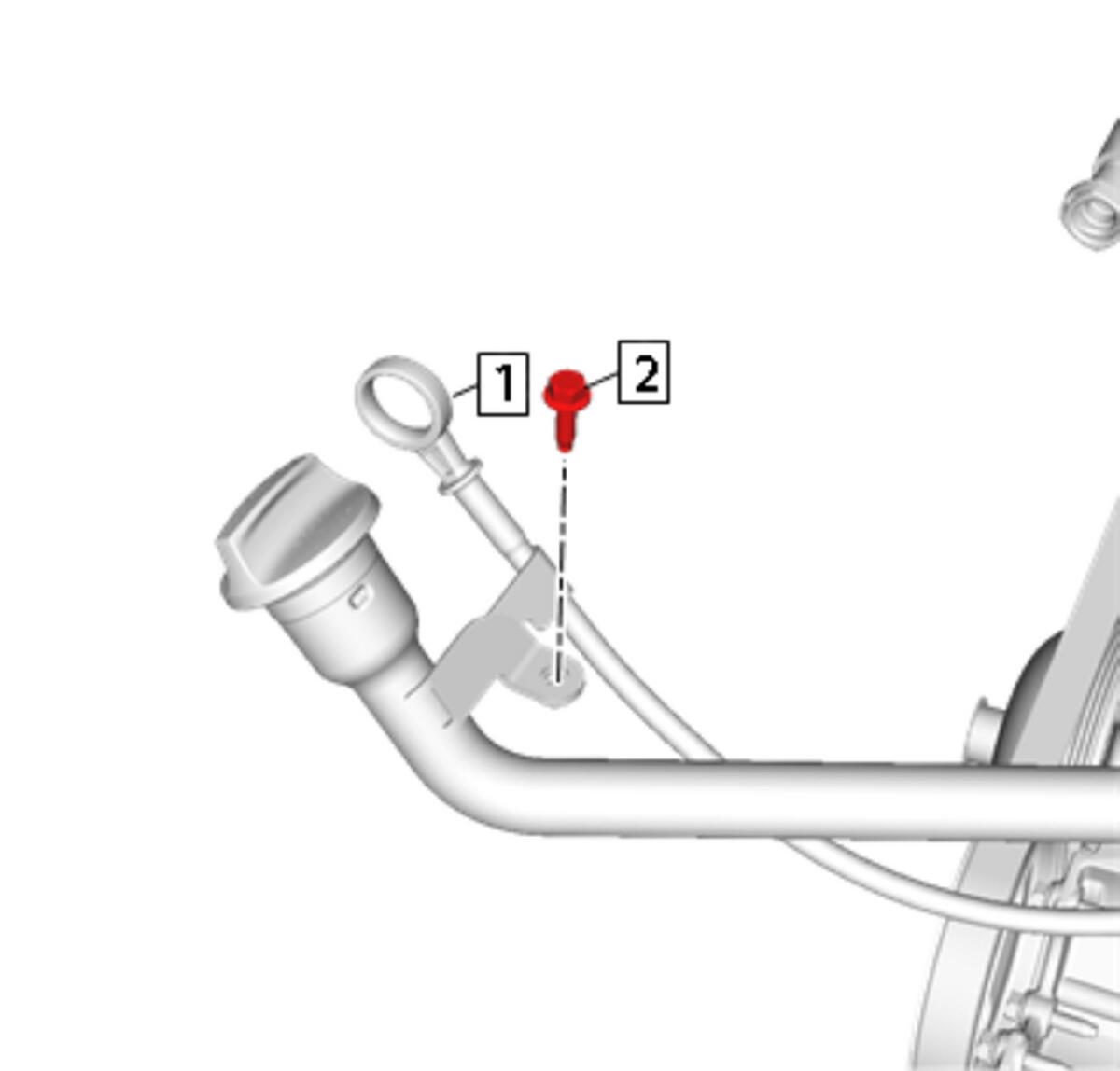

  2. GM4858869Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator (1) - Remove

  3. Oil Level Indicator Tube Bracket Bolt (2) - Remove

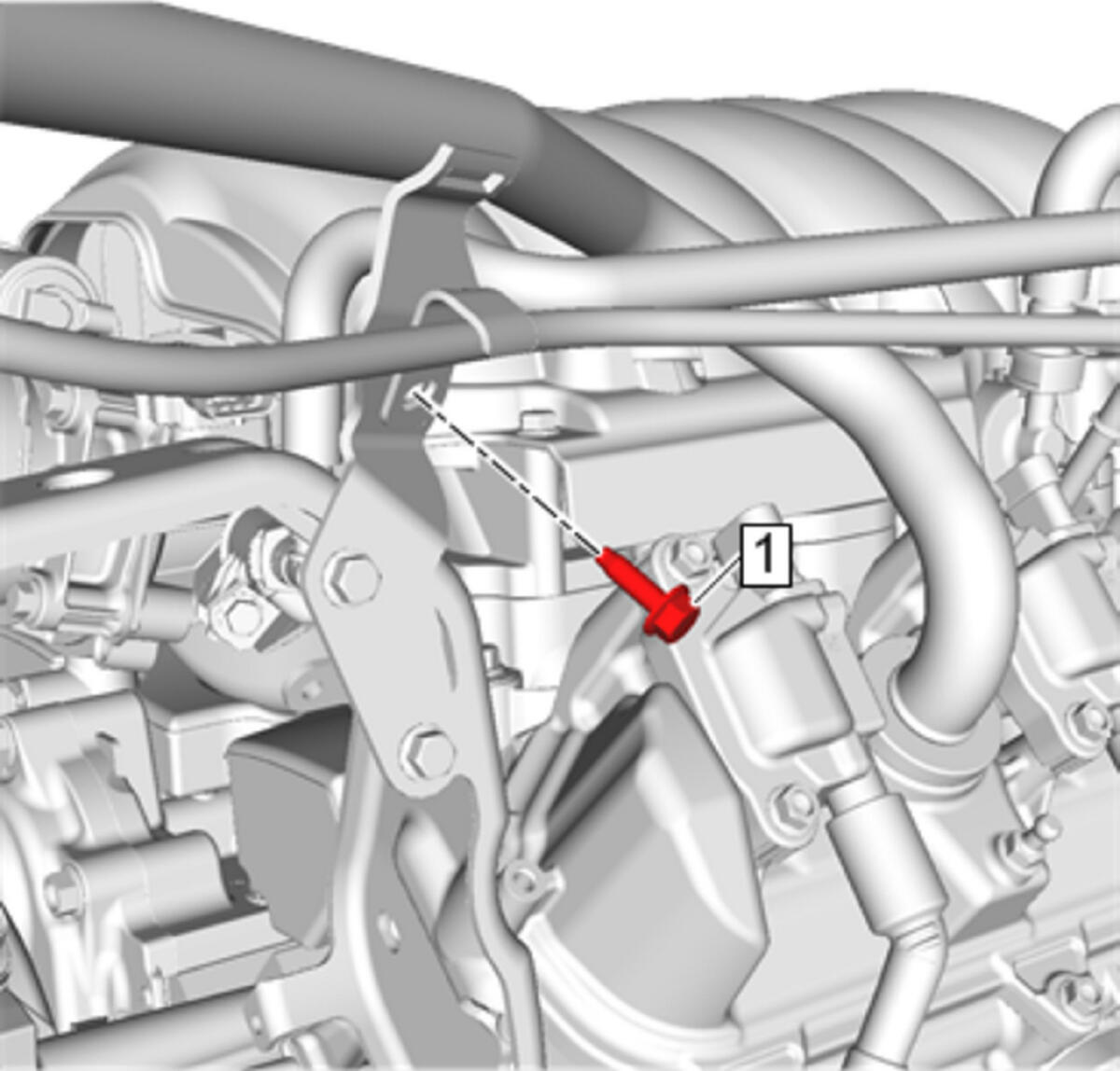

  4. GM4858901Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube Bracket Bolt (1) - Remove

  5. GM4854159Courtesy of GENERAL MOTORS COMPANY

    Engine Cover (1) - Remove - Engine Cover Replacement

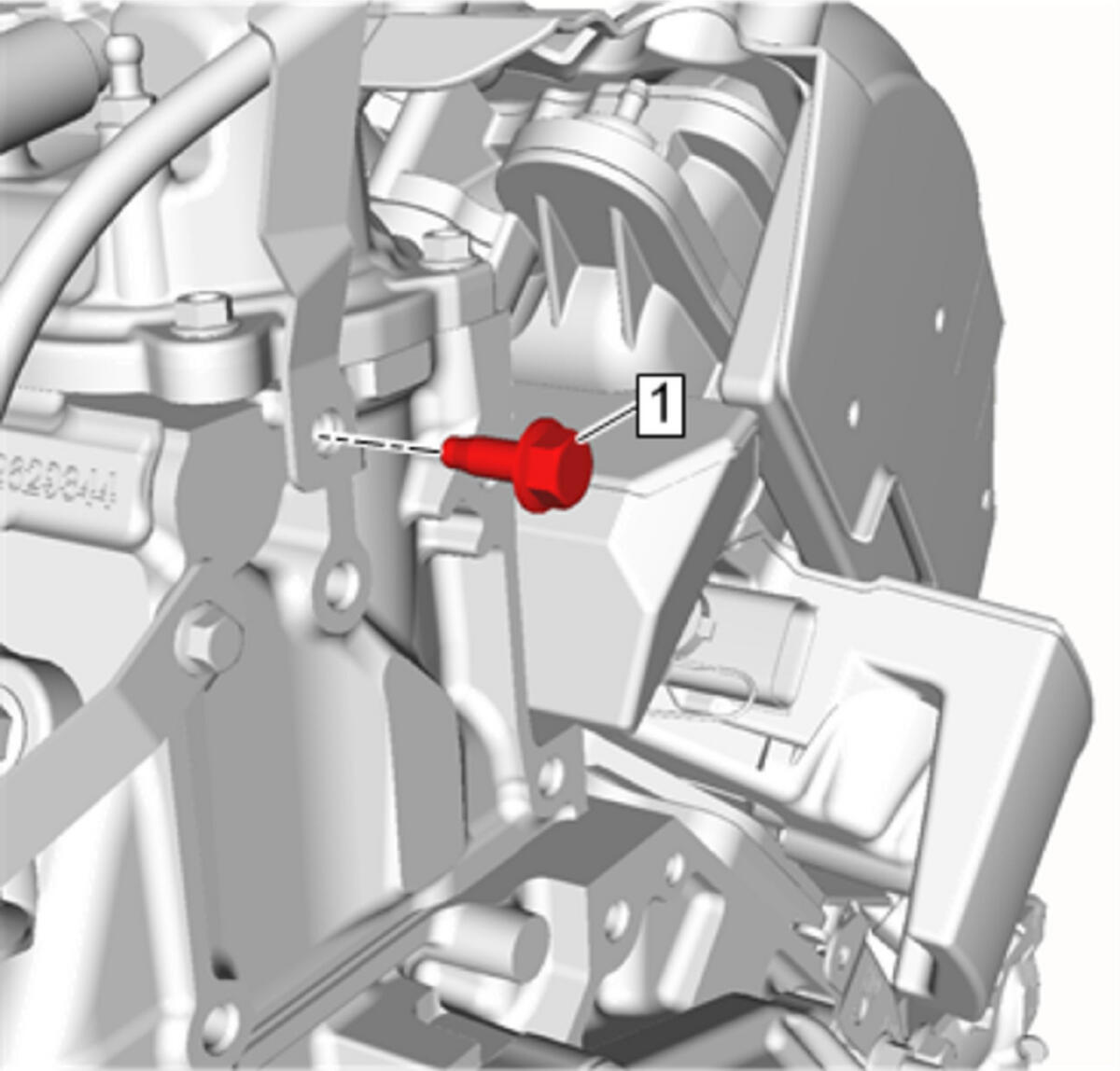

  6. GM4859978Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube Bracket Bolt (1) - Remove

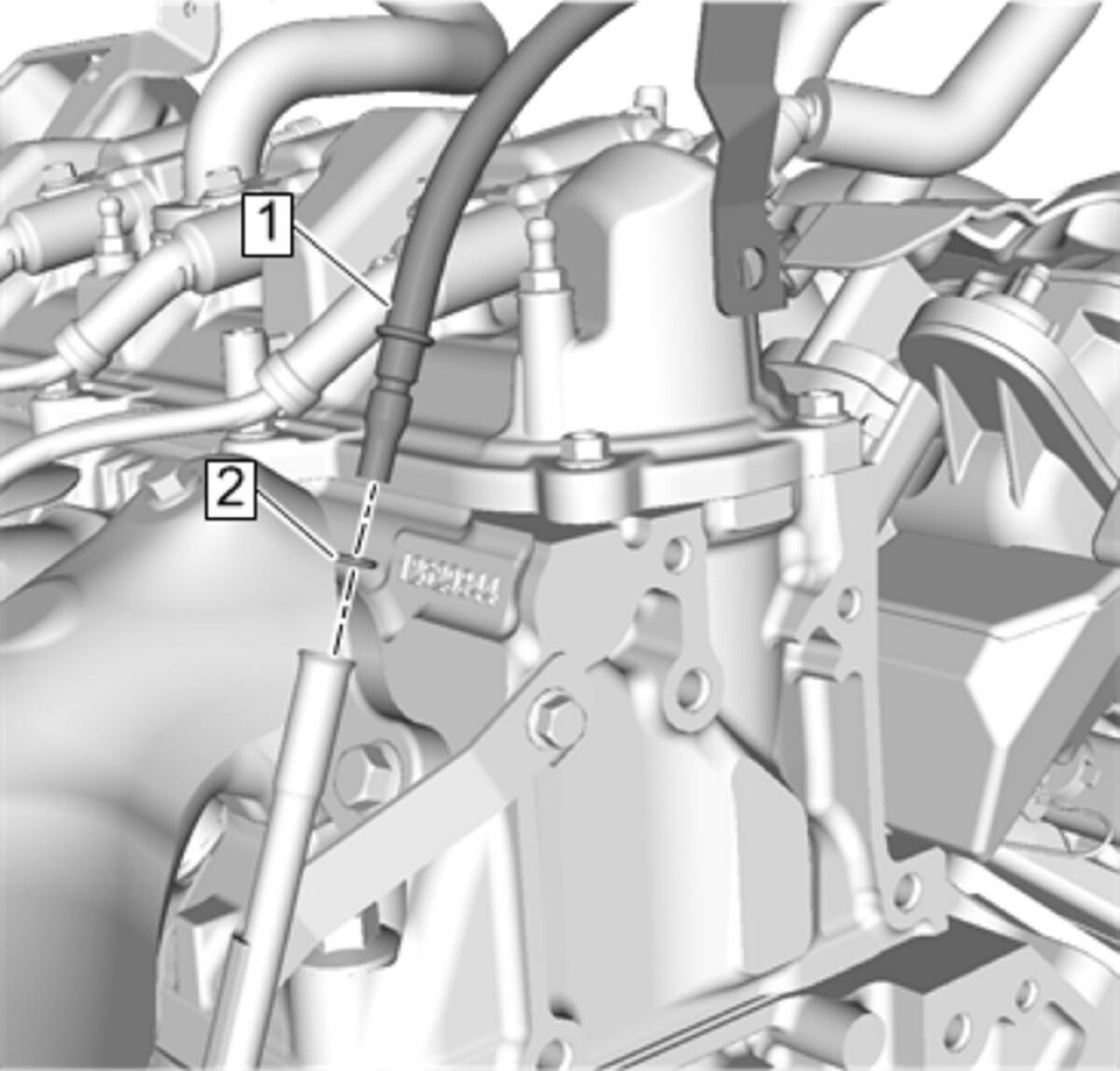

  7. GM4859998Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (1) - Remove

  8. Oil Level Indicator Tube Seal (2) Inspect the O- Ring and replace if necessary.
