Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When raising or supporting the engine for any reason, do not use a jack under any sheet metal, or the crankshaft pulley, or damage may occur.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
Air Cleaner Outlet Duct (3) - Remove - Air Cleaner Outlet Duct Replacement
Front Suspension Crossmember (1) - Remove - Front Suspension Crossmember Replacement
- Front Wheelhouse Splash Shield- Left Side - Remove - Wheelhouse Splash Shield Replacement (Left Side)

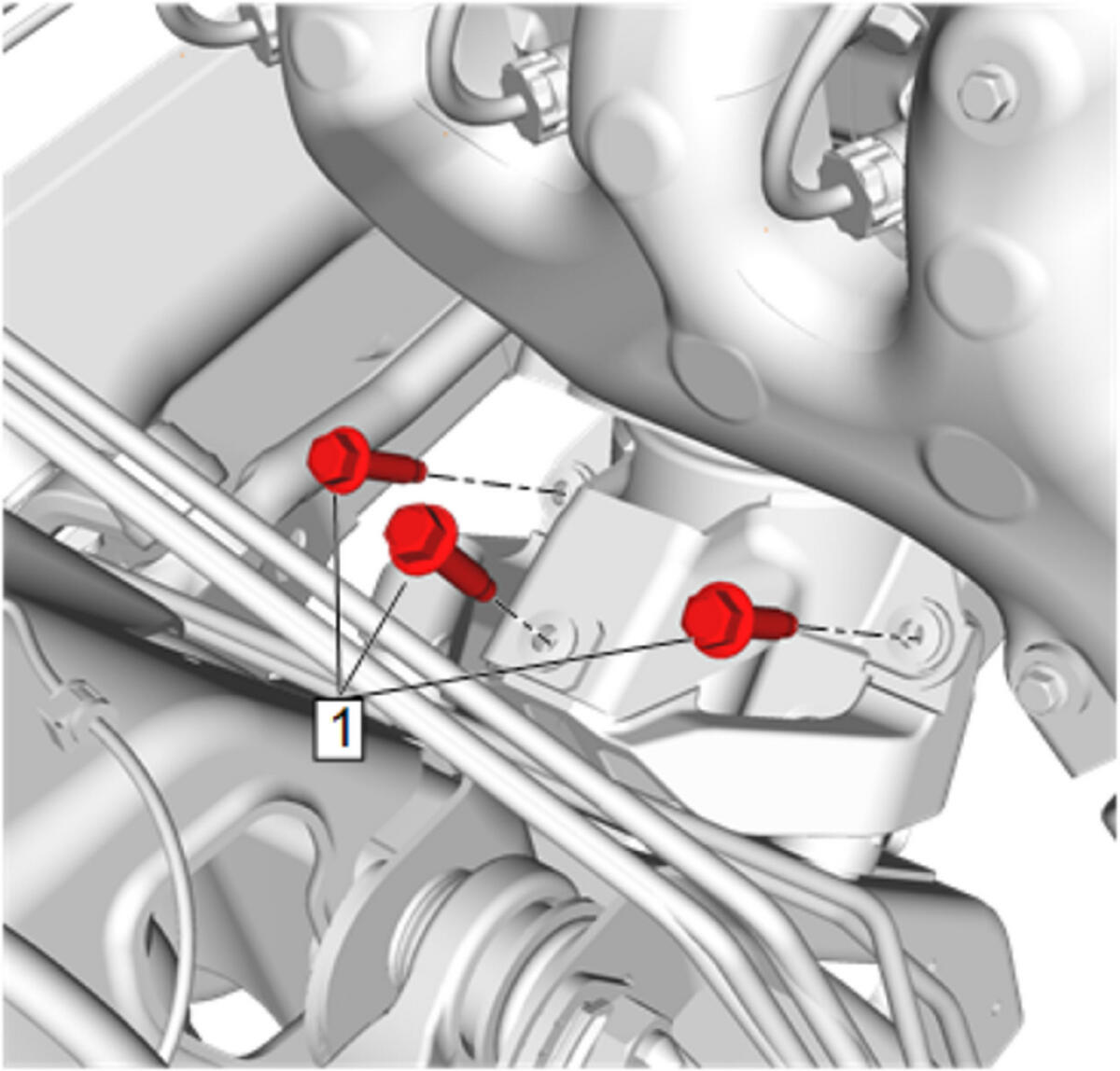

Engine Mount Frame Side Bolt (1) - Remove [3x]
- Position a screw jack and a block of wood under the lower engine oil pan.

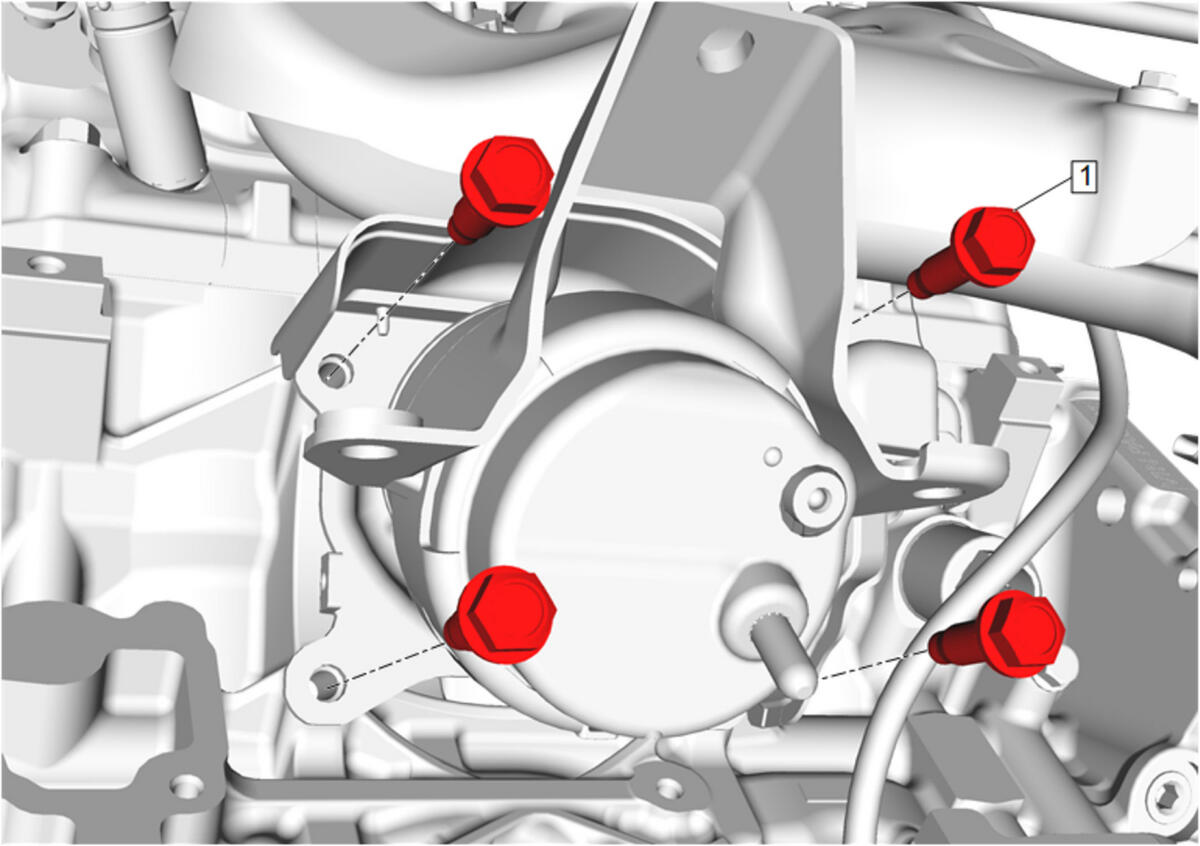

Engine Mount Engine Side Bolt (1) - Remove [4x]
- Using the adjustable jack, raise the engine off the engine mount.

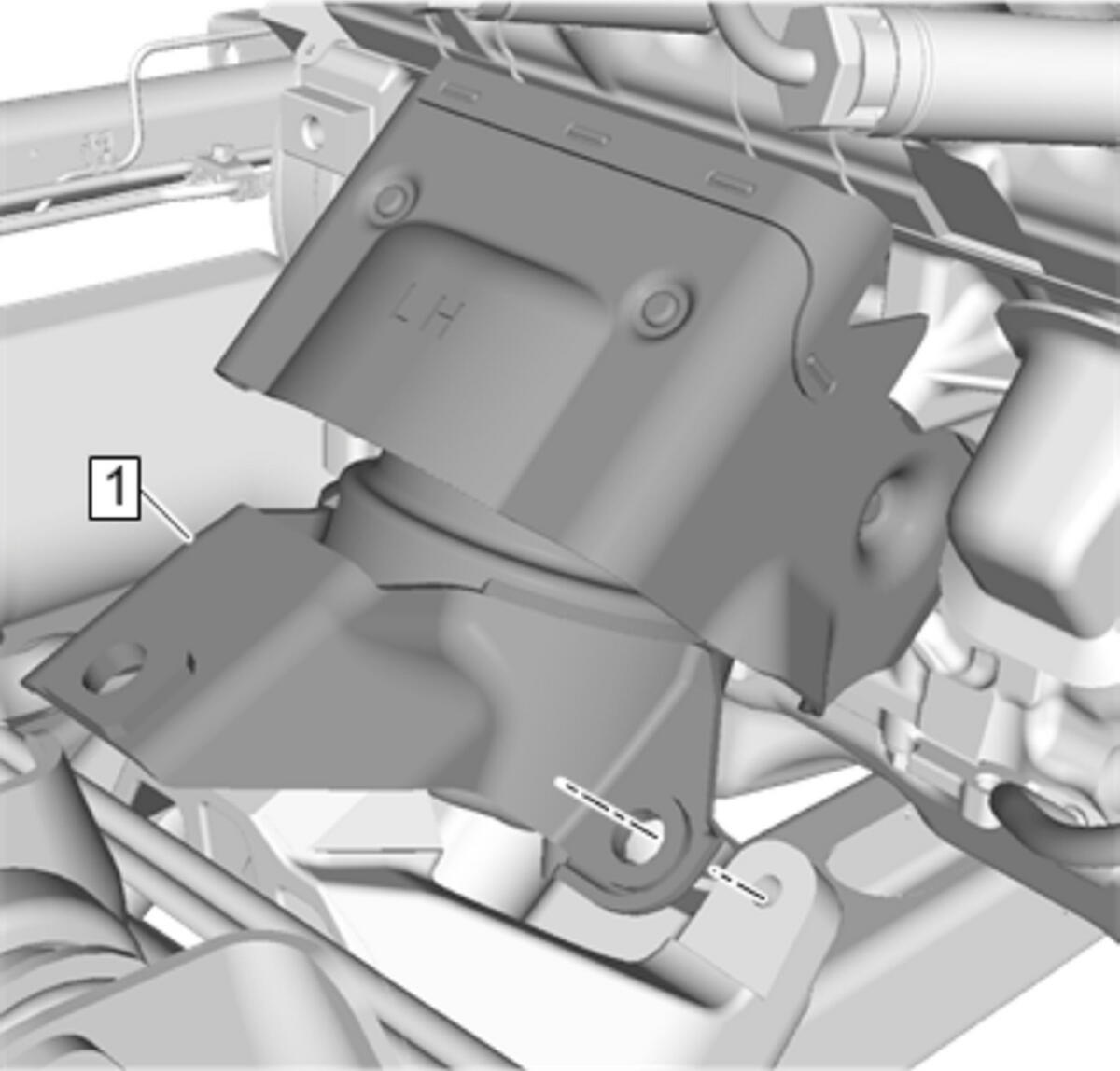

Engine Mount (1) - Remove
