Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Apply the park brake and block the wheels.
Courtesy of GENERAL MOTORS COMPANY

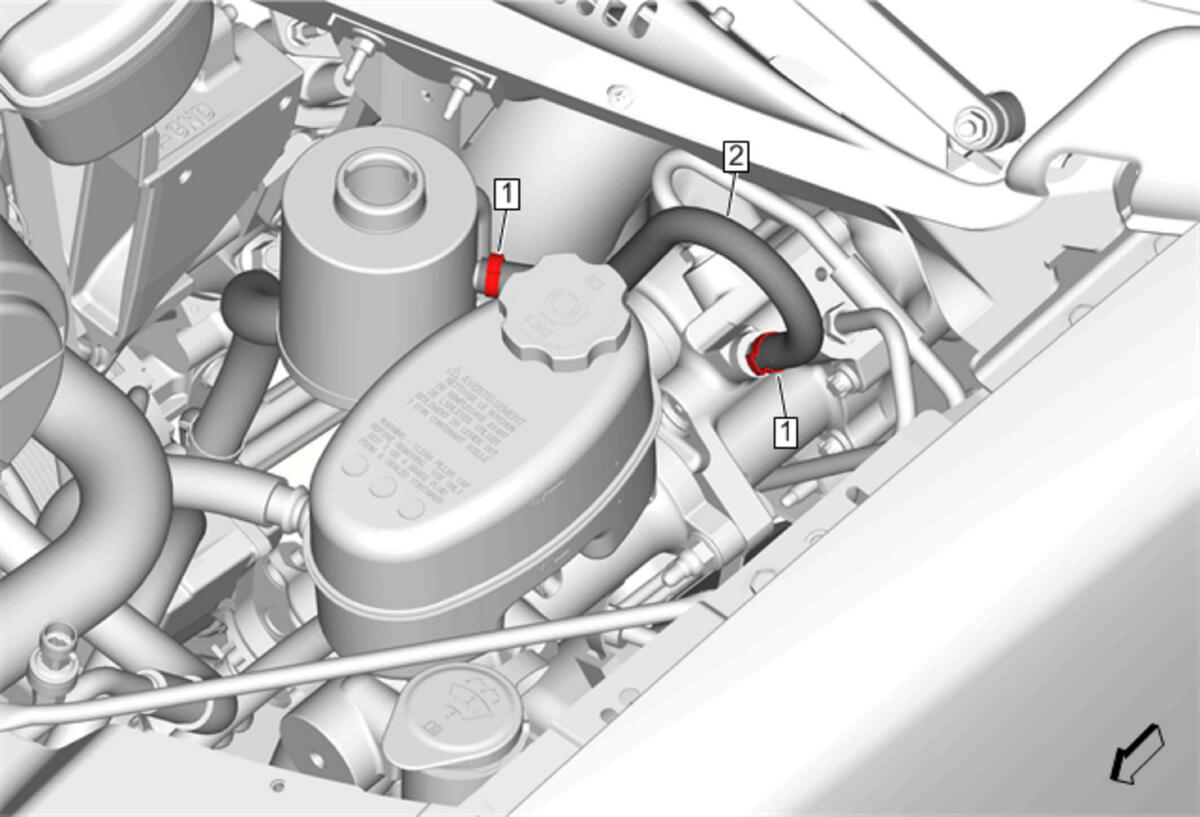

Power Brake Booster Inlet Hose(2) @ Power Brake Booster - Remove - Power Brake Booster Inlet Hose Replacement (With LWN) , or Power Brake Booster Inlet Hose Replacement (Without LWN)
Courtesy of GENERAL MOTORS COMPANY

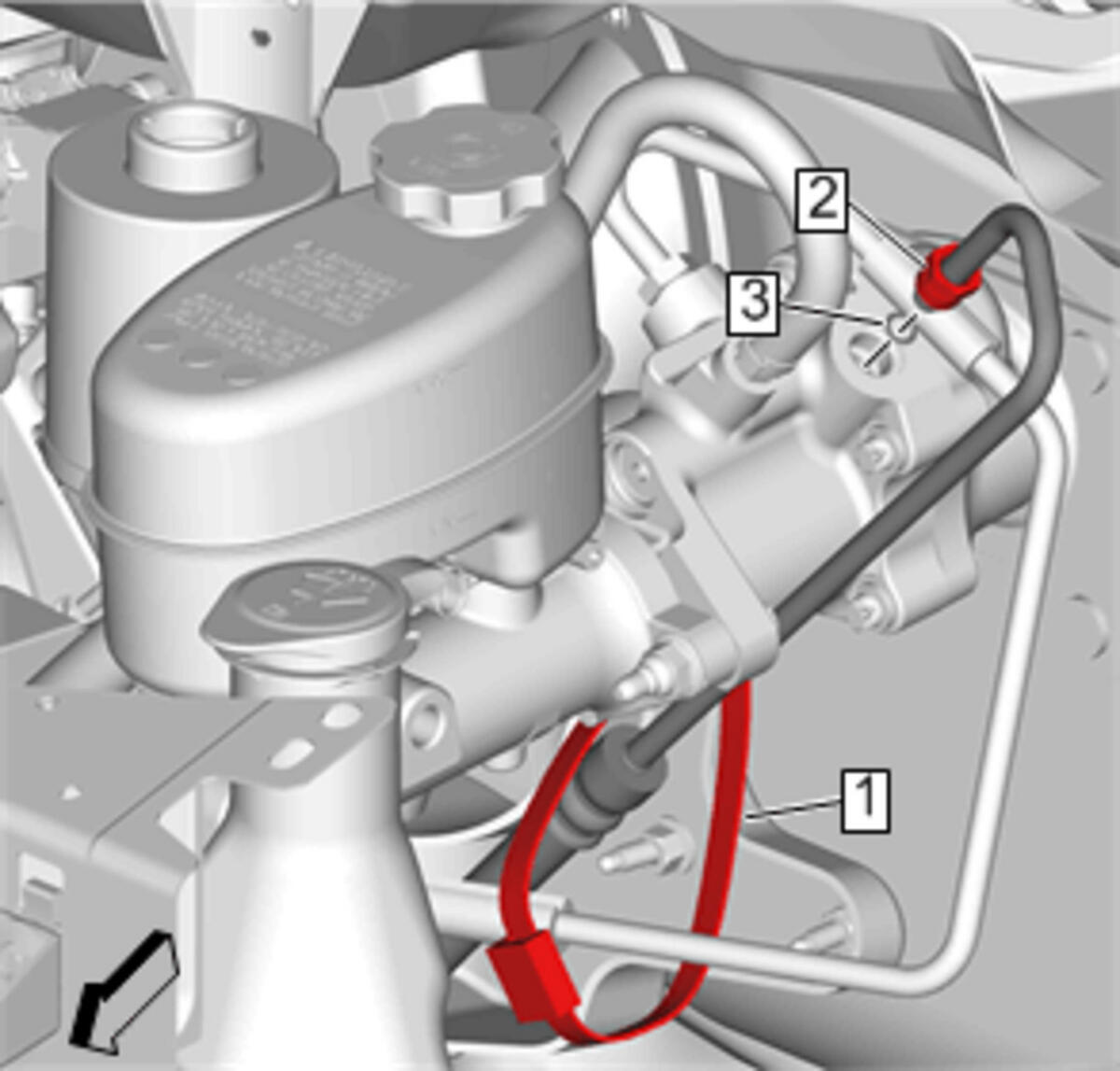

Power Brake Booster Outlet Hose- Booster to Gear (2) @ Power Brake Booster - Remove - Power Brake Booster Outlet Hose Replacement (With LWN, Booster to Reservoir) , or Power Brake Booster Outlet Hose Replacement (With LWN, Booster to Gear) , or Power Brake Booster Outlet Hose Replacement (Without LWN, Booster to Reservoir) , or Power Brake Booster Outlet Hose Replacement (Without LWN, Booster to Gear)
Courtesy of GENERAL MOTORS COMPANY

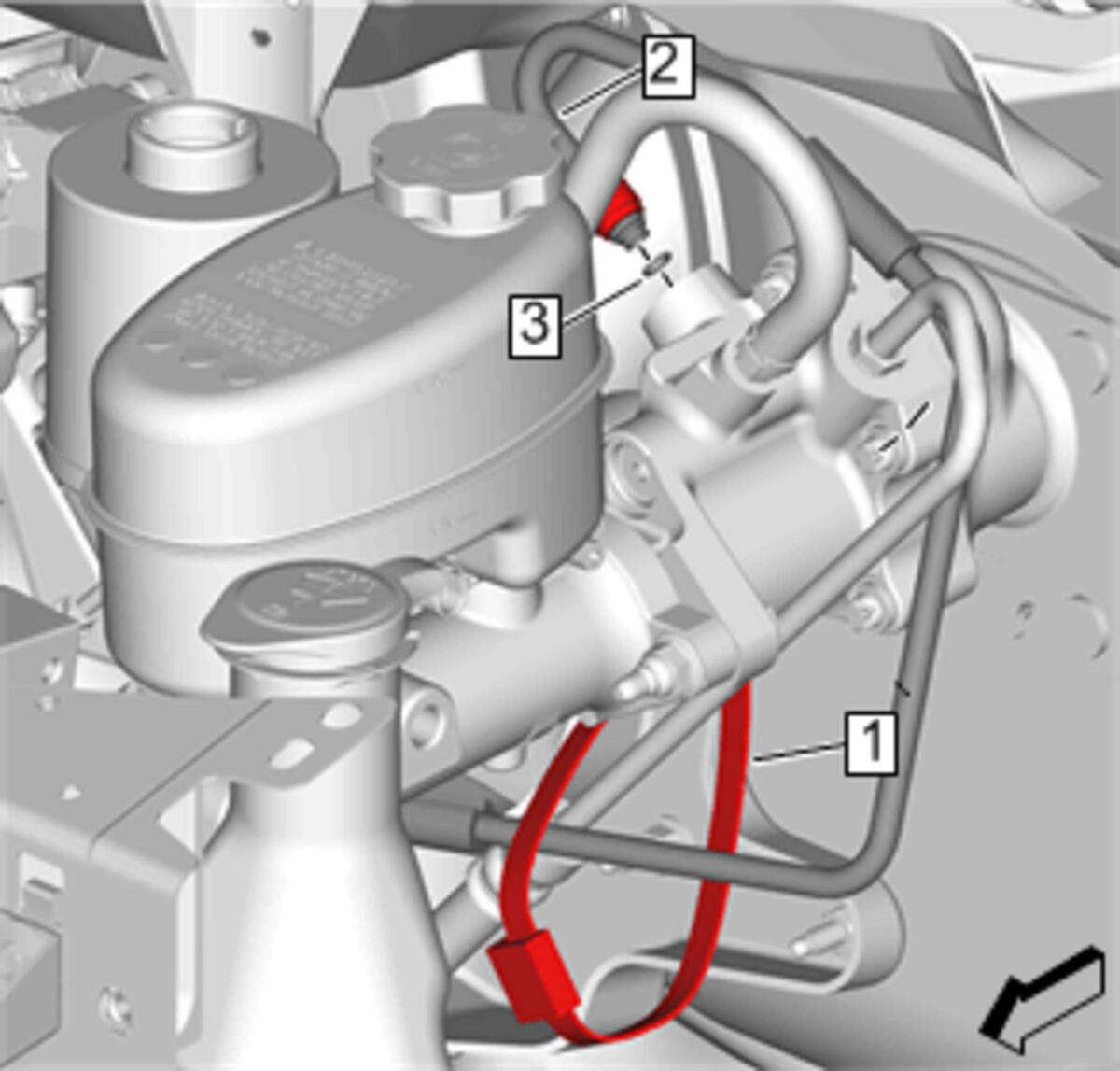

Power Brake Booster Outlet Hose- Booster to Reservoir (2) @ Power Brake Booster - Remove - Power Brake Booster Outlet Hose Replacement (With LWN, Booster to Reservoir) , or Power Brake Booster Outlet Hose Replacement (With LWN, Booster to Gear) , or Power Brake Booster Outlet Hose Replacement (Without LWN, Booster to Reservoir) , or Power Brake Booster Outlet Hose Replacement (Without LWN, Booster to Gear)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
It is not necessary to disconnect the brake pipes from the master cylinder.

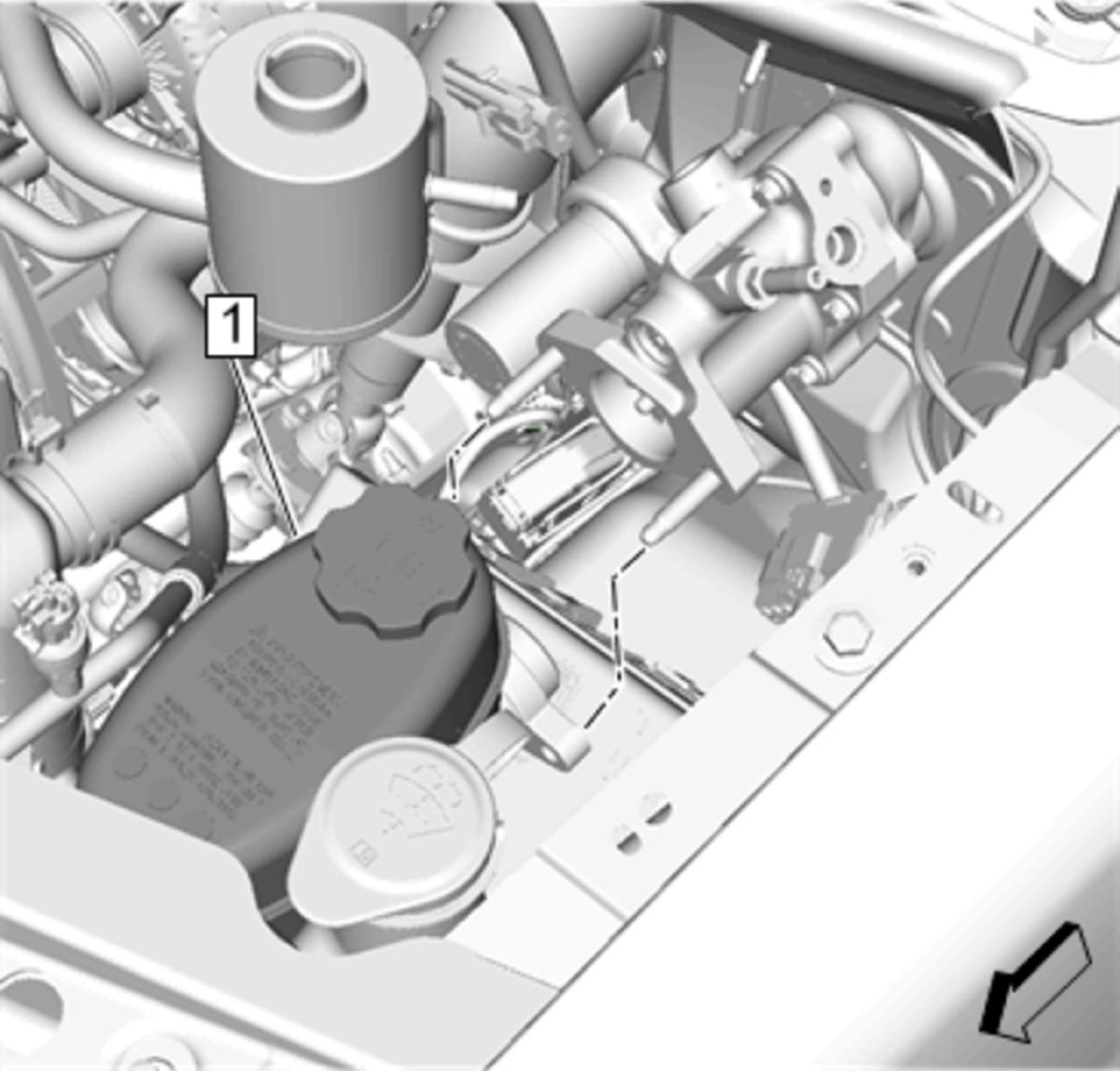

Brake Master Cylinder(1) - Reposition away Brake Master Cylinder Replacement
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Position Sensor(1) - Remove - Brake Pedal Position Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Push Rod Retainer Bolt (1) - Remove
Brake Pedal Push Rod Retainer (2) - Remove
Brake Pedal Push Rod (3) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Nut(1) - Remove[4x]
Courtesy of GENERAL MOTORS COMPANY

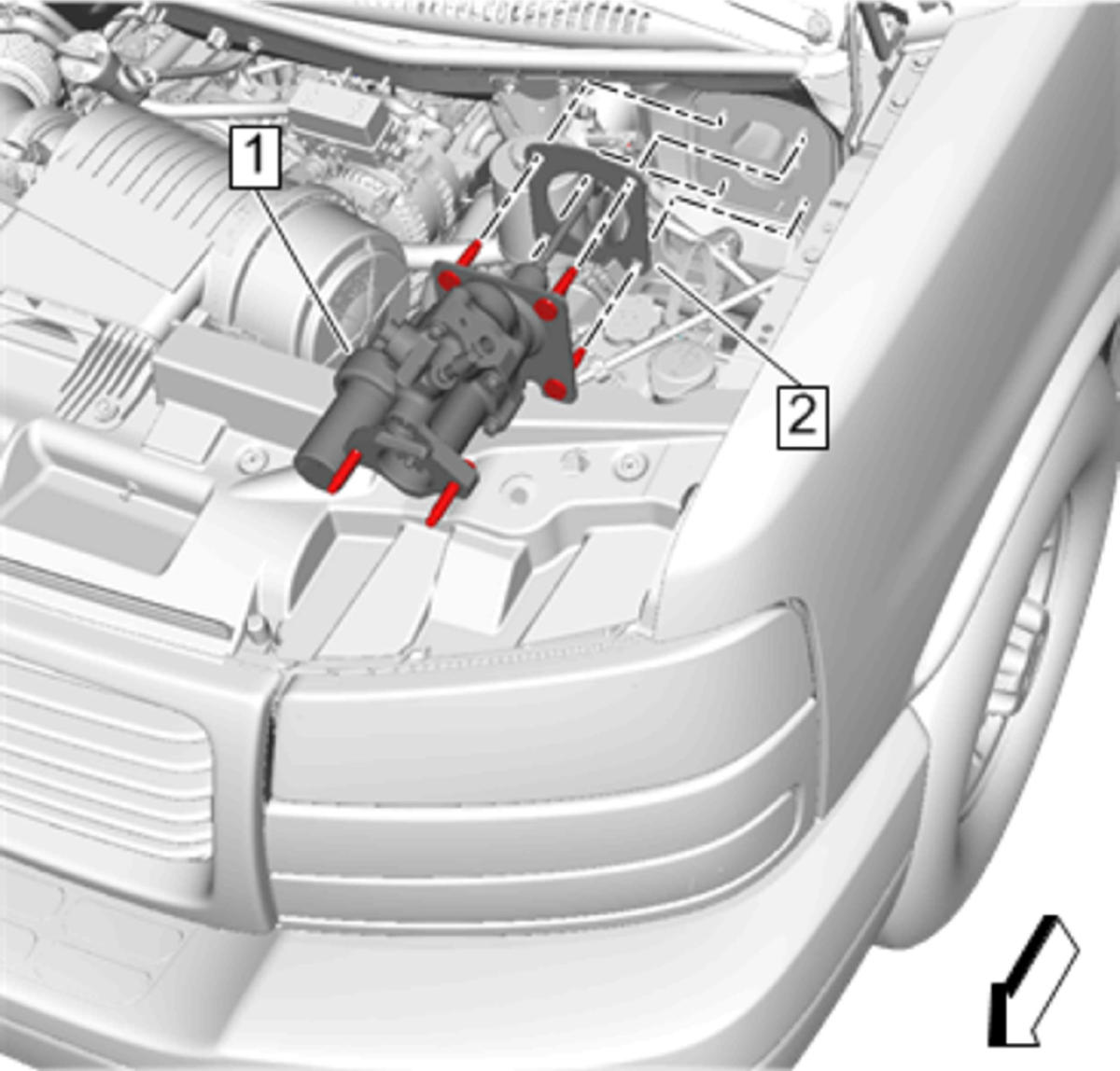

Power Brake Booster(1) - Remove
Power Brake Booster Gasket (2) - Remove
Inspect the power brake booster gasket, discard if damaged.
