Rear Door Outside Handle and License Pocket Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

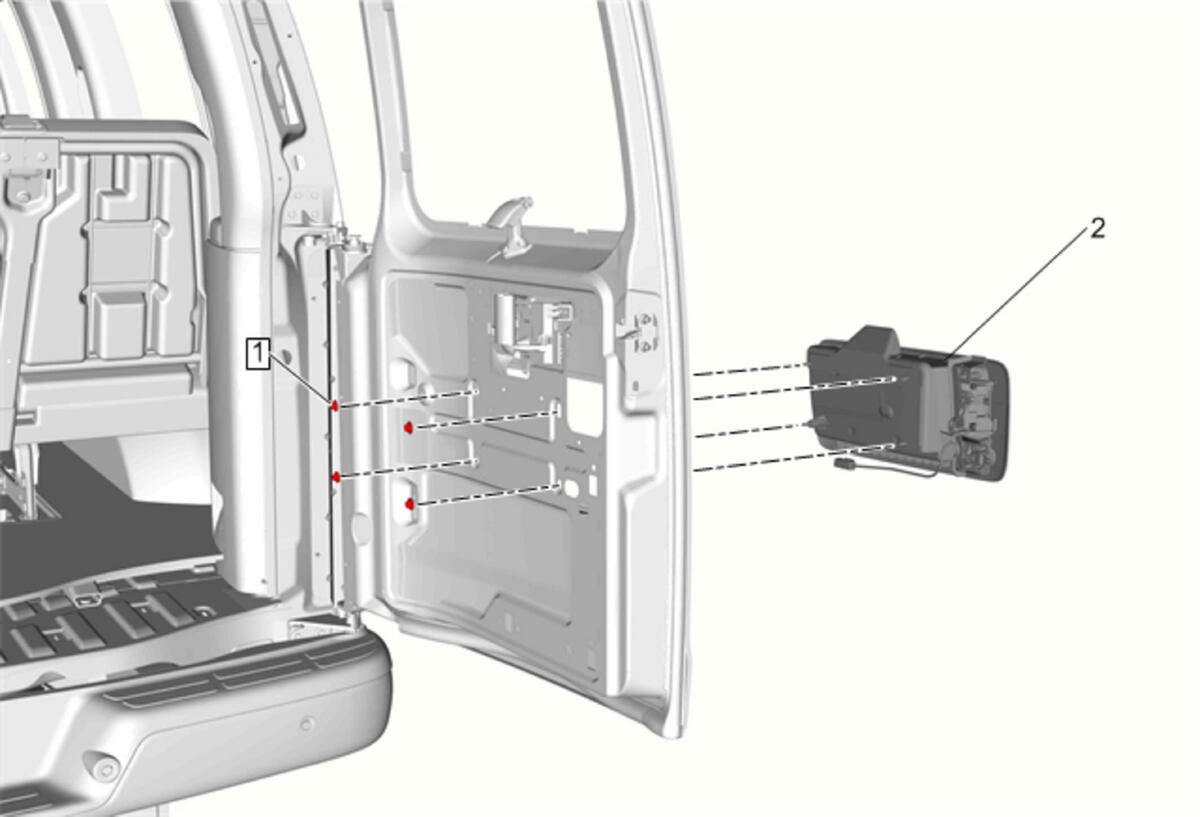

GM4845801Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Door Trim Panel Replacement - Right Side (E24)
  2. Rear Door Outside Handle Bracket Replacement
1 Rear Door Outside Handle and License Pocket Nut [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
10N.m (89 lb in)
2 Rear Door Outside Handle and License Pocket

Procedure

  1. Disconnect the lock rods from the lock
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
