Rear Door Outside Handle Bracket Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

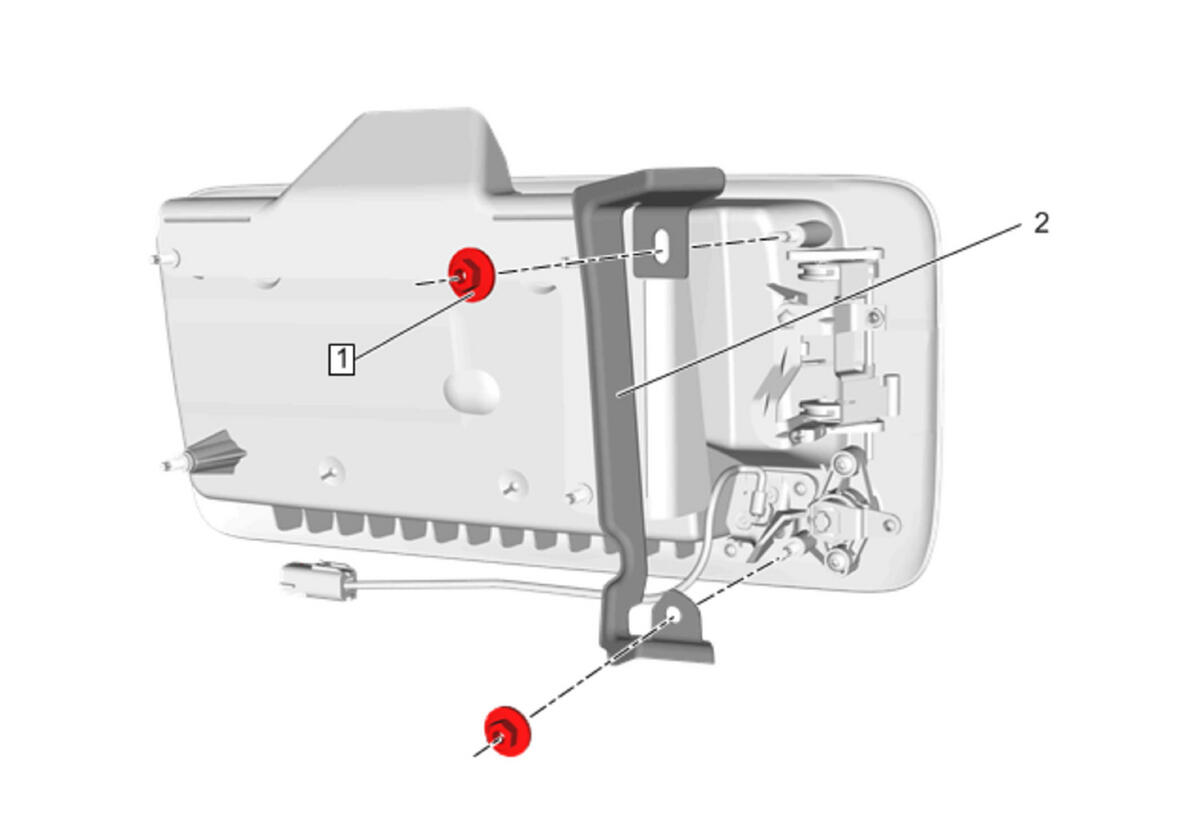

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door)Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door) |
|
| 1 | Rear Door Outside Handle Bracket Nut [2x]
CAUTION:
Refer to Fastener Caution . Tighten 10N.m (89 lb in) |
| 2 | Rear Door Outside Handle Bracket |
