Back Body Opening Upper Applique Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

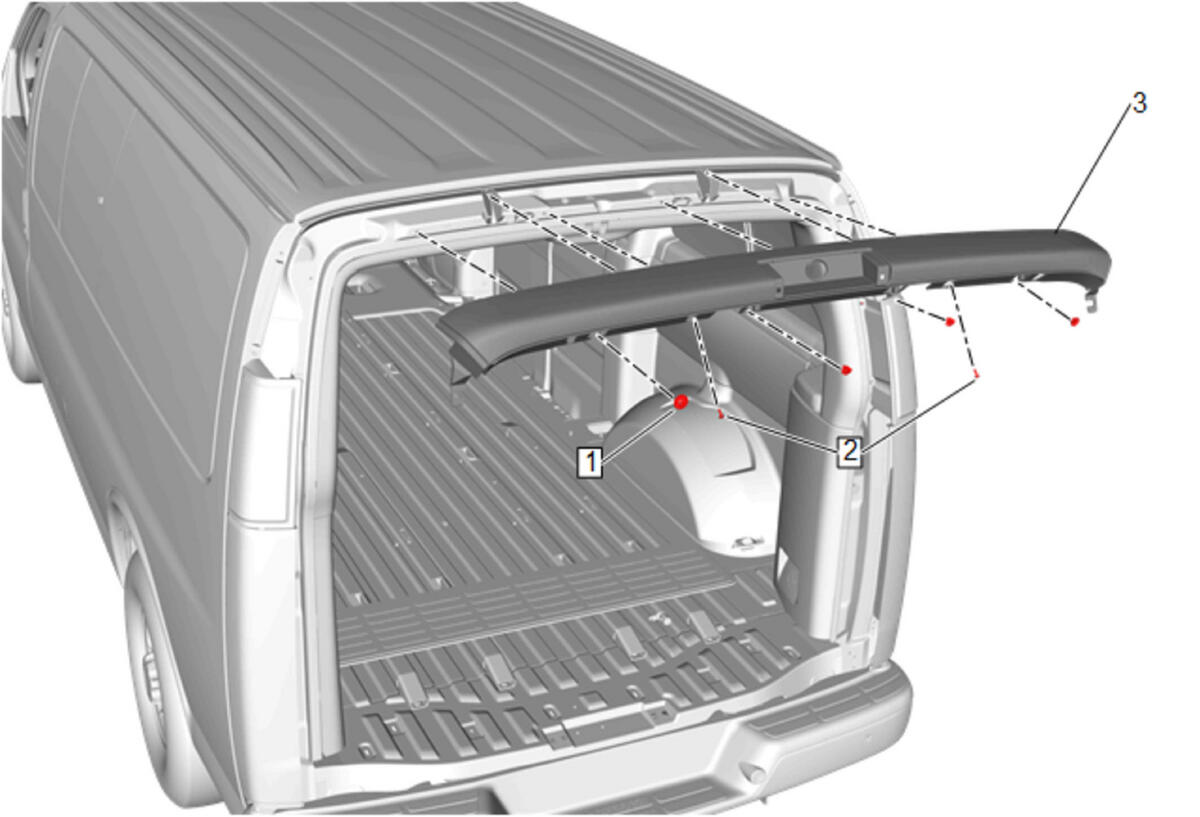

Callout	Component Name
Preliminary Procedure Back Body Opening Side Applique and Tail Lamp Replacement
1	Back Body Opening Upper Applique Nut[4x] CAUTION: Refer to Fastener Caution . Tighten 5.5N.m (49 lb in)
2	Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Back Body Opening Side Applique and Tail Lamp Replacement

Back Body Opening Upper Applique Nut[4x]

CAUTION:

Refer to Fastener Caution .

Tighten
5.5N.m (49 lb in)

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
