Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

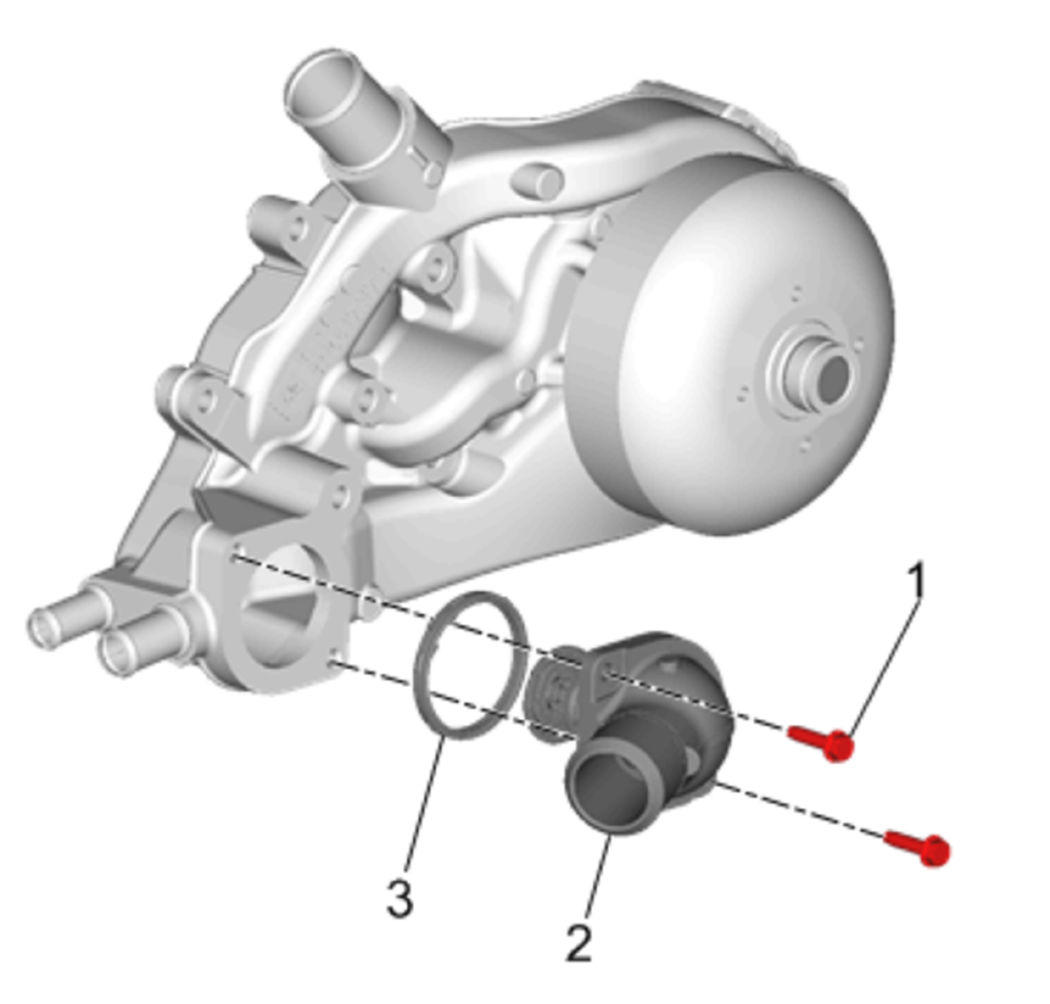

Water Inlet Seal(3) - Install a NEW seal.
Water Pump Inlet(2) - Install
Water Pump Inlet Bolt(1) - Install and tighten[2x] - Water Pump Inlet Replacement (LV1) , or Water Pump Inlet Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

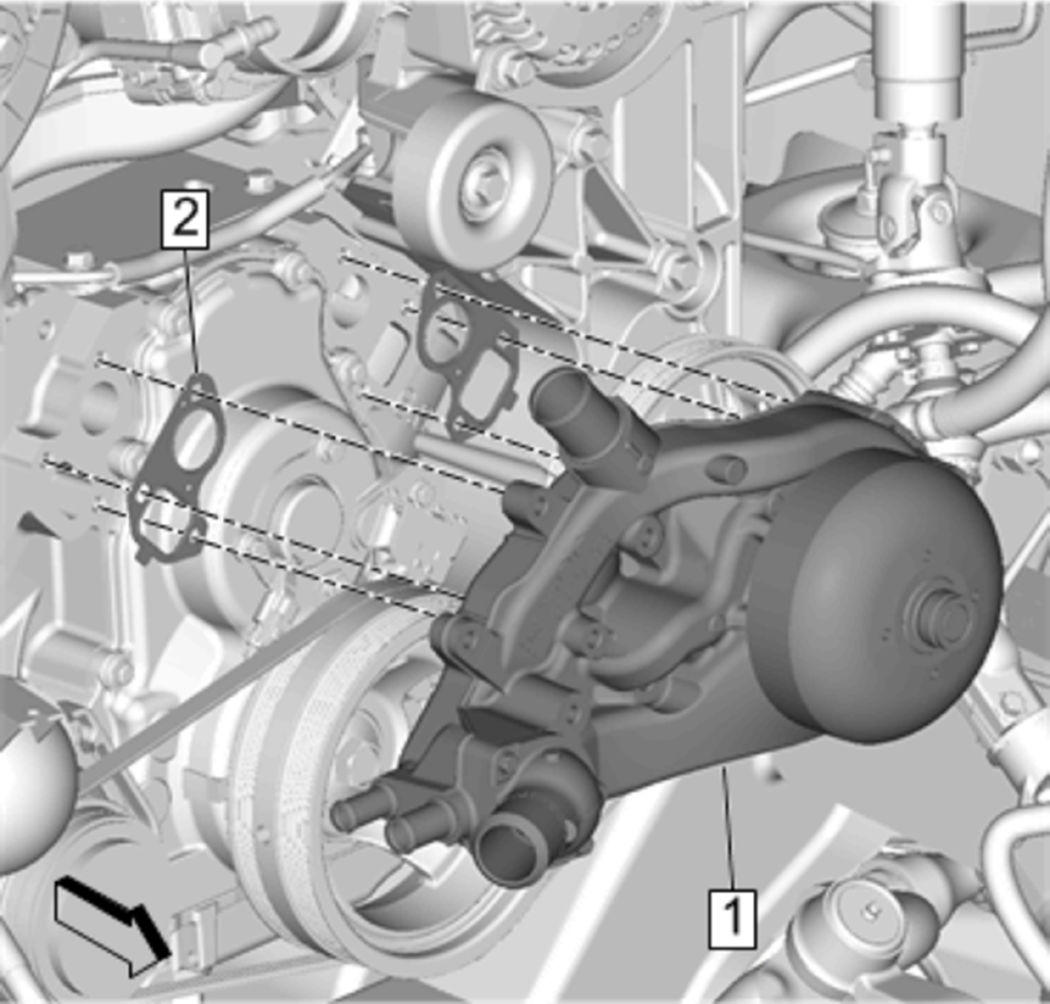

Water Pump Gasket(2) - Install a NEW gasket.[2x]
Water Pump(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

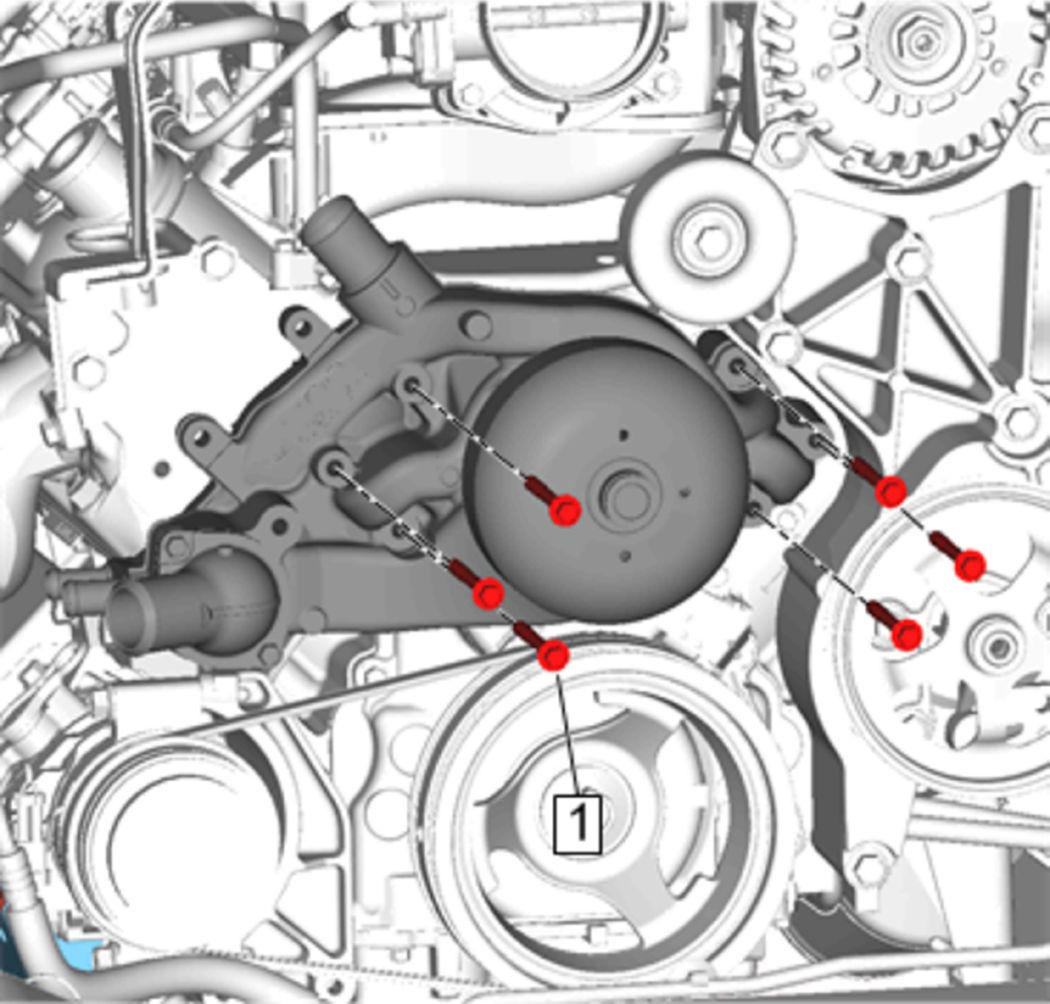

Water Pump Bolt(1) - Install and tighten [6x] 30 N.m (22 lb ft)
Courtesy of GENERAL MOTORS COMPANY

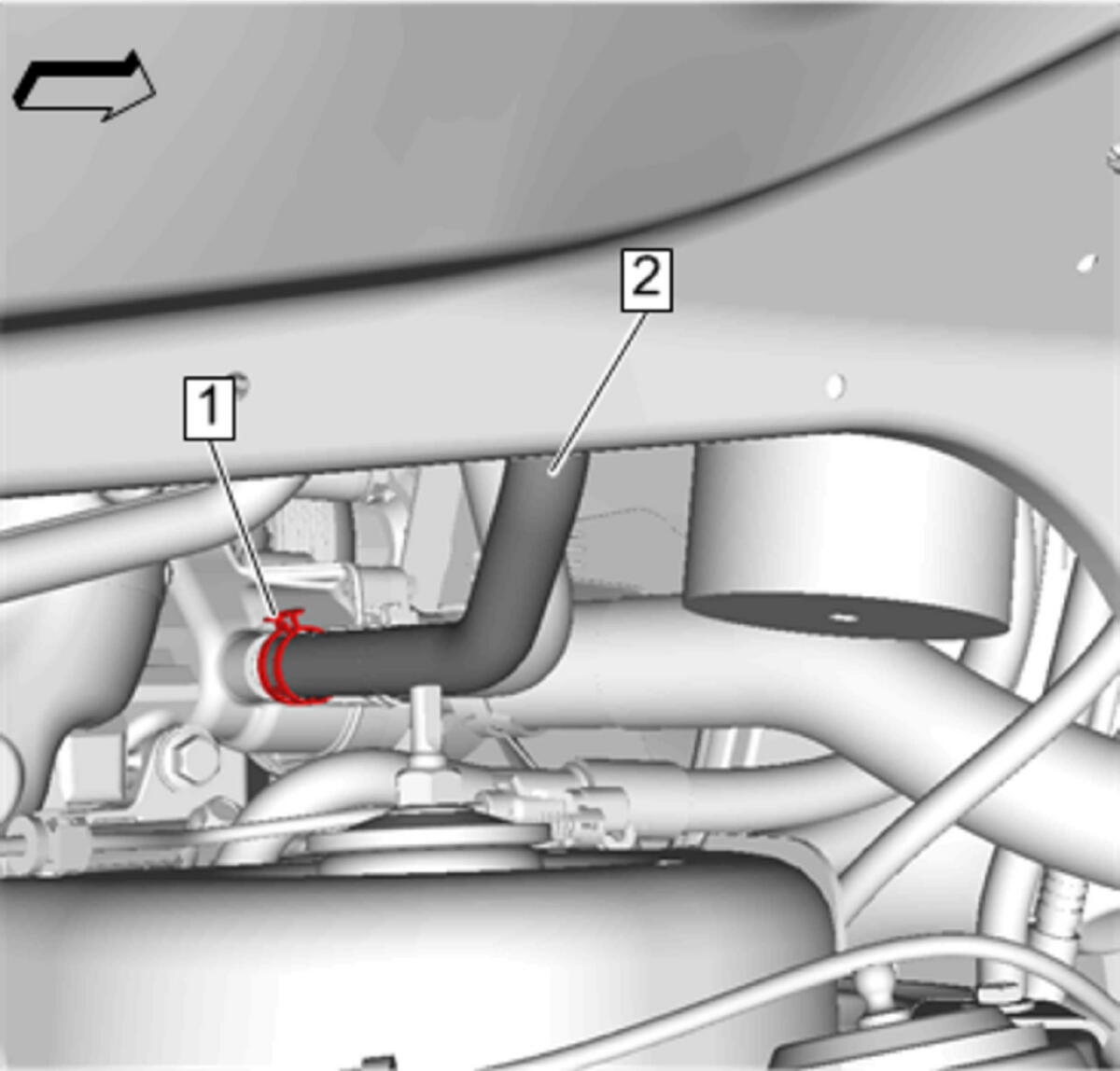

Heater Inlet Hose(2) - Install - Heater Inlet Hose Replacement (LWN with C69) , or Heater Inlet Hose Replacement (LWN Auxiliary Heater Inlet Hose) , or Heater Inlet Hose Replacement (LWN Water Pump Inlet Pipe to Heater Inlet and Outlet Pipe) , or Heater Inlet Hose Replacement (LWN without K08 Engine Coolant Thermostat to Heater Inlet and Outlet Pipe) , or Heater Inlet Hose Replacement (LWN without C69) , or Heater Inlet Hose Replacement (LV1 without C69) , or Heater Inlet Hose Replacement (LV1 Auxiliary Air Conditioning Evaporator Front Tube to Heater Core Inlet Tube with C69) , or Heater Inlet Hose Replacement (L96, LC8 Heater Water Flow Control Valve to Heater Core Inlet Tube) , or Heater Inlet Hose Replacement (L96, LC8 Water Pump Housing to Heater Water Flow Control Valve) , or Heater Inlet Hose Replacement (L96 Heater Core Inlet Tube to Auxiliary Heater Inlet and Outlet Pipe)
Heater Inlet Hose Clamp(1) @ Water Pump - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

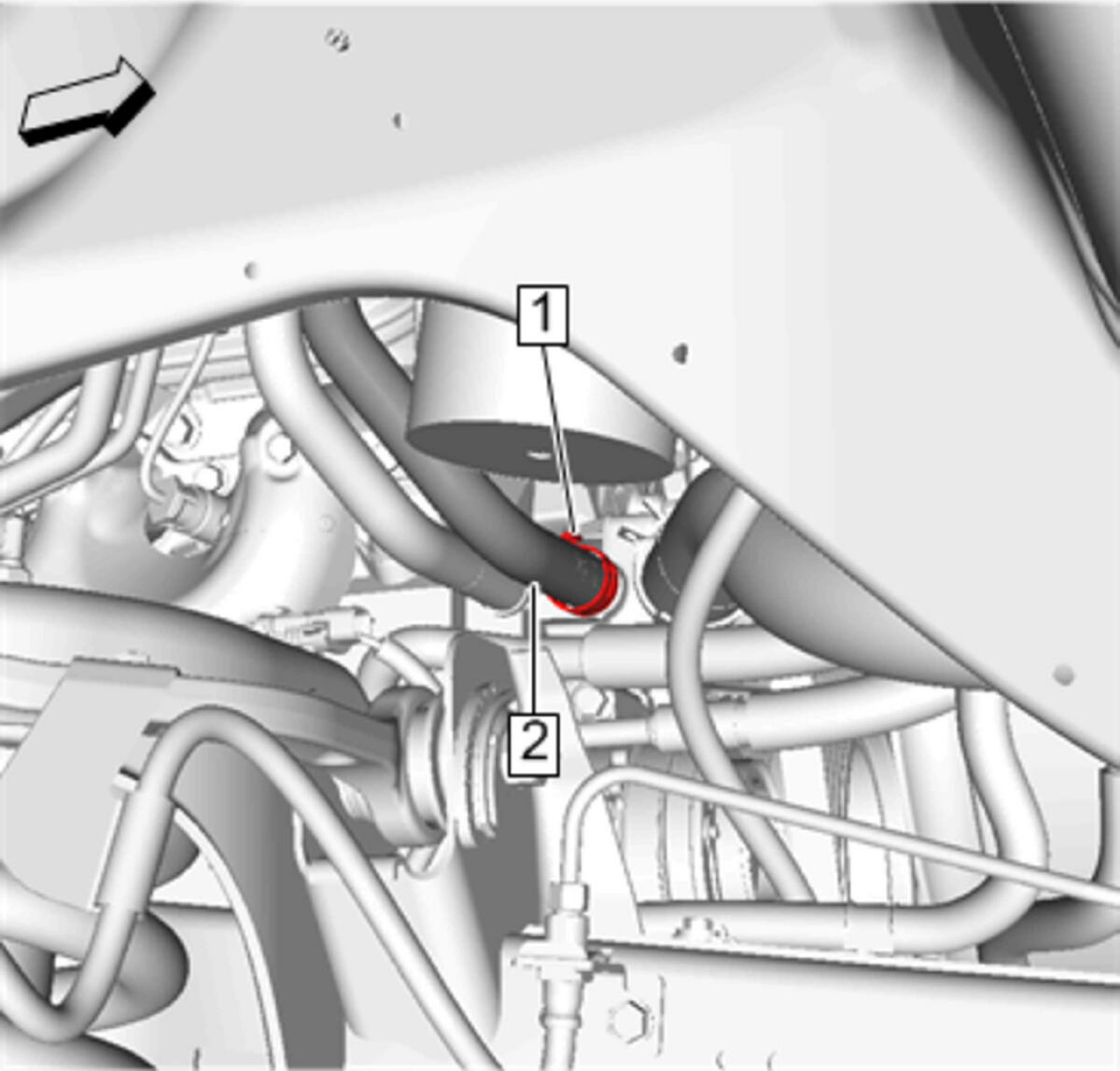

Heater Outlet Hose(2) - Install - Heater Outlet Hose Replacement (LWN with C69) , or Heater Outlet Hose Replacement (LWN Auxiliary Heater Outlet Hose) , or Heater Outlet Hose Replacement (LWN Water Pump Inlet Pipe to Heater Inlet and Outlet Pipe) , or Heater Outlet Hose Replacement (LWN without C69) , or Heater Outlet Hose Replacement (LV1 Water Pump to Heater Core Outlet Tube without C69) , or Heater Outlet Hose Replacement (LV1 Auxiliary Air Conditioning Evaporator Front Tube to Heater Core Outlet Tube with C69) , or Heater Outlet Hose Replacement (L96, LC8 Heater Water Flow Control Valve to Heater Core Outlet Tube) , or Heater Outlet Hose Replacement (L96, LC8 Water Pump Housing to Heater Water Flow Control Valve) , or Heater Outlet Hose Replacement (L96 Auxiliary Heater Inlet and Outlet Pipe to Heater Core Outlet Tube)
Heater Outlet Hose Clamp(1) @ Water Pump - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose(2) - Install
Radiator Outlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Drive Belt Tensioner - Install - Drive Belt Tensioner Replacement - Accessory
Engine Coolant Fan Lower Shroud - Install - Engine Coolant Fan Lower Shroud Replacement (LWN) , or Engine Coolant Fan Lower Shroud Replacement (LV1) , or Engine Coolant Fan Lower Shroud Replacement (L96, LC8)
Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Start the engine and check for coolant leaks.
