Water Pump Inlet Replacement (L96, LC8)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

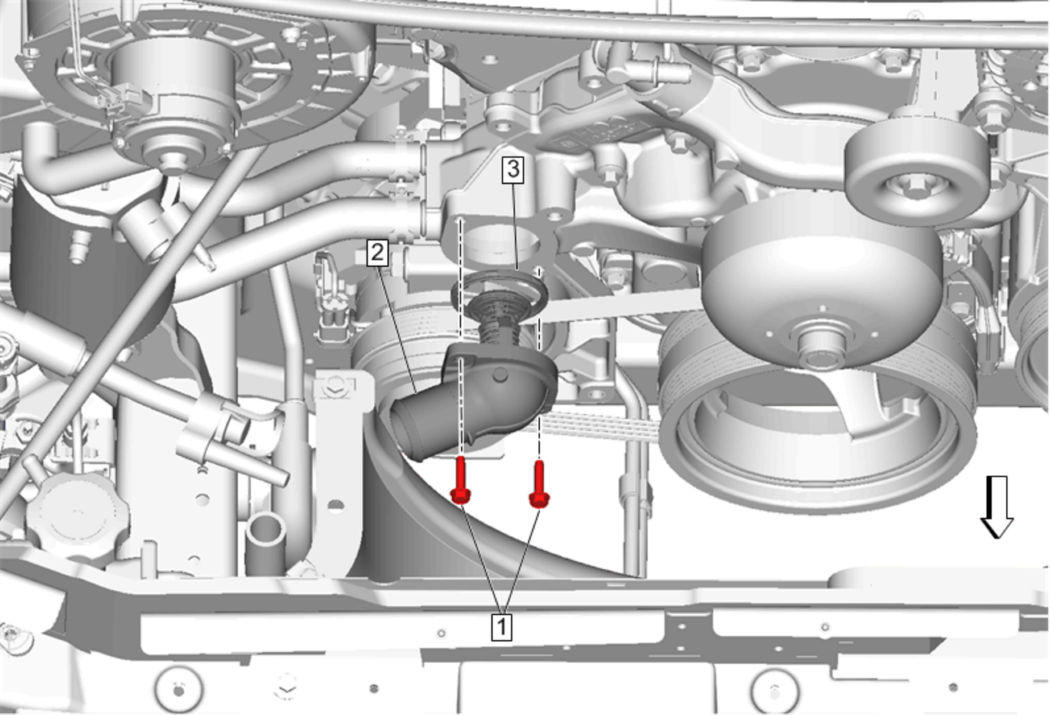

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96) Fan Blade - Remove - Fan Blade Replacement (LWN) , or Fan Blade Replacement (LV1) , or Fan Blade Replacement (L96, LC8)
1	Water Pump Inlet Bolt [2x] CAUTION: Refer to Fastener Caution . Procedure Tighten 15 N.m (11 lb ft)
2	Water Pump Inlet
3	Water Pump Inlet Seal Procedure Water Pump Inlet Seal - Remove and DISCARD
