Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Vent Inlet Hose(2) @ Engine Water Outlet Adapter - Install
- Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Engine Cover - Install - Engine Cover Replacement

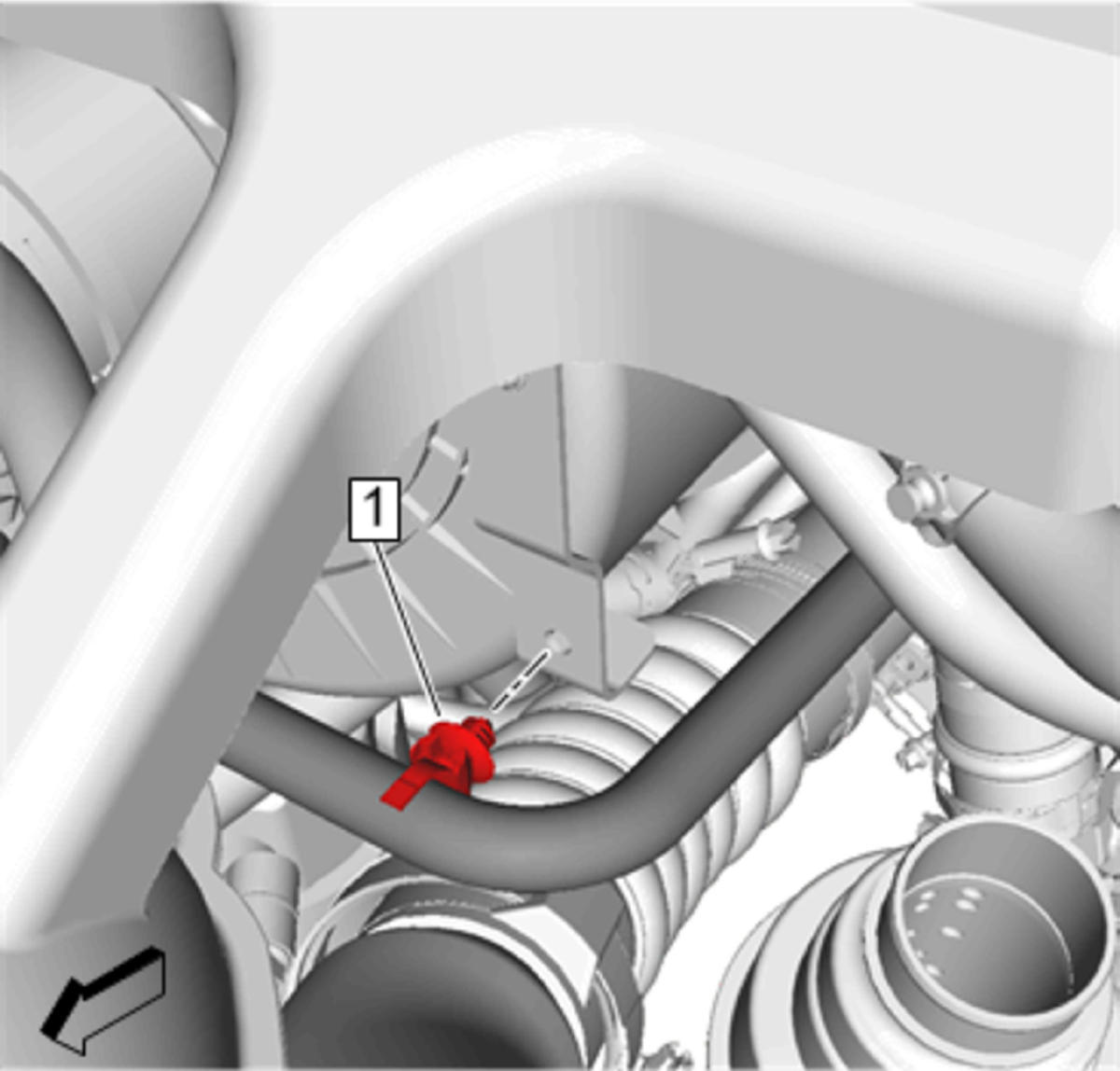

Radiator Vent Inlet Hose Clip(1) @ Radiator Vent Outlet Hose Bracket - Install
Air Cleaner Assembly(4) - Install - Air Cleaner Assembly Replacement
Air Cleaner Outlet Duct(1) - Install - Air Cleaner Outlet Duct Replacement
Radiator Vent Inlet Hose(2) @ Radiator - Install
- Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Radiator Vent Inlet Hose(2) @ Radiator Surge Tank - Install
- Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Start the engine and check for coolant leaks.
