Fan Pulley Replacement (LWN)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

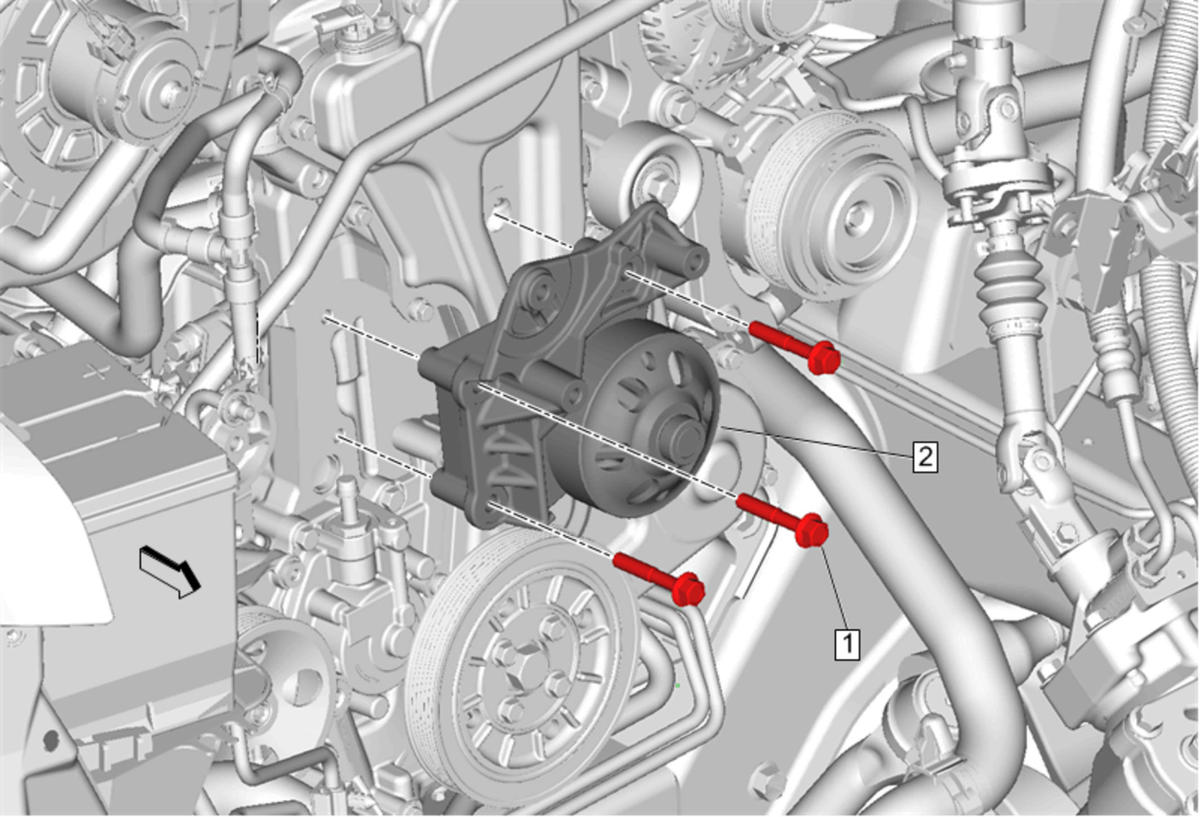

Callout	Component Name
Preliminary Procedures Fan Blade Replacement (LWN) , or Fan Blade Replacement (LV1) , or Fan Blade Replacement (L96, LC8) Drive Belt Replacement Drive Belt Idler Pulley Replacement - Right Side
1	Fan Pulley Bolt[3x] CAUTION: Refer to Fastener Caution . Procedure Tighten 58 N.m (43 lb ft)
2	Fan Pulley

Callout

Component Name

Preliminary Procedures

Fan Blade Replacement (LWN) , or Fan Blade Replacement (LV1) , or Fan Blade Replacement (L96, LC8)
Drive Belt Replacement
Drive Belt Idler Pulley Replacement - Right Side

Fan Pulley Bolt[3x]

CAUTION:

Refer to Fastener Caution .

Procedure
Tighten
58 N.m (43 lb ft)

Fan Pulley
