Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

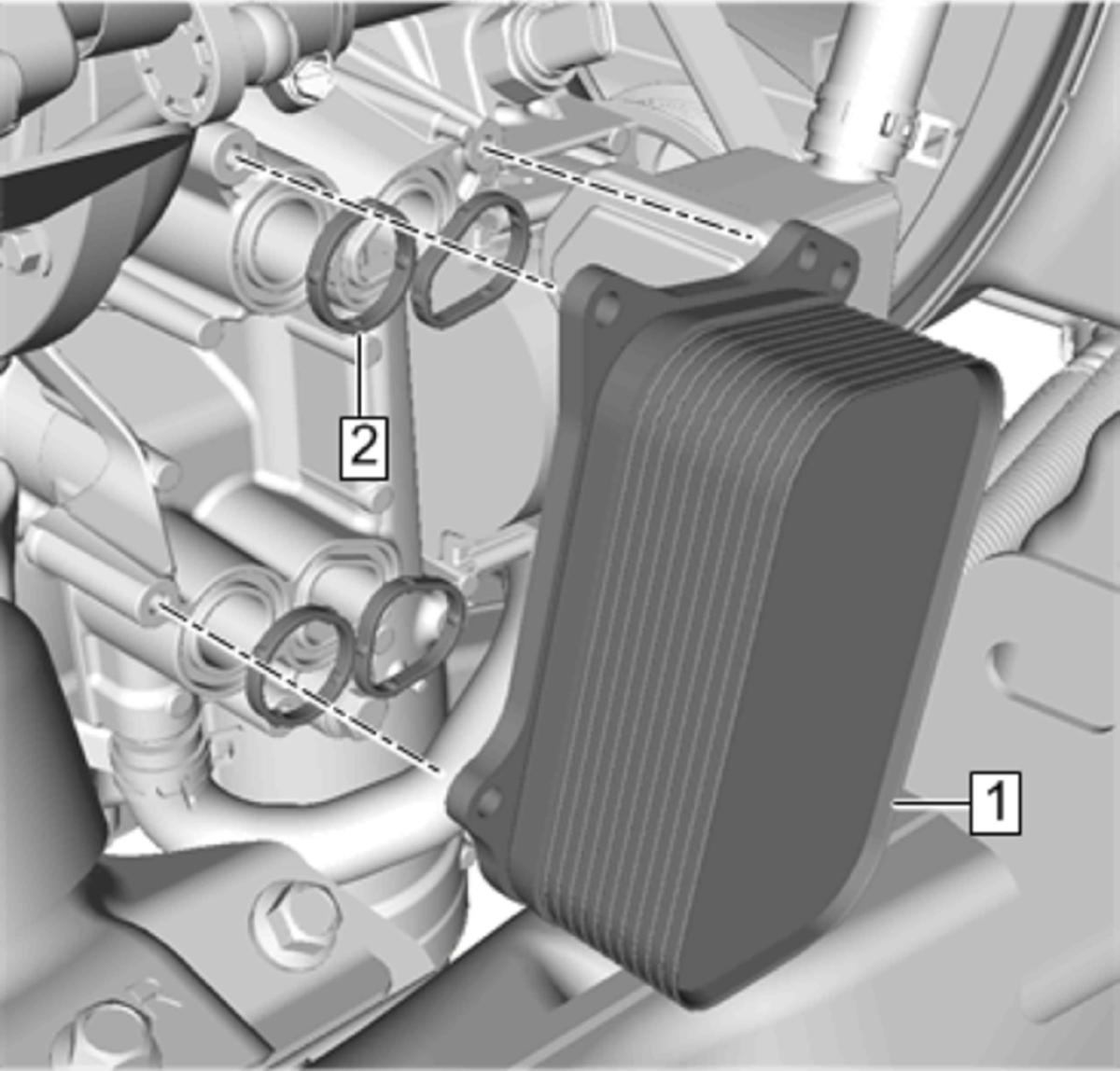

  1. GM4604041Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install NEW engine oil cooler seals.

    Engine Oil Cooler Seal(2) - Install[4x]

  2. Engine Oil Cooler(1) - Install

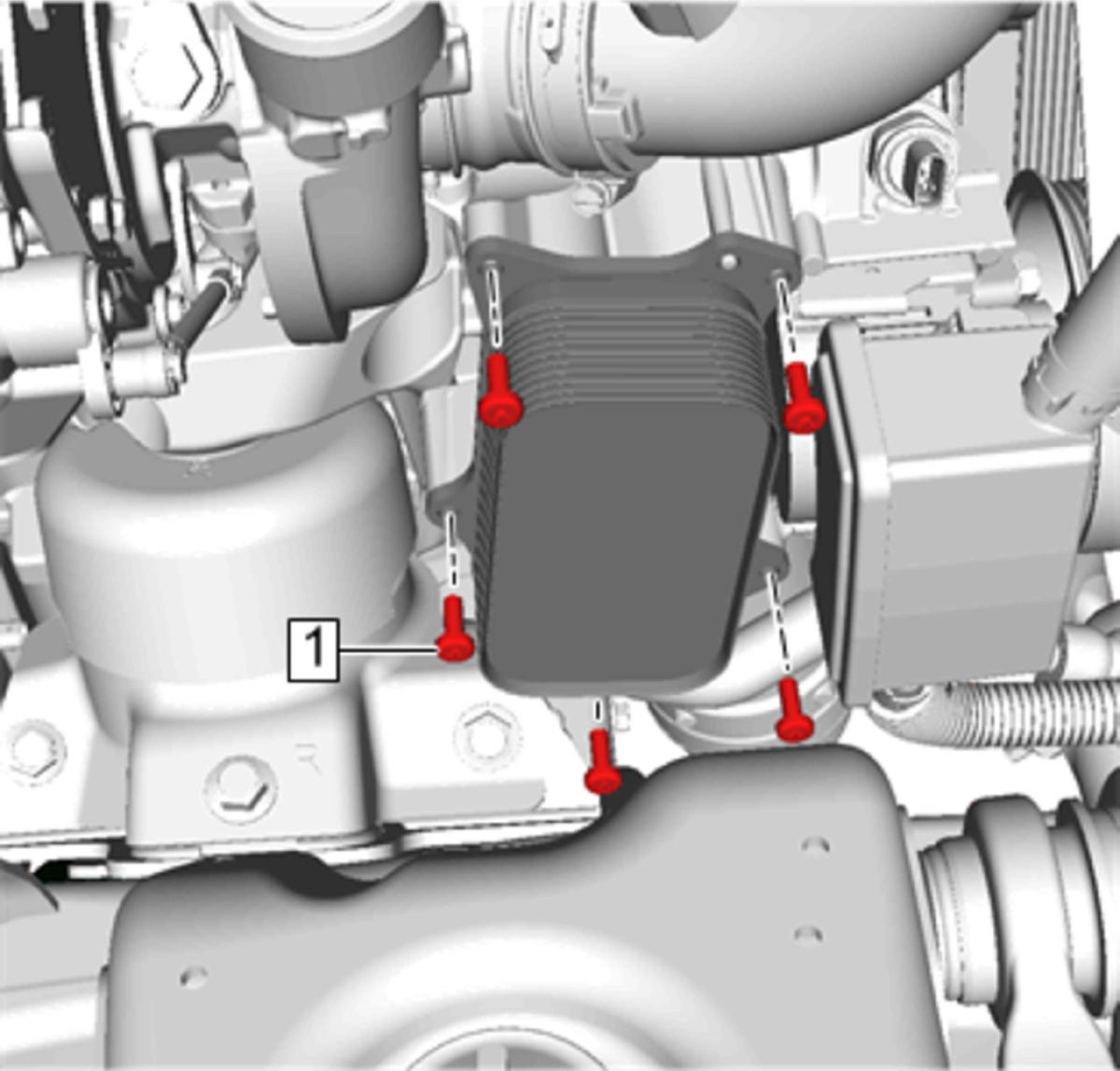

  3. GM4604039Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Engine Oil Cooler Bolt(1) - Install and tighten[5x]10 N.m (89 lb in)

  4. Engine Oil Cooler Inlet Hose @ Engine Oil Cooler Pipe - Connect - Engine Oil Cooler Inlet Hose Replacement (LWN)
  5. GM4589005Courtesy of GENERAL MOTORS COMPANY

    Wheelhouse Splash Shield -Right Side(3) - Install - Wheelhouse Splash Shield Replacement (Left Side) , or Wheelhouse Splash Shield Replacement (Right Side)

  6. Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
  7. Fill the engine oil to the proper level with NEW engine oil. Engine Oil and Oil Filter Replacement
