Engine Oil Cooler Inlet Hose Replacement (LWN)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

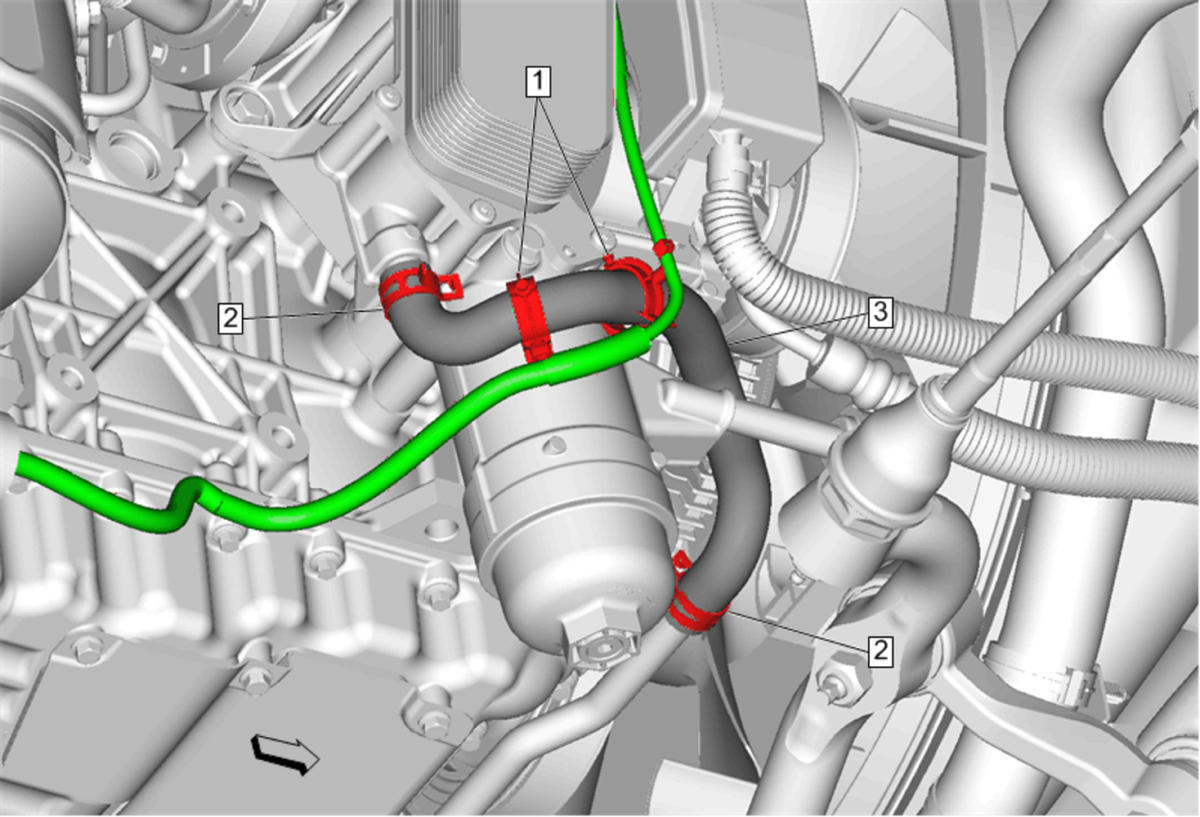

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96) Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Wiring Harness Retainer [2x] Procedure Separate the wiring harness retainers from the engine oil cooler inlet hose.
2	Engine Oil Cooler Inlet Hose Clamp[2x] Hose Clamp Replacement Guidelines - Spring Type
3	Engine Oil Cooler Inlet Hose
