Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

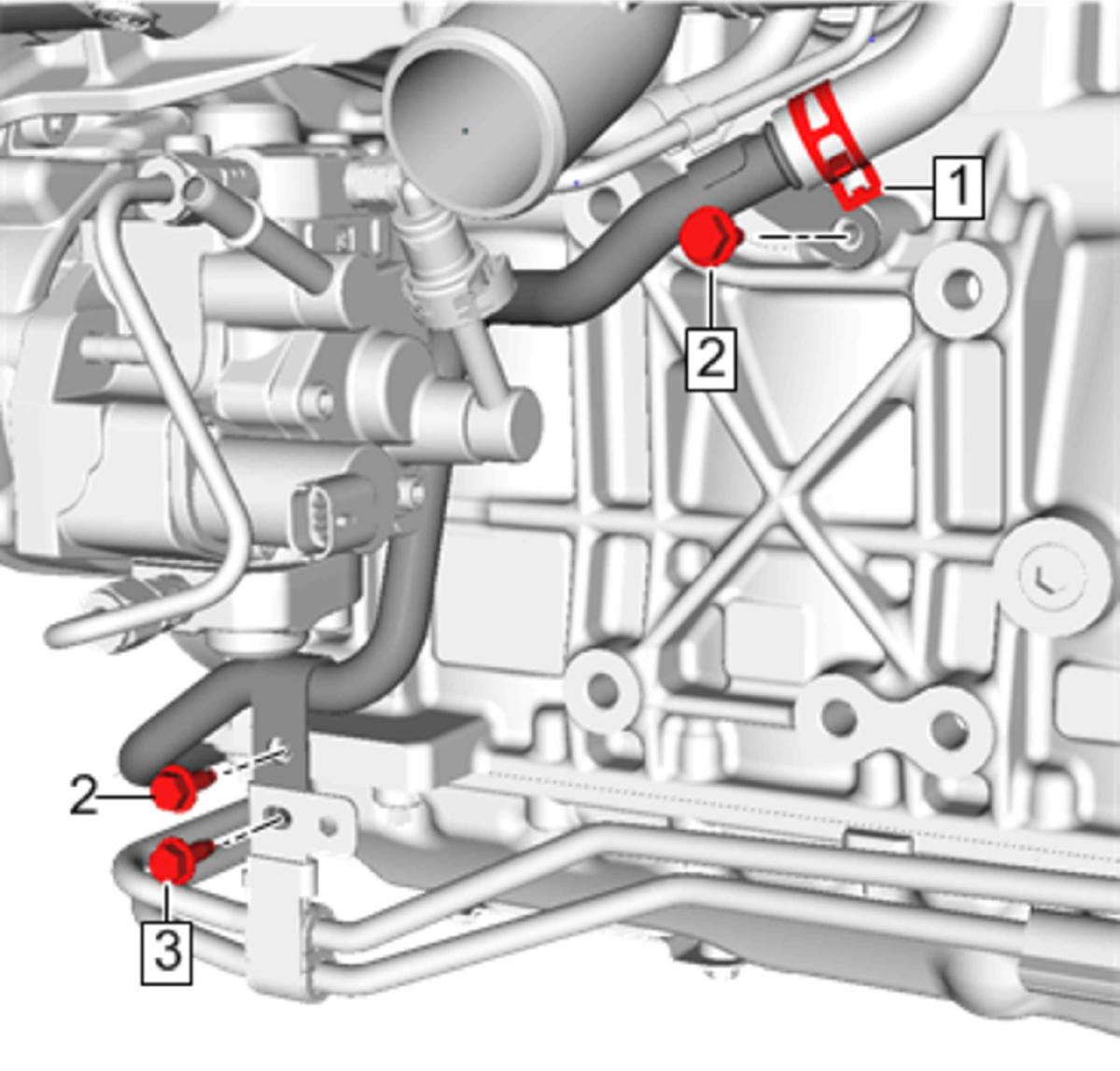

Engine Oil Cooler Pipe(3) - Install
- Engine Oil Cooler Pipe Bracket Bolt(2) - Install and tighten9 N.m (80 lb in)
- Transmission Fluid Cooler Pipe Clip(1) - Engage

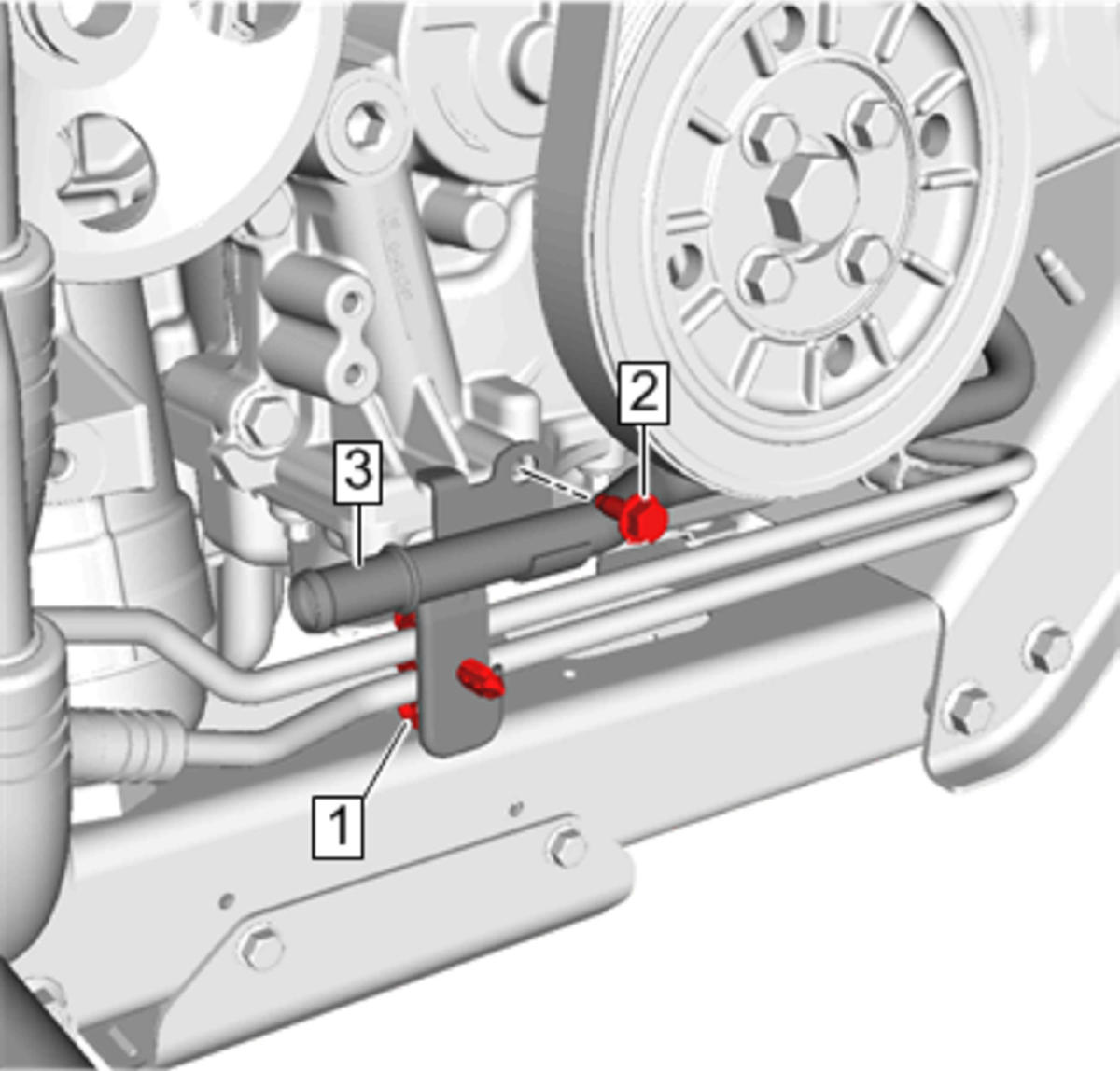

Engine Oil Cooler Pipe Bracket Bolt(2) - Install and tighten[2x]9 N.m (80 lb in)
- Engine Oil Cooler Outlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Transmission Fluid Cooler Pipe Bracket Bolt (3) - Install and tighten9 N.m (80 lb in)

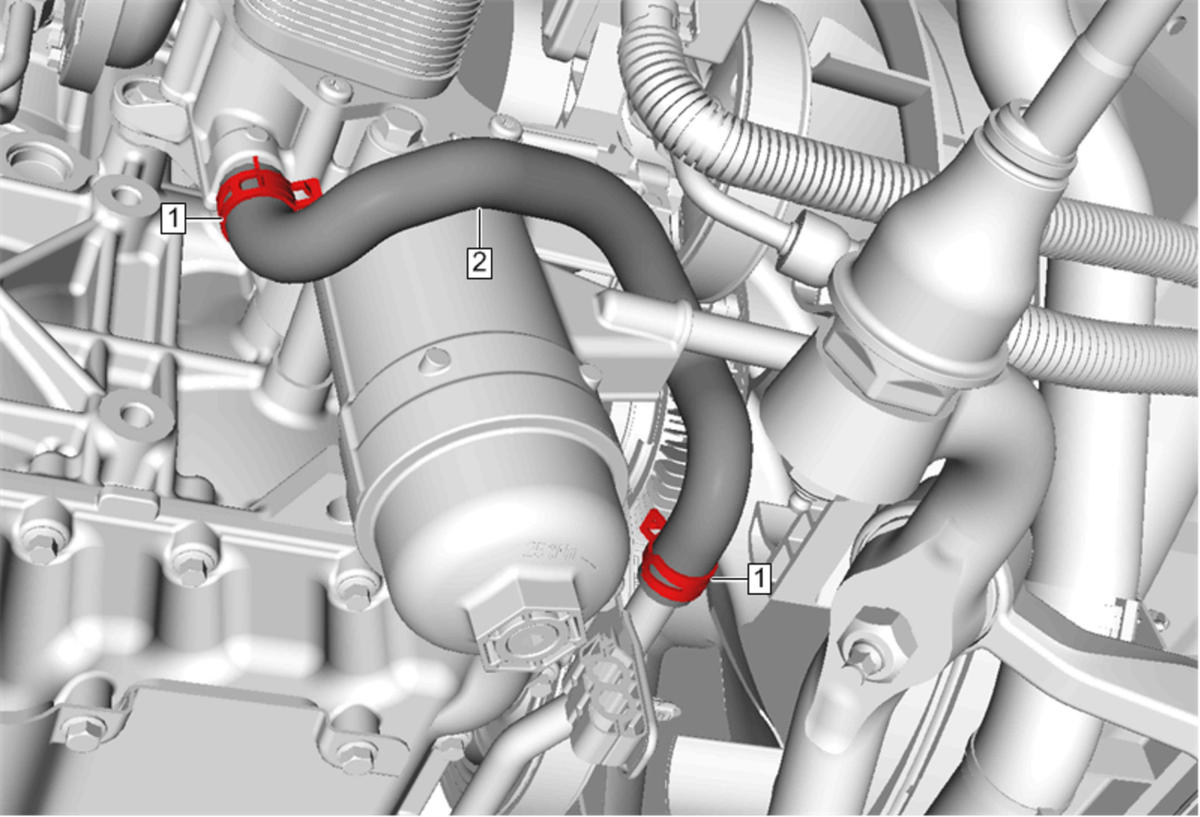

Engine Oil Cooler Inlet Hose(2) @ Engine Oil Cooler Pipe - Connect - Engine Oil Cooler Inlet Hose Replacement (LWN)

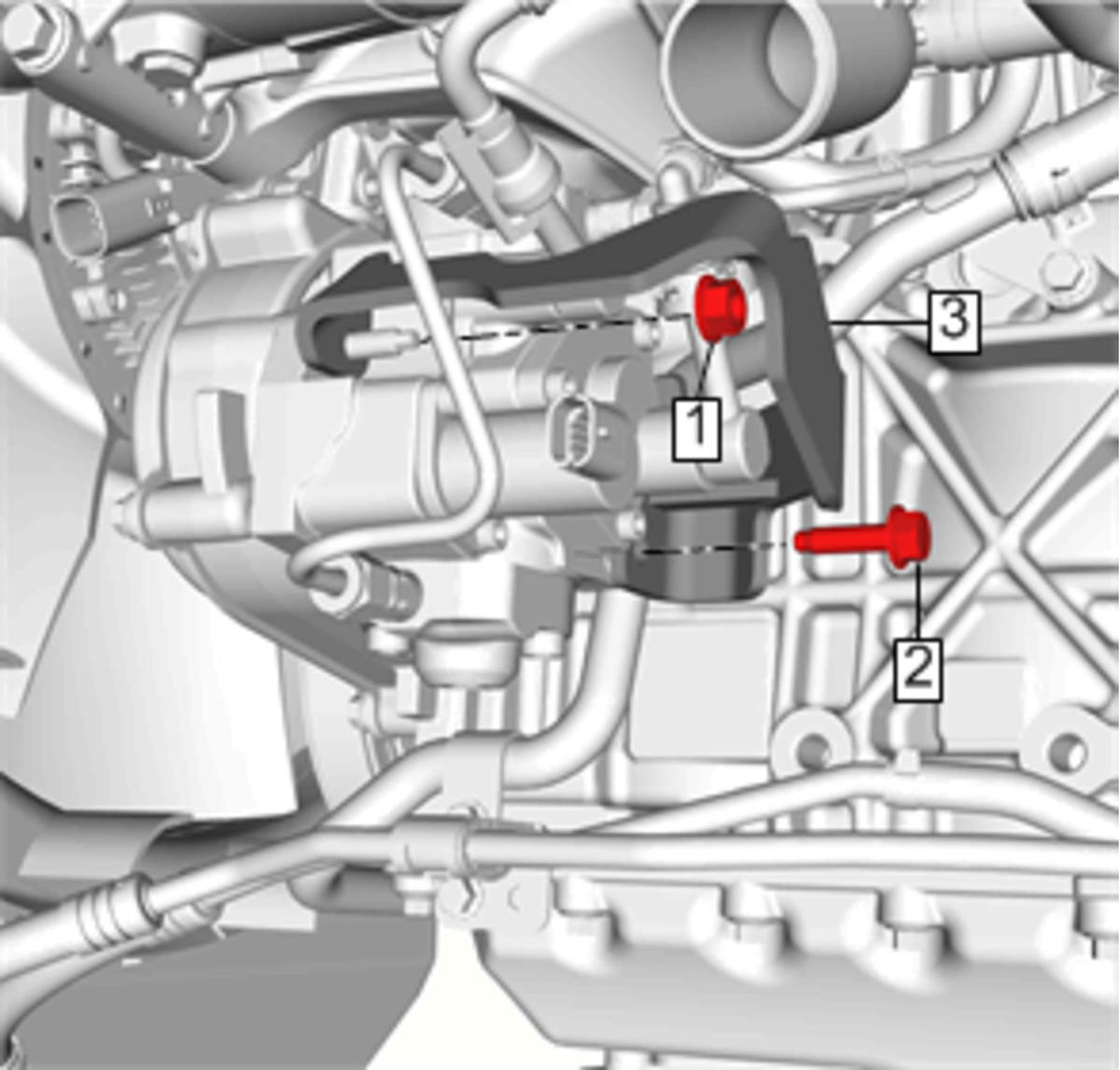

Fuel Feed Hose Protector (3) - Install
- Fuel Feed Hose Protector Bolt (2) - Install and tighten10 N.m (89 lb in)
- Fuel Feed Hose Protector Nut (1) - Install and tighten10 N.m (89 lb in)
- Engine Mount Bracket- Left Side - Install - Engine Mount Bracket Replacement - Left Side
- Engine Cover - Install - Engine Cover Replacement
- Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
CAUTION:
Refer to Fastener Caution .
