Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the coolant. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
- Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement
Radiator Air Upper Baffle(1) - Remove - Radiator Air Upper Baffle Replacement (LWN) , or Radiator Air Upper Baffle Replacement (LV1) , or Radiator Air Upper Baffle Replacement (L96, LC8)
Radiator Surge Tank(1) - Remove - Radiator Surge Tank Replacement (LWN)
- Charge Air Cooler Inlet Air Tube - Remove - Charge Air Cooler Inlet Air Tube Replacement
- Charge Air Cooler Outlet Air Hose - Remove - Charge Air Cooler Outlet Air Hose Replacement
- Battery Positive Cable @ Engine Coolant Fan Upper Shroud - Reposition - Battery Positive Cable Replacement (L96/LC8 with K4B) , or Battery Positive Cable Replacement (L96/LC8 without K4B) , or Battery Positive Cable Replacement (LWN) , or Battery Positive Cable Replacement (LV1 with K68 and K4B) , or Battery Positive Cable Replacement (LV1 with KG4/KW5 and K4B) , or Battery Positive Cable Replacement (LV1 with K68) , or Battery Positive Cable Replacement (LV1 with KG4/KW5)
- Air Conditioning Compressor Hose - Remove - Air Conditioning Compressor Hose Replacement (LWN) , or Air Conditioning Compressor Hose Replacement (L96, LC8, LV1)
- Transmission Fluid Cooler Pipe @ Radiator - Remove - Transmission Fluid Cooler Hose/Pipe Replacement (M5U) , or Transmission Fluid Cooler Hose/Pipe Replacement (MYD)
- Transmission Fluid Cooler Pipe @ Engine Coolant Fan Shroud - Remove - Transmission Fluid Cooler Hose/Pipe Replacement (M5U) , or Transmission Fluid Cooler Hose/Pipe Replacement (MYD)

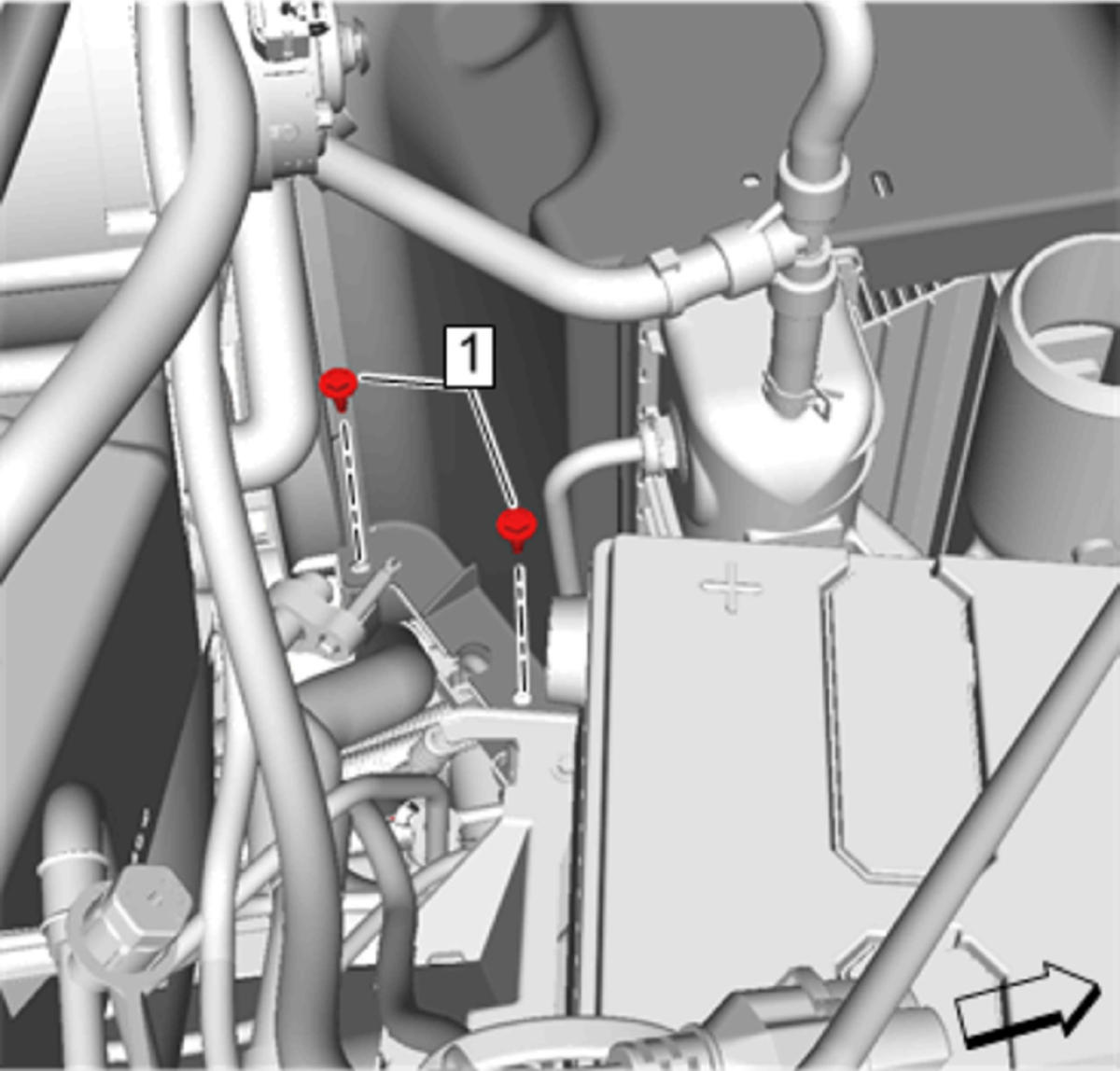

Engine Coolant Fan Shroud Bolt-Right Side(1) - Remove[2x]

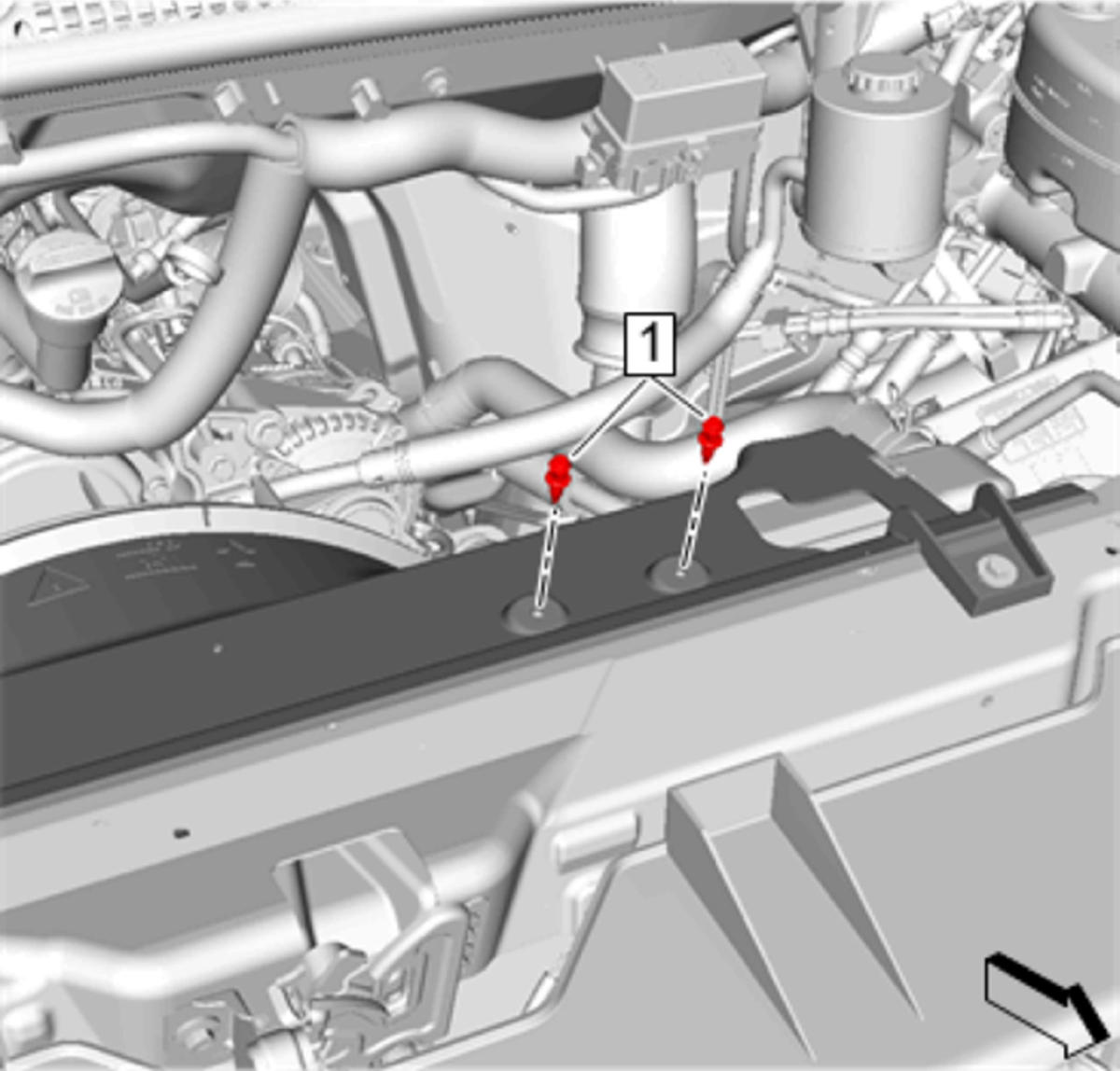

Engine Coolant Fan Shroud Bolt-Left Side(1) - Remove[2x]

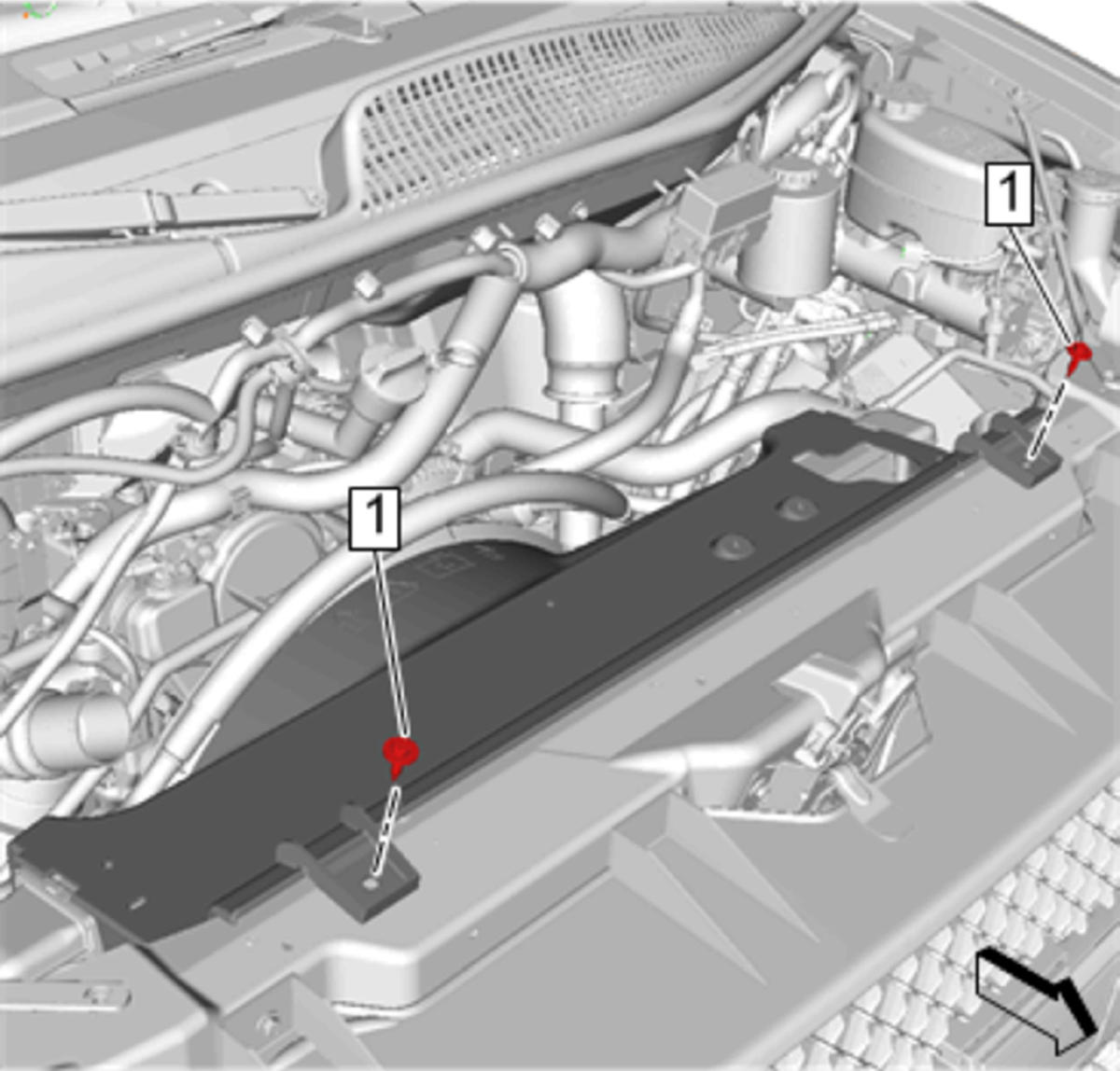

Engine Coolant Fan Shroud Retainer(1) - Remove[2x]

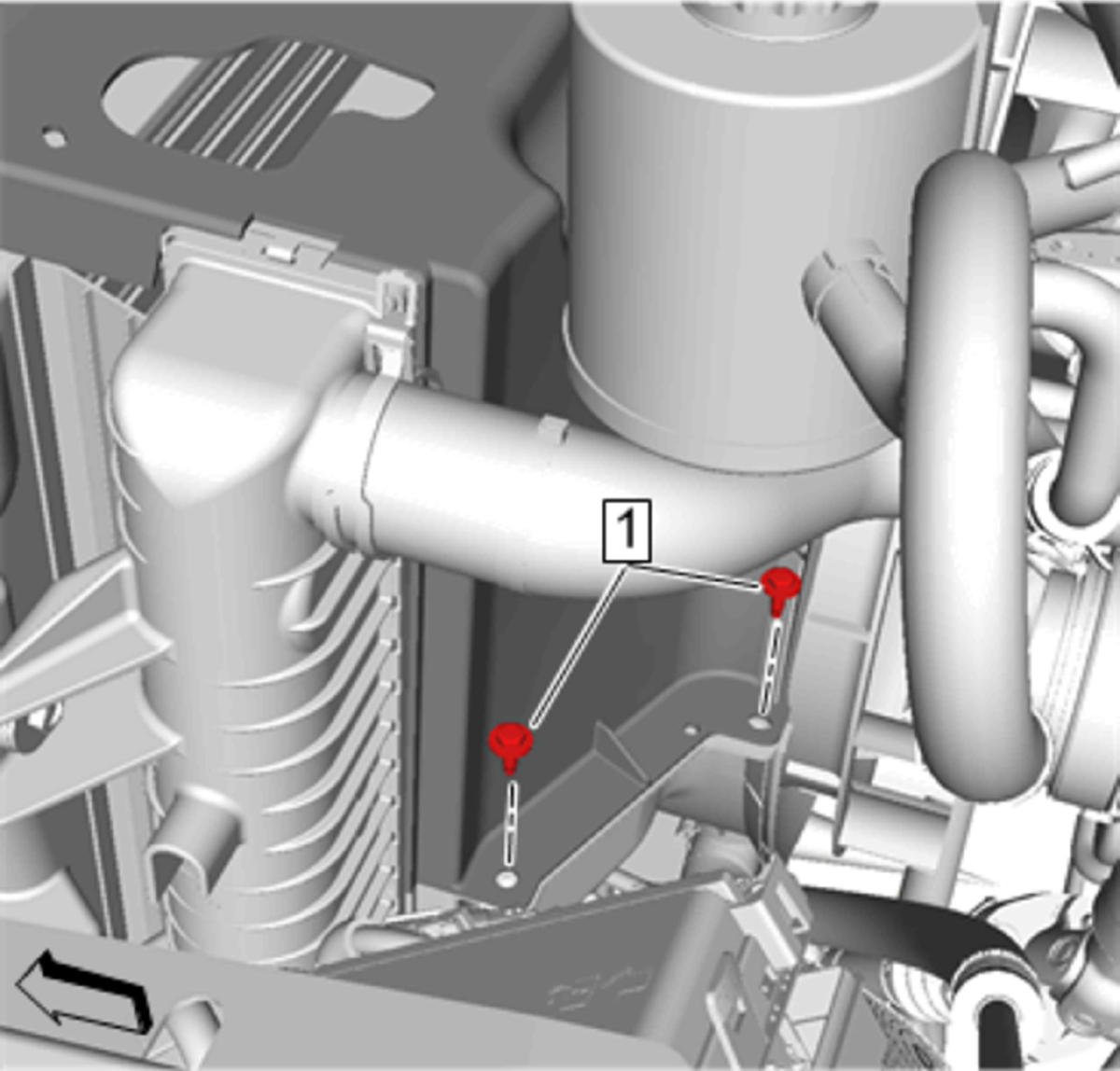

Engine Coolant Fan Shroud Bolt(1) - Remove[2x]
Engine Coolant Fan Upper Shroud(1) - Remove
