Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Drain the coolant. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

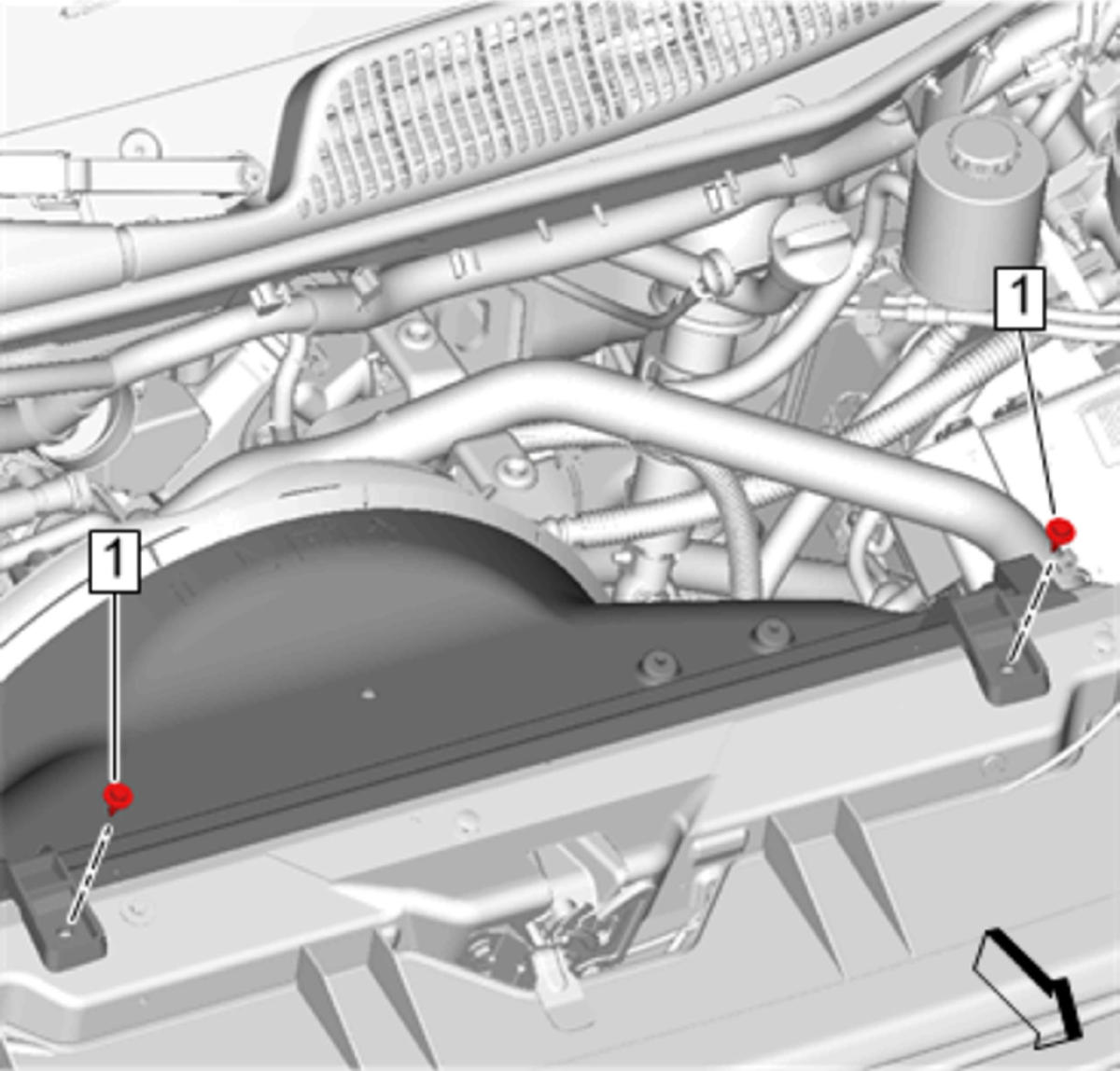

Radiator Air Upper Baffle(1) - Remove - Radiator Air Upper Baffle Replacement (LWN) , or Radiator Air Upper Baffle Replacement (LV1) , or Radiator Air Upper Baffle Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

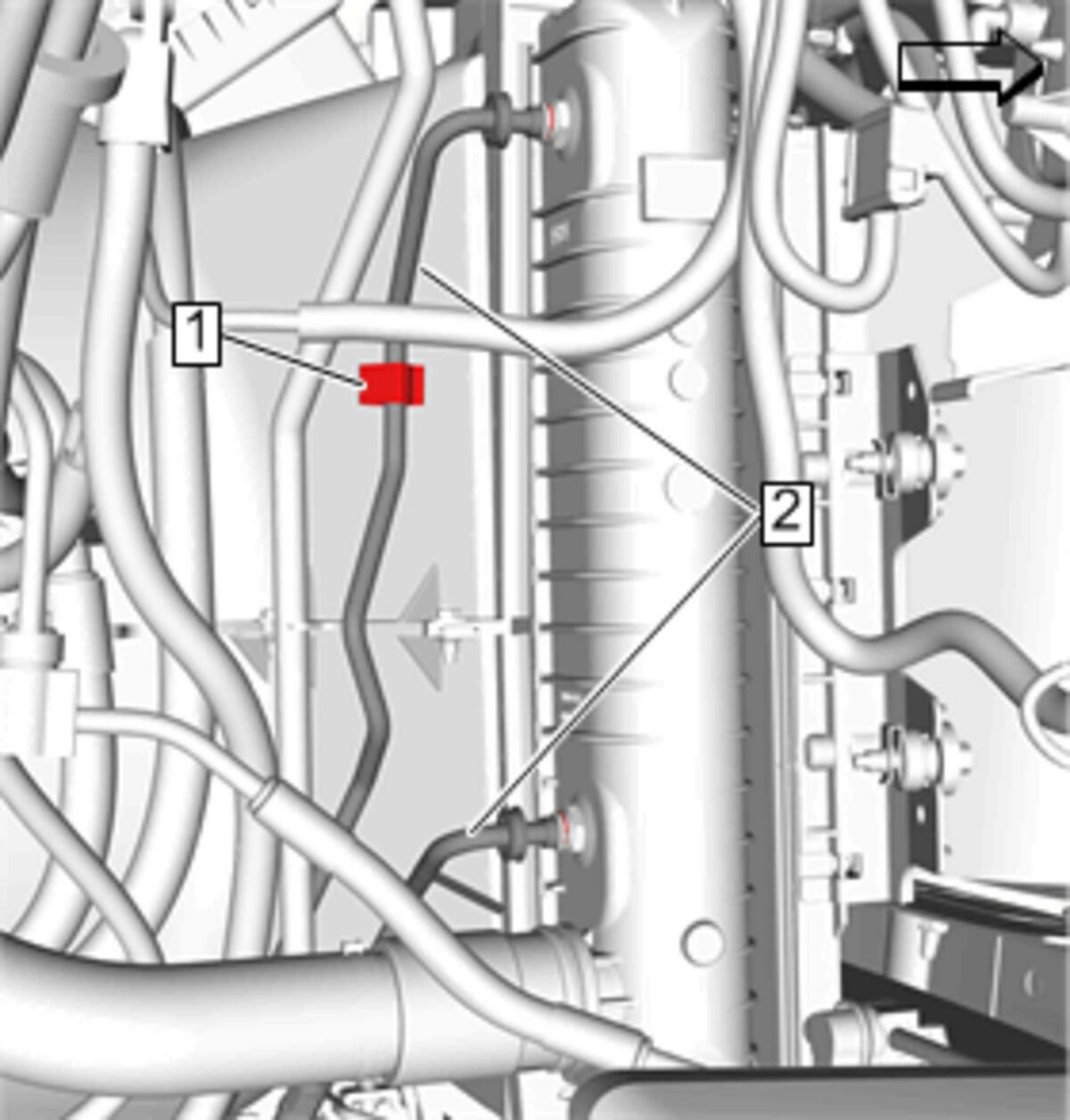

Coolant Recovery Reservoir Overflow Hose(1) @ Engine Coolant Fan Upper Shroud - Remove - Coolant Recovery Reservoir Overflow Hose Replacement (L96, LC8, LV1)
Courtesy of GENERAL MOTORS COMPANY

Coolant Recovery Reservoir(1) - Remove - Coolant Recovery Reservoir Replacement (LV1) , or Coolant Recovery Reservoir Replacement (L96, LC8)
Battery Positive Cable @ Engine Coolant Fan Upper Shroud - Reposition - Battery Positive Cable Replacement (L96/LC8 with K4B) , or Battery Positive Cable Replacement (L96/LC8 without K4B) , or Battery Positive Cable Replacement (LWN) , or Battery Positive Cable Replacement (LV1 with K68 and K4B) , or Battery Positive Cable Replacement (LV1 with KG4/KW5 and K4B) , or Battery Positive Cable Replacement (LV1 with K68) , or Battery Positive Cable Replacement (LV1 with KG4/KW5)
Air Conditioning Condenser Hose - Remove - Air Conditioning Condenser Hose Replacement (LV1)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Inlet and Outlet Pipe(2) @ Radiator - Remove - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (M5U)
Transmission Fluid Cooler Inlet and Outlet Pipe @ Engine Coolant Fan Upper Shroud - Remove
Engine Oil Cooler Pipe @ Radiator - Remove - Engine Oil Cooler Pipe Replacement (LWN) , or Engine Oil Cooler Pipe Replacement (LV1)
Engine Oil Cooler Pipe @ Engine Coolant Fan Upper Shroud - Remove
Courtesy of GENERAL MOTORS COMPANY

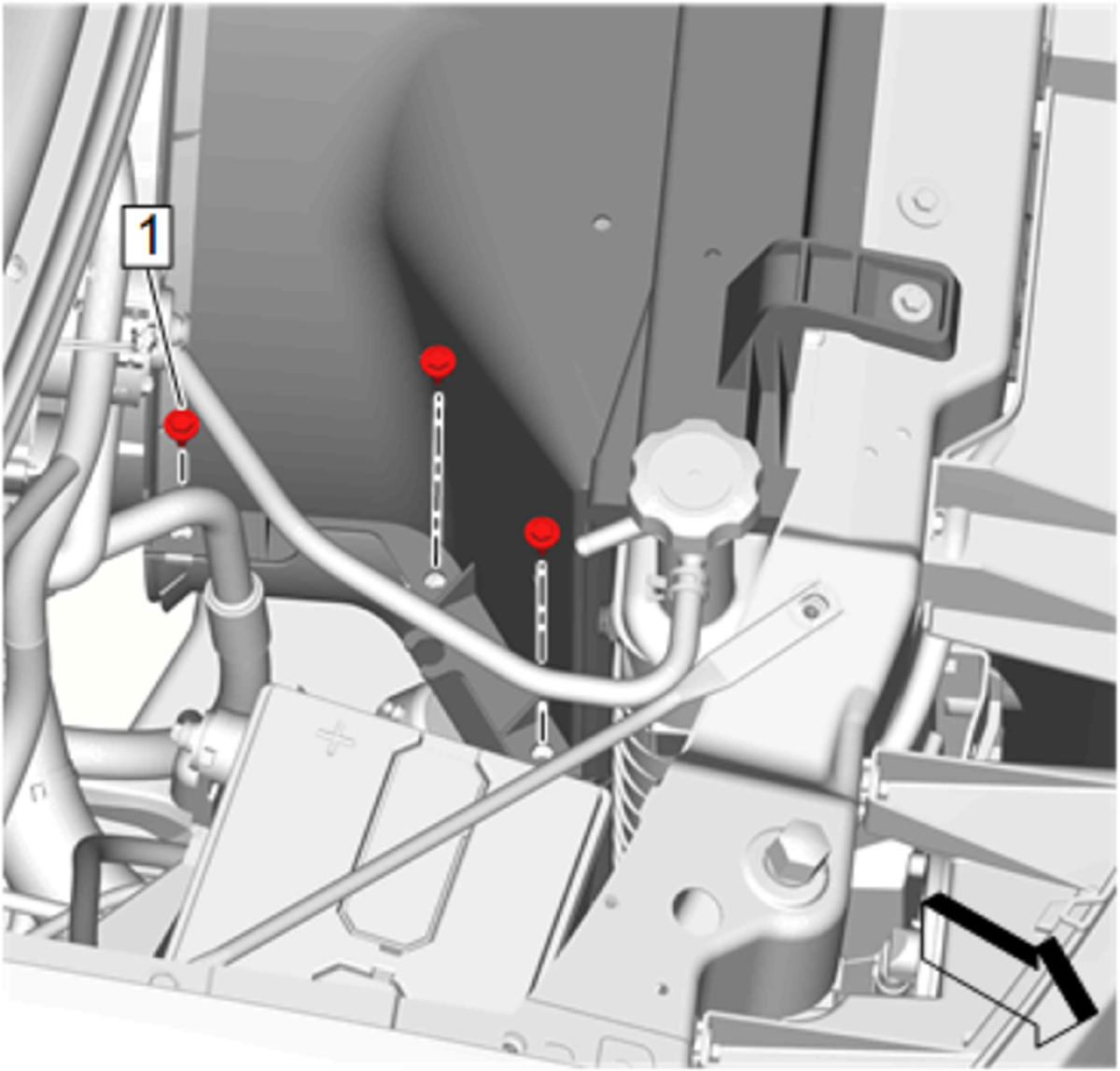

Engine Coolant Fan Shroud Bolt-Right Side(1) - Remove[3x]
Courtesy of GENERAL MOTORS COMPANY

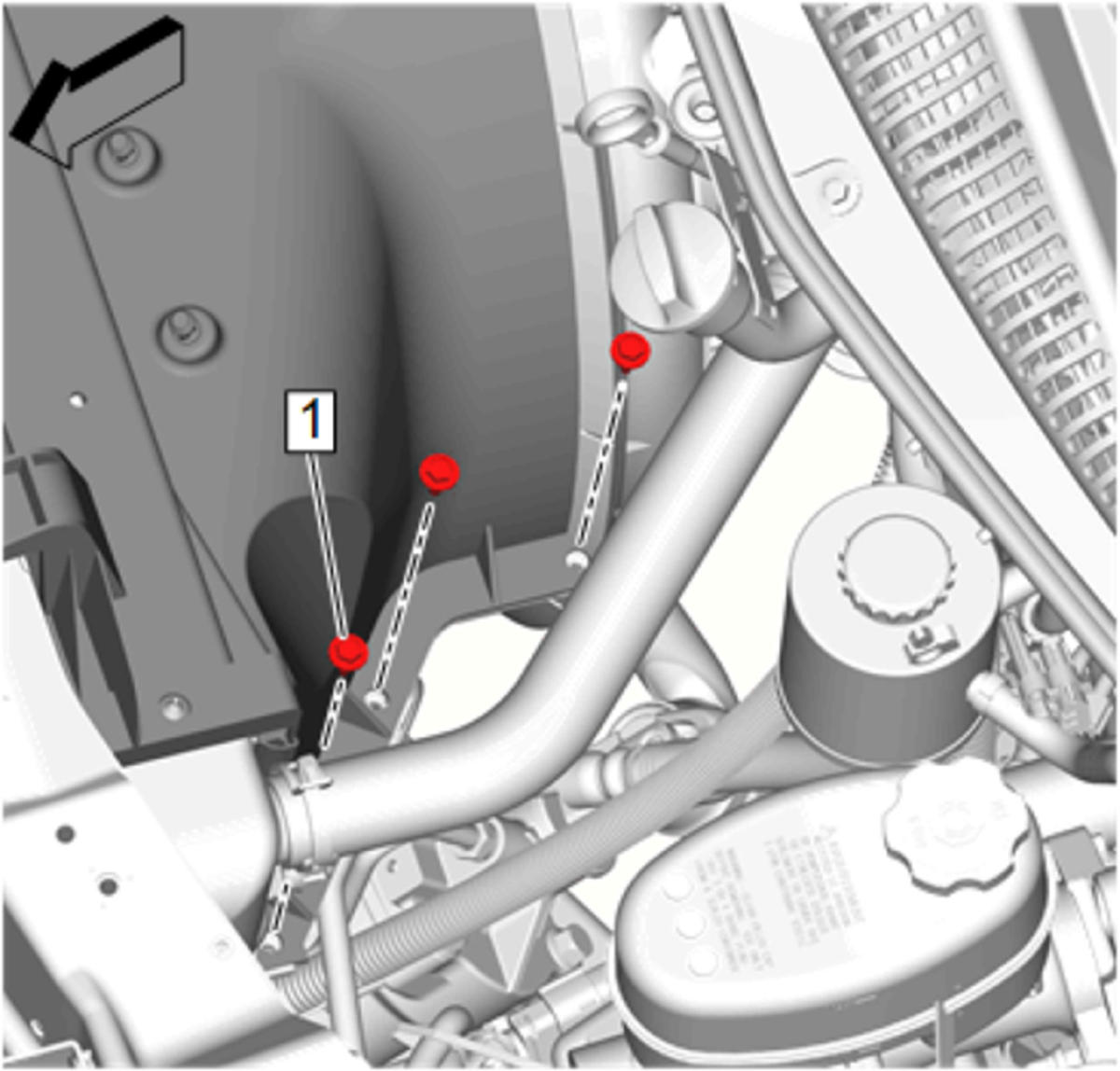

Engine Coolant Fan Shroud Bolt-Left Side(1) - Remove[3x]
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Shroud Bolt-- Upper(1) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Upper Shroud(1) - Remove
