Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

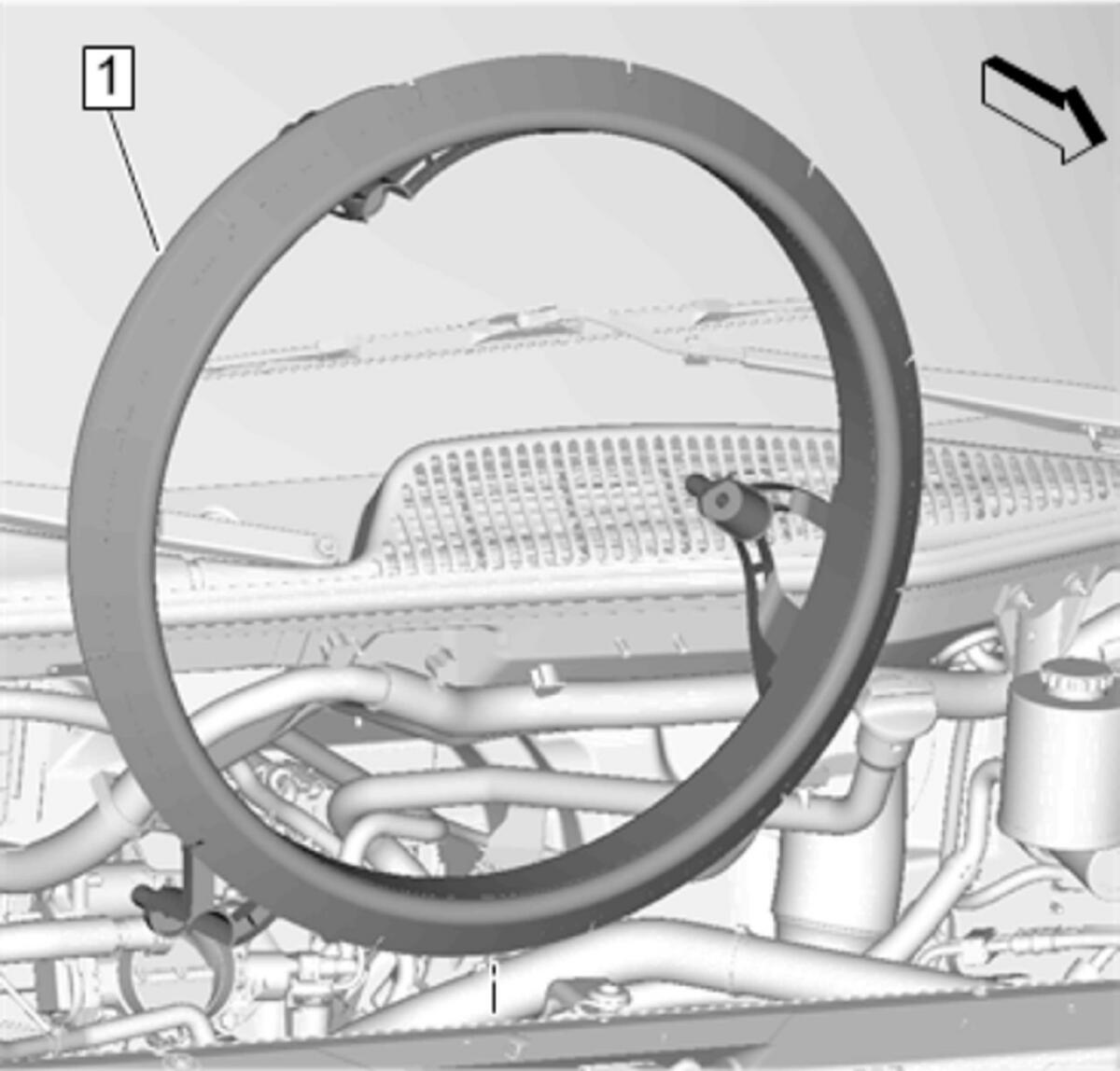

Engine Coolant Fan Rear Shroud - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

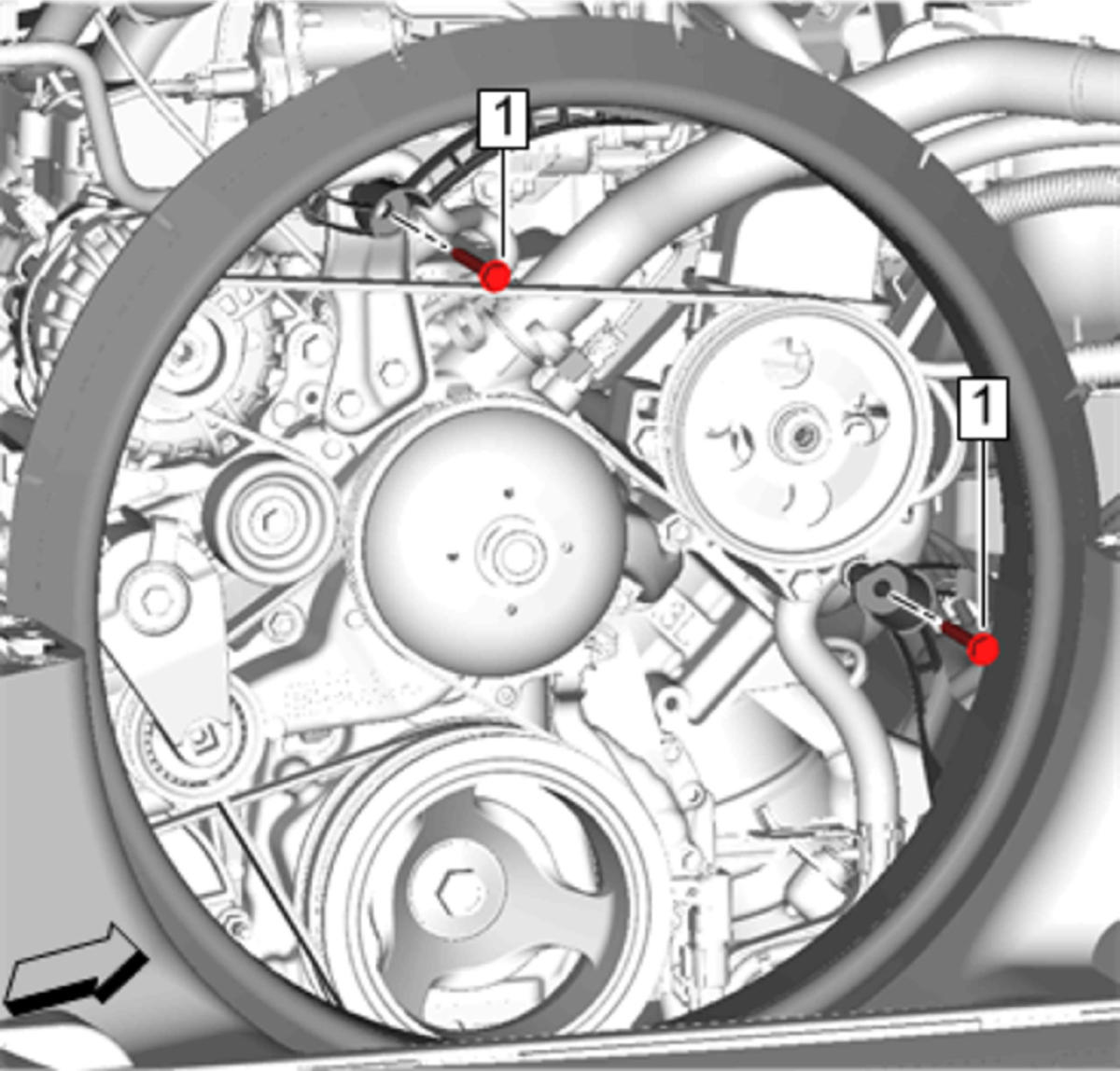

Engine Coolant Fan Rear Shroud Bolt(1) - Install and tighten[2x]22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Fan Blade And Fan Blade Clutch (1) - Install - Fan Blade Clutch Replacement (LWN) , or Fan Blade Clutch Replacement (LV1) , or Fan Blade Clutch Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Upper Shroud(1) - Install - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Rear Shroud Bolt(1) - Install and tighten22 N.m (16 lb ft)
Engine Protection Shield - Install - Engine Protection Shield Replacement
Lower the vehicle.
