Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

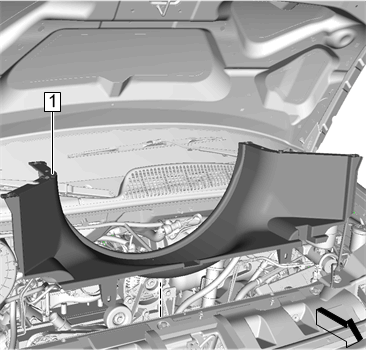

Engine Coolant Fan Upper Shroud(1) - Remove - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Fan Blade And Fan Blade Clutch (1) - Remove - Fan Blade Clutch Replacement (LWN) , or Fan Blade Clutch Replacement (LV1) , or Fan Blade Clutch Replacement (L96, LC8)
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Engine Protection Shield - Remove - Engine Protection Shield Replacement

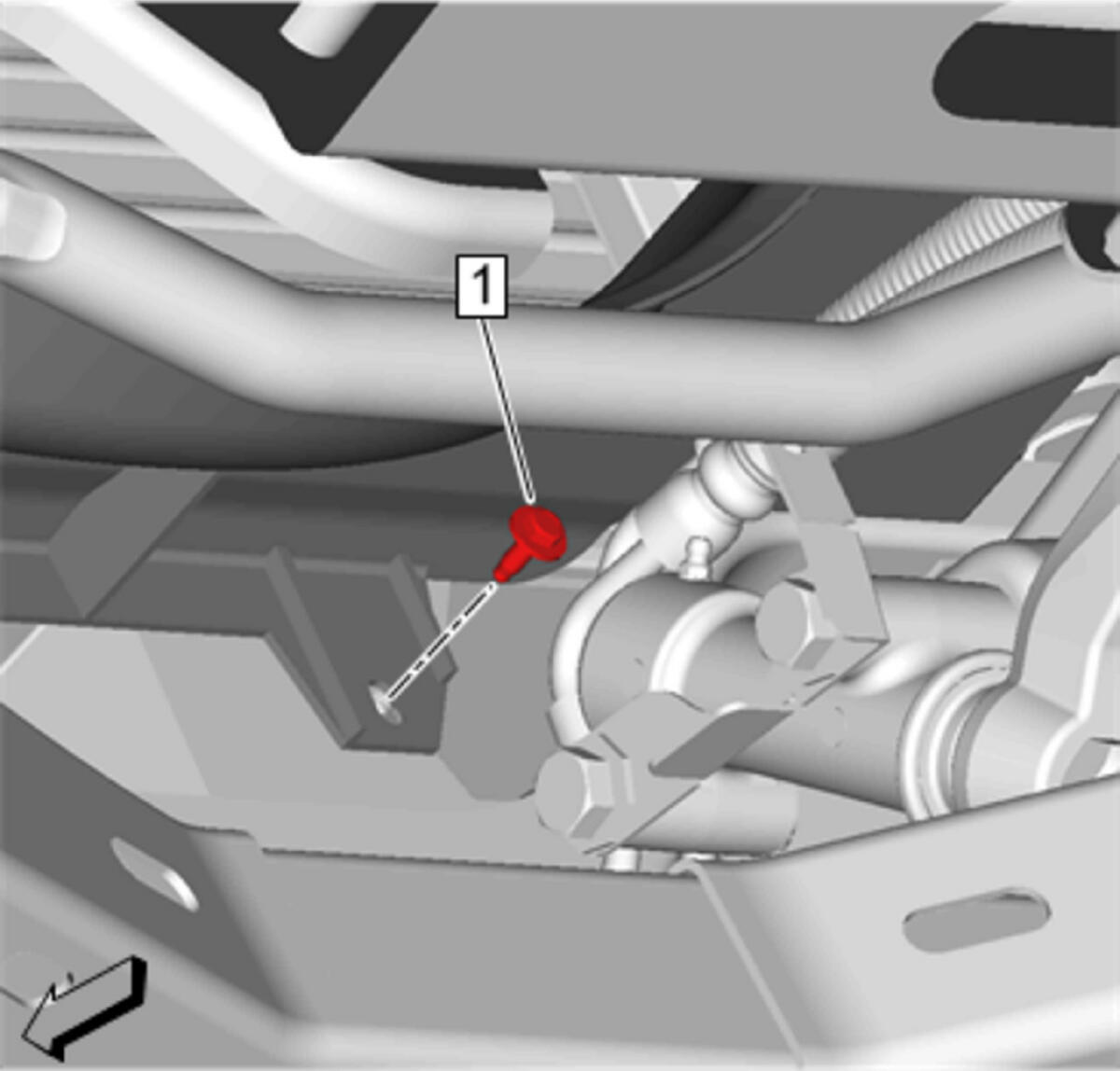

Engine Coolant Fan Lower Shroud Bolt-Right Side(1) - Remove

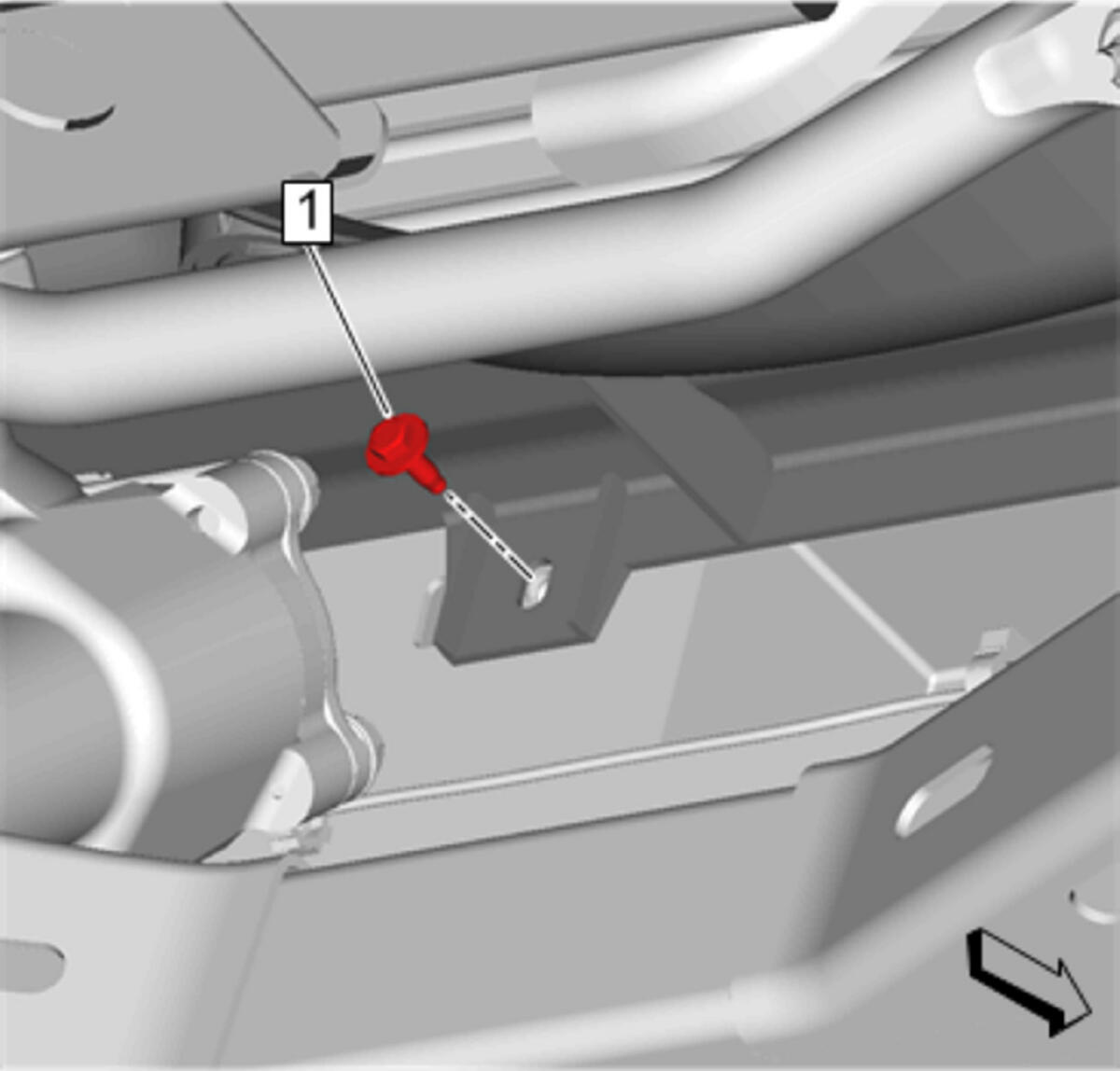

Engine Coolant Fan Lower Shroud Bolt-Left Side(1) - Remove
- Lower the vehicle.
Engine Coolant Fan Lower Shroud(1) - Remove
