Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement

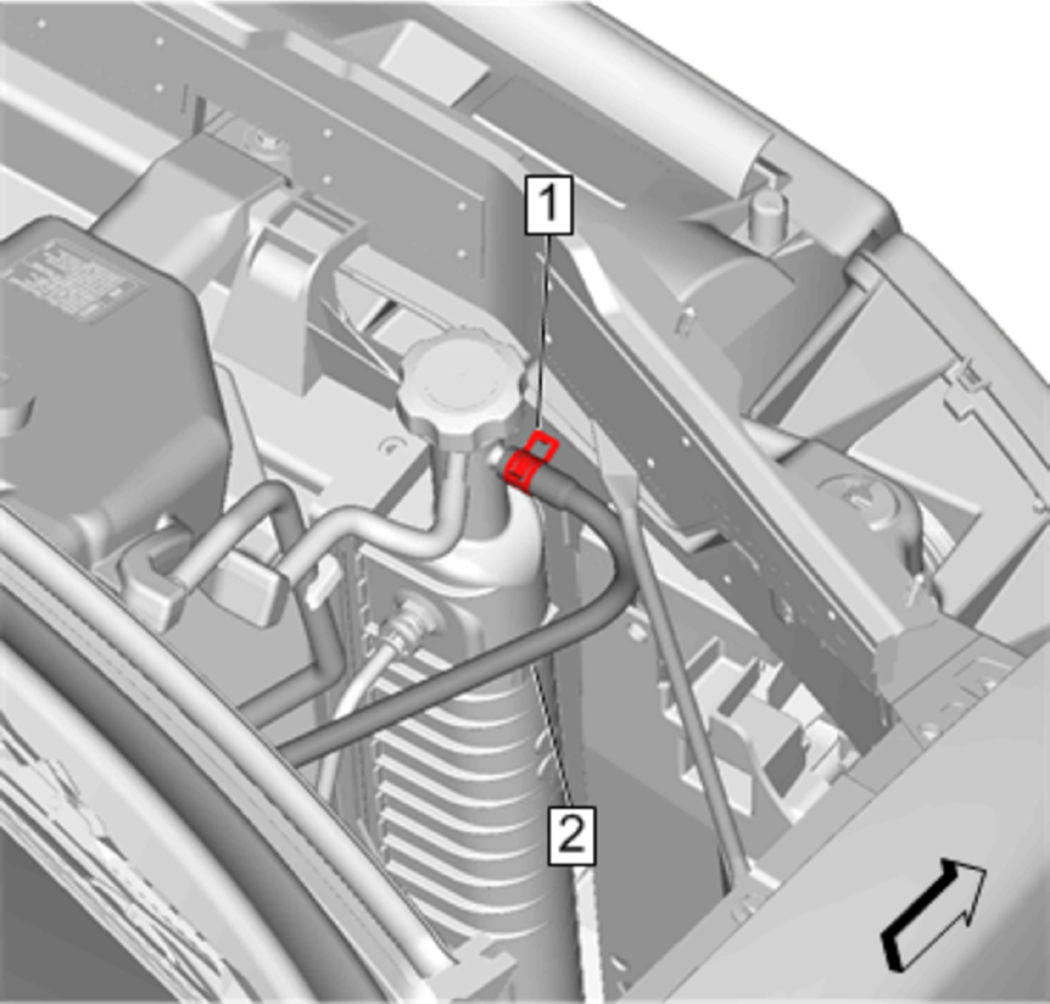

Engine Coolant Air Bleed Hose Clamp(1) @ Radiator - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Engine Coolant Air Bleed Hose(2) @ Radiator - Remove

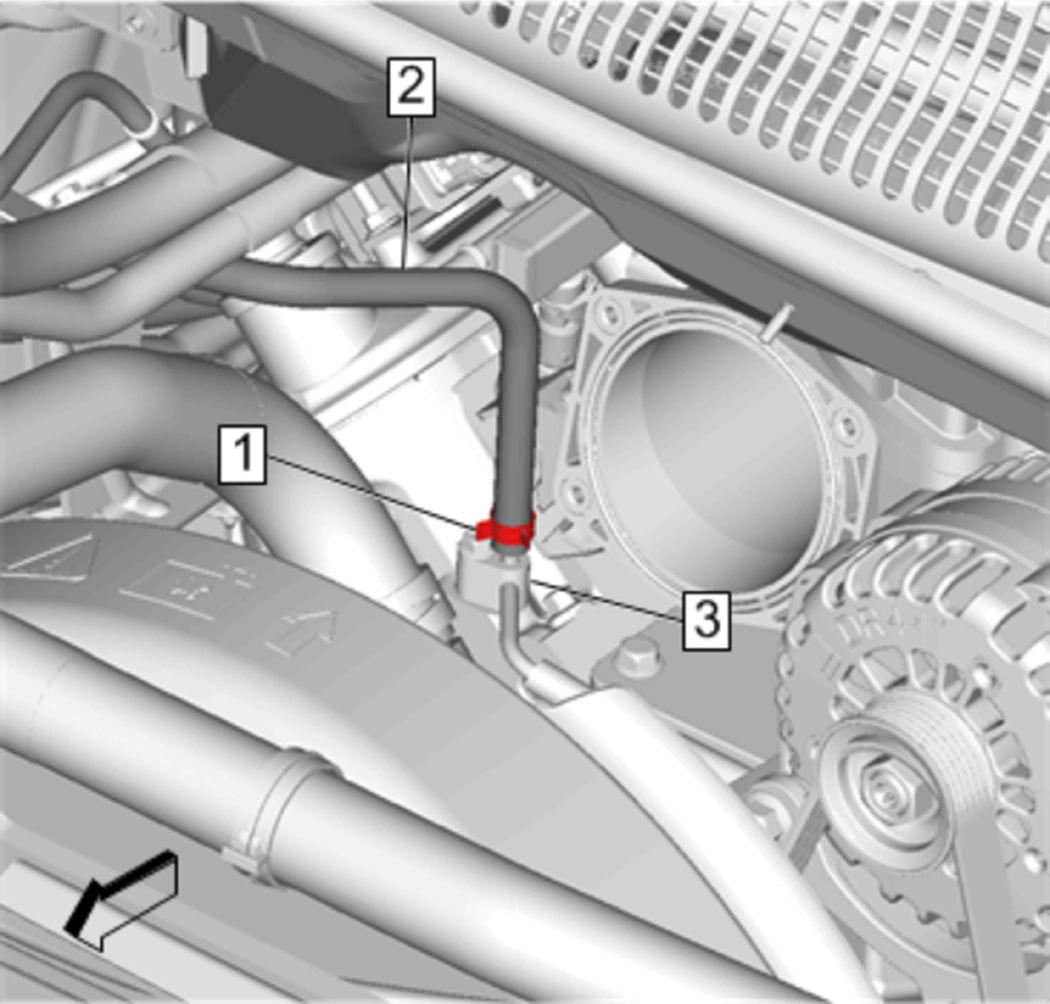

- NOTE:
The throttle body is removed for illustration purposes only.
Engine Coolant Air Bleed Hose Clamp(1) @ Engine Coolant Air Bleed Pipe(3) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Engine Coolant Air Bleed Hose(2) @ Engine Coolant Air Bleed Pipe(3) - Remove
- Engine Coolant Air Bleed Hose - Remove
