Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seal to the lock cylinder (2).

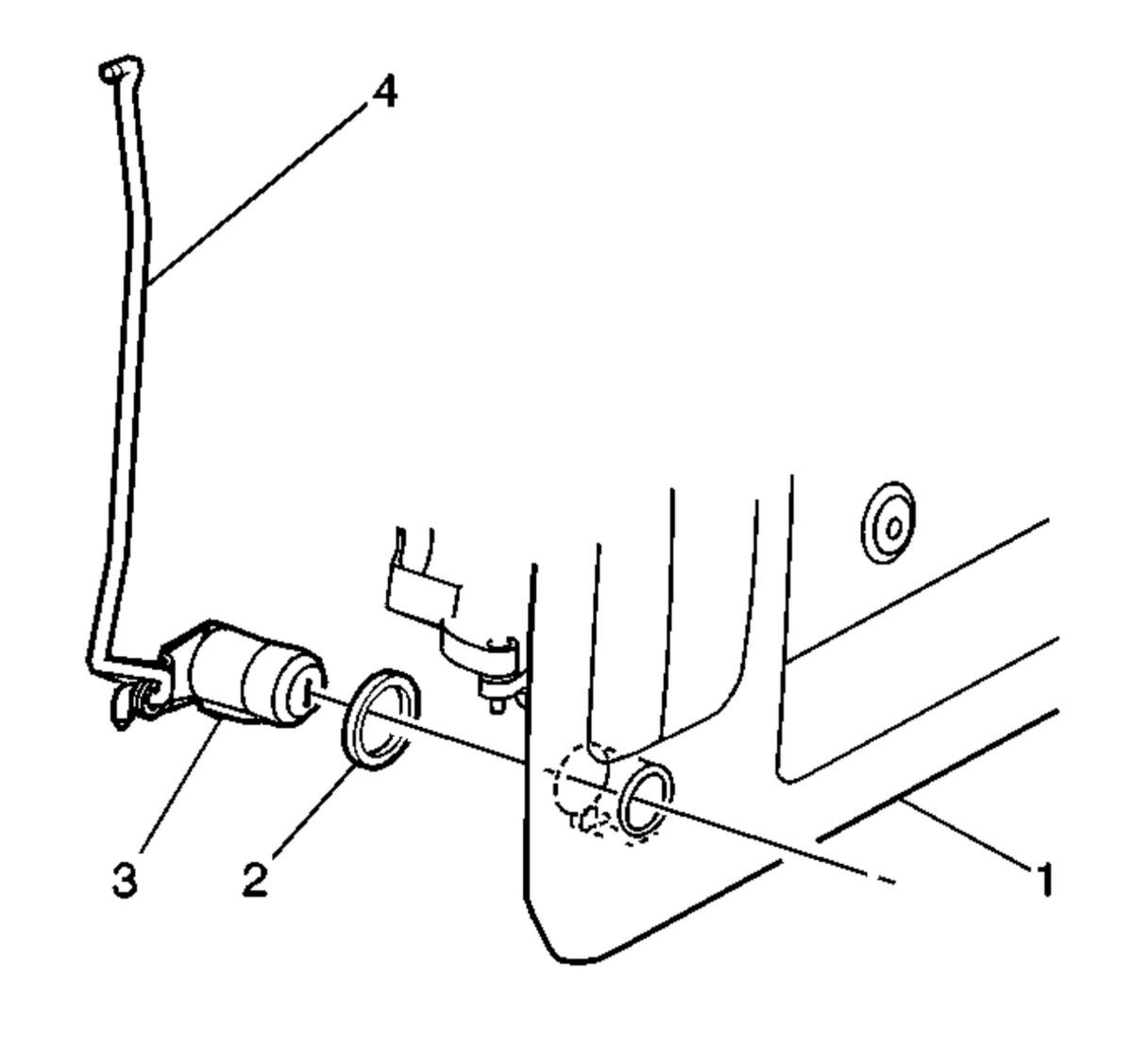

  2. GM334079Courtesy of GENERAL MOTORS COMPANY

    Install the lock cylinder (3) to the vehicle.

  3. Press the lock cylinder (3) into the handle in order to engage the lock cylinder retainer.
  4. Install the clip in order to retain the lock cylinder lever (4) to the lock cylinder (3).
  5. Install the rear door outside handle and license pocket (1). Refer to Rear Door Outside Handle and License Pocket Replacement .
  6. Install the rear door trim panel, right side. Refer to Rear Door Trim Panel Replacement - Right Side (E24) .
