Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

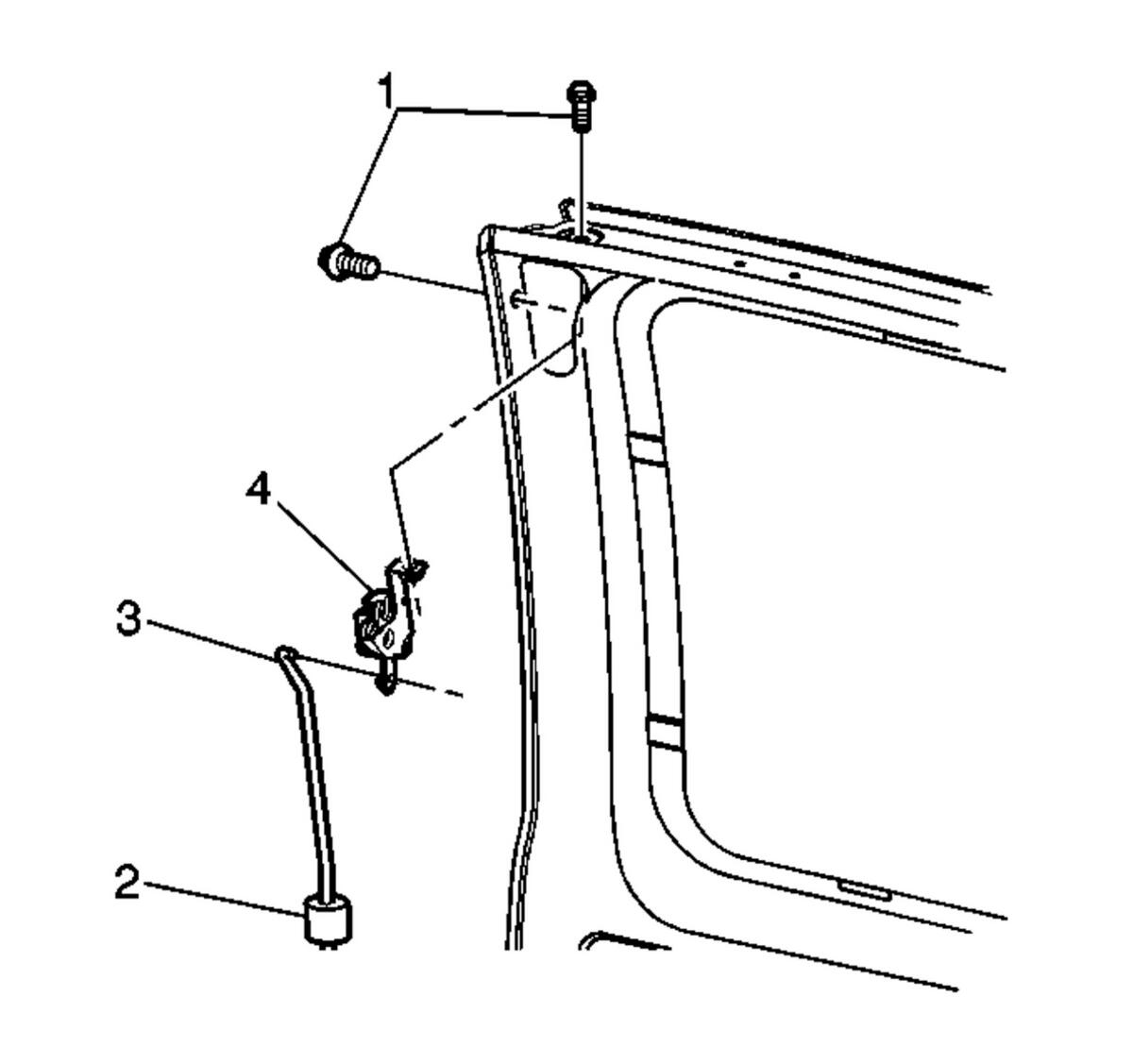

Install the left side rear door upper latch (4) to the door.
- Install the 2 bolts (1) in order to retain the left side rear door upper latch (4) to the door and tighten to 25 N.m (18 lb ft).
- Install the lock rod (3) and bumper (2) to the left side rear door upper latch (4).
- Install the left side rear door trim panel. Rear Door Trim Panel Replacement - Left Side (E24)
CAUTION:
Refer to Fastener Caution .
