Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

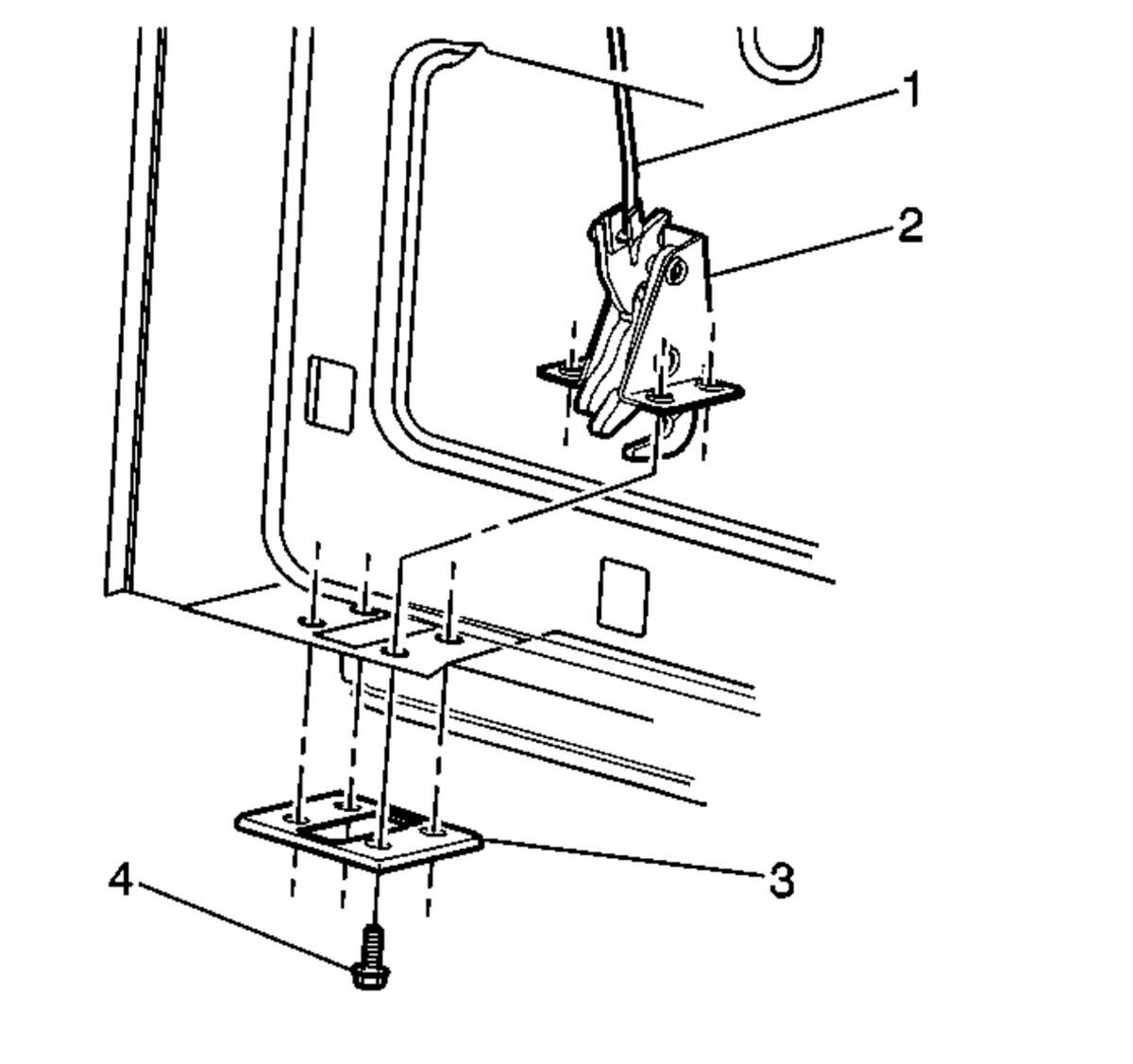

  1. GM334093Courtesy of GENERAL MOTORS COMPANY

    Remove the rear door trim panel - left side. Rear Door Trim Panel Replacement - Left Side (E24)

  2. Remove the lock rod (1) from the left side rear door lower latch (2).
  3. Remove the 4 bolts (4) and rear side door inner panel latch reinforcement (3) that retains the left side rear door lower latch (2) to the door.
  4. Remove the left side rear door lower latch (2) from the door.
