Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

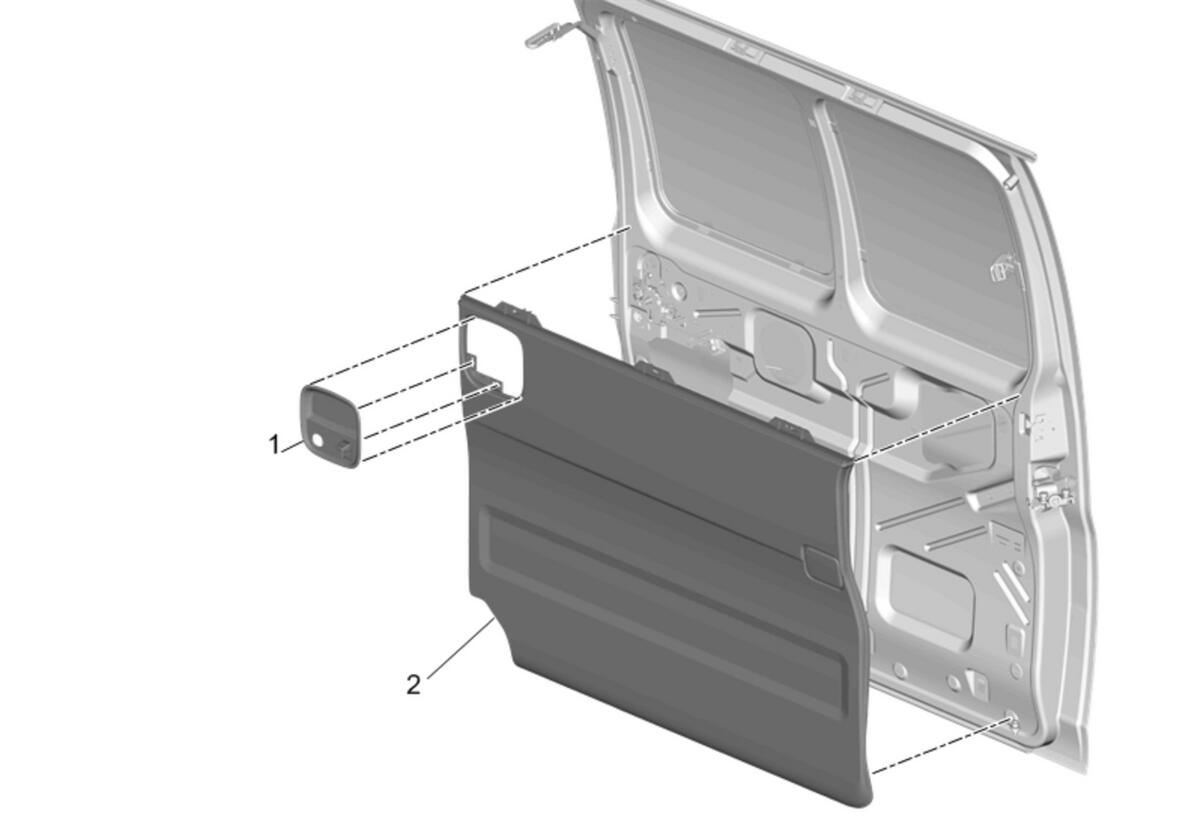

  1. GM4866340Courtesy of GENERAL MOTORS COMPANY

    Sliding Rear Side Door Trim Panel(2) - Remove - Sliding Rear Side Door Trim Panel Replacement

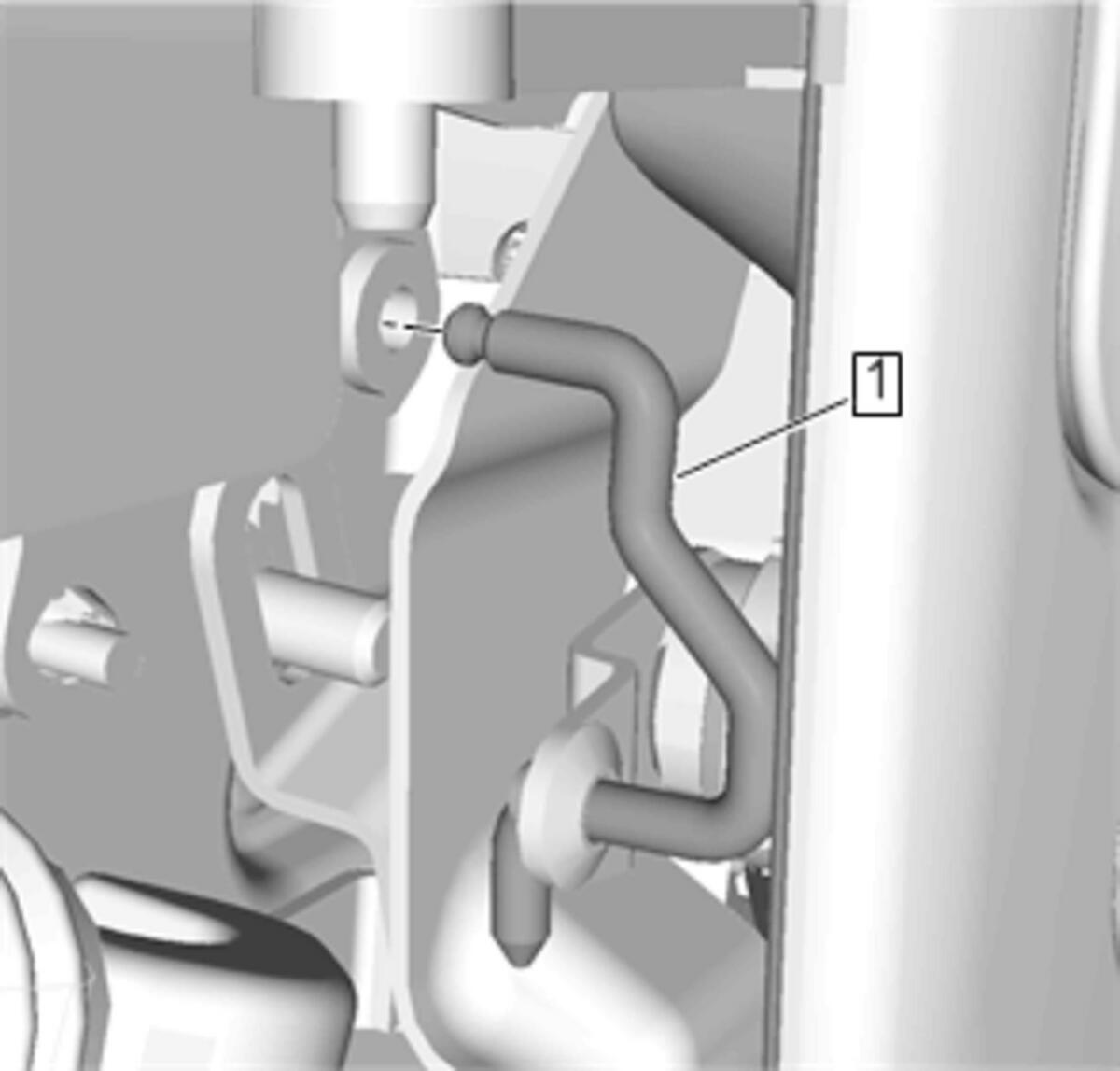

  2. GM4867308Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Lock Cylinder Rod(1) - Remove

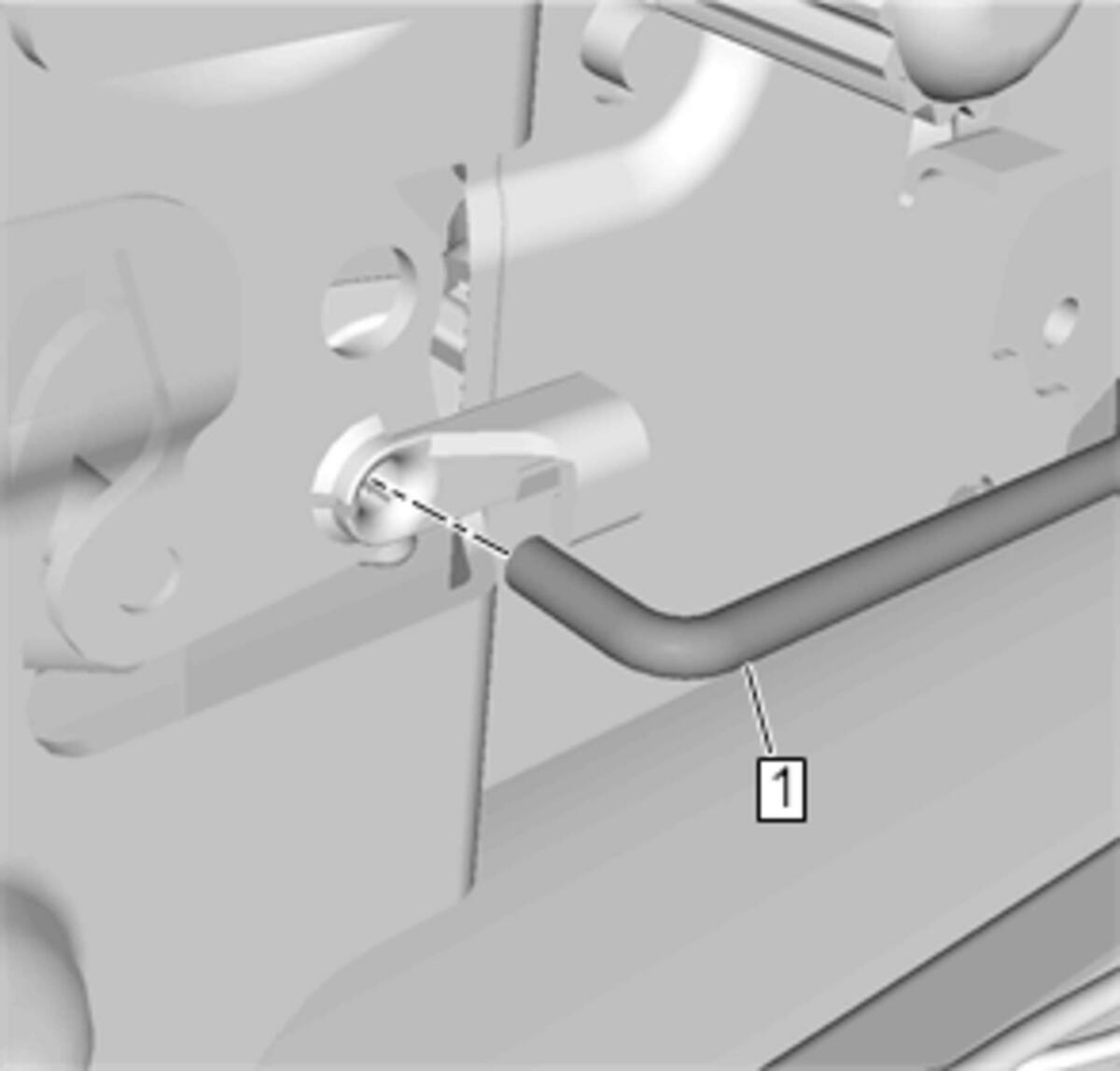

  3. GM4867309Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Latch Rod (1) - Remove

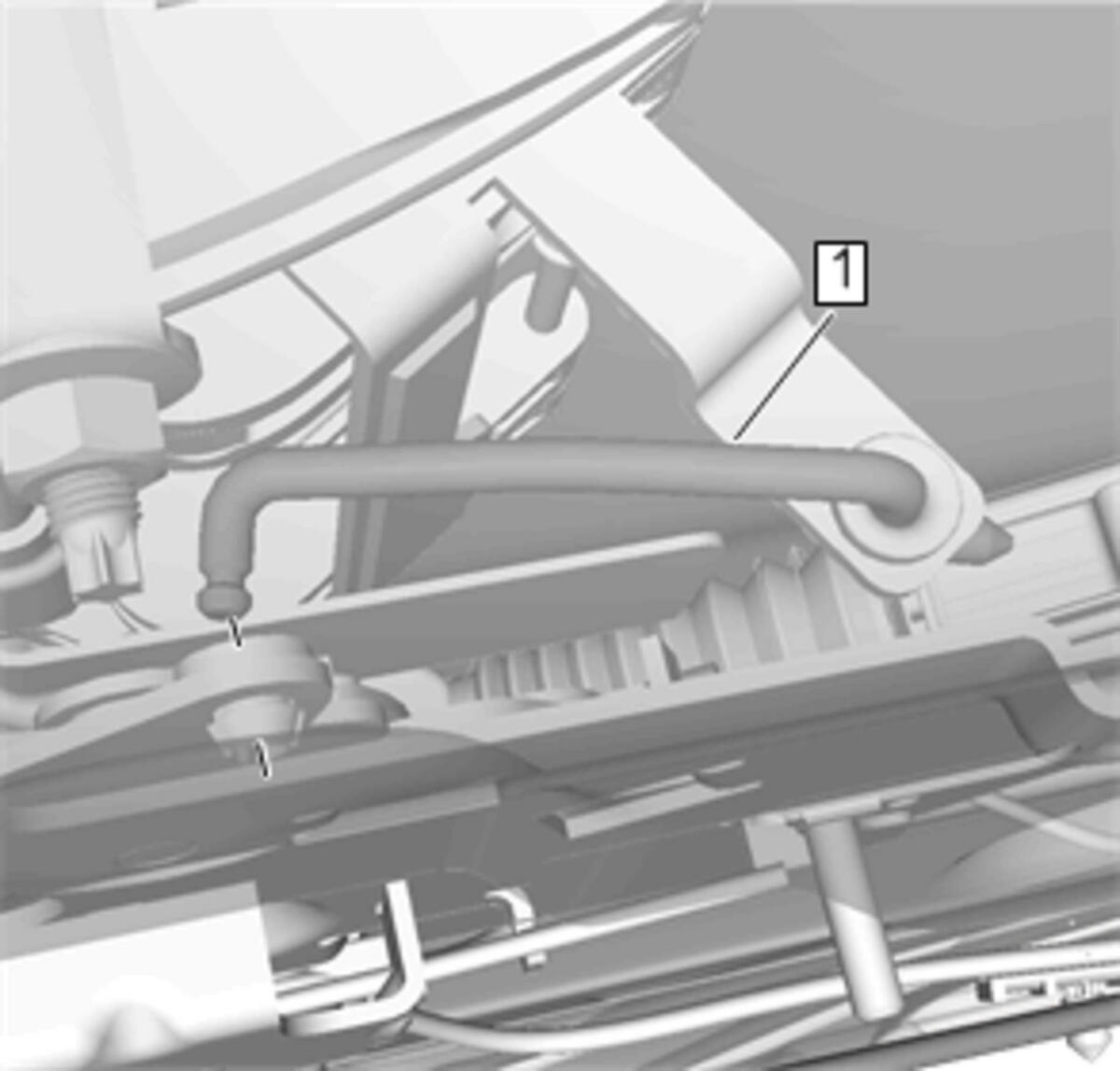

  4. GM4867311Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Outside Handle Rod(1) - Remove

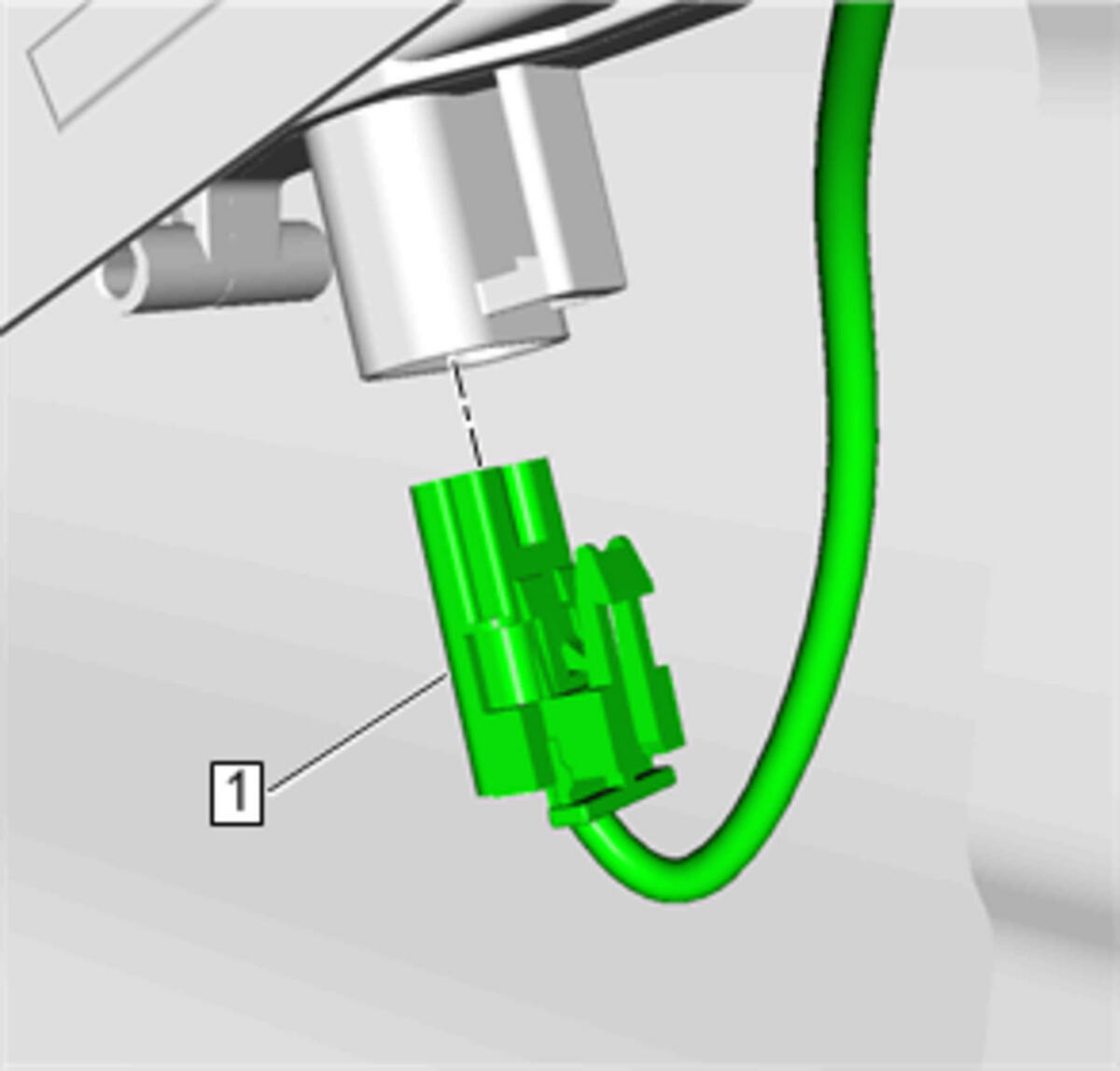

  5. GM4867304Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.(1) - Remove

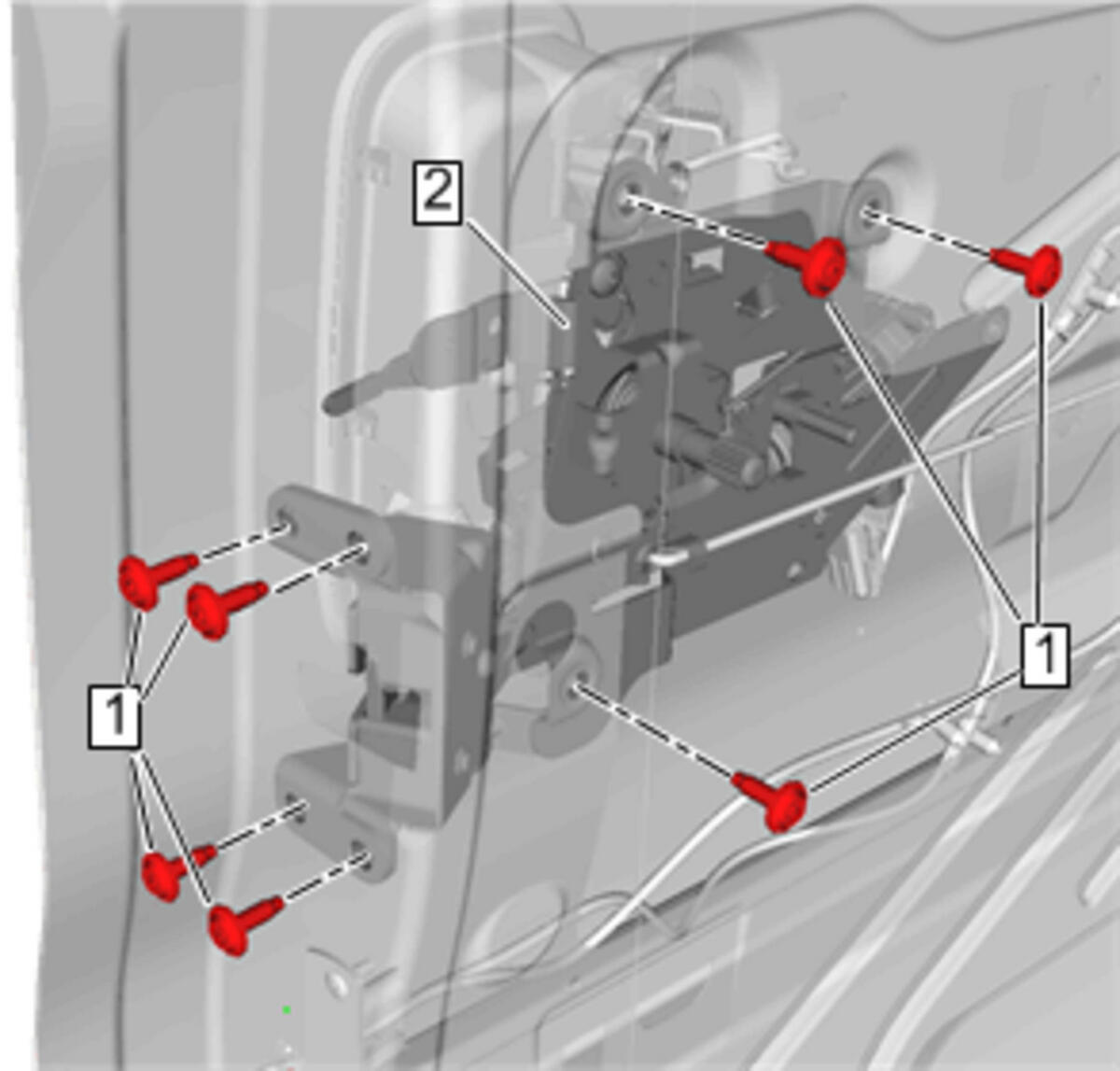

  6. GM4867307Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Latch Bolt(1) - Remove[7x]

  7. Door Control (2) - Remove
